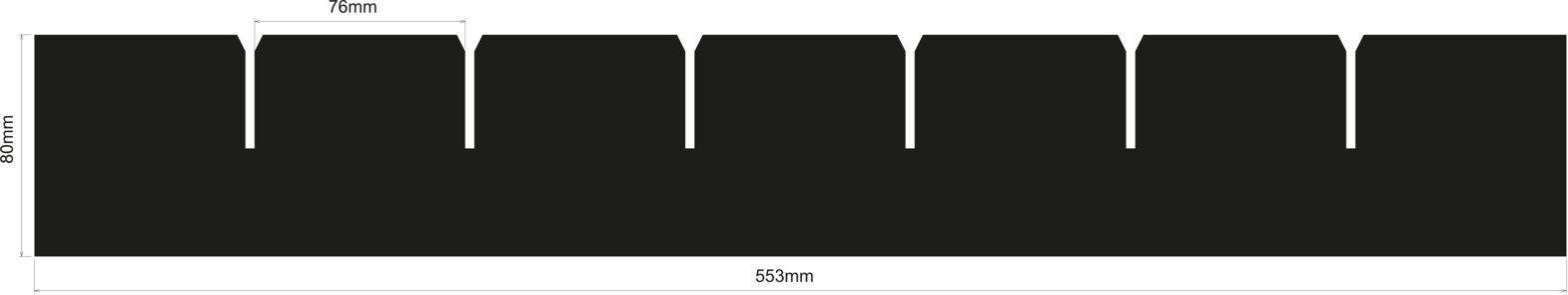

The image shows a black bar with even notches or recesses on the upper edge. Below the bar, the words "Measuring" and "Sketching" are placed.
PS Partition length 553 mm / height 80 mm / grid 76 mm ESD
(Product No.: 050.341.080.76)
The image shows a black bar with even notches or recesses on the upper edge. Below the bar, the words "Measuring" and "Sketching" are placed.
Notice

PS Partition length 553 mm / height 80 mm / grid 76 mm ESD

PS Partition length 553 mm / height 80 mm / grid 76 mm ESD

dpvlink:
14994
Manufacturer:
Compartments:
7
Grid spacing [mm]:
76 mm
Slots:
6
External support:
no
Properties:
Note:
Other heights from 30-600 mm with cut-outs customizable
Further product information
Printing Interlayers / Parting Inserts
Configure now
Parting Inserts
Configure now


Minimum order:
4 PCE
chevron-down
Delivery time! Delivery time!
2,16 EUR

excl. 19% tax

4 PCE
Compare Compare
Notice
Product Info

PS Partition length 553 mm / height 80 mm / grid 76 mm ESD

The PS partition wall from EPAstore, produced by DPV, offers an efficient solution for subdividing Euro containers of size 600 x 400 mm. With a length of 553 mm, a height of 80 mm, and a material thickness of 1.85 mm, this partition wall is specifically designed for technical requirements. It features 7 grids each measuring 76 mm, separated by 6 slots, allowing for flexible compartmentalization of the container's interior.
The material is made of black solid polystyrene, which is not only robust but also electrostatically conductive, according to standard DIN EN 61340-5-1. These properties make the partition wall particularly suitable for use in areas where electrostatic discharge poses a risk. With a volume and surface resistance of 10^6 Ω each, and a weight of 2090 g/m², it provides a reliable and durable solution for the storage and transport of sensitive goods.
Compartments
Compartments
7
Grid spacing [mm]
Grid spacing
76 mm
Slots
Slots
6
External support
External support
no
Color
Color
black
Height [mm]
Height
80 mm
Length
Length
553 mm
Thickness
Thickness
1.85 mm
Conductivity
Conductivity
volume conductive
Surface resistance Rs
Surface resistance Rs
106 Ω
Volume resistance
Volume resistance
106 Ω
Material
Material
polystyrene
Material structure
Material structure
solid material
Suitable for containers
Suitable for containers
600x400 mm
Weight [g/m²]
Weight [g/m²]
2090
Other heights from 30-600 mm with cut-outs customizable
Common

In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.

The ESD-safe parting inserts for Euro containers complete your workstation.

Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.



Technical data for standard versions

Lateral length container:- 300 / 400 / 600 mm outside
- 253 / 353 / 553 mm inside
Partition heights:- 80 / 120 / 180 mm
Thicknesses:- 1.5 mm
- 1.8 mm
- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1



customizable



Upon request - Standard partitions

  • specific heights between 30 - 600 mm
  • handhold cut-outs

Also for KLT containers



H=Height of the parting insert (80, 120 or 180 mm)
L=Length of the parting insert (253, 353 or 553 mm)
G=Grid spacing
ES=External support (if existing)
SW=Slot width



In case of high Euro containers we recommend parting inserts and additionally interlayers that can be manufactured with cut-outs allowing a quick and easy removal of the components.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:- 300 / 400 / 600 mm
Partition height:- 80 / 120 / 180 mm
Thicknesses:- 1.5 mm
- 1.8 mm
- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1


Handhold cut-outs for easier removal from Euro containers available in 3 versions:

  • Standard: 2 corners sloped
  • Type A: 2 handhold cut-outs semicular 34 x 17 mm
  • Type C: 2 grip holes round 30 mm






In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements



PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight



PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability



PE foam:
- made of polyethylene foam (PE)
- abrasion-resistant and corrosion-free
- very low weight


Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.



Pictograms
Material PS
High abrasion resistance, high stability, volume conductive. Typical surface resistance: R = 10^4–10^6 Ohm.
ESD-compliant
Customizable
Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.
