PS insert customer-specific

(Product No.: 050.300.Spez.PS)

(Product No.: 050.300.Spez.PS)

PS insert customer-specific

ArticleNo: 050.300.Spez.PS

dpvlink:

20664

Manufacturer:

Properties:

Further product information

Printing Interlayers / Parting Inserts
Configure now

Parting Inserts
Configure now

Shipping time:
Delivery time!

Delivery time!

Compare

Notice

Product Info

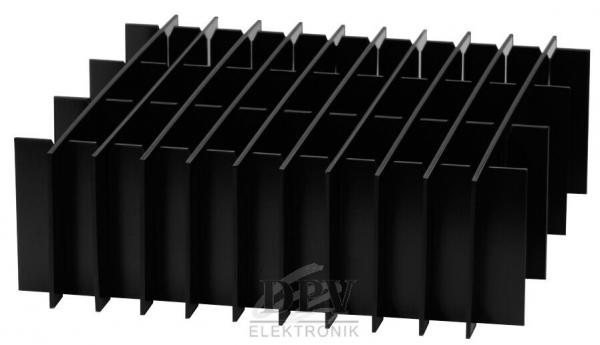

Custom PS Insert
The solid material polystyrene insert offers an optimal solution for the transport and storage of electronic components in transport containers. This custom insert is characterized by its high abrasion resistance and electrostatic volume conductivity, which meets the ESD standard DIN EN 61340-5-1. Available in black, the insert's adaptability to various container sizes and shapes allows for flexible use.
Technical Specifications: - Material thicknesses: 1.5 mm, 1.8 mm, standard 2.0 mm - Height of web walls: from 15 mm can be customized - Side length of container: external 300 / 400 / 600 mm, internal 253 / 353 / 553 mm - Height of web walls: 80 / 120 / 180 mm - Grid size, number of divisions: variable - Conductivity: volume conductive - Surface resistance Rs: 10^6 Ω - Volume resistance: 10^6 Ω
Additionally, the web walls can be equipped with viewing and grip cutouts for easy removal of materials. This makes them ideal for use in tall Euro containers with intermediate layers. Custom adjustments are available on request to meet specific requirements.
Item number: 050.300.Spez.PS

Details

Color Color: black
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Volume resistance Volume resistance: 10⁶ Ω
Material Material: polystyrene
Material structure Material structure: solid material

Common

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Solid material, polystyrene (PS), high abrasion resistance, electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1

Standard thickness:	2.0 mm
other thicknesses:	1.5 mm, 1.8 mm

All partitions can be equipped with block-outs for sight and handles for easier removal of the stored parts.

All partitions can be adapted to any customer-specific application. Even not standardized containers can be easily equipped with parting inserts.

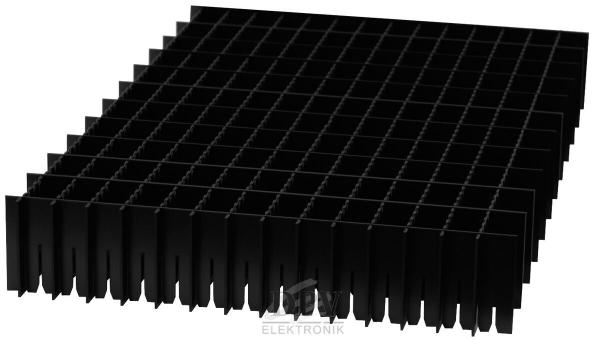

Any raster width and partition height from 15 mm can be implemented depending on customer's request.

Customer-specific parting inserts and partitions can be produced individually at any time. Tell us your requirements and we will submit you a non-binding offer.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm
Partition height:	- 80 / 120 / 180 mm

Thicknesses:	- 1.5 mm
	- 1.8 mm
	- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

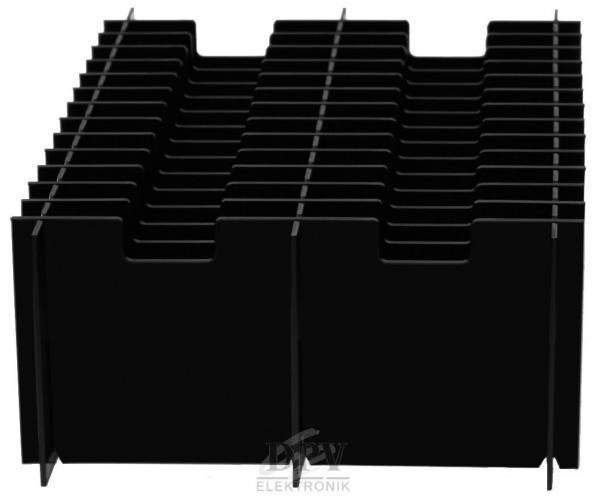

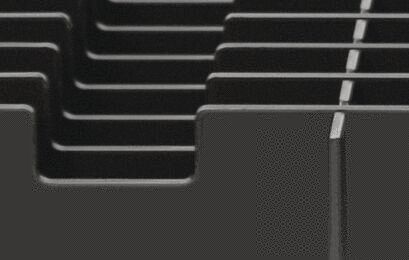

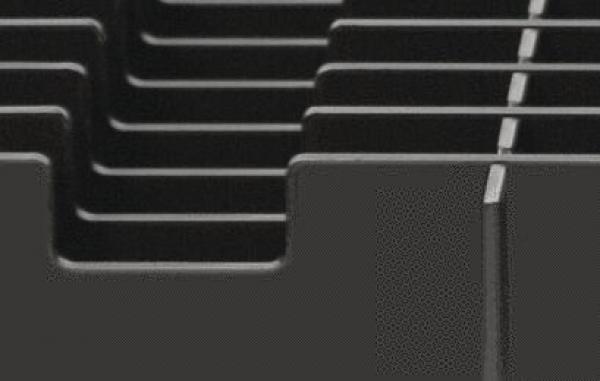

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 x 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PS

High abrasion resistance, high stability, volume conductive. Typical surface resistance: R = 10^4–10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.
