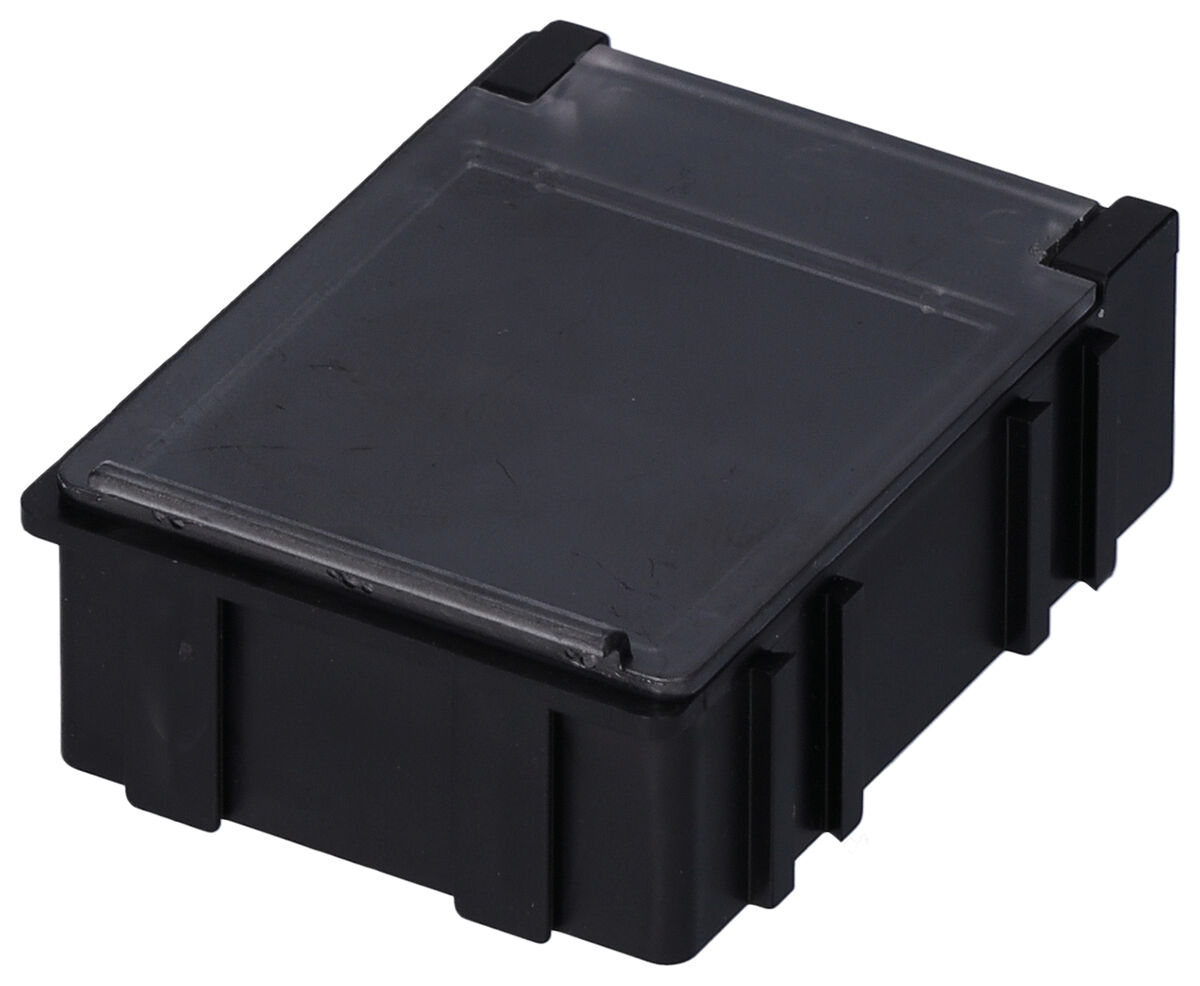

The image shows a small, rectangular box with a black body and a transparent lid. The corners have rounded edges, and the box appears sturdy and functional.
Preview: The image shows several black drawers stacked on top of each other. There are a total of four drawers, three of which are open. Next to the drawers, there is a small black bar.
Preview: The image shows a small, rectangular box with a black body and a transparent lid. The corners have rounded edges, and the box appears sturdy and functional.
Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0
(Product No.: 046.130.3-LS)
The image shows several black drawers stacked on top of each other. There are a total of four drawers, three of which are open. Next to the drawers, there is a small black bar.
The image shows a small, rectangular box with a black body and a transparent lid. The corners have rounded edges, and the box appears sturdy and functional.
Mobile Preview: The image shows several black drawers stacked on top of each other. There are a total of four drawers, three of which are open. Next to the drawers, there is a small black bar.
Mobile Preview: The image shows a small, rectangular box with a black body and a transparent lid. The corners have rounded edges, and the box appears sturdy and functional.
Notice

Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0

Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0

dpvlink:
5241
Folding boxes:
108
Drawers:
3
Internal length:
340 mm
Internal width:
250 mm
Internal height:
22 mm
Properties:
Further product information
Imprinting / Printing for boxes
Configure now


at short notice at short notice
261,20 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Cabinet 3 drawers with SMD folding boxes, conductive/conductive layer, size 2.0

The complete cabinet from Licefa, equipped with three drawers and 108 SMD flip boxes (Model N3/LS, item number 038.413), provides an optimal solution for the clear and accessible storage of SMD components. Each of the black flip boxes is electrostatically conductive and meets the ESD standard DIN EN 61340-5-1, making them ideal for ESD-sensitive environments. The boxes are precisely arranged in the drawers with dimensions 340 x 250 x 22 mm and can be exchanged with simple hand movements.
The boxes have lids that remain open on their own in the open position and can be securely closed using spring pressure. Labels for marking can be easily attached, simplifying the organization and identification of the components. The flip boxes are available in both black and transparent colors and can be seamlessly integrated into setup cabinets of size 2.0. With a surface resistance of 10^3 - 10^5 Ω, they offer reliable protection and conductivity.
Folding boxes
Folding boxes
108
Drawers
Drawers
3
Internal length
340 mm
Internal width
Internal width
250 mm
Internal height
22 mm
Color
Color
black / transparent
Conductivity
Conductivity
conductive / with conductive layer
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Size
Size
N3 (large)
Common

For a clear and ready-to-hand storage respectively provision of SMD components. The lids can be easily exchanged, stay open independently and can be closed by spring pressure. Labels for inscription can be simply affixed. The SMD folding boxes can be exactly integrated into the racks of size 2.0.


Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
