SMD folding box size N3 (large), conductive/LS
SMD folding box size N3 (large), conductive/LS

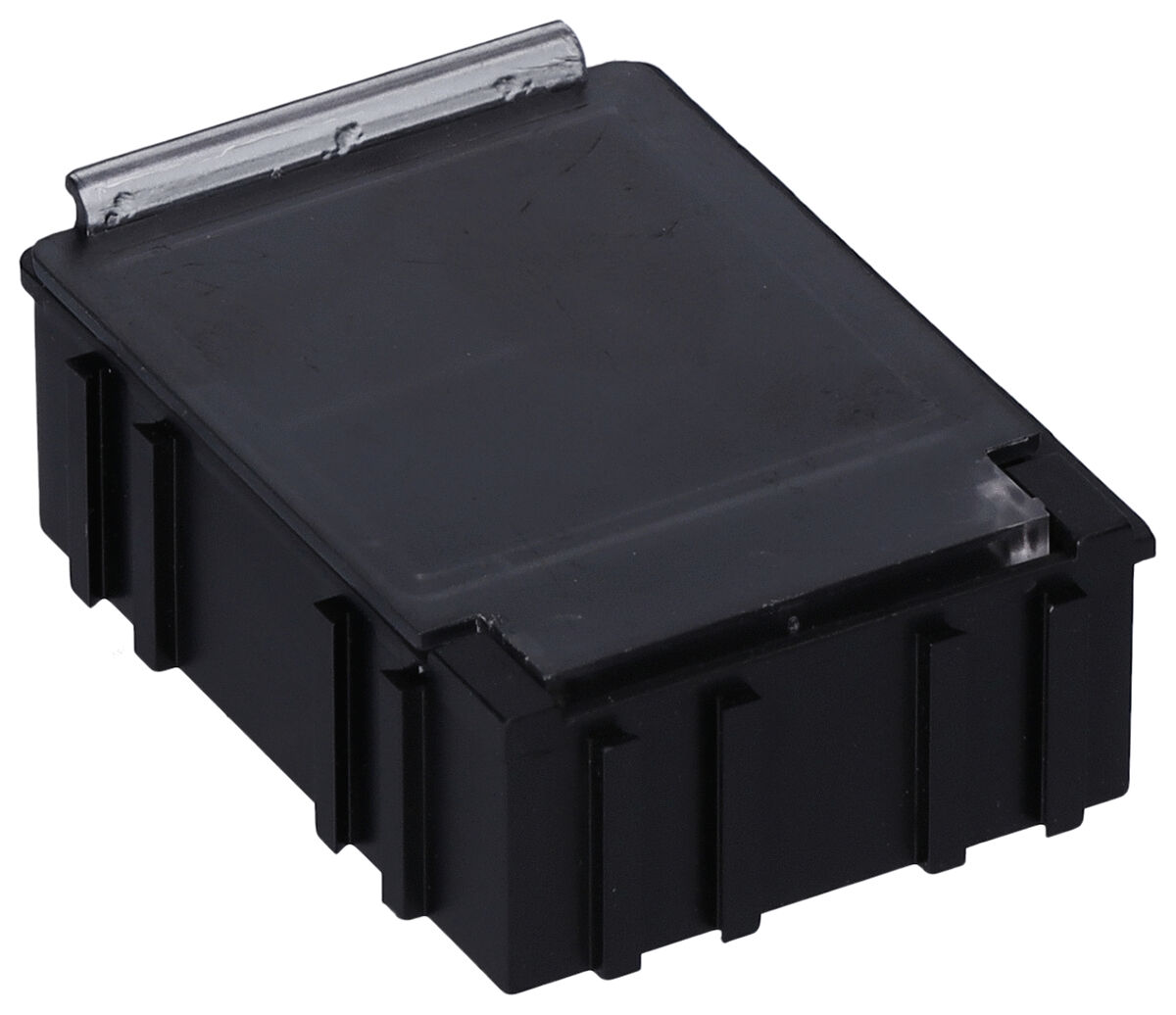

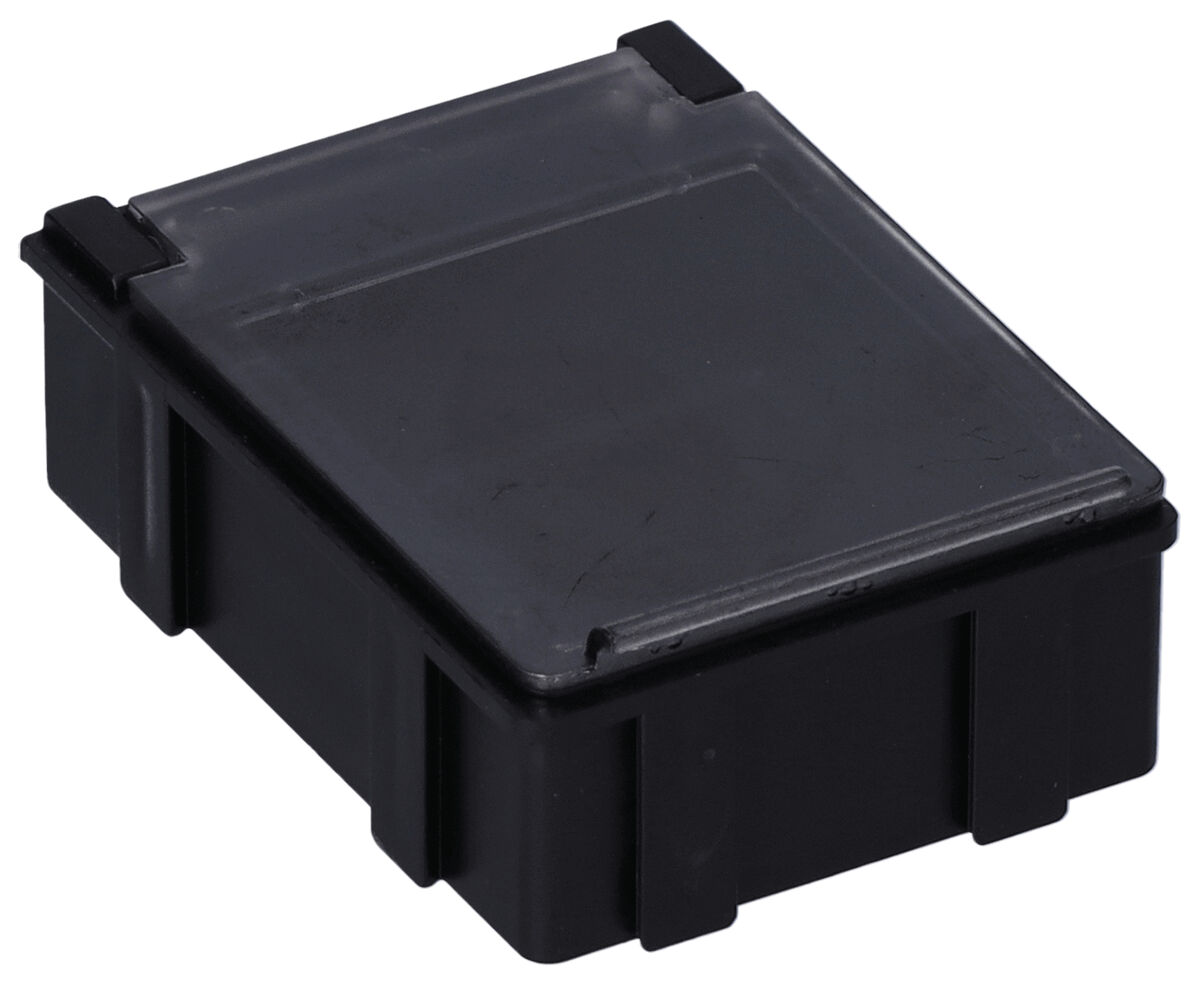

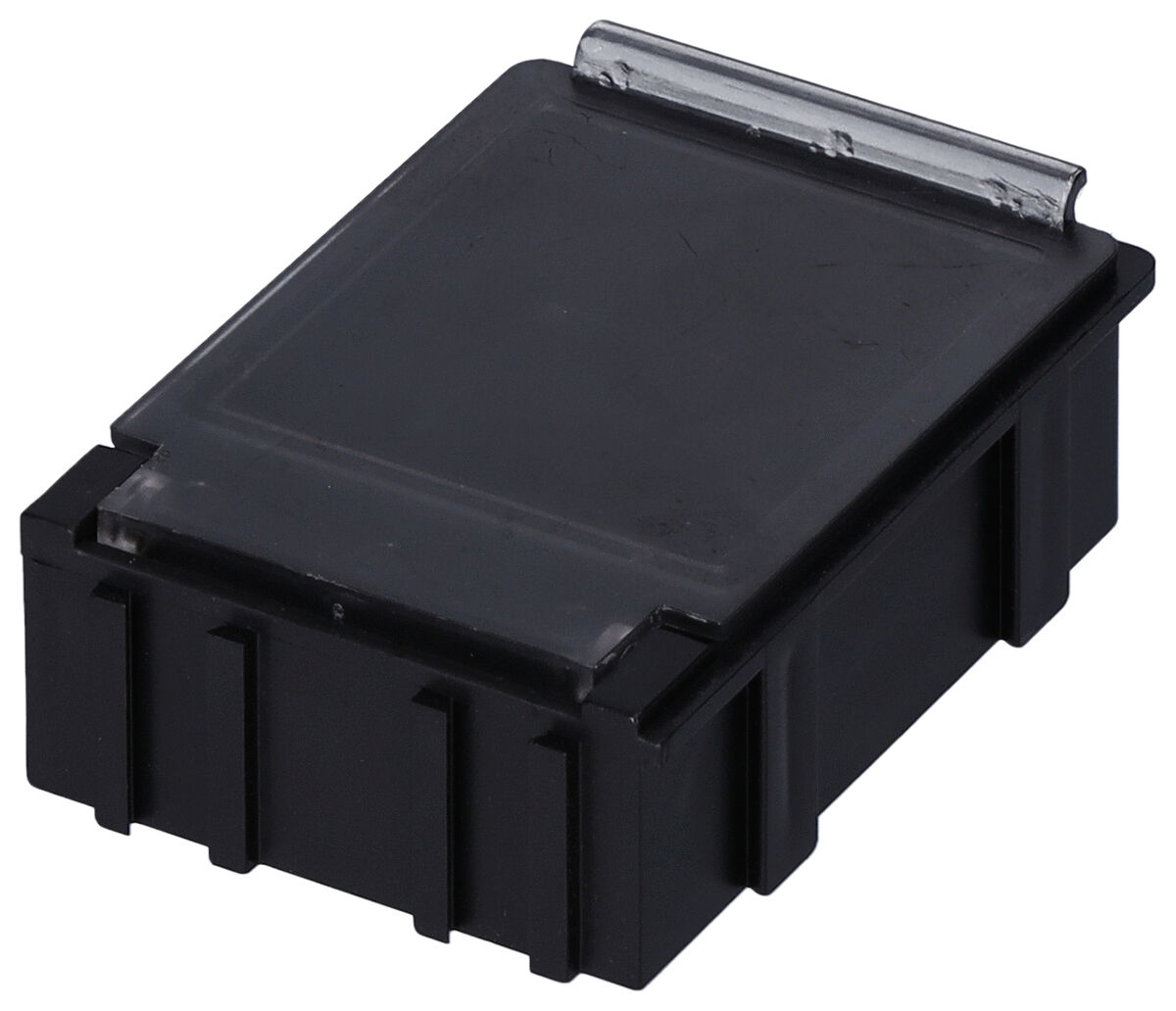

The SMD folding box size N3 from Licefa offers an optimal solution for the safe and clear storage of SMD components. The product is characterized by its electrostatic volume conductivity and complies with the ESD standard DIN EN 61340-5-1, making it ideal for sensitive electronic components.The box has a length of 57.4 mm, a width of 42.3 mm, and a height of 21 mm. The internal dimensions are 41 mm in length, 37 mm in width, and 15 mm in height, providing ample space for larger components. The conductivity is achieved through a special conductive layer, with a surface resistance between 10^3 and 10^5 Ω.
The weight of the box is 13.7 g and it is designed for temperatures from -20 to 80 °C. The color scheme in black with a transparent lid facilitates the identification of the contents, while the lid design allows for easy exchange and secure closing by spring pressure. Labels for labeling can also be easily attached.
In addition, the design allows for seamless integration into assembly cabinets of size 2.0, further improving organization and accessibility.
Details
- Length Length
- 57.4 mm
- Width [mm] Width
- 42.3 mm
- Height [mm] Height
- 21 mm
- Internal length
- 41 mm
- Inner width Internal width
- 37 mm
- Internal height
- 15 mm
- Color Color
- black / transparent
- Conductivity Conductivity
- conductive / with conductive layer
- Surface resistance Rs Surface resistance Rs
- 103 - 105 Ω
- Size Size
- N3 (large)
- Continuous use temperature Continuous use temperature
- -20-80 °C
- Weight [g] Weight
- 13.7 g
For a clear and ready-to-hand storage respectively provision of SMD components. The lids can be easily exchanged, stay open independently and can be closed by spring pressure. Labels for inscription can be simply affixed. The SMD folding boxes can be exactly integrated into the racks of size 2.0.
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Length
Width [mm]
Height [mm]
Internal length
Inner width
Internal height
Price
Compare
29.4 mm
21.8 mm
21 mm
16 mm
12 mm
15 mm
29.4 mm
42.4 mm
21 mm
12 mm
37 mm
15 mm
57.4 mm
42.3 mm
21 mm
41 mm
37 mm
15 mm
29.4 mm
21.8 mm
21 mm
16 mm
12 mm
15 mm
29.4 mm
42.4 mm
21 mm
12 mm
37 mm
15 mm
57.4 mm
42.3 mm
21 mm
41 mm
37 mm
15 mm
85.3 mm
63 mm
21 mm
68 mm
57 mm
15 mm
