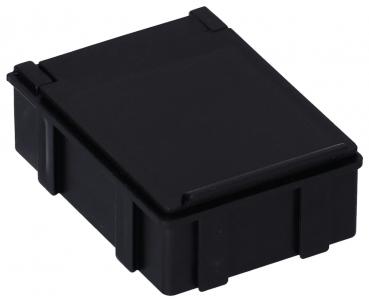

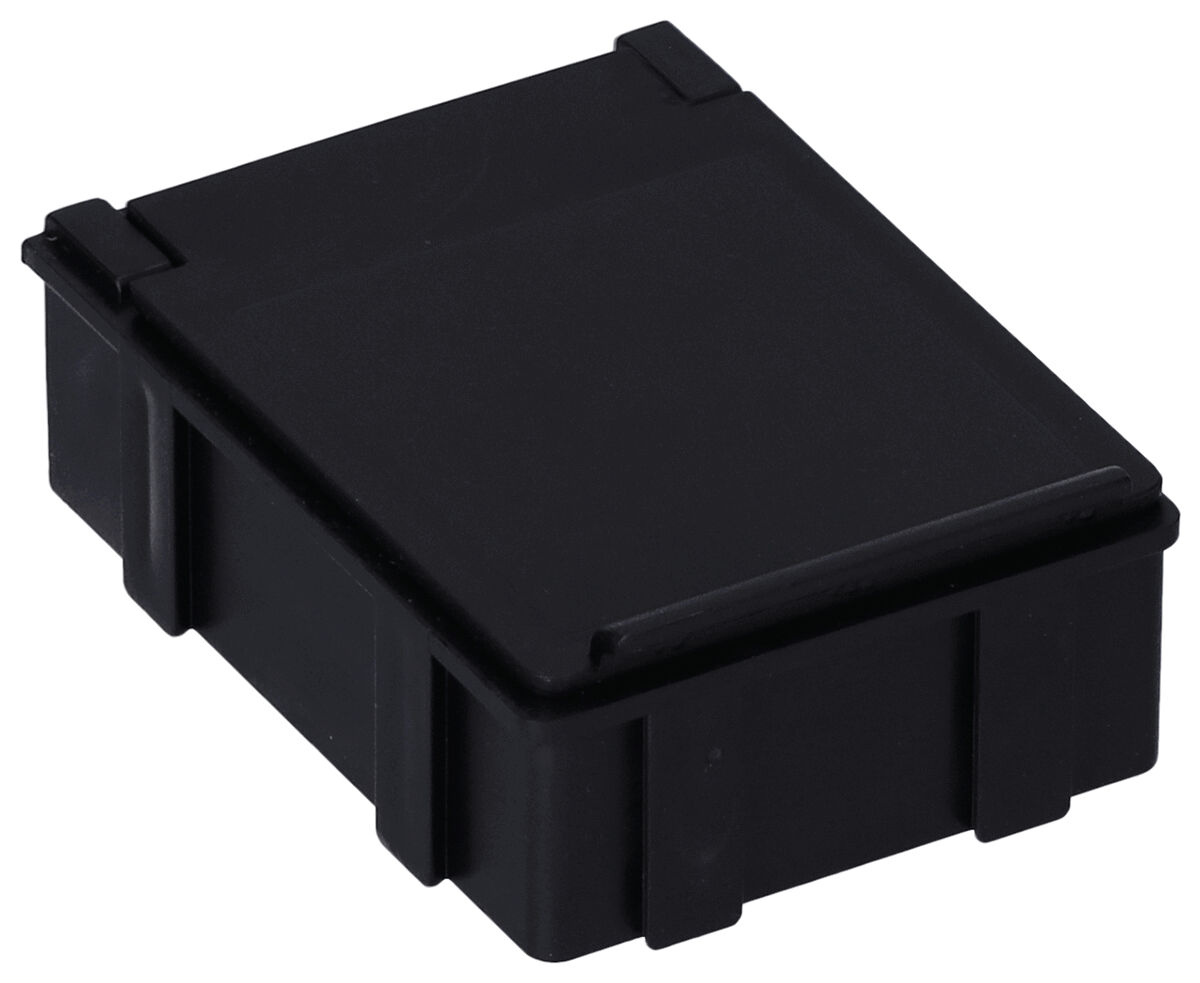

SMD folding box size N3 (large), conductive
SMD folding box size N3 (large), conductive
The SMD folding box size N3 from Licefa offers an optimal solution for the secure and clear storage of SMD components. This large-format box is specifically designed for integration into assembly cabinets of size 2.0 and allows efficient handling thanks to its easy-to-manage lids, which stay open on their own and can be securely closed with spring pressure.The conductive box complies with the ESD standard DIN EN 61340-5-1, making it particularly suitable for handling electrostatically sensitive components. The dimensions of the box are 57.4 mm in length, 42.3 mm in width, and 21 mm in height, with an inner length of 41 mm, an inner width of 37 mm, and an inner height of 15 mm.
The SMD folding box is characterized by a surface resistance of 10^3 - 10^5 Ω and is available in black. The weight is a light 13.7 g, and it is designed for a temperature range from -20 to 80 °C. Labels for marking can be easily applied, further simplifying organization.
Details
- Length Length
- 57.4 mm
- Width [mm] Width
- 42.3 mm
- Height [mm] Height
- 21 mm
- Internal length
- 41 mm
- Inner width Internal width
- 37 mm
- Internal height
- 15 mm
- Color Color
- black
- Conductivity Conductivity
- conductive
- Surface resistance Rs Surface resistance Rs
- 103 - 105 Ω
- Size Size
- N3 (large)
- Continuous use temperature Continuous use temperature
- -20-80 °C
- Weight [g] Weight
- 13.7 g

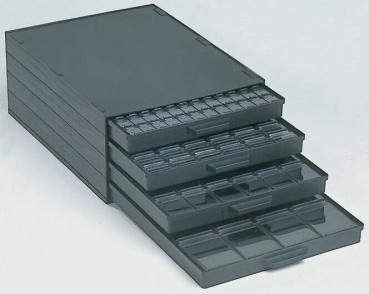

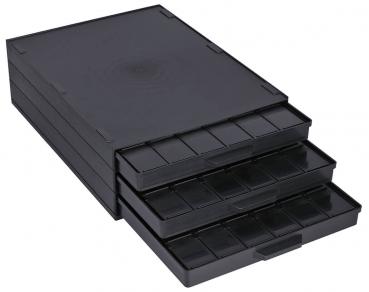

For a clear and ready-to-hand storage respectively provision of SMD components. The lids can be easily exchanged, stay open independently and can be closed by spring pressure. Labels for inscription can be simply affixed. The SMD folding boxes can be exactly integrated into the racks of size 2.0.
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues

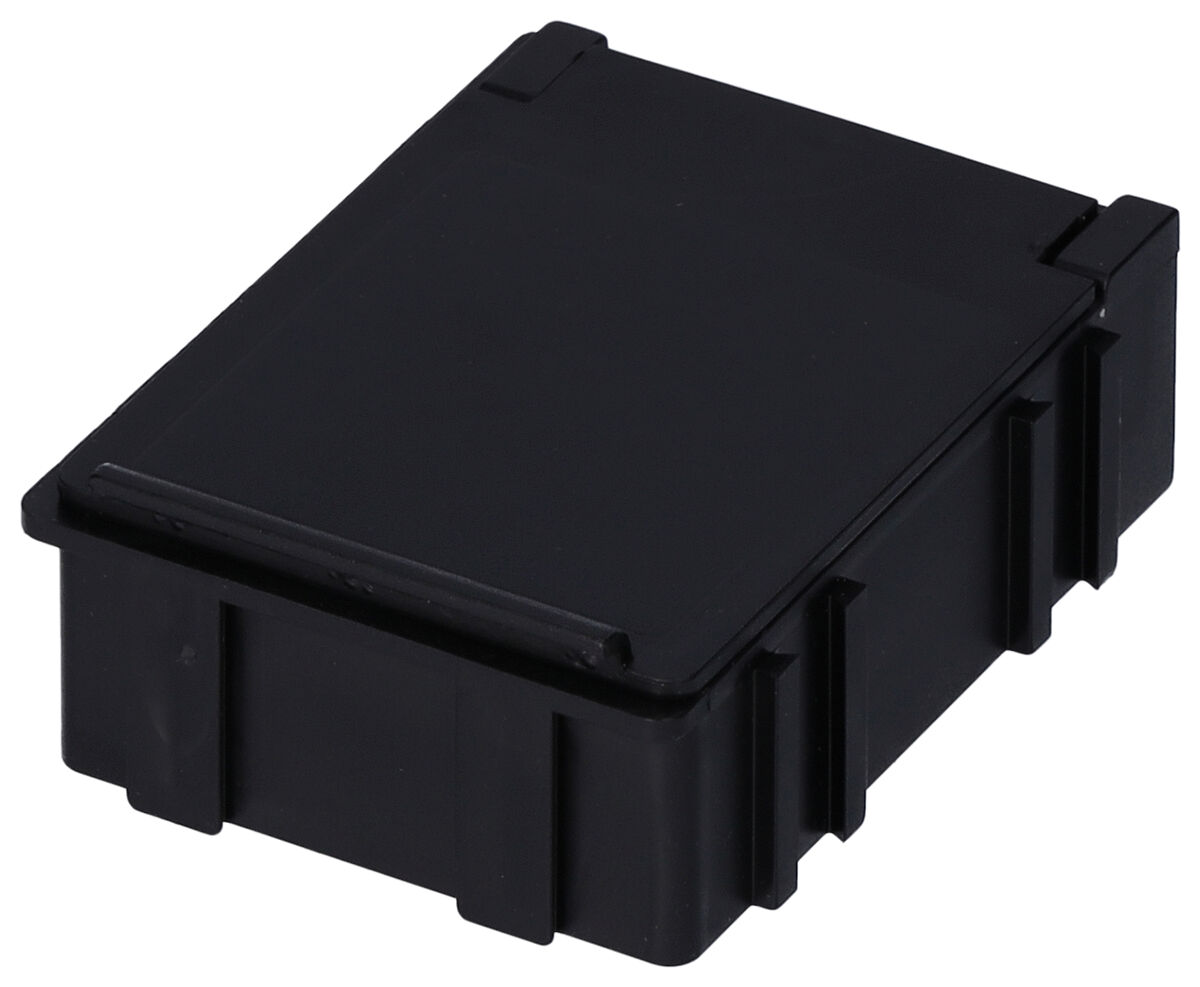

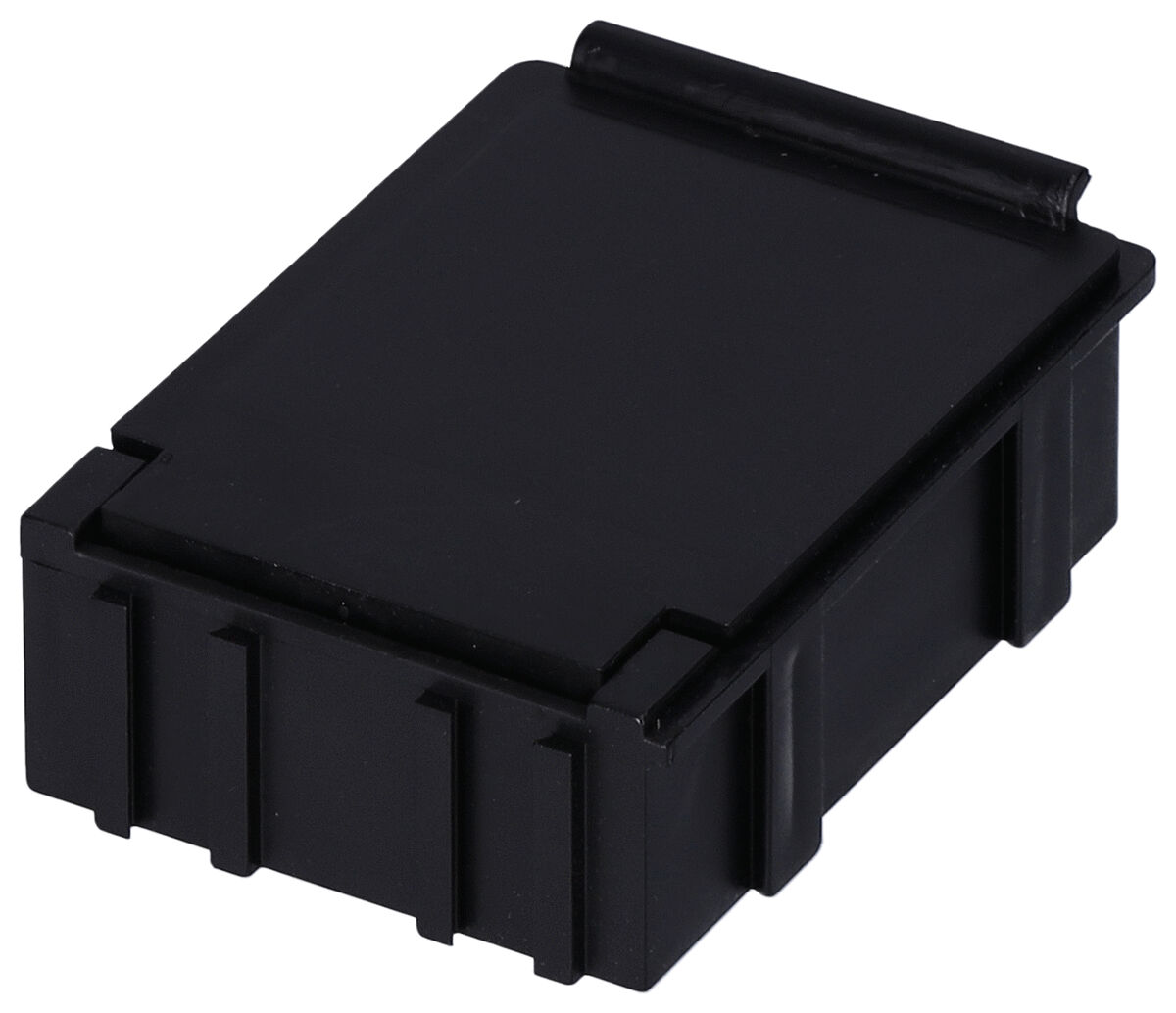

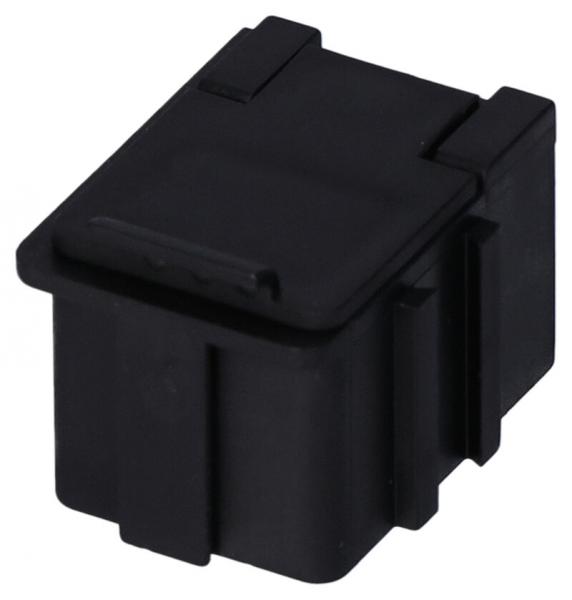

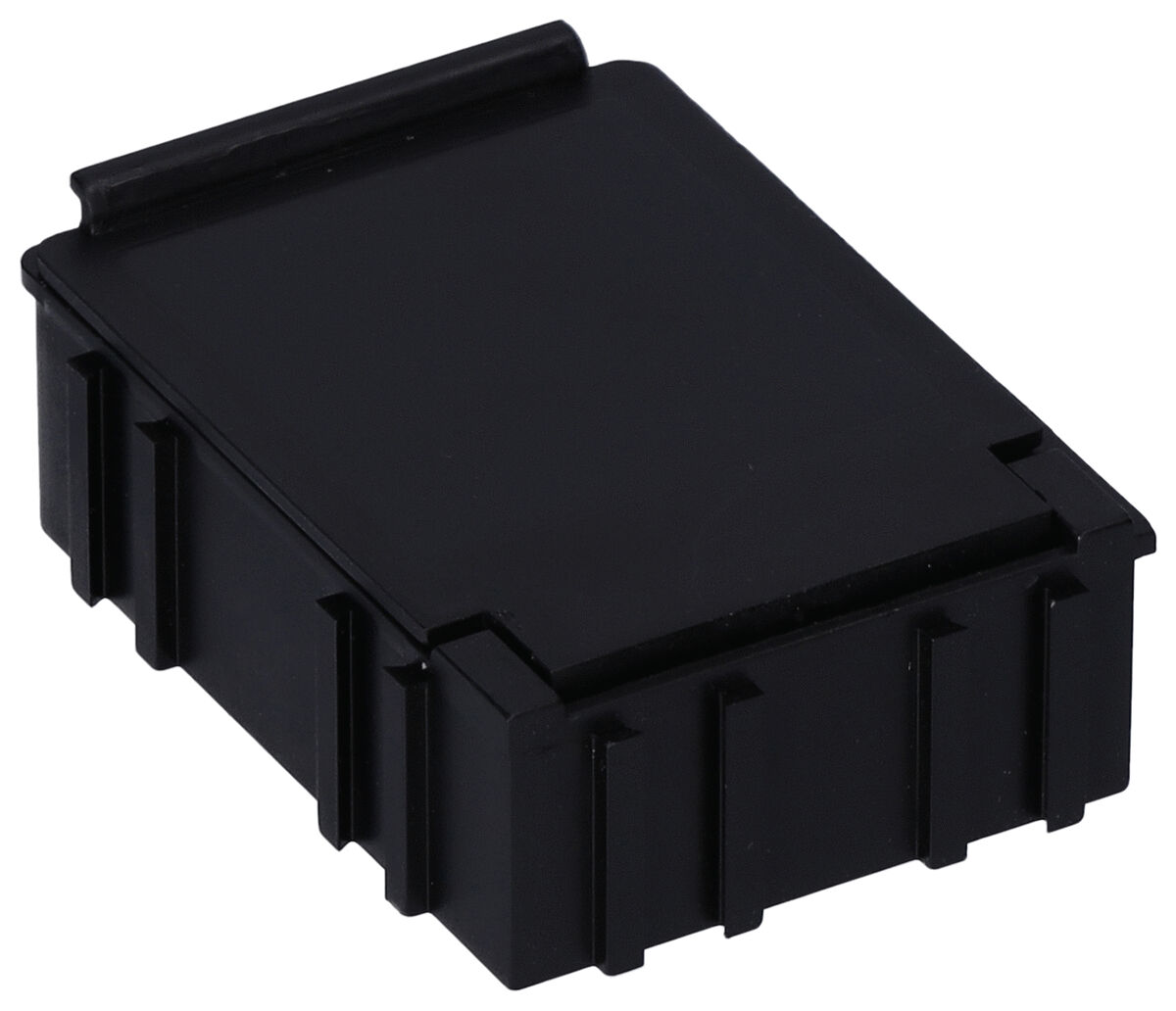

Product Family
Article image
Article description
Length
Width [mm]
Height [mm]
Internal length
Inner width
Internal height
Price
Compare
29.4 mm
21.8 mm
21 mm
16 mm
12 mm
15 mm
29.4 mm
42.4 mm
21 mm
12 mm
37 mm
15 mm
57.4 mm
42.3 mm
21 mm
41 mm
37 mm
15 mm
29.4 mm
21.8 mm
21 mm
16 mm
12 mm
15 mm
29.4 mm
42.4 mm
21 mm
12 mm
37 mm
15 mm
57.4 mm
42.3 mm
21 mm
41 mm
37 mm
15 mm
85.3 mm
63 mm
21 mm
68 mm
57 mm
15 mm
