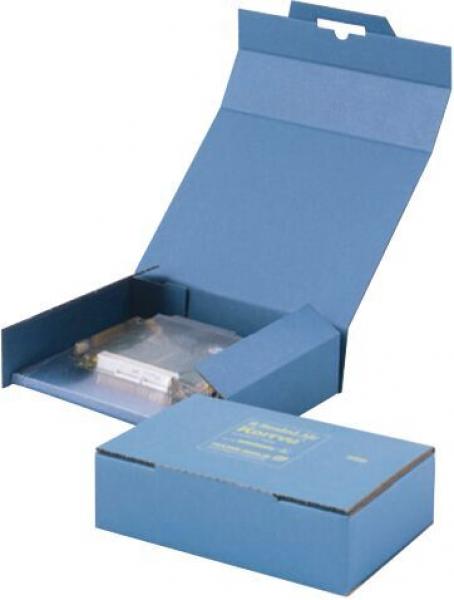

The image shows a blue packaging with an unfolded cardboard box. Inside is an electronic device. The box has yellow lettering and appears simple and functional.
CORTRONIC® shipping box 282x228x70 mm
(Product No.: COR-50.KC)
The image shows a blue packaging with an unfolded cardboard box. Inside is an electronic device. The box has yellow lettering and appears simple and functional.

CORTRONIC® shipping box 282x228x70 mm

CORTRONIC® shipping box 282x228x70 mm

dpvlink:
5800
Properties:
Further product information

at short notice at short notice

Compare Compare
Notice
Product Info

CORTRONIC® shipping box 282x228x70 mm

The CORTRONIC shipping box from Kolb, with internal dimensions of 282x228x70 mm, offers an innovative and environmentally friendly packaging solution. This box is distinguished by its blue color and permanent color fastness. It is equipped with a standard ESD warning print and a recycling symbol, and offers high electrostatic shielding properties. The shipping box is fully recyclable and allows for a reduction in storage and transportation costs by eliminating the need for foam inserts.
The packaging ensures long-term safety for ESD-sensitive components through a conductive fixing film based on PU and a surface resistance specification of 10^7 - 10^8 Ω. The electrostatic shielding is 10 nJ according to the Energy Bag Test. The CORTRONIC shipping box is a single-product packaging specifically designed for technical use to meet the requirements of the standards DIN EN 61340-5-1 and IEC.
The minimum order quantity for this product is 10 pieces.
Color
Color
blue
Height [mm]
Height
80 mm
Internal height
70 mm
Internal length
282 mm
Internal width
Internal width
228 mm
Length [mm]
Length
288 mm
Width [mm]
Width
239 mm
Surface resistance Rs
Surface resistance Rs
107 - 108 Ω
recyclable
recyclable
yes
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 289
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Dimensions inside LxWxH [mm]
Color
Height [mm]
Length [mm]
Width [mm]
Surface resistance Rs
recyclable
Price
Compare
COR-20.KC - CORTRONIC® shipping box 125x107x25 mm
COR-20.KC
CORTRONIC® shipping box 125x107x25 mm
125 x 107 x 25
blue
41 mm
137 mm
121 mm
107 - 108 Ω
yes
-
COR-30.KC - CORTRONIC® shipping box 160x127x34 mm
COR-30.KC
CORTRONIC® shipping box 160x127x34 mm
160 x 127 x 34
blue
47 mm
177 mm
140 mm
107 - 108 Ω
yes
-
COR-40.KC - CORTRONIC® shipping box 235x175x45 mm
COR-40.KC
CORTRONIC® shipping box 235x175x45 mm
235 x 175 x 45
blue
68 mm
255 mm
200 mm
107 - 108 Ω
yes
-
COR-50.KC - CORTRONIC® shipping box 282x228x70 mm
COR-50.KC
CORTRONIC® shipping box 282x228x70 mm
282 x 228 x 70
blue
80 mm
288 mm
239 mm
107 - 108 Ω
yes
-
