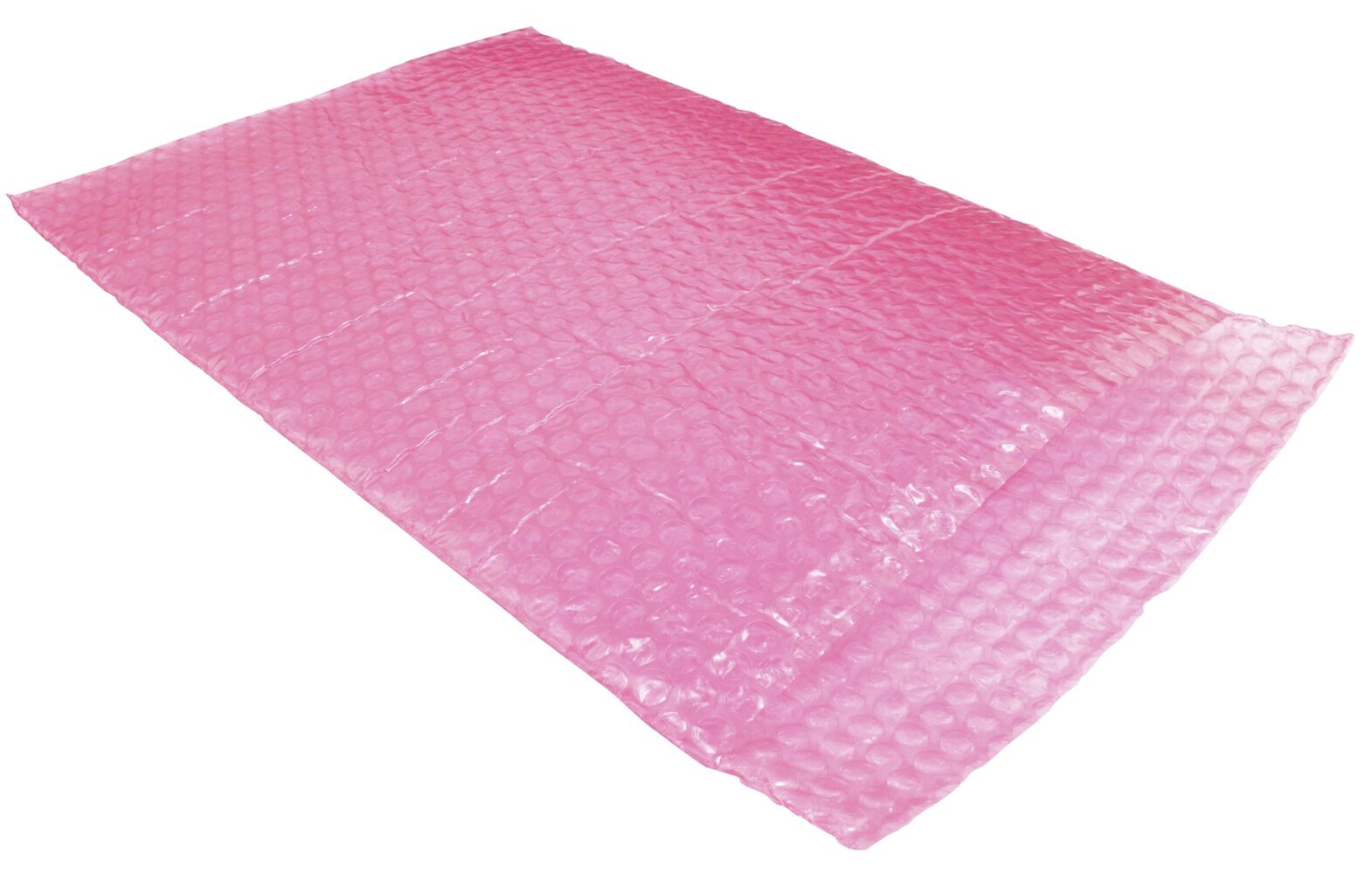

The image shows a large, rectangular bubble wrap in bright pink. The surface is covered with many small, round air bubbles that make a noise when pressed.
Dissipative air bubble bags 130 x 200 mm
(Product No.: 3151.361)
The image shows a large, rectangular bubble wrap in bright pink. The surface is covered with many small, round air bubbles that make a noise when pressed.
Notice

Dissipative air bubble bags 130 x 200 mm

Dissipative air bubble bags 130 x 200 mm

dpvlink:
506
Width [mm]:
130 mm
Length [mm]:
200 mm
Pcs/box:
250
Properties:
Note:
customer-specific dimensions with and without flap available on request
Further product information

Minimum order:
250 PCE
available available
11,85 EUR
0,1185 EUR per PCE

excl. 19% tax

250 PCE
Compare Compare
Notice
Product Info

Dissipative air bubble bags 130 x 200 mm

The EPApack air cushion bags, sized 130 x 200 mm, provide optimal protection for sensitive electronic components. These bags are made from a three-layer, smooth polyethylene that consists of 35% post-industrial recycled material (PIR recyclate) and is fully recyclable. The pink, amine-free bags are dissipative and comply with the ESD standard DIN EN 61340-5-1, making them ideal for EPA (Electrostatic Protected Area) applications.
Technically designed with a thickness of 0.1 mm and a sealable 50 mm flap, these bags offer a secure packaging solution. They have a maximum discharge time of 2 seconds and a surface resistance between 10^10 and 10^11 Ohm. The bags are not resealable, which increases the security of the packaging. Each carton contains 250 pieces, allowing for efficient storage and handling.
The air cushions of the bags, with a diameter of 10 mm and a height of 4 mm, provide additional protection against shocks and pressure. Choose the EPApack air cushion bags for a reliable and environmentally friendly packaging solution in your technical operation.
Width [mm]
Width
130 mm
Length [mm]
Length
200 mm
Pcs/box
Pcs/box
250
Color
Color
rose
Knob diameter
Knob diameter
10 mm
Knob height
Knob height
4 mm
Thickness [mm]
Thickness
0.1 mm
Conductivity
Conductivity
dissipative
Static decay time max.
Static decay time max.
2 s
Surface resistance Rs
Surface resistance Rs
1010 - 1011 Ω
Material
Material
polyethylene
heat-sealable
heat-sealable
yes
Layers
Layers
3
reclosable
reclosable
no
customer-specific dimensions with and without flap available on request
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 282
Complete Catalog 2023 - 2024
EPApack® ESD packaging solutions
