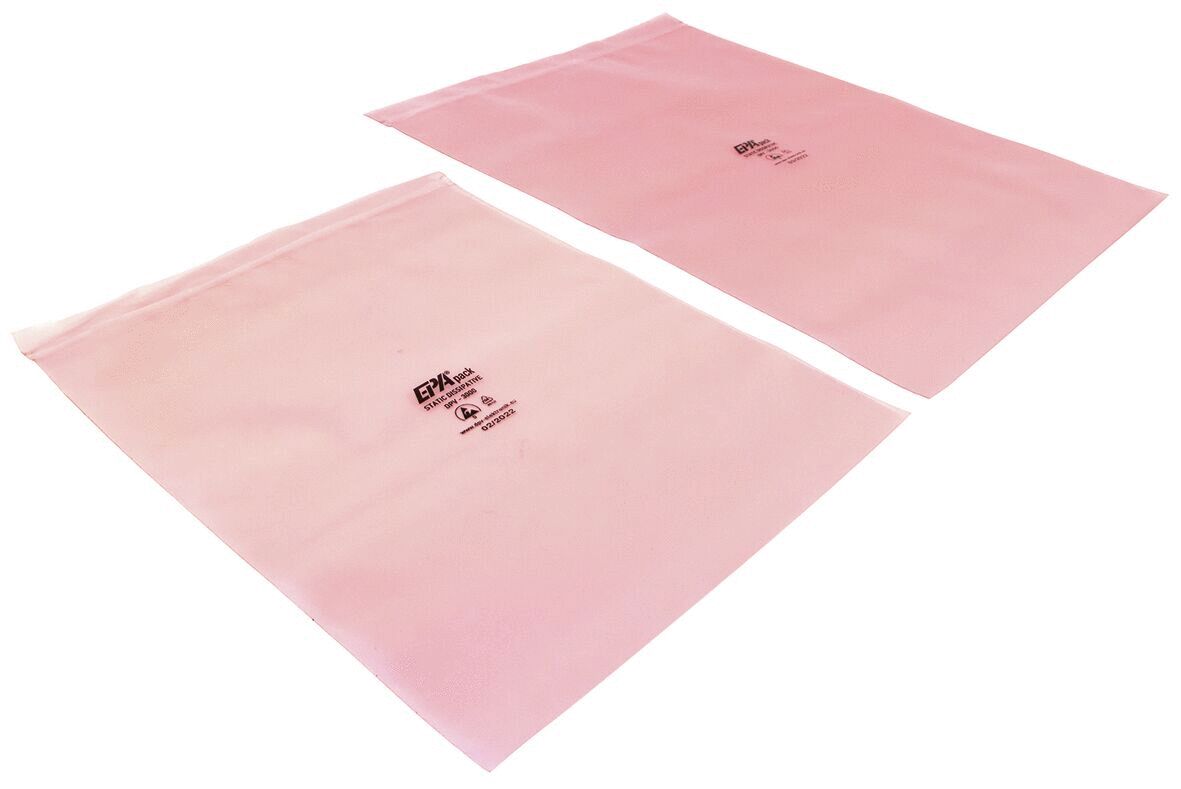

Dissipative packaging bags DPV-3000 Zip 120 x 170 x 0.10 mm
The resealable packaging bags DPV-3000 Zip offer an optimal solution for the safe and static-free storage and transportation of sensitive electronic components. These pink, transparent bags are made from polyethylene and measure 120 mm in width, 170 mm in length, and have a thickness of 0.1 mm. They are designed according to the ESD standard DIN EN 61340-5-1 and guarantee a fast discharge time of maximum 2 seconds with a surface resistance of less than 10^11 Ω.

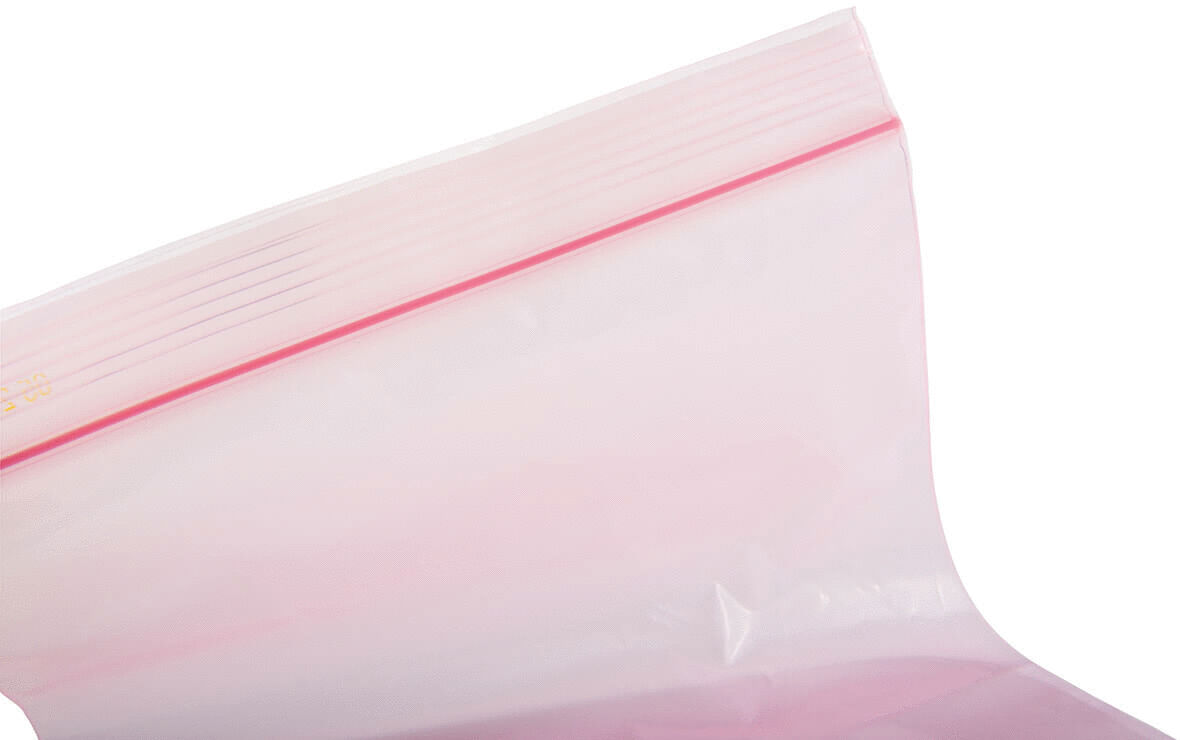

The bags are resealable, which allows for repeated use and contributes to cost-effectiveness. They are amine-free, halogen-free, and fully recyclable, making them an environmentally friendly packaging option. With a durability of up to three years with proper storage, which requires a humidity of over 20% and an ambient temperature of over 23 °C, these bags offer a long-term storage solution. Each box contains 2500 pieces, with the bags printed with the type designation, an ESD warning symbol, and the LOT number.
The bags are resealable, which allows for repeated use and contributes to cost-effectiveness. They are amine-free, halogen-free, and fully recyclable, making them an environmentally friendly packaging option. With a durability of up to three years with proper storage, which requires a humidity of over 20% and an ambient temperature of over 23 °C, these bags offer a long-term storage solution. Each box contains 2500 pieces, with the bags printed with the type designation, an ESD warning symbol, and the LOT number.
Details
- Width [mm] Width [mm]
- 120 mm
- Length [mm] Length [mm]
- 170 mm
- Thickness [mm] Thickness [mm]
- 0.1 mm
- Pcs/box Pcs/box
- 2500
- reclosable reclosable
- yes
- Color Color
- rose / transparent
- Conductivity Conductivity
- dissipative
- Static decay time max. Static decay time max.
- 2 s
- Surface resistance Rs Surface resistance Rs
- < 1011 Ω
- amine-free amine-free
- yes
- Material Material
- polyethylene
- recyclable recyclable
- yes
- heat-sealable heat-sealable
- no
- Ambient temperature (storage conditions) Ambient temperature (storage conditions)
- >23 °C
- Humidity (storage conditions) Humidity (storage conditions)
- >20 %
- Shelf life Shelf life
- 3 years , when stored properly
- Auto-ignition temperature Auto-ignition temperature
- 420 °C
- Flash point Flash point
- 275 °C
- Melting point Melting point
- 116 °C
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Width [mm]
Length [mm]
Thickness [mm]
Pcs/box
reclosable
Price
Compare
80 mm
120 mm
0.1 mm
5000
yes
100 mm
150 mm
0.1 mm
2500
yes
120 mm
170 mm
0.1 mm
2500
yes
150 mm
225 mm
0.1 mm
1000
yes
200 mm
250 mm
0.1 mm
1000
yes
250 mm
300 mm
0.1 mm
1000
yes
300 mm
400 mm
0.1 mm
500
yes
80 mm
120 mm
0.06 mm
5000
yes
100 mm
150 mm
0.06 mm
5000
yes
120 mm
170 mm
0.06 mm
5000
yes
150 mm
225 mm
0.06 mm
2000
yes
200 mm
250 mm
0.06 mm
1000
yes
250 mm
300 mm
0.06 mm
1000
yes
300 mm
400 mm
0.06 mm
1000
yes
