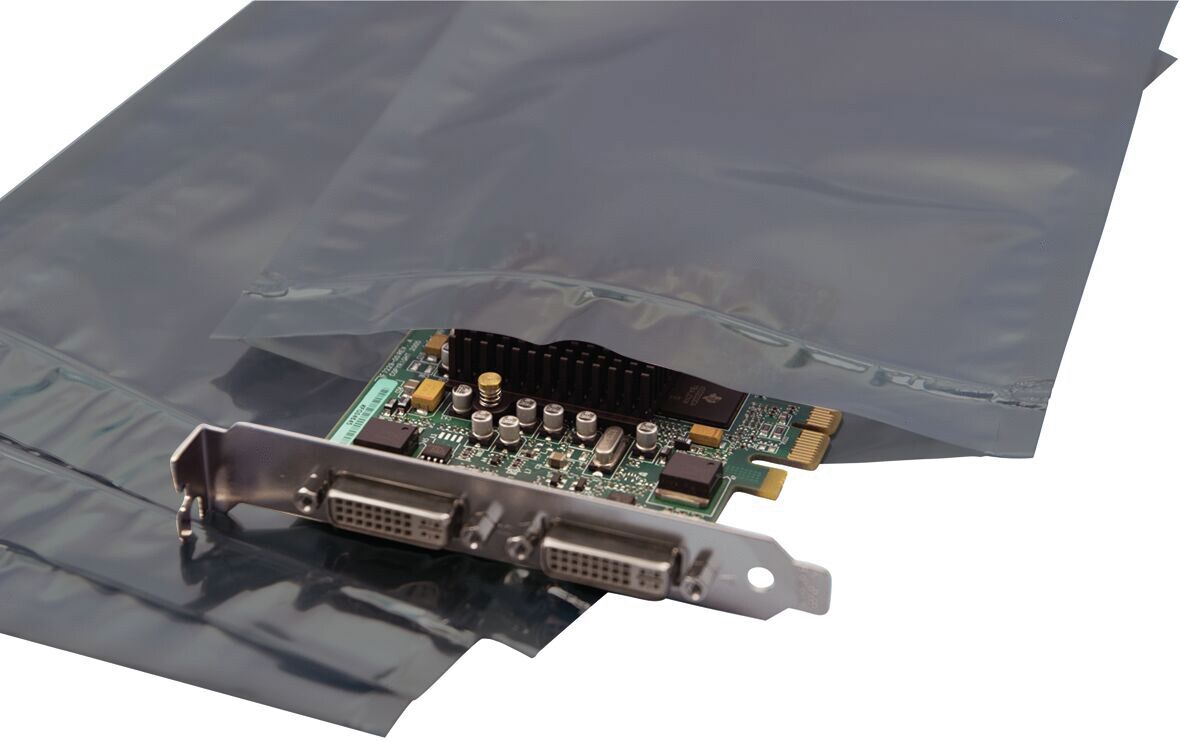

Shielding bag DPV-1000 Zip "metal-in" 76 x 127 mm
The shielding bags DPV-1000 Zip "metal-in" from EPApack, manufactured by DPV, provide effective protection for electronic components against electrostatic discharges (ESD). These bags are specifically designed to prevent static build-up that could damage ESD-sensitive components. With a size of 76 x 127 mm and a material thickness of 78µm, they meet the standard DIN EN 61340-5-1.
The bags are made of a multi-layer structure of polyethylene and polyester, with the inner layer being amine-free to ensure the safety of the packaged products. The metallized aluminum layer provides high shielding against field induction and minimizes triboelectric charging. The surface resistance is between 10^10 and 10^11 Ohms.
Additionally, the bags are resealable and weldable, allowing for secure and permanent storage. Other features include an ESD warning symbol, type designation, recycling symbol, RoHS compliance, and a LOT number as standard print. The bags meet the standards MIL-PRF-81705D, ANSI/ESD STM 11.11, ANSI/ESD STM11.31, EIA 541, ASTM D882, and ASTM D1003, underscoring their quality and reliability.
The bags are made of a multi-layer structure of polyethylene and polyester, with the inner layer being amine-free to ensure the safety of the packaged products. The metallized aluminum layer provides high shielding against field induction and minimizes triboelectric charging. The surface resistance is between 10^10 and 10^11 Ohms.
Additionally, the bags are resealable and weldable, allowing for secure and permanent storage. Other features include an ESD warning symbol, type designation, recycling symbol, RoHS compliance, and a LOT number as standard print. The bags meet the standards MIL-PRF-81705D, ANSI/ESD STM 11.11, ANSI/ESD STM11.31, EIA 541, ASTM D882, and ASTM D1003, underscoring their quality and reliability.
Details
- Width [mm] Width [mm]
- 76
- Length [mm] Length [mm]
- 127
- Thickness [mm] Thickness [mm]
- 0.078
- PU PU
- 100 piece
- reclosable reclosable
- yes
- Color Color
- transparent
- Conductivity Conductivity
- shielding
- Electrostatic shielding Electrostatic shielding
- <15 nJ
- Static decay time max. Static decay time max.
- 0.03 s
- Surface resistance Rs Surface resistance Rs
- 1010 - 1011 Ω
- amine-free amine-free
- yes
- Material Material
- polyethylene / polyester
- heat-sealable heat-sealable
- yes
- Layers Layers
- multilayer
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Width [mm]
Length [mm]
Thickness [mm]
PU
reclosable
Price
Compare
102
152
0.078
100 piece
yes
76
127
0.078
100 piece
yes
127
203
0.078
100 piece
yes
152
254
0.078
100 piece
yes
356
457
0.078
100 piece
yes
203
254
0.078
100 piece
yes
152
203
0.078
100 piece
yes
305
406
0.078
100 piece
yes
254
305
0.078
100 piece
yes
203
305
0.078
100 piece
yes
254
356
0.078
100 piece
yes
406
457
0.078
100 piece
yes
