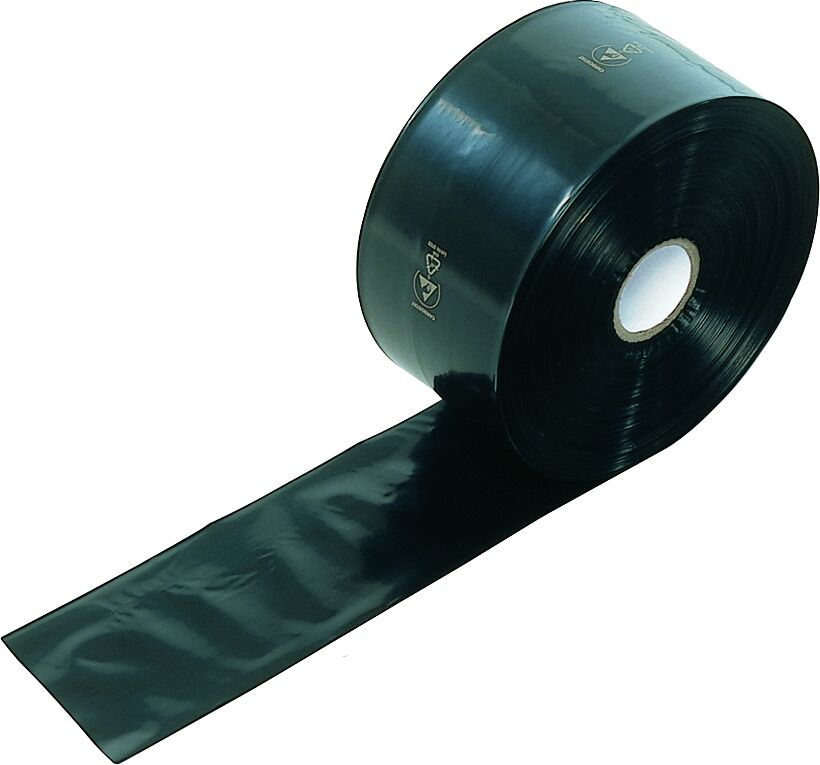

CARBOSTAT tubular film 100 mm x 500 m
The CARBOSTAT tubing film is a high-quality solution for applications where electrical conductivity is required. With a width of 100 mm and a roll length of 500 m, it is excellent for various packaging purposes. The material, a permanently volume-conductive copolymer, ensures consistent conductivity with a surface and volume resistance of 10^4 Ω each.
The film is designed according to DIN EN 61340-5-1 and IEC standards for ESD protection, making it ideal for use in ESD-sensitive environments. The black color of the film emphasizes its practical applicability and inconspicuousness in technical applications.
Additionally, the film is sealable, which allows for safe handling and processing. However, it is not resealable, which should be considered when choosing the type of packaging. Thanks to the high quality of the material, the durability of the film is unlimited as long as it is properly stored. The product is also recyclable, contributing to sustainability in usage.
The film is designed according to DIN EN 61340-5-1 and IEC standards for ESD protection, making it ideal for use in ESD-sensitive environments. The black color of the film emphasizes its practical applicability and inconspicuousness in technical applications.
Additionally, the film is sealable, which allows for safe handling and processing. However, it is not resealable, which should be considered when choosing the type of packaging. Thanks to the high quality of the material, the durability of the film is unlimited as long as it is properly stored. The product is also recyclable, contributing to sustainability in usage.
Details
- Width [mm] Width [mm]
- 100 mm
- Roll length [m] Roll length [m]
- 500 m
- Thickness [mm] Thickness [mm]
- 0.08 mm
- Color Color
- black
- Conductivity Conductivity
- volume conductive
- Surface resistance Rs Surface resistance Rs
- 104 Ω
- Volume resistance Volume resistance
- 104 Ω
- Material Material
- copolymer
- heat-sealable heat-sealable
- yes
- reclosable reclosable
- no
- Shelf life Shelf life
- unlimited , when stored properly
Special bag dimensions available on request
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
