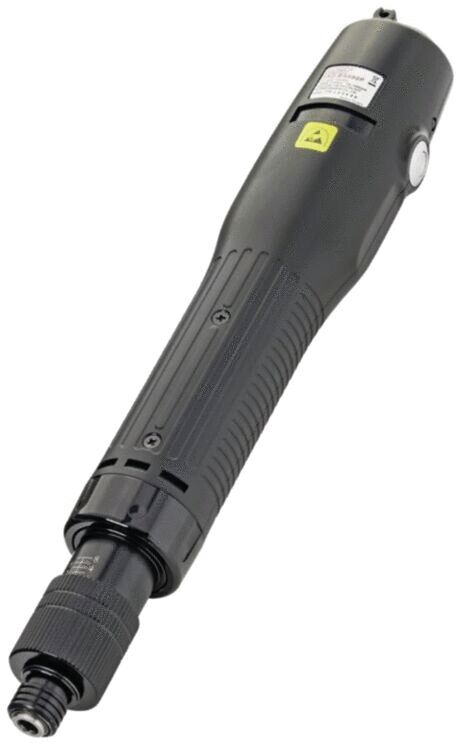

ESD electric screwdriver BK990P
The ESD electric screwdriver BK990P from Kilews is specifically designed for use in sensitive electronic manufacturing environments. This model from the BK 900 series is characterized by its ESD safety, making it ideal for working with delicate components. The screwdriver is suitable for cleanroom use, as its brushless technology does not emit carbon dust, thus ensuring the purity of the work environment.
With a torque range of 3.0 - 9.0 Nm and an idle speed of up to 1000 RPM, the BK990P allows for precise work during fast assembly processes. The length of the device is 306 mm and it weighs 1030 g, which ensures good handling. The output voltage is 40 V/DC with a power of 260 W. The accuracy of the screwdriver is ±5%, enabling highly precise screwing.
The bit holder is designed for 6.35 mm hex, which ensures compatibility with common bits. The screw sizes for thread-forming screws range from 2.6 to 4.0 mm, for self-tapping screws from 2.6 to 3.5 mm. The screwdriver starts by push start, which allows for intuitive operation. Combining power, precision, and ESD safety, this electric screwdriver is an excellent choice for technical applications in cleanrooms and other sensitive production environments.
With a torque range of 3.0 - 9.0 Nm and an idle speed of up to 1000 RPM, the BK990P allows for precise work during fast assembly processes. The length of the device is 306 mm and it weighs 1030 g, which ensures good handling. The output voltage is 40 V/DC with a power of 260 W. The accuracy of the screwdriver is ±5%, enabling highly precise screwing.
The bit holder is designed for 6.35 mm hex, which ensures compatibility with common bits. The screw sizes for thread-forming screws range from 2.6 to 4.0 mm, for self-tapping screws from 2.6 to 3.5 mm. The screwdriver starts by push start, which allows for intuitive operation. Combining power, precision, and ESD safety, this electric screwdriver is an excellent choice for technical applications in cleanrooms and other sensitive production environments.
Details
- Torque range Torque range
- 3.0 - 9.0 Nm
- Idle speed High Idle speed High
- 1000
- Idle speed Low Idle speed Low
- 750
- Screw size thread screw Screw size thread screw
- 2.6- 4.0
- Screw size self-tapping Screw size self-tapping
- 2.6- 3.5
- Start type Start type
- push start
- Output voltage DC Output voltage DC
- 40 V/DC
- Power Power
- 260 W

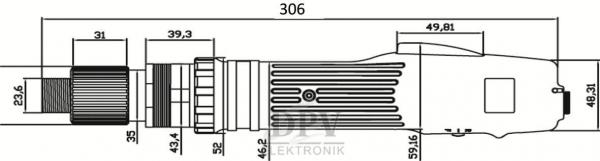

- Length [mm] Length [mm]
- 306 mm
- ESD ESD
- yes
- Accuracy Accuracy
- 5 %
- Bit type Bit type
- Hexagon 6.35 mm
- Series Series
- BK 900
- Socket Socket
- 1/4" / 6.35 mm
- Weight [g] Weight [g]
- 1030 g
Show accessories
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Torque range
Idle speed High
Idle speed Low
Screw size thread screw
Screw size self-tapping
Start type
Price
Compare
2.0 - 6.0 Nm
1000
700
2.6- 4.0
2.6- 3.5
push start
2.0 - 6.0 Nm
1000
700
2.6- 4.0
2.6- 3.5
lever start
3.0 - 9.0 Nm
1000
750
2.6- 4.0
2.6- 3.5
lever start
3.0 - 9.0 Nm
1000
750
2.6- 4.0
2.6- 3.5
push start
6.0 - 12.0 Nm
880
660
4.0- 5.0
<4
lever start
6.0 - 12.0 Nm
880
660
4.0- 5.0
<4
push start
