NSR - Quicher/Ohtake, screw size M 2.6
NSR - Quicher/Ohtake, Screw Size M 2.6

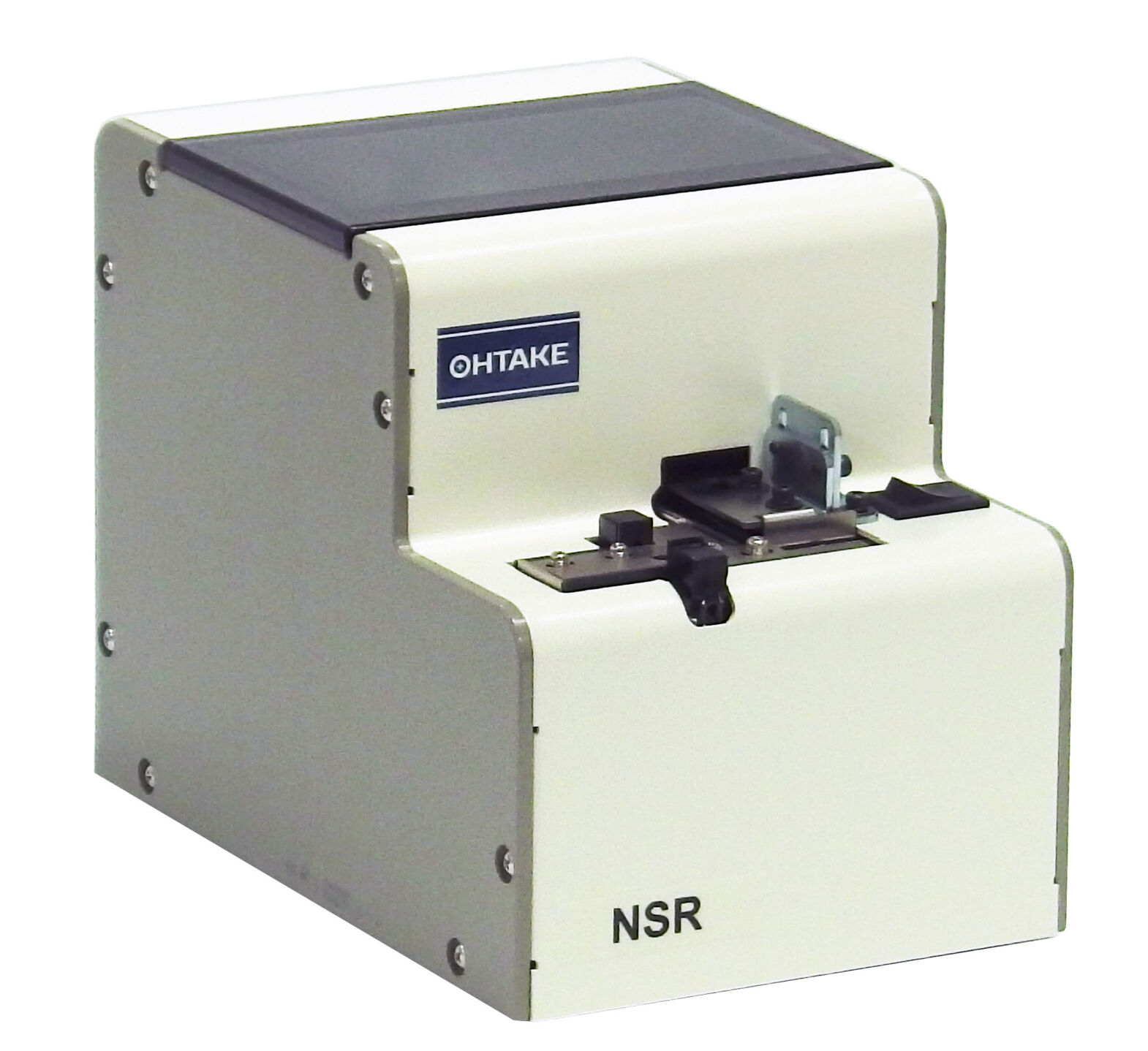

The NSR-26 Quicher/Ohtake screw dispenser is a highly specialized device for the precise individual dispensing of screws size M 2.6 with a maximum thread length of 20 mm. This model is distinguished by its ability to process both metric and imperial, as well as self-tapping screws, including variants with washers or lock washers. The screws are presented for easy removal by a screwdriver, for example with a vacuum attachment within a screw robot. Technical Specifications: - Dimensions: 123 x 181 x 145 mm (LxWxH) - Electrical connection: 240V, 50/60 Hz - Internal: DC 15V - 1A - Processing speed: 2 screws/sec. - Adjustable vibration strength - Interchangeable feed rails type NSR - Adjustable bit guide for precise positioning - Fill volume: 80 cm³ Additionally, the device offers an interchangeable guide rail and the option to integrate a screw counting device, making it an ideal solution for automated assembly processes.
The NSR-26 Quicher/Ohtake screw dispenser is a highly specialized device for the precise individual dispensing of screws size M 2.6 with a maximum thread length of 20 mm. This model is distinguished by its ability to process both metric and imperial, as well as self-tapping screws, including variants with washers or lock washers. The screws are presented for easy removal by a screwdriver, for example with a vacuum attachment within a screw robot. Technical Specifications: - Dimensions: 123 x 181 x 145 mm (LxWxH) - Electrical connection: 240V, 50/60 Hz - Internal: DC 15V - 1A - Processing speed: 2 screws/sec. - Adjustable vibration strength - Interchangeable feed rails type NSR - Adjustable bit guide for precise positioning - Fill volume: 80 cm³ Additionally, the device offers an interchangeable guide rail and the option to integrate a screw counting device, making it an ideal solution for automated assembly processes.
Details
- Height [mm] Height [mm]
- 148 mm
- Length [mm] Length [mm]
- 181 mm
- Thread length Thread length
- 20 mm
- Width [mm] Width [mm]
- 123 mm
- Screw Screw
- released
- Screw size Screw size
- M2.6
- Filling volume Filling volume
- 80 cm³
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Height [mm]
Length [mm]
Thread length
Width [mm]
Screw
Screw size
Filling volume
Price
Compare
148 mm
181 mm
20 mm
123 mm
released
M2.6
80 cm³
148 mm
181 mm
20 mm
123 mm
released
M3.0
80 cm³
148 mm
181 mm
20 mm
123 mm
released
M2.0
80 cm³
148 mm
181 mm
20 mm
123 mm
released
M1.0
80 cm³
148 mm
181 mm
20 mm
123 mm
released
M1.2
80 cm³
148 mm
181 mm
20 mm
123 mm
released
M1.4
80 cm³
148 mm
181 mm
20 mm
123 mm
released
M1.7
80 cm³
148 mm
181 mm
20 mm
123 mm
released
M2.3
80 cm³
