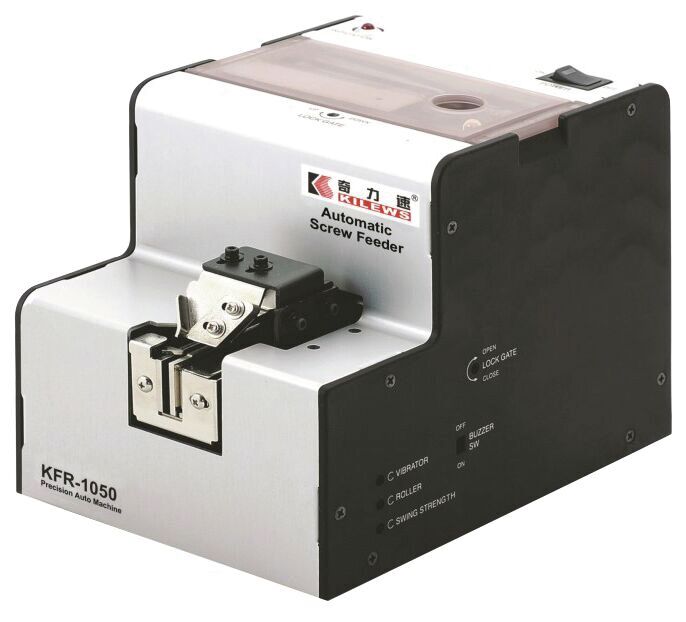

The image shows an automatic screw feeder. It has a compact, rectangular shape with a bright top and a darker front. Various buttons and an opening are visible on the sides.
Screw separating unit Universal KFR-1050
(Product No.: KFR-1050)
The image shows an automatic screw feeder. It has a compact, rectangular shape with a bright top and a darker front. Various buttons and an opening are visible on the sides.
Notice / Inquire

Screw separating unit Universal KFR-1050

dpvlink:
20455
Further product information

available available
664,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Screw separating unit Universal KFR-1050

The screw singulation device Universal KFR-1050 from Kilews is a state-of-the-art solution for precise and efficient handling of screws. This device is particularly suitable for screws with a shank diameter from M 1.0 to 5.0 mm and a maximum length of 19 mm. It features an adjustable feed rail that can easily be adapted to up to 11 different sizes, making it ideal for top-heavy screws and screws with captive washers.
The width of the device is 182 mm, the height 147 mm, and the length 126 mm, with a weight of 2200 g. The filling volume of the singulator is between 200 and 220 cm³. Users can individually adjust the vibration and feed speed, allowing for optimal adaptation to specific requirements. A special feature is the automatic shutdown, which is activated as soon as there are no more screws in the removal position, contributing to efficiency and safety in operation.
Height
Height
147 mm
Length
Length
126 mm
Thread length
Thread length
19 mm
Width
Width
182 mm
Screw size
Screw size
M1.0- M5.0
Filling volume
Filling volume
200- 220 cm³
Weight
Weight
2200 g
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 449
Complete Catalog 2023 - 2024

Product Family

Screw separating unit Universal KFR-1050

The adjustable screw separator automates the screwdriving process and increases efficiency and precision. Thanks to flexible adjustment options, it can be easily adapted to different screw types and requirements.

Key features:

  • Automatic shut-off: Saves energy and prevents overloading.
  • Versatile application options: Suitable for top-heavy screws and screws with washers.
  • Flexible feed rail: Adaptable to up to 11 sizes.
  • Individual speed: Adjustable vibration and feed speed.
  • Simple operation: Quick adaptation to the screwdriving process
  • Higher productivity: Reduces manual sorting effort.

Technical data:

 Dimensions (L x W x H) 126 x 182 x 147 mm
 Weight 2.2 kg
 Voltage 100 - 240 V AC
 Power supply unit 15 V DC
 Screw sizes M 1.0 - M 5.0
 Screw length maximal 19 mm thread length
 Screw bin 200 - 220 ccm


Article image
Article description
Height
Length
Thread length
Width
Screw size
Filling volume
Weight
Price
Compare
KFR-1050 - Screw separating unit Universal KFR-1050
KFR-1050
Screw separating unit Universal KFR-1050
147 mm
126 mm
19 mm
182 mm
M1.0- M5.0
200- 220 cm³
2200 g
664,00 EUR
KR-45100 - Feed rail for KFR-1050
KR-45100
Feed rail for KFR-1050







93,00 EUR
