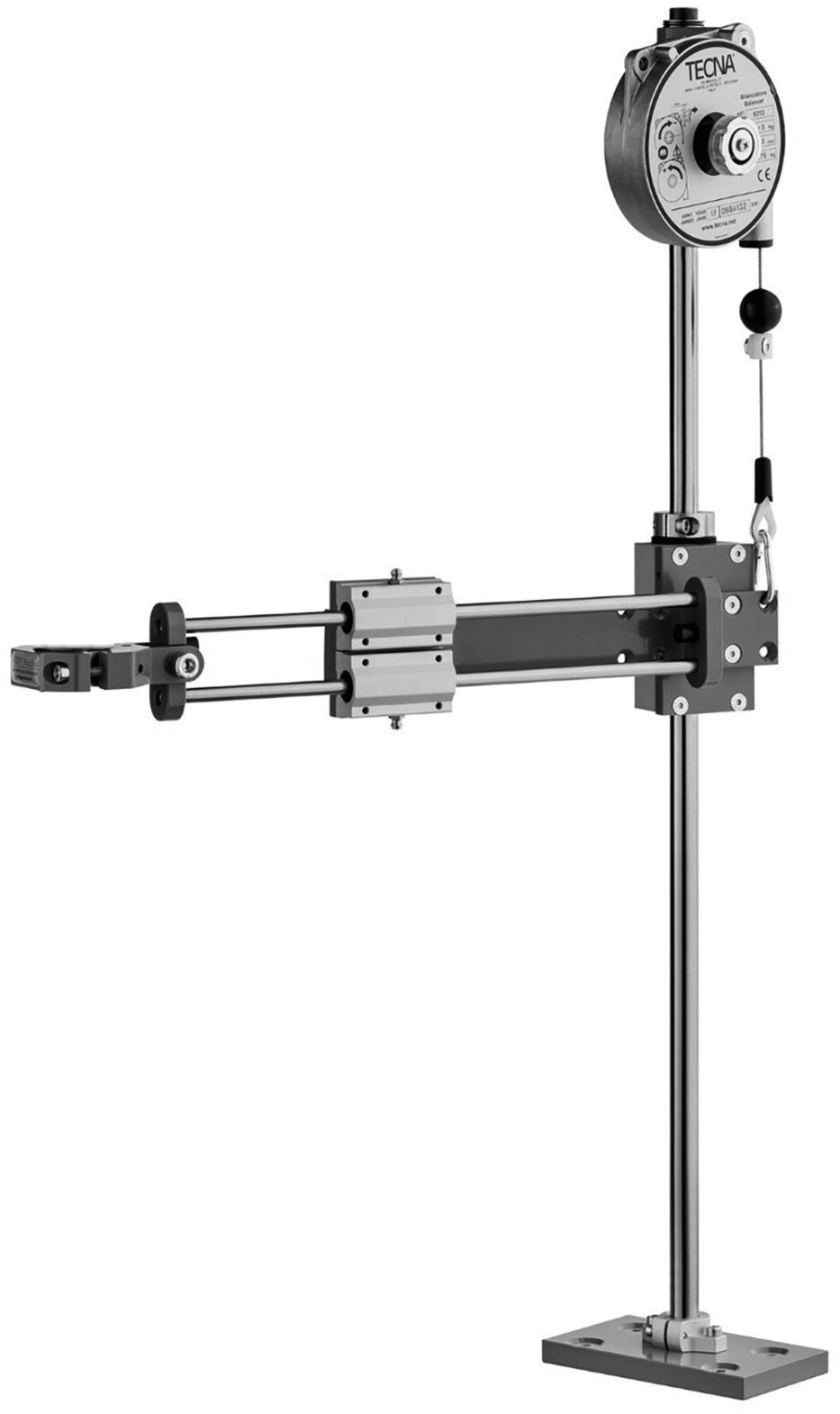

Articulating Arm LTA 15-200, max. 15 Nm
The articulating arm LTA 15-200 with counterbalance is an optimal solution for precise and angle-accurate guidance of tools, taking into account reaction forces and vibrations, even in limited space conditions. This model combines the features of the basic linear articulating arm with additional functions for enhanced flexibility and applications. The integration of smooth-running ball recirculating bushings allows for exact positioning of the tool both vertically and horizontally.
Technical Specifications:
- Material: Aluminum, Steel, high-quality linear bearing
- Column height: 700 mm
- Rotation/Reaction torque: up to 15 Nm
- Working range: 317 - 519 mm
- Cable pull: up to 3 kg
- Load capacity: max. 3 kg
- Swivel range: 360°
- Base size: 80 x 135 mm
- Tool holder: 28 - 44 mm
Ideal for applications where high precision and flexibility are required.
Item number: LTA-15-200
Details
- Load capacity
Load capacity
- 3.0 kg
- Working distance
Working distance
- 317-519 mm
- Torque range
Torque range
- 15.0 Nm
- Height [mm]
Height [mm]
- 700 mm
- Ø
Ø
- 28-44 mm
