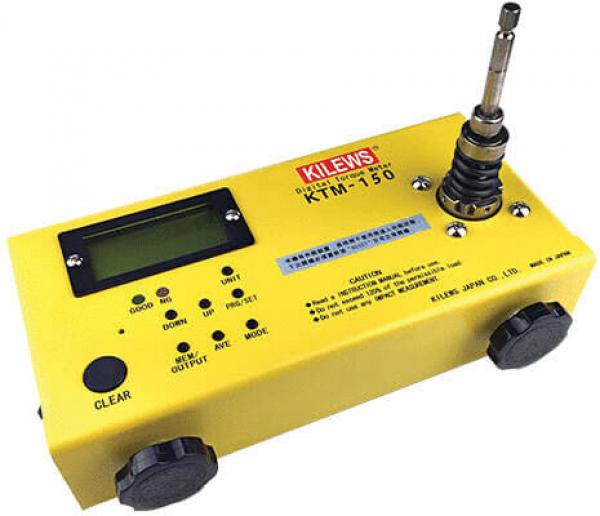

The image shows a yellow, rectangular measuring device with a digital display, buttons, and an antenna connection on top. It has two round, black feet on the bottom.
KTM-150 torque tester up to 15 Nm
(Product No.: SKZ-KTM-150)
The image shows a yellow, rectangular measuring device with a digital display, buttons, and an antenna connection on top. It has two round, black feet on the bottom.
Notice / Inquire

KTM-150 torque tester up to 15 Nm

KTM-150 torque tester up to 15 Nm

dpvlink:
20391
Further product information

chevron-down
Delivery time! Delivery time!
2.148,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

KTM-150 torque tester up to 15 Nm

The KTM-150 torque tester from Kilews is specifically designed for adjusting or checking torques up to 15 Nm. It offers high accuracy of ±1% and supports various measurement units such as Lbf-in, kgf-cm, and Nm. The measurement modes include peak value and real-time display, allowing for flexible handling.
The device features a USB port that enables easy data archiving on PCs and printers. The auto-reset function and the ability to perform measurements in both directions (left and right) enhance user-friendliness.
The robust design includes dimensions of 123x230x65 mm and a weight of 2 kg, making the device both portable and durable. Included in the package are a case and a calibration certificate, which confirm the precision and reliability of the device.
The power supply is provided by a 1.2 V battery, which allows for up to 30 hours of operation and has a charging time of 8 hours. This torque measuring device is ideal for technical applications where reliable and precise measurements are required.
Height
Height
65 mm
Length
Length
230 mm
Width
Width
125 mm
Accuracy
Accuracy
0,5 %
Torque range
Torque range
0.15 - 15.0 Nm
Weight
Weight
2000 g
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 449
Complete Catalog 2023 - 2024

Product Family

Torque tester KTM

Torque tester for adjusting or monitoring the required torques

  • USB port for data archiving on PC and printer
  • Auto-Reset function
  • Measuring direction left and right-hand
  • Measuring units Lbf in - kgf cm - Nm
  • Measuring mode: peak value, real-time display
  • including case and calibration certificat

Model

KTM-15

KTM-150

KTM-250

Measurement range

0.015-1.5 Nm

0.015-15.0 Nm

0.30-25.0 Nm

Accuracy

+-0,5%

+-0,5%

+-0,5%

Power supply

4.8VDC(Ni-MH / 1.2VX4 cell / 1650mAh)

4.8VDC(Ni-MH / 1.2VX4 cell / 1650mAh)

4.8VDC(Ni-MH / 1.2VX4 cell / 1650mAh)

Charging time

approx. 3 hours

approx. 3 hours

approx. 3 hours

Battery operaton

12 hours

12 hours

12 hours

Dimension

230 x 125 x 65 mm

230 x 125 x 65 mm

160 x 210 x 45 mm

Weight

1.8 kg

1.8 kg

2.0 kg

Screw fall simulator

AJ-15 / AJ-3

AJ-150 / AJ-50 / AJ-15K

AJ-250


Article image
Article description
Height
Length
Width
Accuracy
Torque range
Weight
Price
Compare
SKZ-KTM-15 - KTM-15 torque tester up to 1.5 Nm
SKZ-KTM-15
KTM-15 torque tester up to 1.5 Nm
65 mm
230 mm
125 mm
0,5 %
0,015 - 1.5 Nm
2000 g
2.083,00 EUR
SKZ-KTM-150 - KTM-150 torque tester up to 15 Nm
SKZ-KTM-150
KTM-150 torque tester up to 15 Nm
65 mm
230 mm
125 mm
0,5 %
0.15 - 15.0 Nm
2000 g
2.148,00 EUR
SKZ-KTM-250 - KTM-250 torque tester up to 25 Nm
SKZ-KTM-250
KTM-250 torque tester up to 25 Nm
45 mm
210 mm
160 mm
1 %
0.3 - 25.0 Nm
2000 g
2.926,00 EUR
