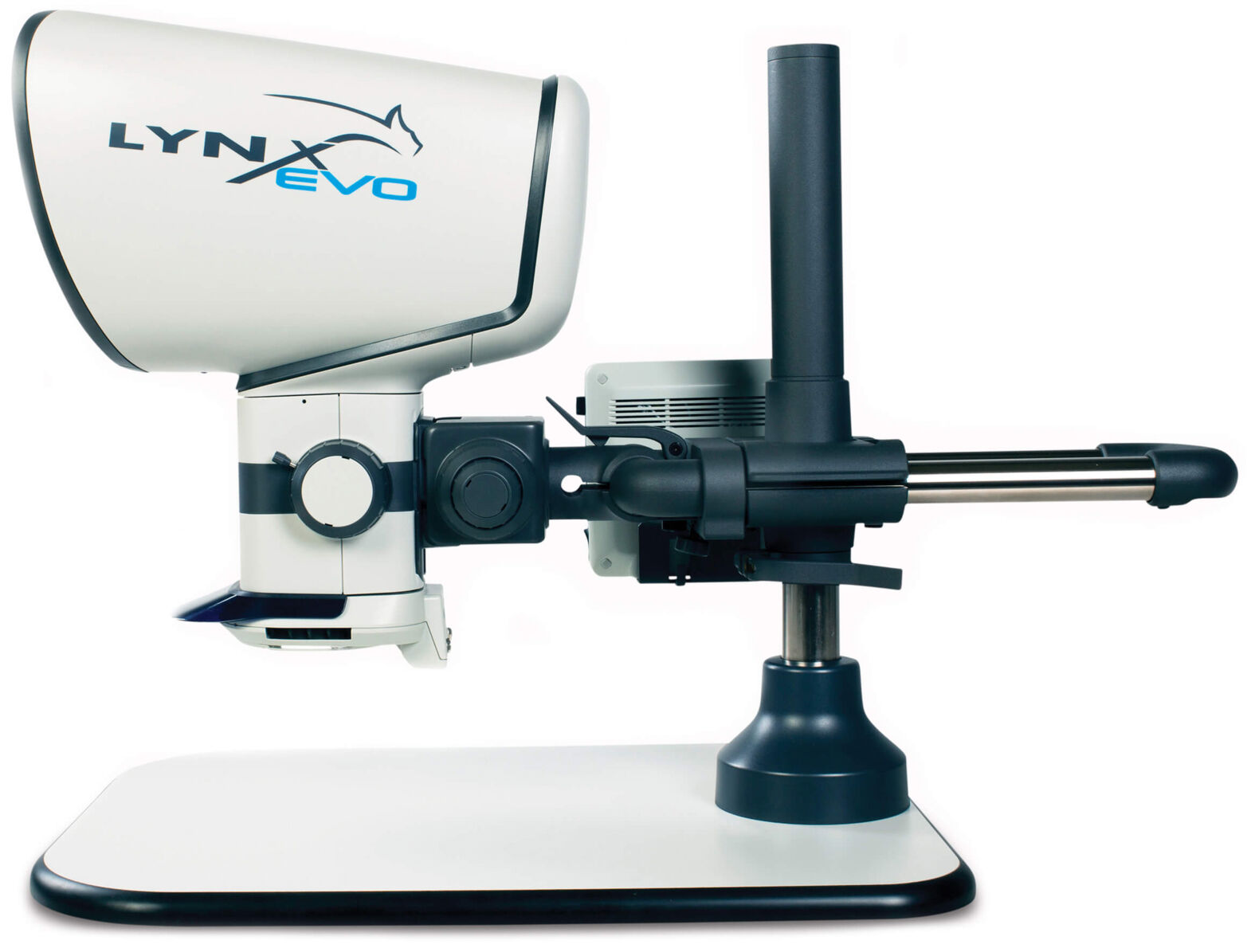

The image displays a device with a round, white casing and the inscription "LYNX EVO". It has a stable base and a long, flexible arm mounted on a base.

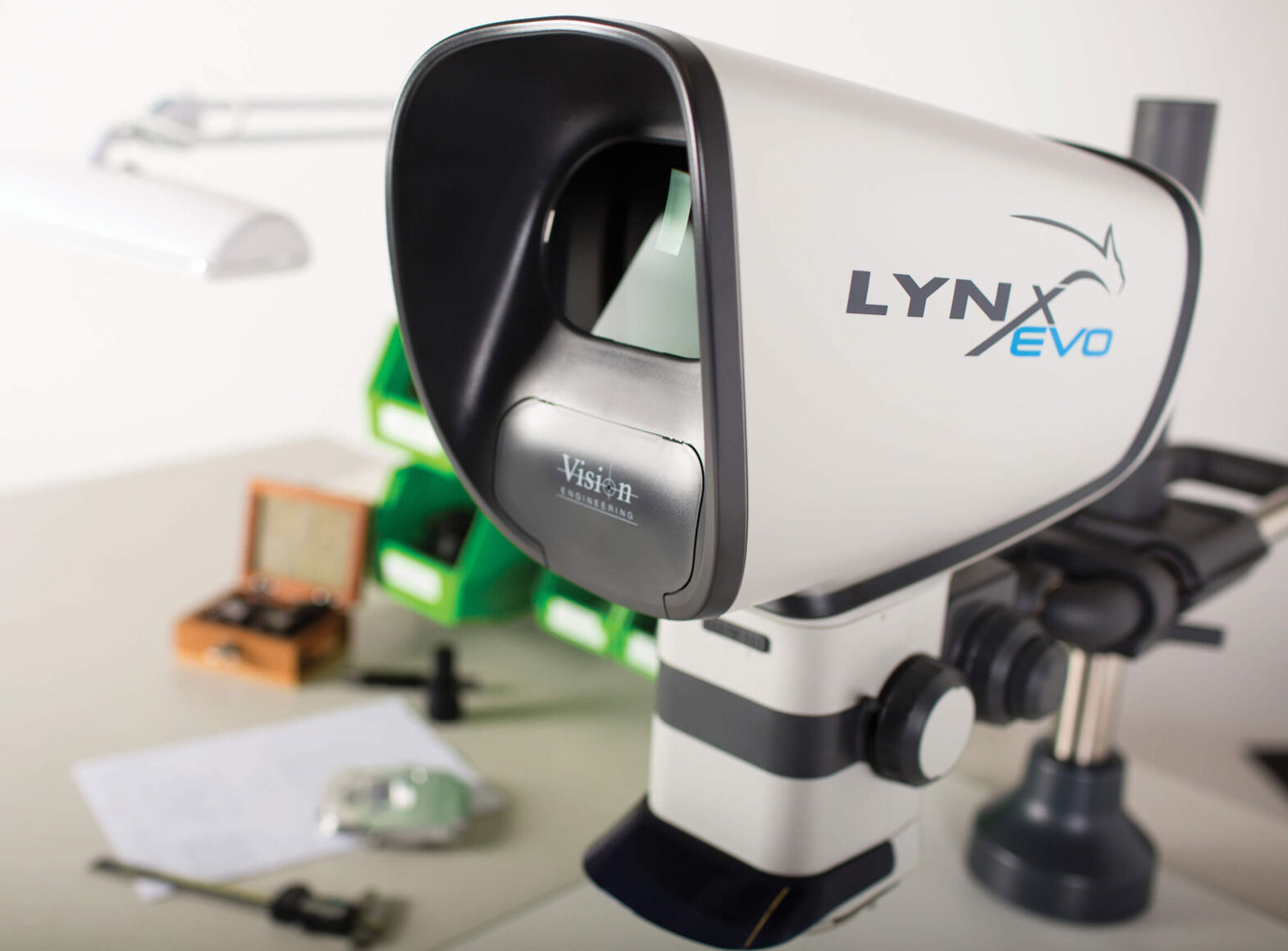

The image shows a device called LYNX Evo, which looks like a small telescope. It has a black opening at the front, a gray and white casing, and is mounted on a stable gray base.

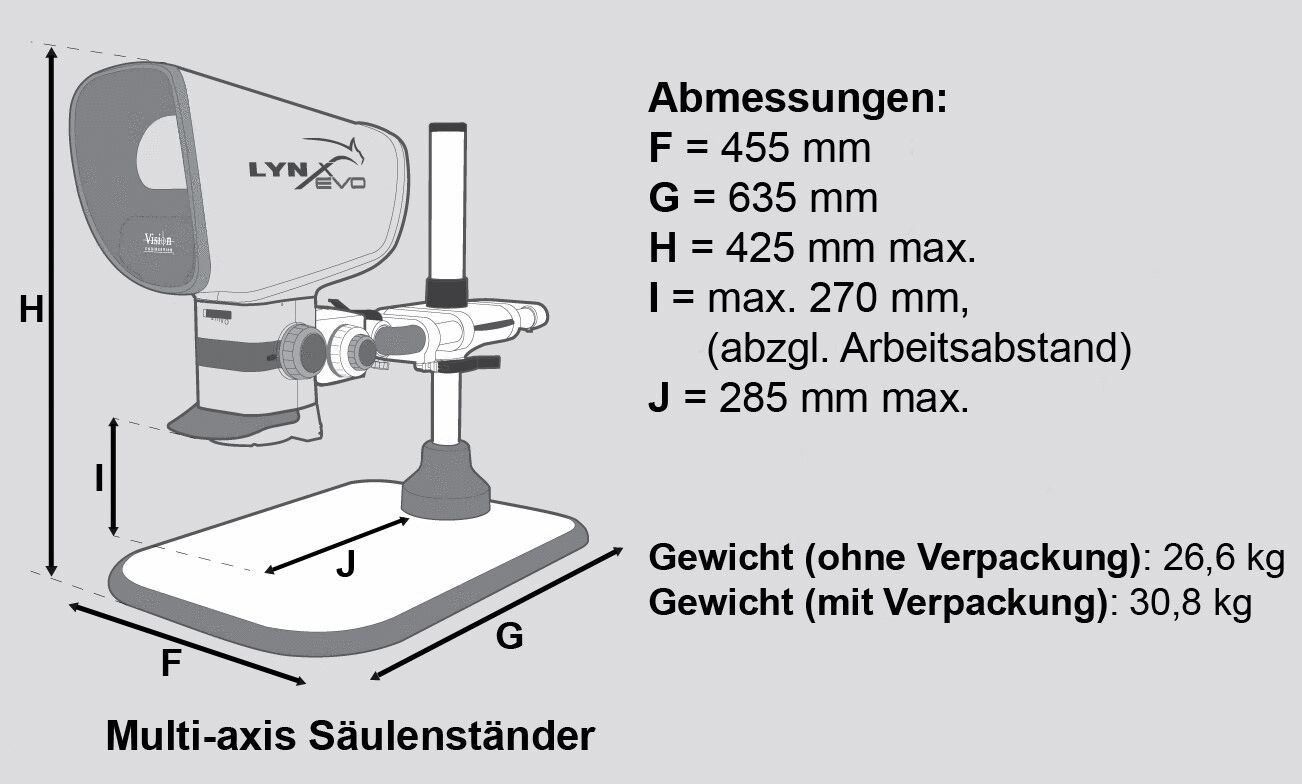

The image depicts a technical design of a multi-axis column stand. Dimensions and weights are provided, without colors or specific details. Clear lines and symbolism are used.
Preview: The image shows a device with a large, oval casing in white and black. There is a large viewing window at the front. It stands on a sturdy base and has an elongated handle.
Preview: The image displays a device with a round, white casing and the inscription "LYNX EVO". It has a stable base and a long, flexible arm mounted on a base.
Preview: The image shows a device called LYNX Evo, which looks like a small telescope. It has a black opening at the front, a gray and white casing, and is mounted on a stable gray base.
Preview: The image depicts a technical design of a multi-axis column stand. Dimensions and weights are provided, without colors or specific details. Clear lines and symbolism are used.
Lynx EVO with multi-axis stand and ring light
(Product No.: EVO502)
The image shows a device with a large, oval casing in white and black. There is a large viewing window at the front. It stands on a sturdy base and has an elongated handle.
The image displays a device with a round, white casing and the inscription "LYNX EVO". It has a stable base and a long, flexible arm mounted on a base.
The image shows a device called LYNX Evo, which looks like a small telescope. It has a black opening at the front, a gray and white casing, and is mounted on a stable gray base.
The image depicts a technical design of a multi-axis column stand. Dimensions and weights are provided, without colors or specific details. Clear lines and symbolism are used.
Mobile Preview: The image shows a device with a large, oval casing in white and black. There is a large viewing window at the front. It stands on a sturdy base and has an elongated handle.
Mobile Preview: The image displays a device with a round, white casing and the inscription "LYNX EVO". It has a stable base and a long, flexible arm mounted on a base.
Mobile Preview: The image shows a device called LYNX Evo, which looks like a small telescope. It has a black opening at the front, a gray and white casing, and is mounted on a stable gray base.
Mobile Preview: The image depicts a technical design of a multi-axis column stand. Dimensions and weights are provided, without colors or specific details. Clear lines and symbolism are used.
Notice

Lynx EVO with multi-axis stand and ring light

Lynx EVO with multi-axis stand and ring light

dpvlink:
18856
Further product information

Delivery time! Delivery time!
11.683,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Lynx EVO with multi-axis stand and ring light

The Lynx EVO from Vision combines advanced technology with user-friendly design, providing an optimal solution for demanding visual inspections. This system features a multi-axis column stand and an integrated LED ring light with a diffuser, ensuring uniform illumination. The Lynx EVO stereo head offers precise detail viewing with its 10:1 zoom (EVZ-040) and a 0.62x lens (EVL-062), covering a zoom range from 3.7x to 37x.
The dimensions of the device are 455 mm in width, 425 mm in height, and 635 mm in depth, with a weight of 26.6 kg. The capture resolution is 2592 x 1944, enabling high-resolution images. The working distance of 270 mm, along with variable image frame sizes from 4.0 mm to 40 mm at maximum zoom, supports flexible adaptation to different object sizes.
The system comes with a focusing module for the stand and additional accessories, including a cover and a dimmer for the ring light. The power supply is designed for 100 - 240 V, facilitating international use.
Voltage
Voltage
100 - 240 V
Depth [mm]
Depth
635 mm
Height [mm]
Height
425 mm
Width [mm]
Width
455 mm
Illuminant
Illuminant
LED
Capture resolution
Capture resolution
2592 x 1944
Field of view max. zoom
Field of view max. zoom
4.0 mm
Field of view min. zoom
Field of view min. zoom
40 mm
Objective
Objective
0.62x
Support
Support
multi-axis stand
Working distance
Working distance
270 mm
Zoom range
Zoom range
3.7x - 37x
Weight
Weight
26.6 kg
Show accessories
Accessories

Accessories

The image shows a black, metallic component with a round opening and three protruding elements. It has a smooth surface and is designed for mechanical connections.
Measurement reticle + holder "scale 10 mm...
Graticule + holder "scale 10 mm / 0.1 mm"
dpvlink
18876

679,00 EUR
The image shows an electric magnifying device on a sturdy, black stand. It features a round, illuminated area for objects and a camera with controls on top.
Ergo stand with fine/coarse focusing
Ergo stand with corse/fine focus control EVB-010



suitable for Lynx EVO + EVO Cam + EVO Cam II + Makrolite 4K<<
dpvlink
21623

2.565,00 EUR
The image displays a microscope stand with a stable, rectangular base. A vertical column rises with a horizontal holder for the microscope.
Multi-axis stand with base plate EVB022 for...
Multiaxis stand with base plate EVB022



<< suitable for Lynx EVO + EVO Cam + EVO Cam II + Makrolite 4K<<
dpvlink
18876

2.452,00 EUR
The image shows a black device in a square shape with two round, rotatable parts on the sides. In the center, there is a narrow recess that lies between the two sides.
Focusing module for multi-axis stand for...
Multi-axis stand focus assembly EVF-110
dpvlink
18876

981,00 EUR
The image displays a device called LYNX Evo. It has an oval shape with a large, black viewport and a gray surface. The design is modern and functional.
Stereo Dynascope head for LYNX EVO
Lynx EVO Stereo Head EVH-001
dpvlink
18868

4.007,00 EUR
The image shows a round, black lens housing with a glass lens in the center. The housing reads "Vision Engineering X0.45" in white letters. The edge is slightly curved.
Lens x0,45 (magnification x2,7-x27) for LYNX...
Objective x0,45 / EVL-045
(working distance 176 mm, Zoom 2.7x - 27x)
delivery includes converging lens
dpvlink
30021

408,00 EUR
The image shows a round, black lens in the center is a transparent lens with a slightly curved shape. It has a label with "Vision Engineering" and a type designation.
Lens x0,62 (magnification x3,7-x37) for LYNX...
Objective x0.62 / EVL-062
(working distance 128 mm, Zoom 3.7x - 37x)
delivery with converging lens
dpvlink
30021

269,00 EUR
The image shows a magnifying lens in a black casing. On the front, the words "Vision Engineering" and "X1.0" are printed. The lens has a clear surface and a slightly curved edge.
Lens x1,0 (magnification x6,0-x60) for LYNX...
Objective x1.0 / EVL-100
(working distance 75 mm, Zoom 6.0x - 60x)
Delivery including converging lens
dpvlink
30021

269,00 EUR
The image shows a round, black lens with a smooth, transparent lens in the center. It reads "Vision Engineering X2.0". It has a sturdy, cylindrical shape.
Lens x2,0 (magnification x12,0-x120) for...
Objective x2.0 / EVL-200
(working distance 29 mm, Zoom 12x - 120x)
delivery with converging lens
dpvlink
30021

1.090,00 EUR
The image shows a rectangular, gray device with a dark front. It features two round dials and a power switch at the bottom. On the front, it reads "Vision Engineering" and "Ringlight Power Supply".
Dimmer power unit for EVS011, EVR050 and...
PSU EVP-080 (for EVS-011 / EVR-050 / EVR-060)
dpvlink
18862

1.777,00 EUR
The image shows a technical device with a round, gray cable connection. It features a white, simple casing shape, next to which lies a separate, dark blue cover.
LED ring light with integrated diffuser for...
LED Ring-light EVR-050 , with integral diffuser
dpvlink
18862

769,00 EUR
The image displays a flat, octagonal device in white with a central, round opening. The bottom is black and slightly irregularly shaped, possibly for a technical application.
LED rotating viewer for LYNX EVO
LED 360° rotating viewer EVR-060 , for direct and
34° oblique view
dpvlink
18862

3.801,00 EUR
The image shows a round LED recessed light with a white frame and a central, smooth light surface. A cable with a plug is attached. The light appears modern and slim.
LED transmitted light for EVB010 for LYNX...
LED transmitted light EVS-011 (for EVB-010)
dpvlink
18862

394,00 EUR
The image shows a compact, square device in light gray with a black stripe. There are two large, round knobs on the sides. The top has a flap.
Lynx EVO magnification 10:1
Lynx EVO zoom 10:1 EVZ-040
dpvlink
18868

2.570,00 EUR
The image shows a flat, rectangular surface with rounded corners. The surface is shiny and silver-colored, while the edge is black. It resembles a plastic or metal object.
Base plate for multi-axis stand EVB021
Base plate
(suitable for multi-axis stand EVB021)


>>suitable for Lynx EVO + EVO Cam + EVO Cam II + Makrolite 4K<<
dpvlink
21623

510,00 EUR
The image shows a square, gray device with a black top. In the center, there is a round opening. On the side, there is a symbol with “X 1.5”.
Multiplier lens x1,5 (Zoom x1,5) for LYNX...
EVZ-045 multiplier lens 1.5 (zoom range x 1.5)
LynxEVO
dpvlink
30021

1.314,00 EUR
The image shows a square, gray device with a black top. In the center, there is a round opening. On the side, there is a symbol with “X 1.5”.
Multiplier lens x2,0 (Zoom x2,0) for LYNX...
EVZ-046 multiplier lens 2.0 (zoom range x 2.0)
LynxEVO
dpvlink
30021

1.426,00 EUR
The image shows a rectangular, gray plate with rounded corners. There is a round cutout at the top. It has a smooth surface and appears sturdy.
ESD mat for base plate EVB022
ESD mat for base plate EVB022
LynxEvo/EVOCam
dpvlink
21623

59,85 EUR
The image shows a compact, cuboid device in white with a red, round opening in the center. The top has a dark, rectangular structure that frames the red part.
SmartCam 50, USB HD camera module 5 megapixel...
SmartCam 50 EVC-132, camera module 5Mpix
dpvlink
30022

2.565,00 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 559
Complete Catalog 2023 - 2024
Lynx EVO - Eyepieceless stereo microscope

Product Family

Lynx EVO complete devices

Article image
Article description
Voltage
Depth [mm]
Height [mm]
Width [mm]
Illuminant
Capture resolution
Field of view max. zoom
Field of view min. zoom
Objective
Support
Working distance
Zoom range
Weight
Price
Compare
EVO501 - Lynx EVO with ERGO stand and ring light
EVO501
Lynx EVO with ERGO stand and ring light
100 - 240 V
420 mm
670 mm
280 mm
LED
2592 x 1944
2.5 mm
25 mm
1.0x
Ergo stand
0-200 mm
6.0x - 60x
15.3 kg
11.325,00 EUR
EVO502 - Lynx EVO with multi-axis stand and ring light
EVO502
Lynx EVO with multi-axis stand and ring light
100 - 240 V
635 mm
425 mm
455 mm
LED
2592 x 1944
4.0 mm
40 mm
0.62x
multi-axis stand
270 mm
3.7x - 37x
26.6 kg
11.683,00 EUR
EVO503 - Lynx EVO with Ergo stand and rotating viewer
EVO503
Lynx EVO with Ergo stand and rotating viewer
100 - 240 V
420 mm
670 mm
280 mm
LED
2592 x 1944
3.8 mm
10.2 mm

Ergo stand
200 mm
4.2x - 42x
15.3 kg
14.094,00 EUR
EVO504 - Lynx EVO with multi-axis stand and rotating viewer
EVO504
Lynx EVO with multi-axis stand and rotating viewer
100 - 240 V
635 mm
425 mm
455 mm
LED
2592 x 1944
3.8 mm
10.2 mm

multi-axis stand
270 mm
4.2x - 42x
26.6 kg
14.452,00 EUR
