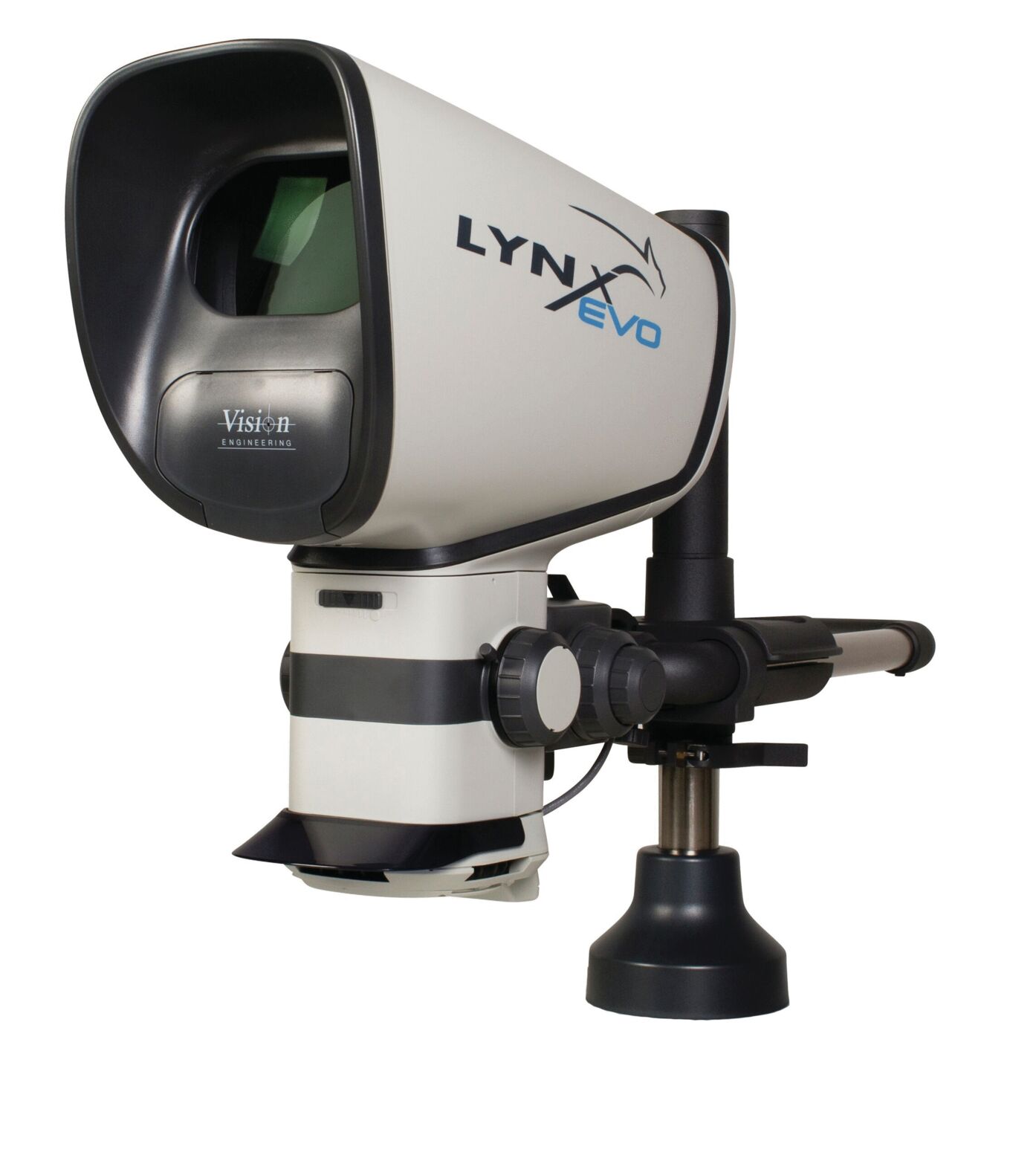

Lynx EVO with multi-axis stand and rotating viewer
(Product No.: EVO504)
The image shows a device with a large, oval casing in white and black. There is a large viewing window at the front. It stands on a sturdy base and has an elongated handle.
Notice

Lynx EVO with multi-axis stand and rotating viewer

Lynx EVO with multi-axis stand and rotating viewer

dpvlink:
18856
Further product information

at short notice at short notice
14.452,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Lynx EVO with multi-axis stand and rotating viewer

The Lynx EVO system, manufactured by Vision, is a state-of-the-art visual inspection solution designed for efficiency and precision. This system comes with a multi-axis column stand and innovative angle optics that provide 360° LED lighting. The stand allows for flexible positioning of the stereo head, which covers a zoom range from 4.2x to 42x.

The dimensions of the device are 455 mm in width, 425 mm in height, and 635 mm in depth, with a total weight of 26.6 kg. It is designed for a voltage of 100 to 240 V, which allows for a wide range of applications in various environments. The working distance of 270 mm together with a capture resolution of 2592 x 1944 pixels allows for detailed viewing of objects down to a minimum size of 3.8 mm at maximum zoom.

Included in the delivery are the LynxEVO stereo head with cover, a focusing module, and the multi-axis column stand without base plate. These components ensure high adaptability and user-friendliness for various inspection tasks.
Voltage
Voltage
100 - 240 V
Depth [mm]
Depth
635 mm
Height [mm]
Height
425 mm
Width [mm]
Width
455 mm
Illuminant
Illuminant
LED
Capture resolution
Capture resolution
2592 x 1944
Field of view max. zoom
Field of view max. zoom
3.8 mm
Field of view min. zoom
Field of view min. zoom
10.2 mm
Support
Support
multi-axis stand
Working distance
Working distance
270 mm
Zoom range
Zoom range
4.2x - 42x
Weight
Weight
26.6 kg
Show accessories
Accessories

Accessories

The image shows a black, metallic component with a round opening and three protruding elements. It has a smooth surface and is designed for mechanical connections.
Measurement reticle + holder "scale 10 mm...
Graticule + holder "scale 10 mm / 0.1 mm"
dpvlink
18876

679,00 EUR
The image shows an electric magnifying device on a sturdy, black stand. It features a round, illuminated area for objects and a camera with controls on top.
Ergo stand with fine/coarse focusing
Ergo stand with corse/fine focus control EVB-010



suitable for Lynx EVO + EVO Cam + EVO Cam II + Makrolite 4K<<
dpvlink
21623

2.565,00 EUR
The image displays a microscope stand with a stable, rectangular base. A vertical column rises with a horizontal holder for the microscope.
Multi-axis stand with base plate EVB022 for...
Multiaxis stand with base plate EVB022



<< suitable for Lynx EVO + EVO Cam + EVO Cam II + Makrolite 4K<<
dpvlink
18876

2.452,00 EUR
The image shows a black device in a square shape with two round, rotatable parts on the sides. In the center, there is a narrow recess that lies between the two sides.
Focusing module for multi-axis stand for...
Multi-axis stand focus assembly EVF-110
dpvlink
18876

981,00 EUR
The image displays a device called LYNX Evo. It has an oval shape with a large, black viewport and a gray surface. The design is modern and functional.
Stereo Dynascope head for LYNX EVO
Lynx EVO Stereo Head EVH-001
dpvlink
18868

4.007,00 EUR
The image shows a round, black lens housing with a glass lens in the center. The housing reads "Vision Engineering X0.45" in white letters. The edge is slightly curved.
Lens x0,45 (magnification x2,7-x27) for LYNX...
Objective x0,45 / EVL-045
(working distance 176 mm, Zoom 2.7x - 27x)
delivery includes converging lens
dpvlink
30021

408,00 EUR
The image shows a round, black lens in the center is a transparent lens with a slightly curved shape. It has a label with "Vision Engineering" and a type designation.
Lens x0,62 (magnification x3,7-x37) for LYNX...
Objective x0.62 / EVL-062
(working distance 128 mm, Zoom 3.7x - 37x)
delivery with converging lens
dpvlink
30021

269,00 EUR
The image shows a magnifying lens in a black casing. On the front, the words "Vision Engineering" and "X1.0" are printed. The lens has a clear surface and a slightly curved edge.
Lens x1,0 (magnification x6,0-x60) for LYNX...
Objective x1.0 / EVL-100
(working distance 75 mm, Zoom 6.0x - 60x)
Delivery including converging lens
dpvlink
30021

269,00 EUR
The image shows a cylindrical, black lens container with a glass front. It is an optical accessory, labeled with "Vision X1.5".
Lens x1,5 (magnification x9,0-x90) for LYNX...
Objective x1.5 / EVL-150
(working distance 45 mm, Zoom 9.0x - 90x)
delivery with converging lens
dpvlink
30021

777,00 EUR
The image shows a round, black lens with a smooth, transparent lens in the center. It reads "Vision Engineering X2.0". It has a sturdy, cylindrical shape.
Lens x2,0 (magnification x12,0-x120) for...
Objective x2.0 / EVL-200
(working distance 29 mm, Zoom 12x - 120x)
delivery with converging lens
dpvlink
30021

1.090,00 EUR
The image shows a rectangular, gray device with a dark front. It features two round dials and a power switch at the bottom. On the front, it reads "Vision Engineering" and "Ringlight Power Supply".
Dimmer power unit for EVS011, EVR050 and...
PSU EVP-080 (for EVS-011 / EVR-050 / EVR-060)
dpvlink
18862

1.777,00 EUR
The image shows a technical device with a round, gray cable connection. It features a white, simple casing shape, next to which lies a separate, dark blue cover.
LED ring light with integrated diffuser for...
LED Ring-light EVR-050 , with integral diffuser
dpvlink
18862

769,00 EUR
The image displays a flat, octagonal device in white with a central, round opening. The bottom is black and slightly irregularly shaped, possibly for a technical application.
LED rotating viewer for LYNX EVO
LED 360° rotating viewer EVR-060 , for direct and
34° oblique view
dpvlink
18862

3.801,00 EUR
The image shows a round LED recessed light with a white frame and a central, smooth light surface. A cable with a plug is attached. The light appears modern and slim.
LED transmitted light for EVB010 for LYNX...
LED transmitted light EVS-011 (for EVB-010)
dpvlink
18862

394,00 EUR
The image shows a compact, square device in light gray with a black stripe. There are two large, round knobs on the sides. The top has a flap.
Lynx EVO magnification 10:1
Lynx EVO zoom 10:1 EVZ-040
dpvlink
18868

2.570,00 EUR
The image shows a flat, rectangular surface with rounded corners. The surface is shiny and silver-colored, while the edge is black. It resembles a plastic or metal object.
Base plate for multi-axis stand EVB021
Base plate
(suitable for multi-axis stand EVB021)


>>suitable for Lynx EVO + EVO Cam + EVO Cam II + Makrolite 4K<<
dpvlink
21623

510,00 EUR
The image shows a square, gray device with a black top. In the center, there is a round opening. On the side, there is a symbol with “X 1.5”.
Multiplier lens x1,5 (Zoom x1,5) for LYNX...
EVZ-045 multiplier lens 1.5 (zoom range x 1.5)
LynxEVO
dpvlink
30021

1.314,00 EUR
The image shows a square, gray device with a black top. In the center, there is a round opening. On the side, there is a symbol with “X 1.5”.
Multiplier lens x2,0 (Zoom x2,0) for LYNX...
EVZ-046 multiplier lens 2.0 (zoom range x 2.0)
LynxEVO
dpvlink
30021

1.426,00 EUR
The image shows a rectangular, gray plate with rounded corners. There is a round cutout at the top. It has a smooth surface and appears sturdy.
ESD mat for base plate EVB022
ESD mat for base plate EVB022
LynxEvo/EVOCam
dpvlink
21623

59,85 EUR
The image shows a compact, cuboid device in white with a red, round opening in the center. The top has a dark, rectangular structure that frames the red part.
SmartCam 50, USB HD camera module 5 megapixel...
SmartCam 50 EVC-132, camera module 5Mpix
dpvlink
30022

2.565,00 EUR
