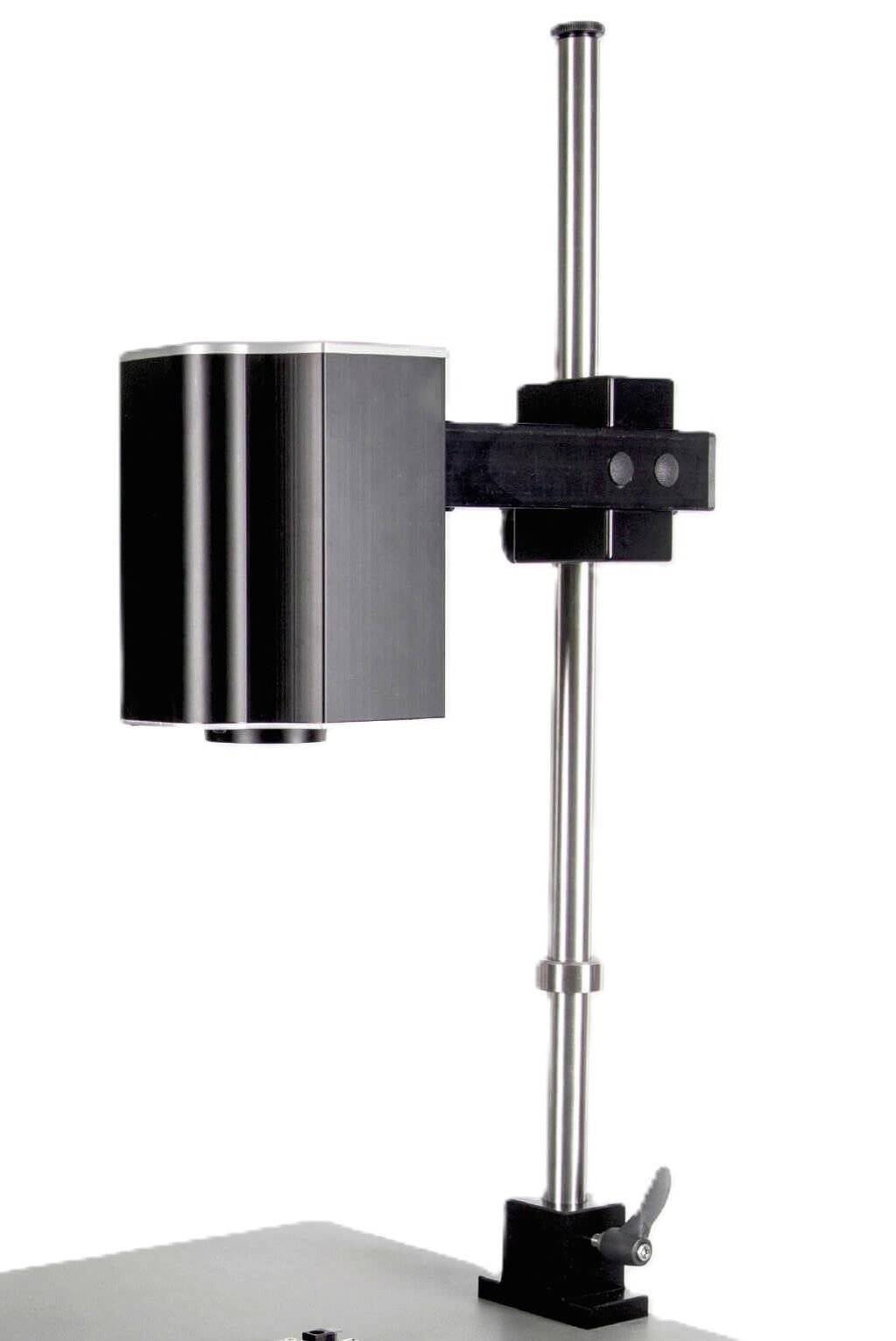

The image shows a device consisting of a vertical metal pipe and a black box. The box is mounted on top and could be a microphone or a camera.

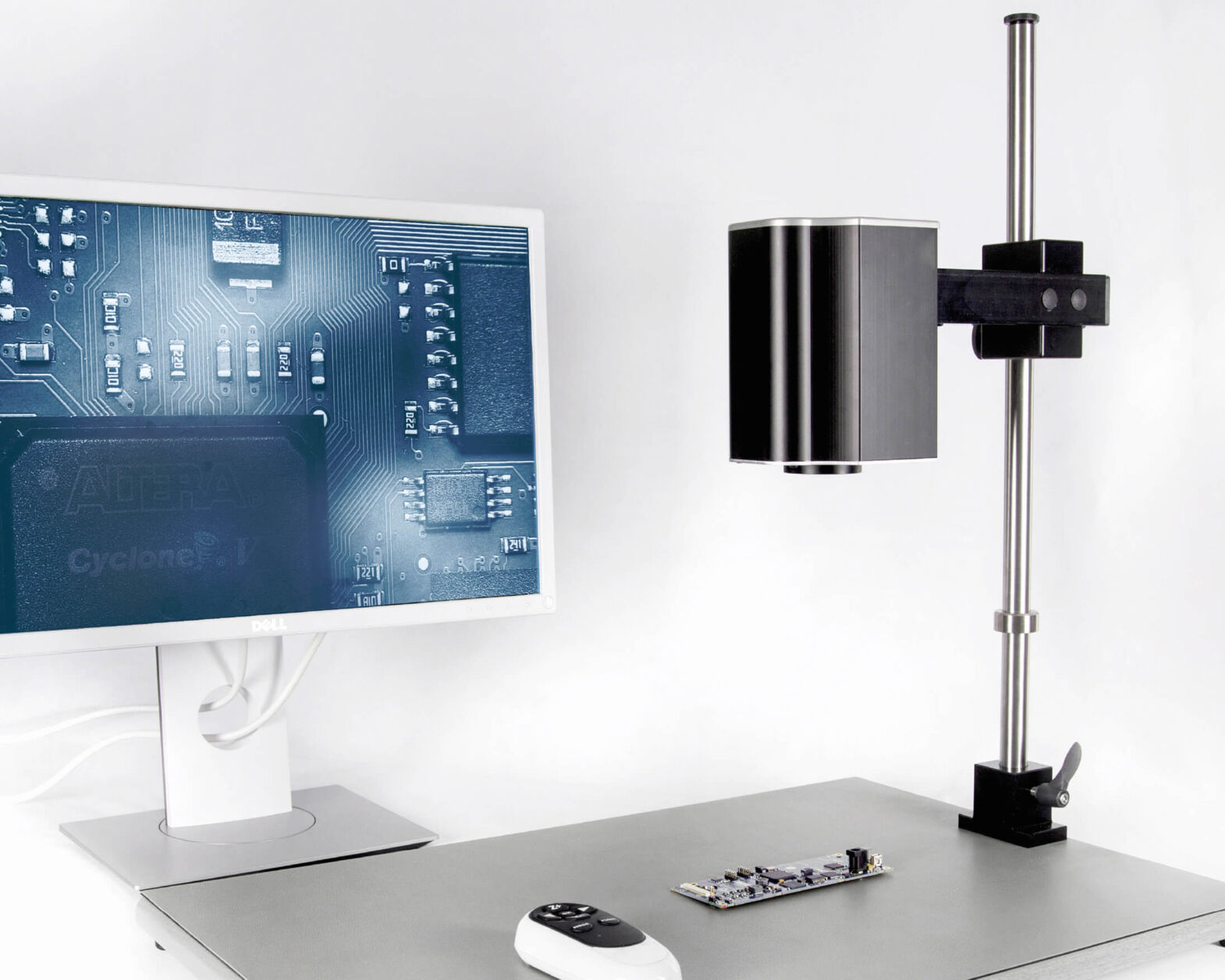

On a table, there is a monitor displaying a technical diagram. Above a small component, a black camera hovers, attached to a mount.

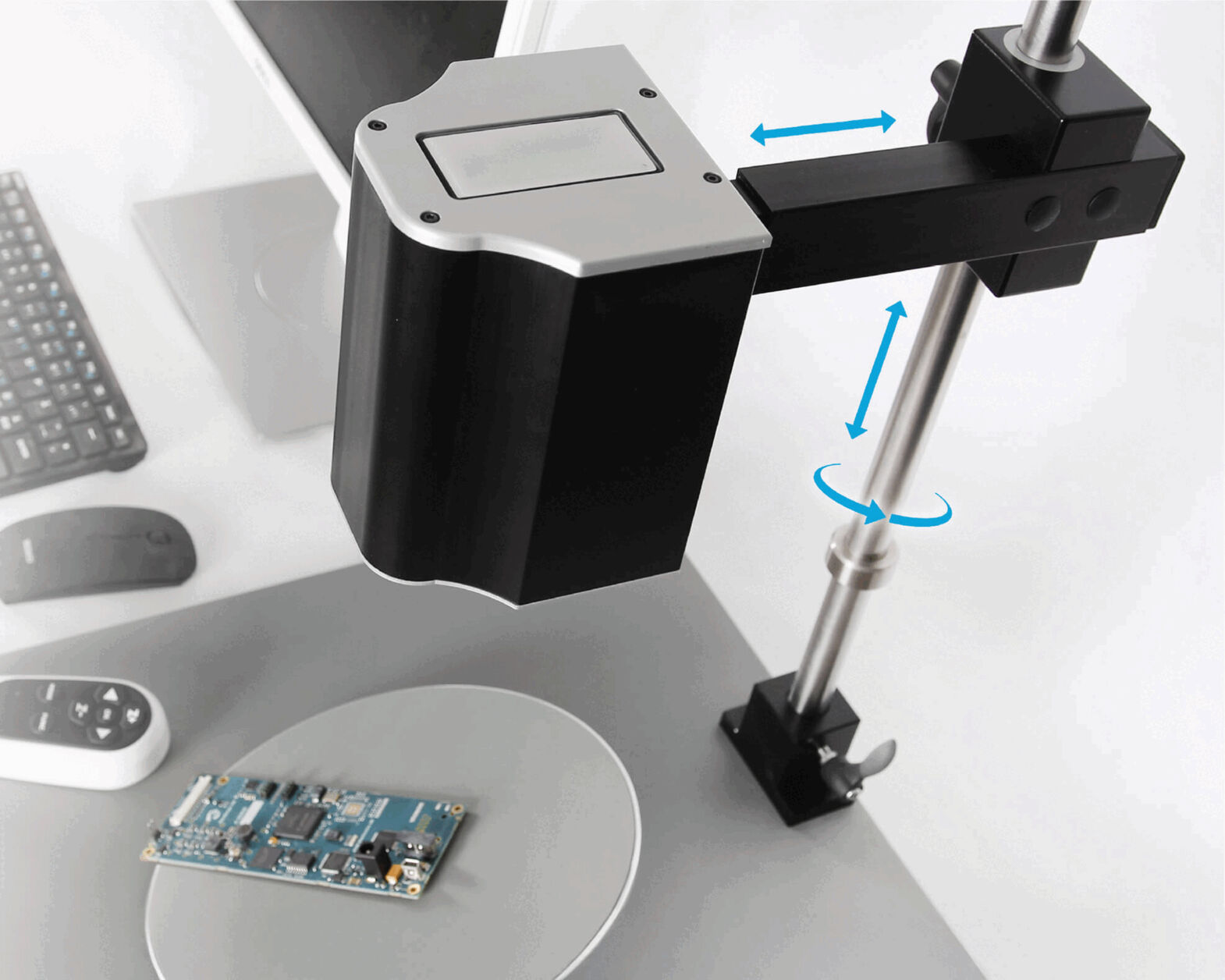

The image shows a technical workstation with a camera hovering over a circular area. Below it is a circuit board. The camera can be moved in various directions.

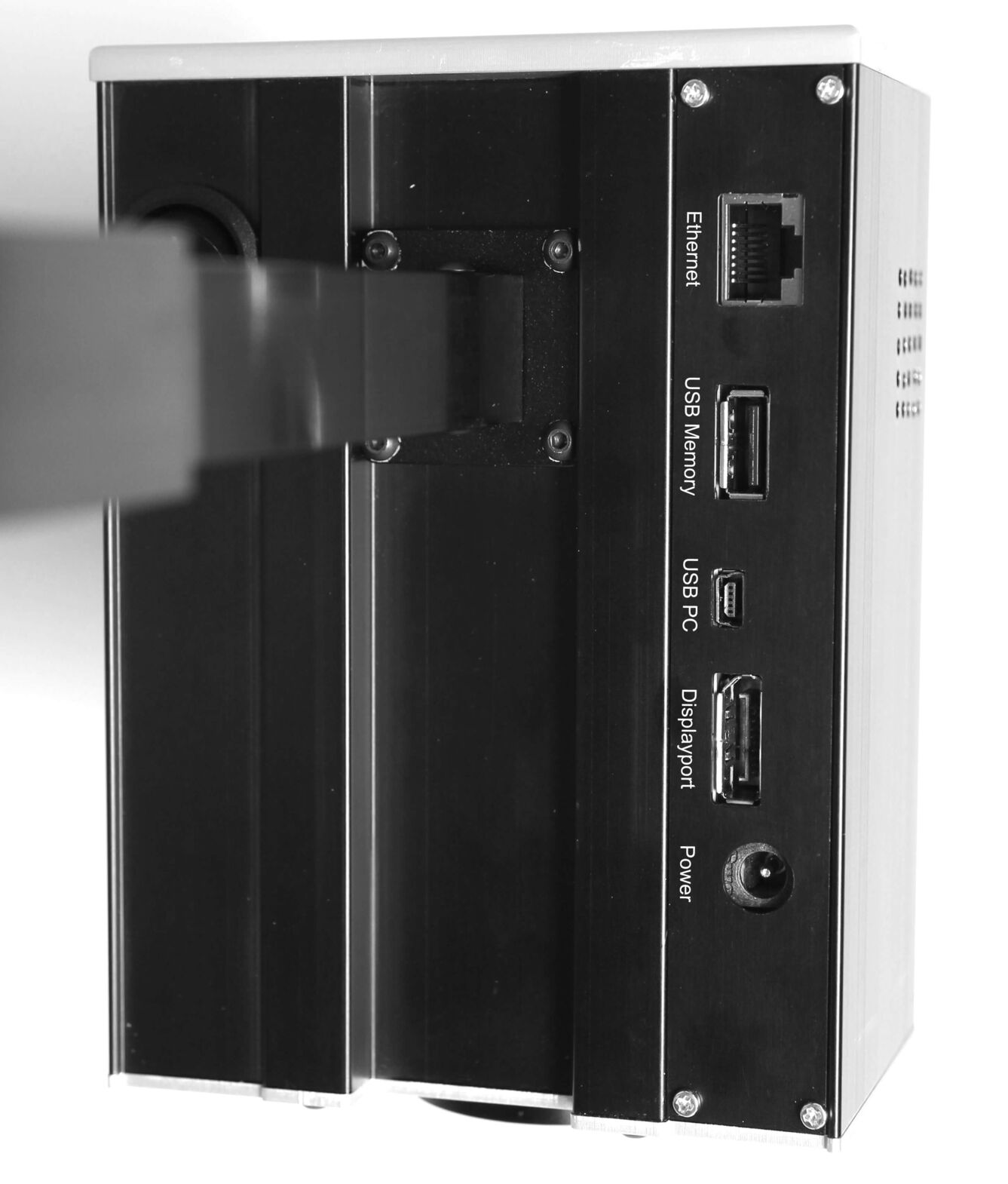

The image shows the back of a device with several connection ports: Ethernet, USB (for storage and PC), DisplayPort, and power supply. The surface is black and metallic.

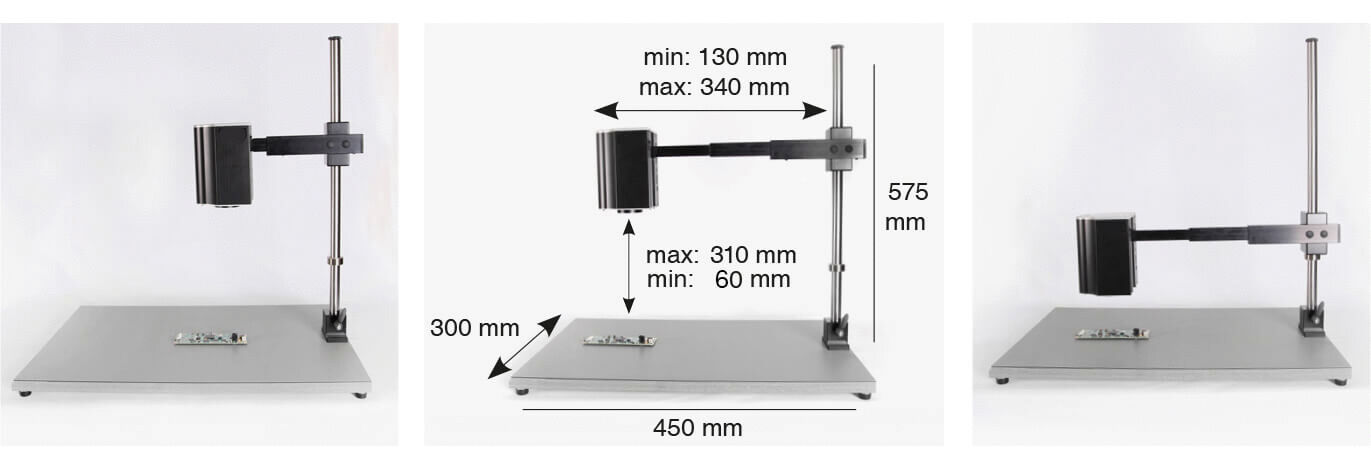

The image displays an adjustable device with a base and an arm that holds a black mount. The dimensions are listed: height up to 575 mm, arm adjustable from 130 mm to 340 mm.
Preview: The image shows a device consisting of a vertical metal pipe and a black box. The box is mounted on top and could be a microphone or a camera.
Preview: On a table, there is a monitor displaying a technical diagram. Above a small component, a black camera hovers, attached to a mount.
Preview: The image shows a technical workstation with a camera hovering over a circular area. Below it is a circuit board. The camera can be moved in various directions.
Preview: The image shows the back of a device with several connection ports: Ethernet, USB (for storage and PC), DisplayPort, and power supply. The surface is black and metallic.
Preview: The image displays an adjustable device with a base and an arm that holds a black mount. The dimensions are listed: height up to 575 mm, arm adjustable from 130 mm to 340 mm.
TEK-FLEX-XY FHD digital microscope
(Product No.: I-TEK.FLEX-XY)
The image shows a device consisting of a vertical metal pipe and a black box. The box is mounted on top and could be a microphone or a camera.
On a table, there is a monitor displaying a technical diagram. Above a small component, a black camera hovers, attached to a mount.
The image shows a technical workstation with a camera hovering over a circular area. Below it is a circuit board. The camera can be moved in various directions.
The image shows the back of a device with several connection ports: Ethernet, USB (for storage and PC), DisplayPort, and power supply. The surface is black and metallic.
The image displays an adjustable device with a base and an arm that holds a black mount. The dimensions are listed: height up to 575 mm, arm adjustable from 130 mm to 340 mm.
Mobile Preview: The image shows a device consisting of a vertical metal pipe and a black box. The box is mounted on top and could be a microphone or a camera.
Mobile Preview: On a table, there is a monitor displaying a technical diagram. Above a small component, a black camera hovers, attached to a mount.
Mobile Preview: The image shows a technical workstation with a camera hovering over a circular area. Below it is a circuit board. The camera can be moved in various directions.
Mobile Preview: The image shows the back of a device with several connection ports: Ethernet, USB (for storage and PC), DisplayPort, and power supply. The surface is black and metallic.
Mobile Preview: The image displays an adjustable device with a base and an arm that holds a black mount. The dimensions are listed: height up to 575 mm, arm adjustable from 130 mm to 340 mm.
Notice / Inquire

TEK-FLEX-XY FHD digital microscope

TEK-FLEX-XY FHD digital microscope

dpvlink:
30069
Further product information

Delivery time! Delivery time!
NEW
3.932,36 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

TEK-FLEX-XY FHD digital microscope

The TEK-FLEX-XY FHD Digital Microscope from ideal-tek is an advanced optical bench inspection system, known for its high image quality and flexibility. This microscope offers an impressive optical magnification of 46x and a digital magnification of up to 140x on a 27" monitor. It is specifically designed for the inspection industry and allows for precise inspections even in compact spaces thanks to its telescopic camera arm.
The system features an adjustable Z-axis ranging from 310 mm to 60 mm and delivers distortion-free 1080p FHD images without any time delay. The robust construction is ESD-safe and offers both manual and fast autofocus. Additional features include a wireless remote control, real-time image transmission via DisplayPort, measuring software for the PC via USB port, and the ability to save images directly to a USB stick without using a PC.
With dimensions of 300 mm width, 600 mm height, and 500 mm length, and an input voltage of 100 - 240 V/AC and an output voltage of 12 V/DC, the microscope is both ergonomically and technically up-to-date. The accompanying software allows for efficient image and video editing and performing measurements directly on the PC.
Input voltage
Input voltage
100 - 240 V/AC
Output voltage DC
Output voltage DC
12 V/DC
Height [mm]
Height
600 mm
Length
Length
500 mm
Width [mm]
Width
300 mm
Capture resolution
Capture resolution
1920 x 1080
Magnification
Magnification
140x
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

TEK-FLEX-XY FHD digital microscope

Article image
Article description
Input voltage
Output voltage DC
Height [mm]
Length
Width [mm]
Capture resolution
Magnification
Price
Compare
NEW
I-TEK.FLEX-XY - TEK-FLEX-XY FHD digital microscope
I-TEK.FLEX-XY
TEK-FLEX-XY FHD digital microscope
100 - 240 V/AC
12 V/DC
600 mm
500 mm
300 mm
1920 x 1080
140x
3.932,36 EUR
