ESD magnifier lamp TEVISIO RLLQ 48/2AR-ESD
LED Magnifying Lamp ESD TEVISIO RLLQ 48/2AR-ESD
The LED Magnifying Lamp ESD TEVISIO RLLQ 48/2AR-ESD combines advanced LED technology with ergonomic perfection, optimized for demanding visual tasks. This model is specifically designed for use in ESD-protected areas and offers additional protection thanks to its special surface coating.
Technical Specifications:
- Operating device: Electronic transformer
- Connection values: 100-240 V, 50/60 Hz
- Power consumption: approx. 16 W
- Light color: Neutral white, approx. 4000 K
- Color rendering (Ra): >= 90
- Protection type: IP 20
- Protection class: I with plug-in power supply, III without plug-in power supply
- Technology: Multi-stage switchable, continuously dimmable
- Operation: Multifunction button
- Housing material: Plastic, ESD version, black
- Lamp arm: Aluminum profile, ESD coating, black
- Lens: Ø 160 mm, 3.5 diopters
- Power cord: 3.30 m, power plug CEE 7/VII
- Weight: approx. 2.5 kg
- Mounting: Base
The lamp is equipped with a 3D joint for individual adjustments and a spring-relieved arm. A foil button in the lamp head allows for easy operation of on/off, dimming, and the Visualizer function with segment control for creating structure-enhancing effects.
Item number: 703.162.ESD
The LED Magnifying Lamp ESD TEVISIO RLLQ 48/2AR-ESD combines advanced LED technology with ergonomic perfection, optimized for demanding visual tasks. This model is specifically designed for use in ESD-protected areas and offers additional protection thanks to its special surface coating.
Technical Specifications:
- Operating device: Electronic transformer
- Connection values: 100-240 V, 50/60 Hz
- Power consumption: approx. 16 W
- Light color: Neutral white, approx. 4000 K
- Color rendering (Ra): >= 90
- Protection type: IP 20
- Protection class: I with plug-in power supply, III without plug-in power supply
- Technology: Multi-stage switchable, continuously dimmable
- Operation: Multifunction button
- Housing material: Plastic, ESD version, black
- Lamp arm: Aluminum profile, ESD coating, black
- Lens: Ø 160 mm, 3.5 diopters
- Power cord: 3.30 m, power plug CEE 7/VII
- Weight: approx. 2.5 kg
- Mounting: Base
The lamp is equipped with a 3D joint for individual adjustments and a spring-relieved arm. A foil button in the lamp head allows for easy operation of on/off, dimming, and the Visualizer function with segment control for creating structure-enhancing effects.
Item number: 703.162.ESD
Details
- Diopters Diopters
- 3,5

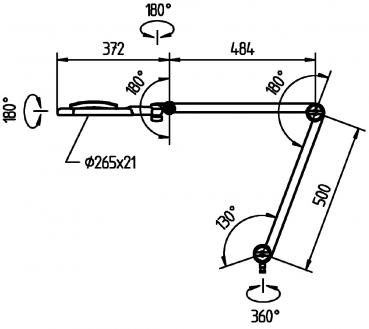

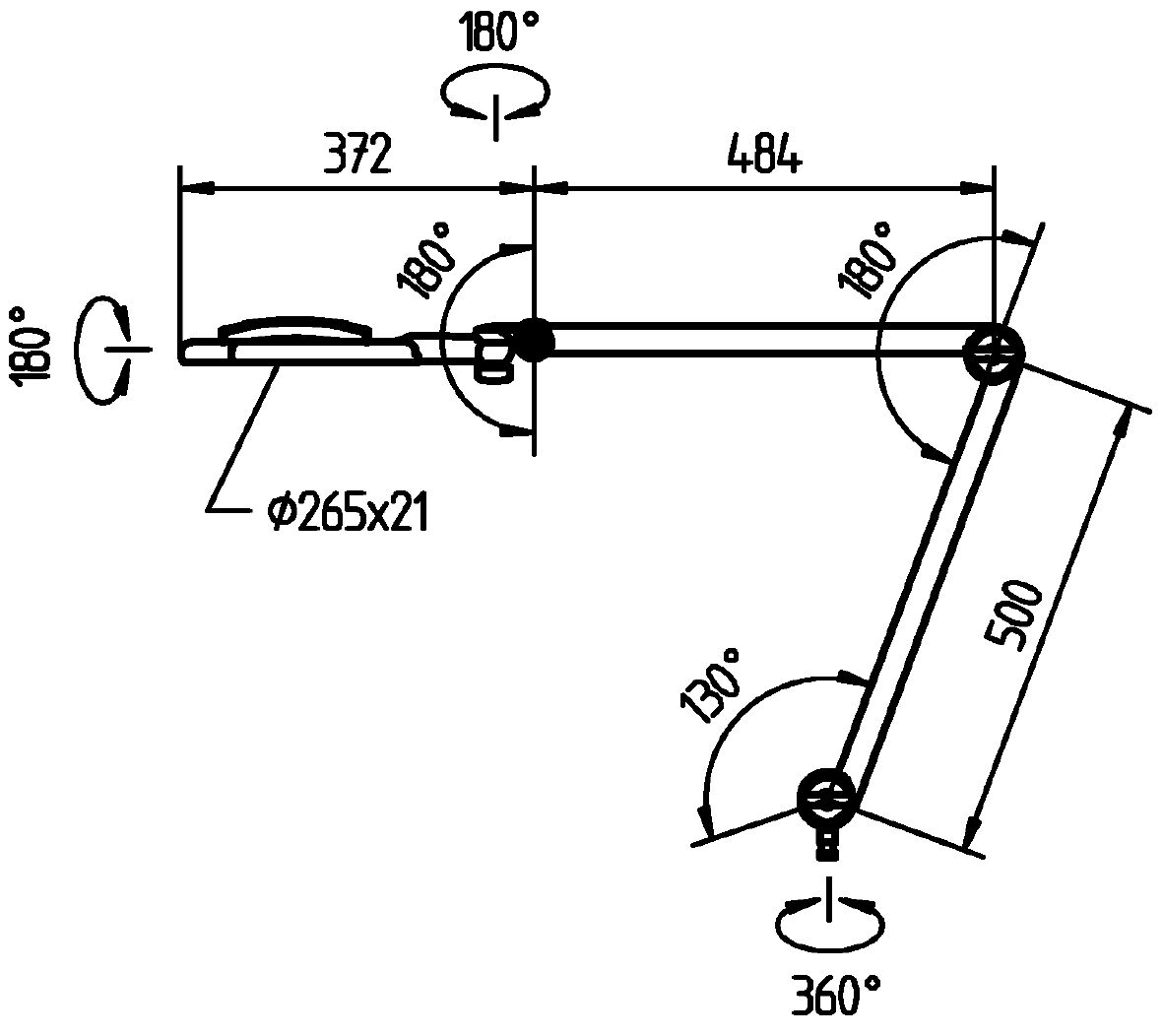

- Swivel arm/frame Swivel arm/frame
- 484 / 500 mm
- Color Color
- black / aluminum anodized
- Voltage Voltage
- 100 - 240 V
- Diameter in mm Diameter in mm
- 160 mm
- Illuminant Illuminant
- LED
- Luminous color Luminous color
- neutral white
- Power [W] Power [W]
- 16 W
- Lens Lens
- glass lens
- Magnification Magnification
- 1.875x
- ESD ESD
- yes
- Color temperature Color temperature
- 4,000 K
- Weight [g] Weight [g]
- 2500
!!! Table clamp not included in the scope of delivery !!!
Show accessories
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Diopters | Swivel arm/frame | Price | Compare |
|---|---|---|---|---|---|
|
703.162.ESD ESD magnifier lamp TEVISIO RLLQ 48/2AR-ESD | 3,5 | 484 / 500 mm | 824,00 EUR | |
|
|
703.164.ESD ESD magnifier lamp TEVISIO RLLQ 48/2AR-ESD | 3,5 | 384 / 400 mm | 819,00 EUR | |
|
703.160 LED Magnifier lamp TEVISIO TVD 750/940/DM | 3,5 | 484 / 500 mm | 639,00 EUR | |
|
|
703.160.E LED Magnifier lamp TEVISIO TVD 750/940/DM antireflective | 3,5 | 484 / 500 | 719,00 EUR | |
|
|
703.164 LED Magnifier lamp TEVISIO TVD 750/940/DM | 3,5 | 384 / 400 mm | 636,00 EUR | |
|
|
703.165 LED Magnifier lamp TEVISIO TVD 750/940/DM + additional lens 8 diopters | 3,5 / 8 | 384 / 400 mm | 642,00 EUR | |
|
|
703.161 LED Magnifier lamp TEVISIO TVD 750/940/DM + additional lens 8 diopters | 3,5 / 8 | 484 / 500 mm | 663,00 EUR | |
|
|
703.164.E LED Magnifier lamp TEVISIO TVD 750/940/DM antireflective | 3,5 | 384 / 400 | 694,00 EUR | |
| Show Compare List (0) | |||||
