LED magnifier lamp iQ ESD
LED magnifier lamp iQ ESD

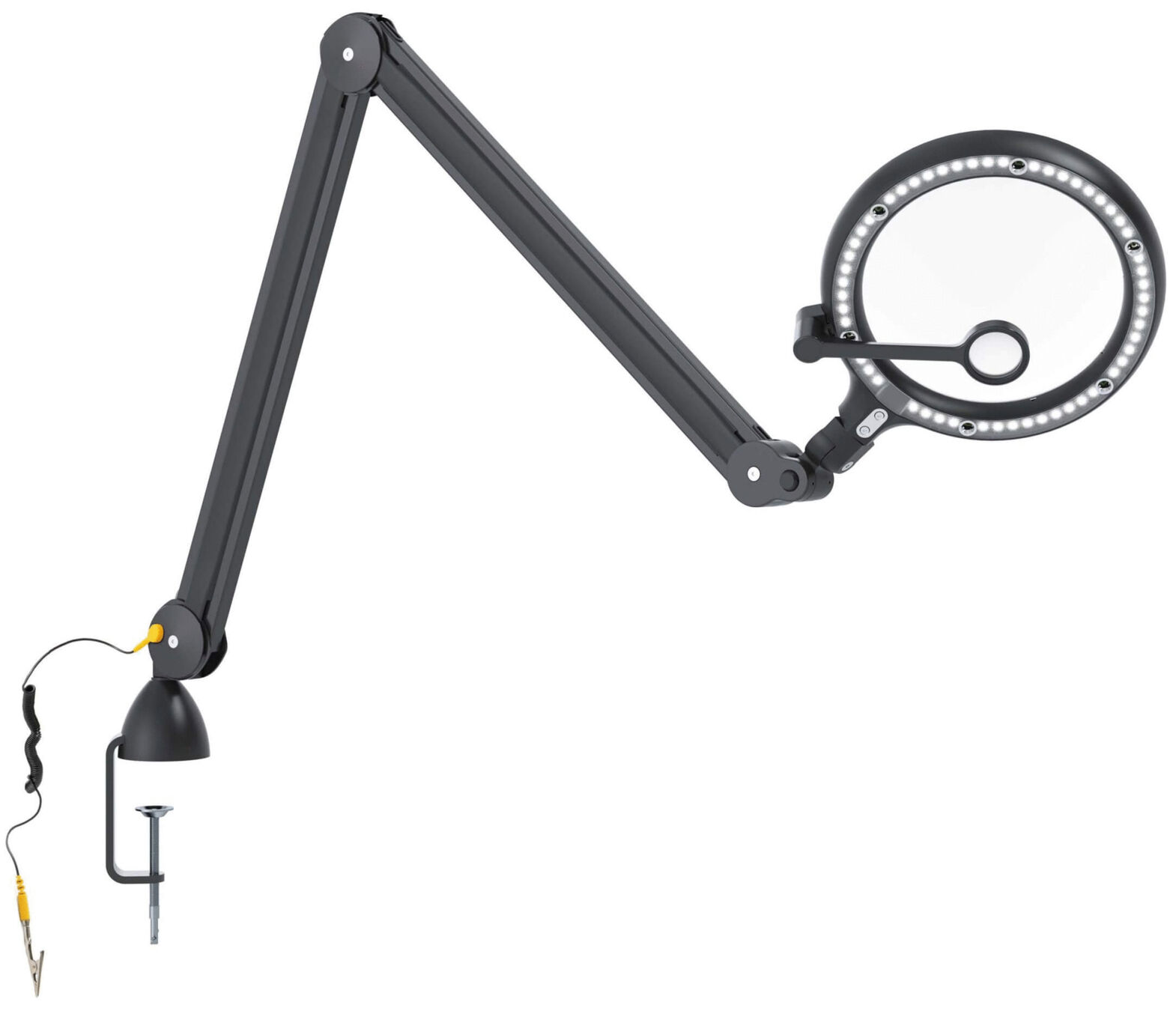

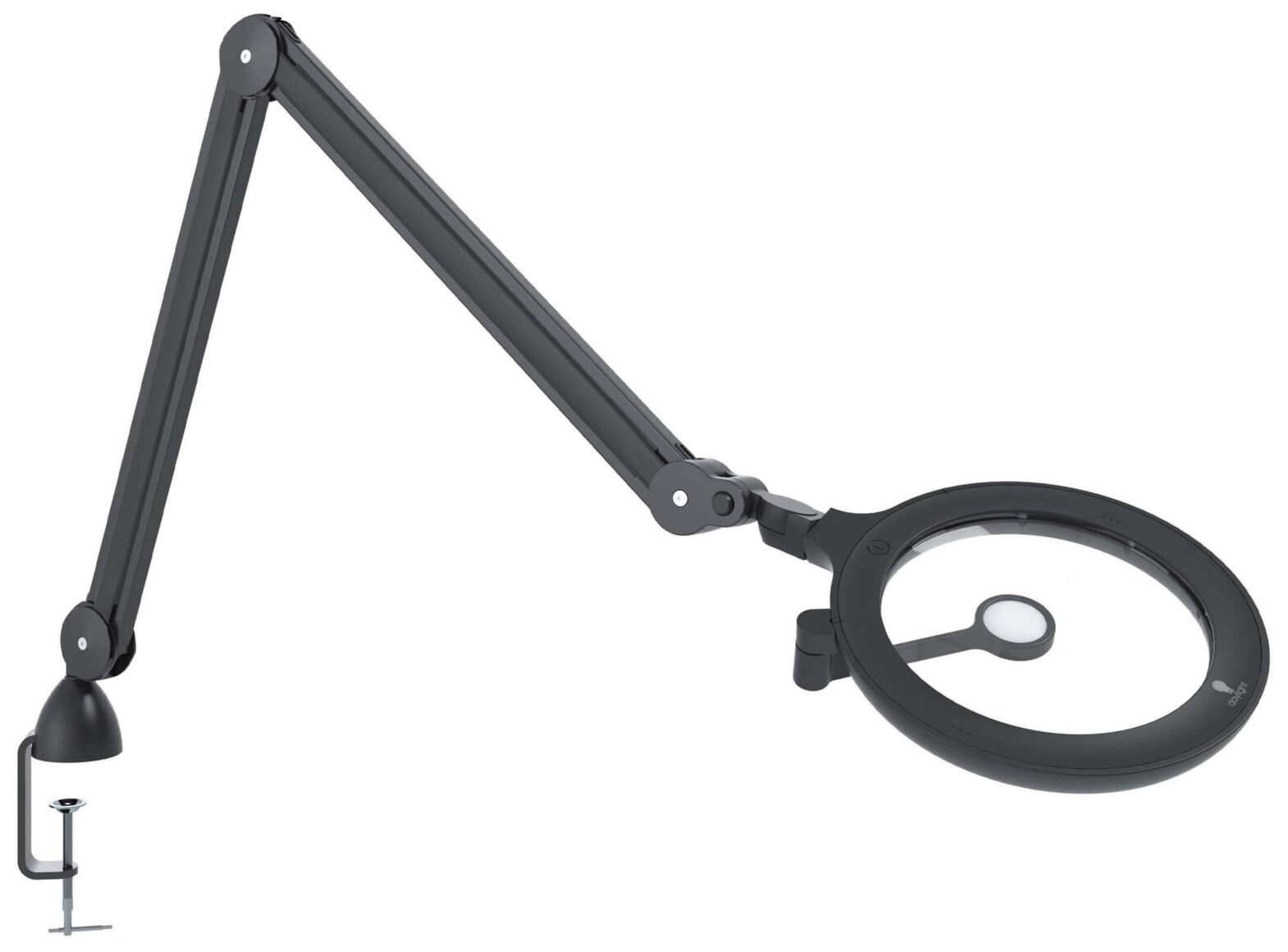

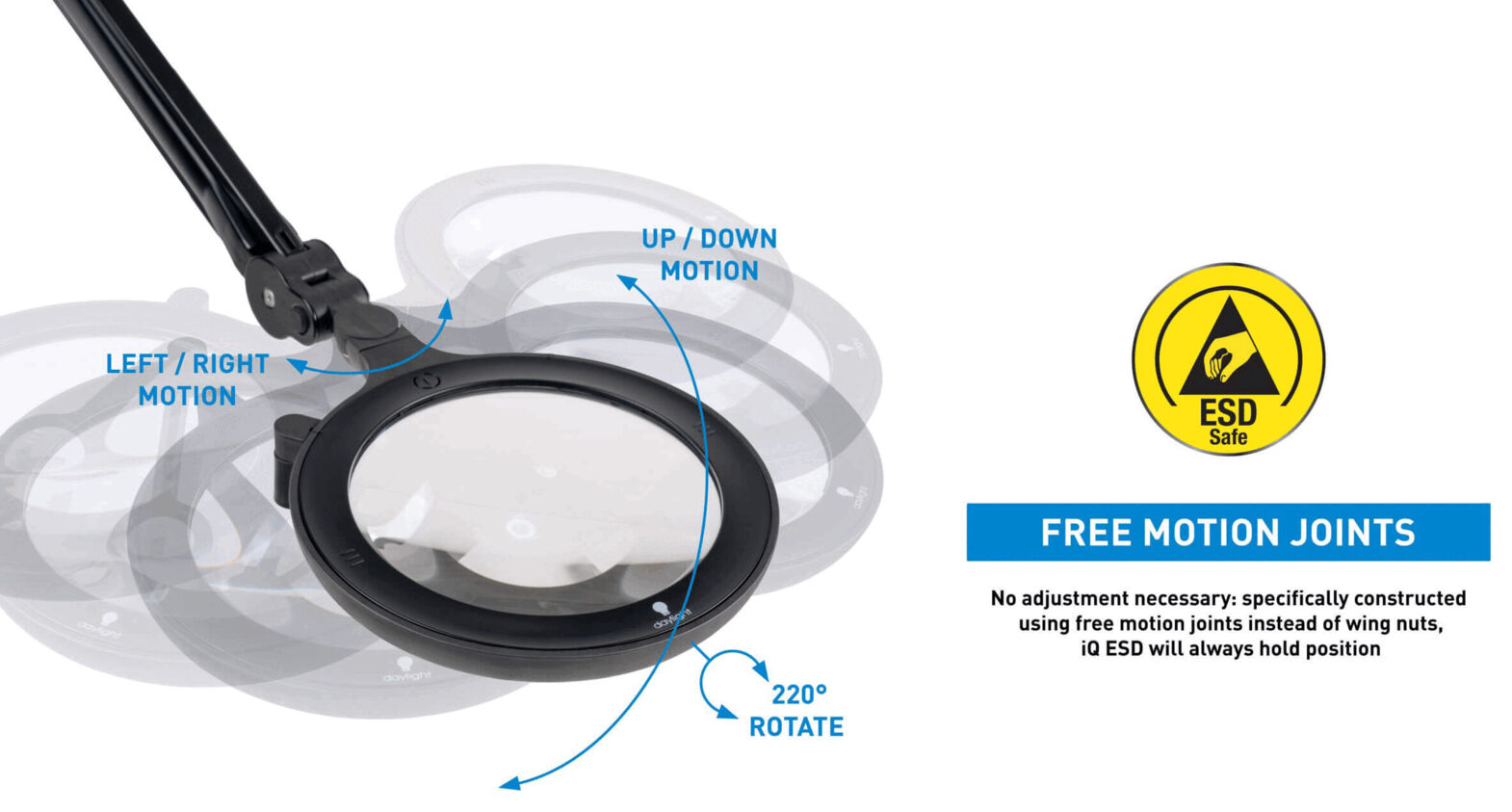

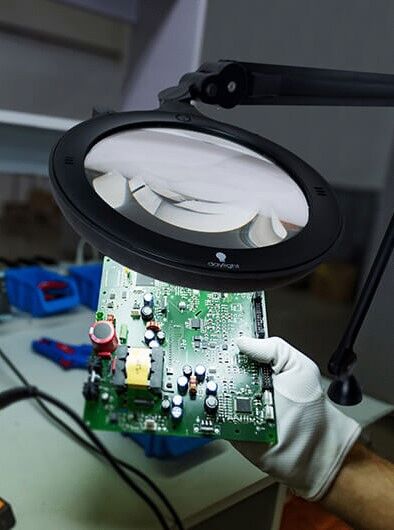

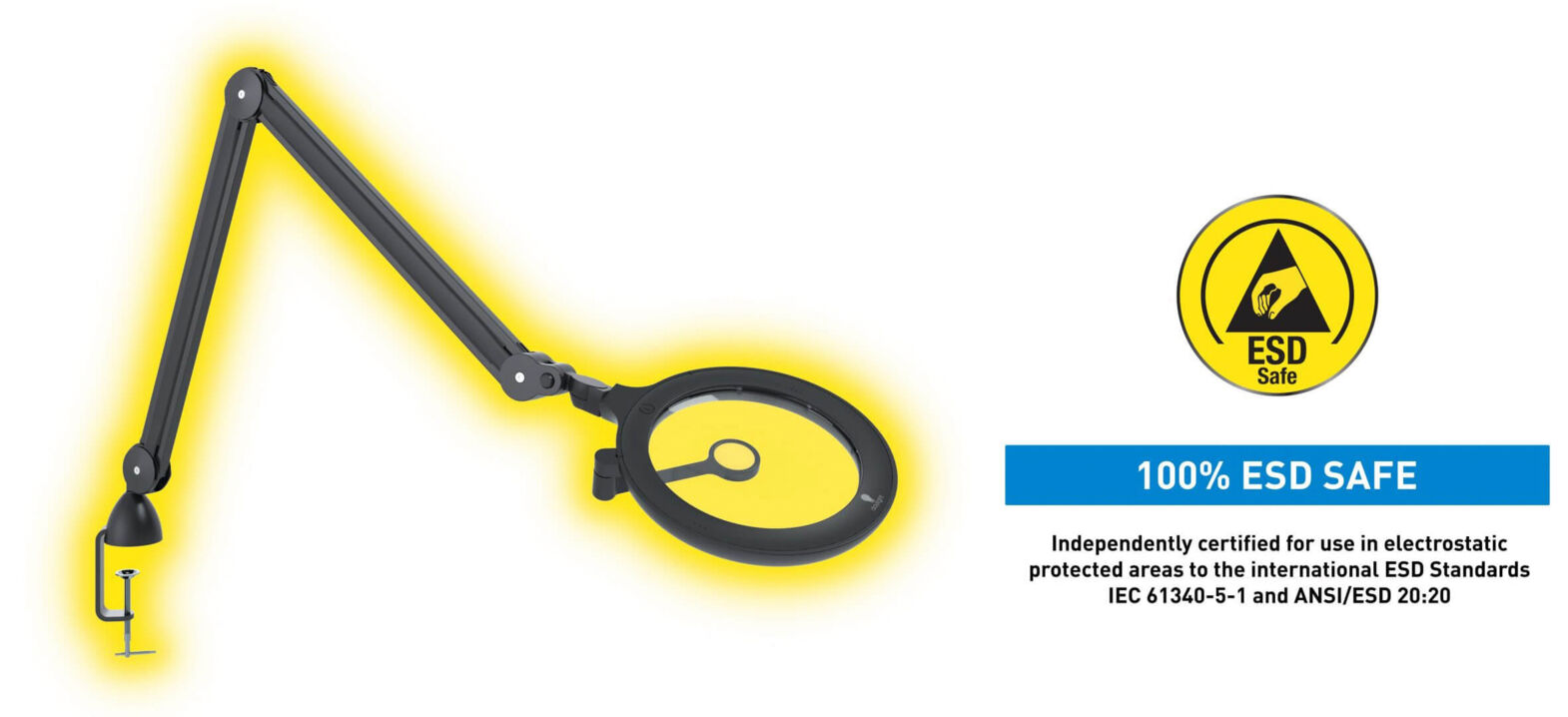

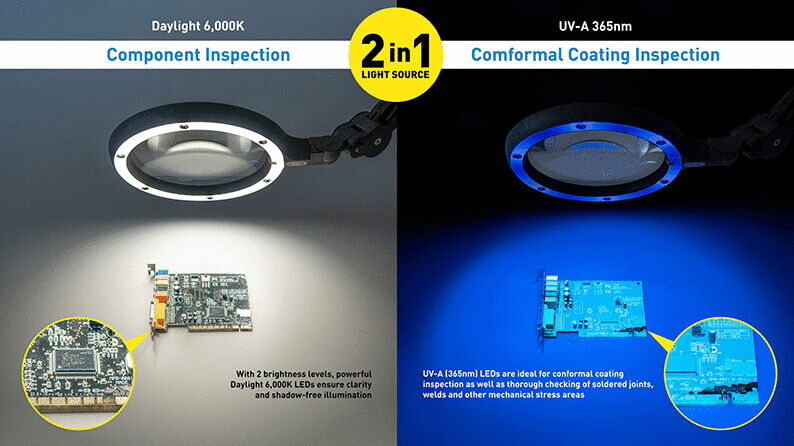

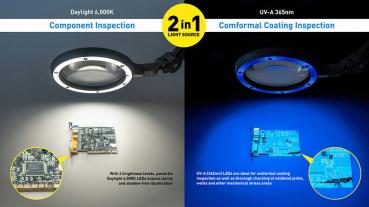

The daylight iQ ESD LED magnifying lamp is specifically designed for use in electrostatic protected areas and meets the standards of IEC 61340-5-1 and ANSI/ESD 20:20. This high-quality magnifying lamp combines a 17.5 cm quality glass lens with a magnification of 1.75x (3 diopters) and an additional swing arm lens with 4x magnification (12 diopters) to enable precise inspections.Equipped with a dual illumination function, the device offers both daylight LEDs with a color temperature of 6,000 K for clear, shadow-free viewing, and UV-A LEDs (365 nm) for special inspection of coatings and connections. The durable carbon fiber head and joint allow for flexible and stable positioning with a reach of 118 cm.
The lamp has two brightness levels that can be adjusted as needed, and is equipped with a 12 watt LED module. The robust design includes a 940 mm long spring-jointed arm and a clamp mount, which allows for easy installation and adjustment. Weighing 3800 g and with a cable length of 2.6 meters, the magnifying lamp is both practical and efficient for diverse applications.
Details
- Diopters Diopters
- 3 / 12
- Illuminant Illuminant
- LED/LED UV-A
- Magnification Magnification
- 1.75x/4x
- Color temperature Color temperature
- 6,000 K
- Swivel arm/frame Swivel arm/frame
- 1180 mm
- Color Color
- black
- Diameter in mm Diameter in mm
- 175 mm
- Illuminance Illuminance
- 6,000 / 4,000 Lux
- Luminous flux Luminous flux
- 700 Lumen
- Power [W] Power [W]
- 12 W
- Color rendering index Color rendering index
- 95+
- Lens Lens
- glass lens
- ESD ESD
- yes
- Weight Weight
- 4000 g
Show accessories
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Magnifier lamp DAYLIGHT iQ ESD
- brightness levels for adapting the light to your respective task
- large reach of 118 cm
- additional swinging arm lens with 12 dioptries (x4)
- black
