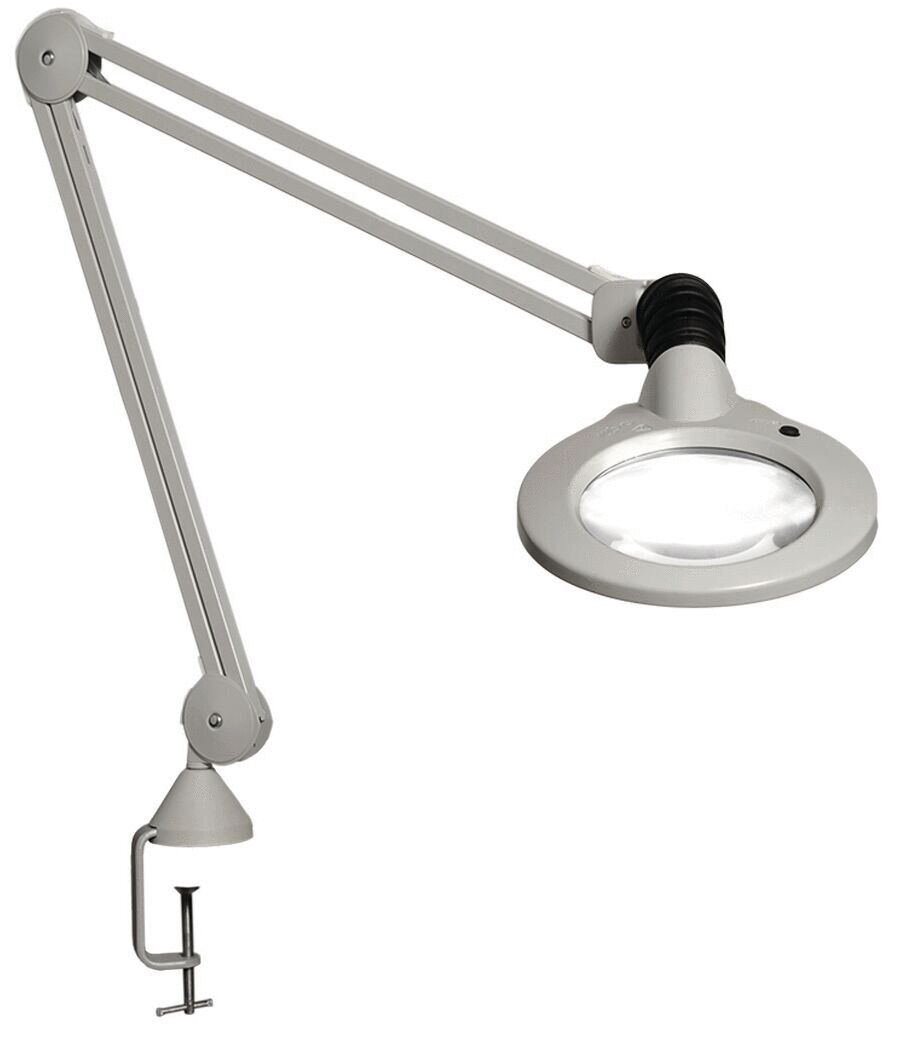

Magnifier lamp KFM-LED 5 diopters
The KFM-LED magnifier lamp from Vision LUXO is an advanced, versatile lighting solution specifically designed for use in electronics and other industries to control static discharge. With its robust all-metal construction, consisting of a steel arm and an aluminum head, the lamp provides exceptional durability and elegance. Its high flexibility allows for precise and easy positioning of the lamp head, supported by a spring-balanced triple swivel arm with a length of 1050 mm.The KFM-LED features two semi-circular LED modules each with 9W, achieving an illumination intensity of 3,000 Lux and a color temperature of 4,000 K. The glass lens of the magnifier lamp provides a magnification of 2.25x with a diopter count of 5, allowing for nearly shadow-free magnification and excellent color rendering. These characteristics make the KFM-LED an ideal tool for precision-intensive industries such as PCB, dental, and jewelry industries.
Additionally, the magnification can be further enhanced by an optionally available secondary add-on lens to meet the requirements of specific tasks.
Details
- Color Color
- light grey
- Illuminance Illuminance
- 3,000 Lux
- Diopters Diopters
- 5
- Magnification Magnification
- 2.25x
- ESD ESD
- no
- Swivel arm/frame Swivel arm/frame
- 1050 mm
- Illuminant Illuminant
- LED
- Luminous flux Luminous flux
- 900 Lumen
- Power [W] Power [W]
- 11 W
- Lens Lens
- glass lens
- Lens dimensions Lens dimensions
- 127 mm
- Material Material
- steel / aluminum
- Color temperature Color temperature
- 4,000 K
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Magnifier lamp KFM-LED

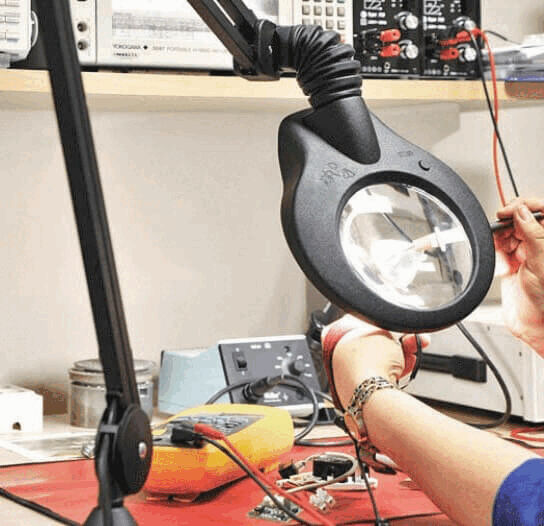

Flexible working positions when working with the magnifying lamp
Our magnifying lamps are specially designed to maximize horizontal and vertical movements. They are characterized by a considerable horizontal range of action and always maintain the correct position without drifting.
The arms are spring-balanced to ensure smooth and easy positioning - no knobs to turn and no other adjustments to make.
Thanks to the flexibility of the self-balancing arm and the joint between the luminaire head and the arm, precise positioning is child's play. The enclosed design makes it an ideal instrument for mechanical, electronic and other precision applications as well as for the PCB, dental and jewelry industries.
The importance of light quality
Good lighting reduces health problems, increases safety and improves productivity.
That is why we place the highest value on the light quality of our magnifier lights: They have powerful light sources with excellent light output. The quality and precise positioning of the light sources in relation to the lens enable virtually shadow-free magnification and excellent color rendering.
Glass lens for outstanding clarity and comfort
The quality of the KFM-LED starts with the high-performance optical glass lens, which ensures excellent clarity. The crown glass lens has a lower refractive index than magnifying lights with plastic lenses. It reduces the loss in light transmission through the lens, resulting in less image distortion.
Reduced distortion in turn leads to more comfortable viewing over longer periods of time.
Shadow-free magnification
The quality and positioning of the LEDs above two semicircular modules enable virtually shadow-free magnification and excellent color rendering.
