Magnifier lamp LFM LED G2 3 diopters
(Product No.: 700.190)
Notice / Inquire

Magnifier lamp LFM LED G2 3 diopters

dpvlink:
3030
Color:
light grey
Illuminance:
2,100 Lux
Diopters:
3
Magnification:
1.75x
Further product information

at short notice at short notice
237,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Magnifier lamp LFM LED G2 3 diopters

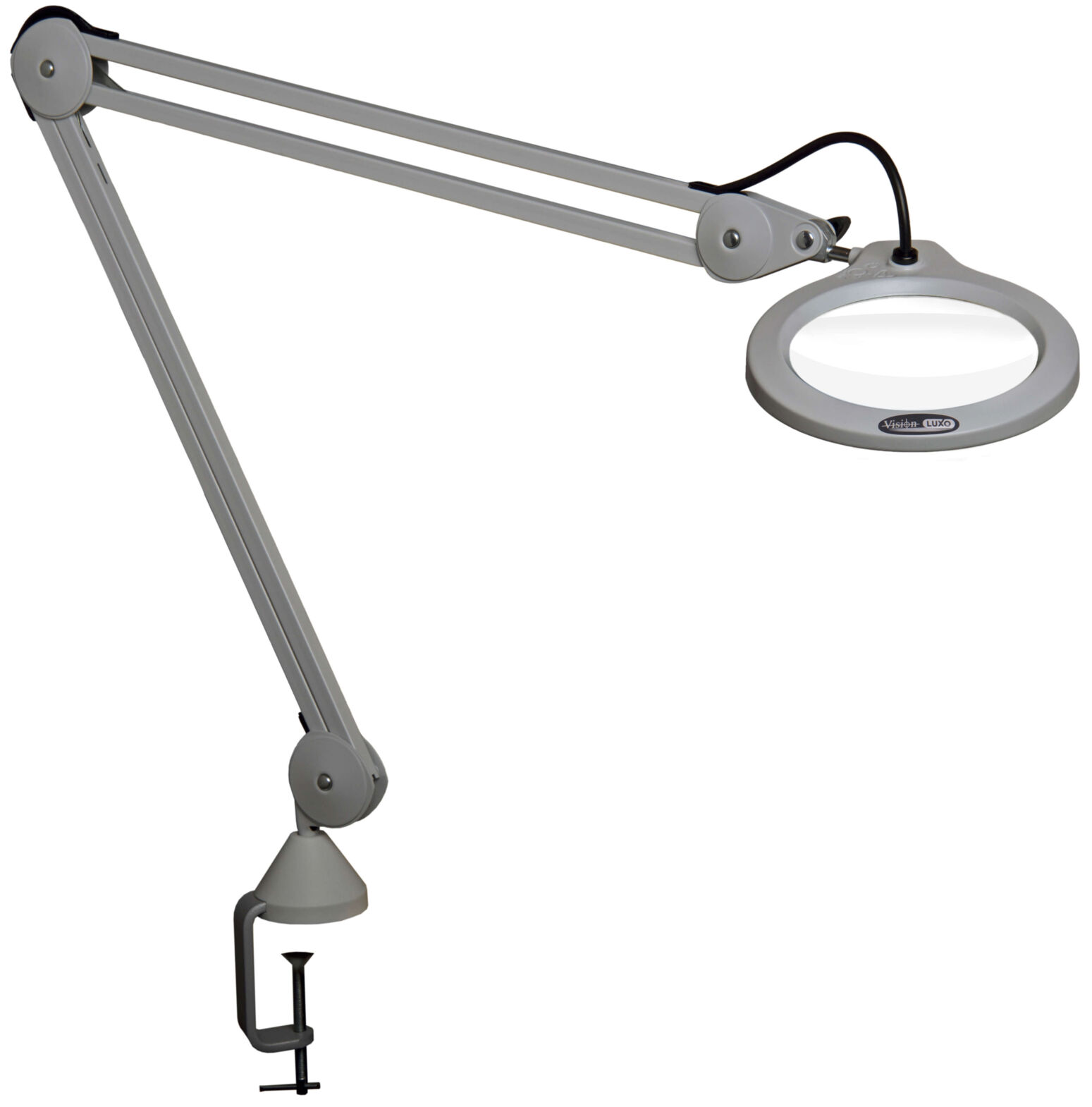

The Vision LUXO LFM LED G2 3 Diopter magnifying lamp is specifically designed for use in professional and industrial settings where precise magnification is essential. This lightweight, classic magnifying lamp features a robust all-metal construction made of die-cast aluminum in a light gray color and provides optimal illumination thanks to its LED technology.
With a diameter of 127 mm, the high-quality glass lens allows for a magnification of 1.75x, which can be increased up to 15 diopters with optional secondary clip-on lenses. The lamp's spring-balanced, flexible arm is 1143 mm long and allows for easy and precise positioning. The LED modules are dimmable, and the lamp has an automatic shut-off feature for energy efficiency.
Additionally, the device offers a brightness of 2,100 lux at a color temperature of 4,000 K and a power of 9 W. The LFM LED G2 is not only known for its clarity and precision, but also for its flexibility and stability, making it an indispensable tool in any demanding environment.
Color
Color
light grey
Illuminance
Illuminance
2,100 Lux
Diopters
Diopters
3
Magnification
Magnification
1.75x
Swivel arm/frame
Swivel arm/frame
1143 mm
Illuminant
Illuminant
LED
Power [W]
Power [W]
9 W
Color rendering index
Color rendering index
80
Lens
Lens
standard lens
Lens dimensions
Lens dimensions
127 mm
Material
Material
steel / aluminum
ESD
ESD
no
Version
Version
lid, 0-50-100 %
Color temperature
Color temperature
4,000 K
Show accessories
Accessories

Accessories

The image shows a metallic component, a cylindrical fitting with a threaded screw. Next to it are a metal washer and a nut.
Table mounting socket E, chrome (up to 45...
Table mounting socket E (up to 45 mm)
(for all LUXO lamps)
dpvlink
11187

19,00 EUR
Show product
The image shows a white, conical holder with a wide base and a narrow top end. It has two holes for mounting and is intended for a specific installation.
Mounting bracket CC light grey
Mounting bracket CC, light grey
(for all LUXO lamps)
dpvlink
11187

14,40 EUR
Show product
The image shows a black component, usually made of plastic, with a round opening on the top. It has a flat, rectangular base with holes for mounting.
Mounting bracket CC black
Mounting bracket CC, black
(for all LUXO lamps)
dpvlink
11187

14,40 EUR
Show product
The image shows a conical white plastic holder attached to a flat base. The holder has an opening at the top and two side holes for mounting.
Mounting bracket CC white
Mounting bracket CC, white
(for all LUXO lamps)
dpvlink
11187

14,40 EUR
Show product
The image shows a white, narrow stand on a five-pronged base. The base has casters for mobility. The stand appears lightweight and could hold a writing instrument or desk device.
Stand with castors
Stand with castors for all LUXO lamps
dpvlink
11187

165,60 EUR
Show product
The image shows a round, flat lens in a white casing. The lens has a round, smooth edge and is slightly curved. The background is also white.
Additional lens 4 diopters
Additional attachment lens 4 diopter + diameter
35 mm for WAVE-LED + LFM-LED +
KFM-LED magnifier lamp
dpvlink
11187

56,80 EUR
Show product
The image shows a round, circular opening in a white surface. The edge is slightly raised and smooth. The center is transparent and reveals the space underneath.
Additional lens 6 diopters
Additional attachment lens 6 diopter + diameter
35 mm for WAVE-LED +LFM-LED +
KFM-LED magnifier lamp
dpvlink
11187

56,80 EUR
Show product
The image shows a round, smooth lens in a white casing. The lens has a thin edge and is slightly elevated, surrounded by a smooth surface.
Additional lens 10 diopters
Additional attachment lens 10 diopter + diameter
35 mm for WAVE-LED + LFM-LED +
KFM-LED magnifier lamp
dpvlink
11187

56,80 EUR
Show product
The image shows a simple, white tool part with a conical shape, attached to a metal bolt. It has a central opening and a screw for attachment.
AH fixing clamp
AH fixing clamp kit (for LFM 101/102, WAVE,
FL 101) clamping width 60 mm
Color: light grey
dpvlink
11187

13,30 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 545
Complete Catalog 2023 - 2024

Product Family

Magnifier lamp LFM

Lightweight magnifying lamp

The LFM LED G2 is a lightweight magnifying lamp with a full metal construction, light-emitting diodes (LEDs) and a flexible, spring-loaded arm. It is ideal for professional industrial applications where precise magnification is required.

High performance glass lens for maximum clarity, precision and comfort. High quality, self-balancing, flexible arm with edge clamp or weighted base.

The 127 mm diameter glass lens is located in the center of an LED light ring. This enables perfect illumination of objects for shadow-free viewing. The LFM LED is equipped with a glass lens with 3 or 5 diopters.

The LFM LED G2 benchtop magnifiers feature the same outstanding design as Vision Engineering's award-winning stereo microscopes, offering maximum clarity, flexibility and stability.

Highlights

  • Available with 3 or 5 diopters (1.75x and 2.25x magnification)
  • High performance glass lens for maximum clarity, precision and comfort.
  • High quality flexible, spring-loaded arm with table clamp
  • 3-stage dimmable illumination via efficient LEDs
  • Automatic switch-off function for energy efficiency
  • Selection of accessories and mounting options available
  • Secondary attachment lenses STAYS: 4.0D (1x), 6.0D (1.5x), 10.0D (2.5x)
  • Lens size 127mm Ø


Article image
Article description
Color
Illuminance
Diopters
Magnification
Price
Compare
700.190 - Magnifier lamp LFM LED G2 3 diopters
700.190
Magnifier lamp LFM LED G2 3 diopters
light grey
2,100 Lux
3
1.75x
237,00 EUR
700.191 - Magnifier lamp LFM LED G2 5 diopters
700.191
Magnifier lamp LFM LED G2 5 diopters
light grey
4,900 Lux
5
2.25x
247,00 EUR
700.190.W - Magnifier lamp LFM LED G2 5 diopters
700.190.W
Magnifier lamp LFM LED G2 5 diopters
white
2,100 Lux
3
1.75x
237,00 EUR
700.191.W - Magnifier lamp LFM LED G2 5 diopters
700.191.W
Magnifier lamp LFM LED G2 5 diopters
white
4,900 Lux
5
2.25x
247,00 EUR
