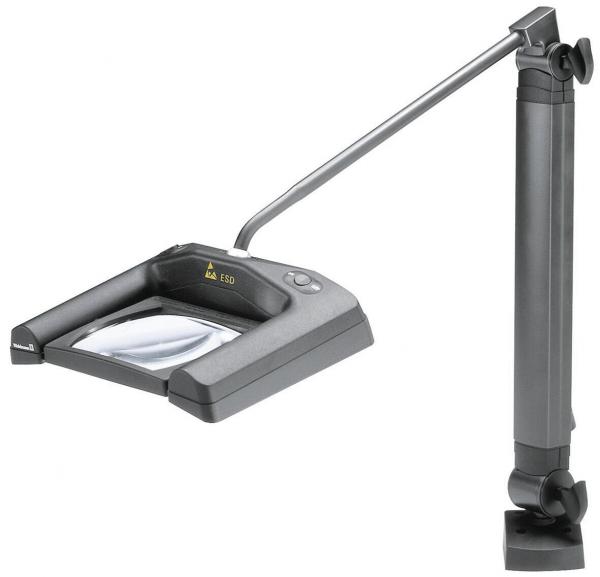

The image shows a reading magnifier with a flexible arm. It has a flat, large lens and a stable base. The lamp can be positioned over books or documents.

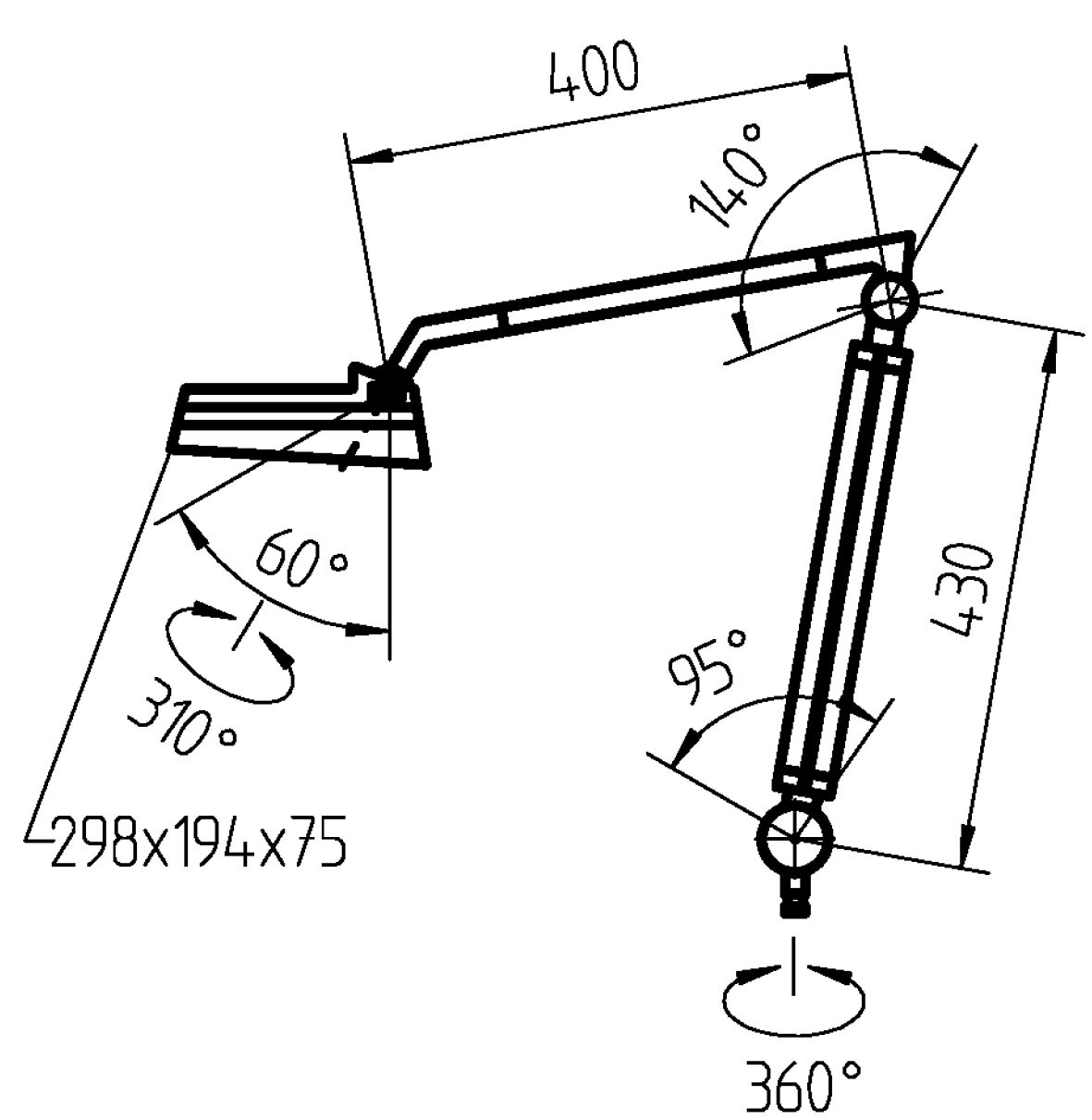

The image is a technical drawing of a movable arm with various joints. It shows dimensions and rotation angles for flexible use, likely for a device or a mount.
Preview: The image shows a reading magnifier with a flexible arm. It has a flat, large lens and a stable base. The lamp can be positioned over books or documents.
Preview: The image is a technical drawing of a movable arm with various joints. It shows dimensions and rotation angles for flexible use, likely for a device or a mount.
Magnifier lamp SNLQ 54/2 A ESD
(Product No.: 703.122.ESD)

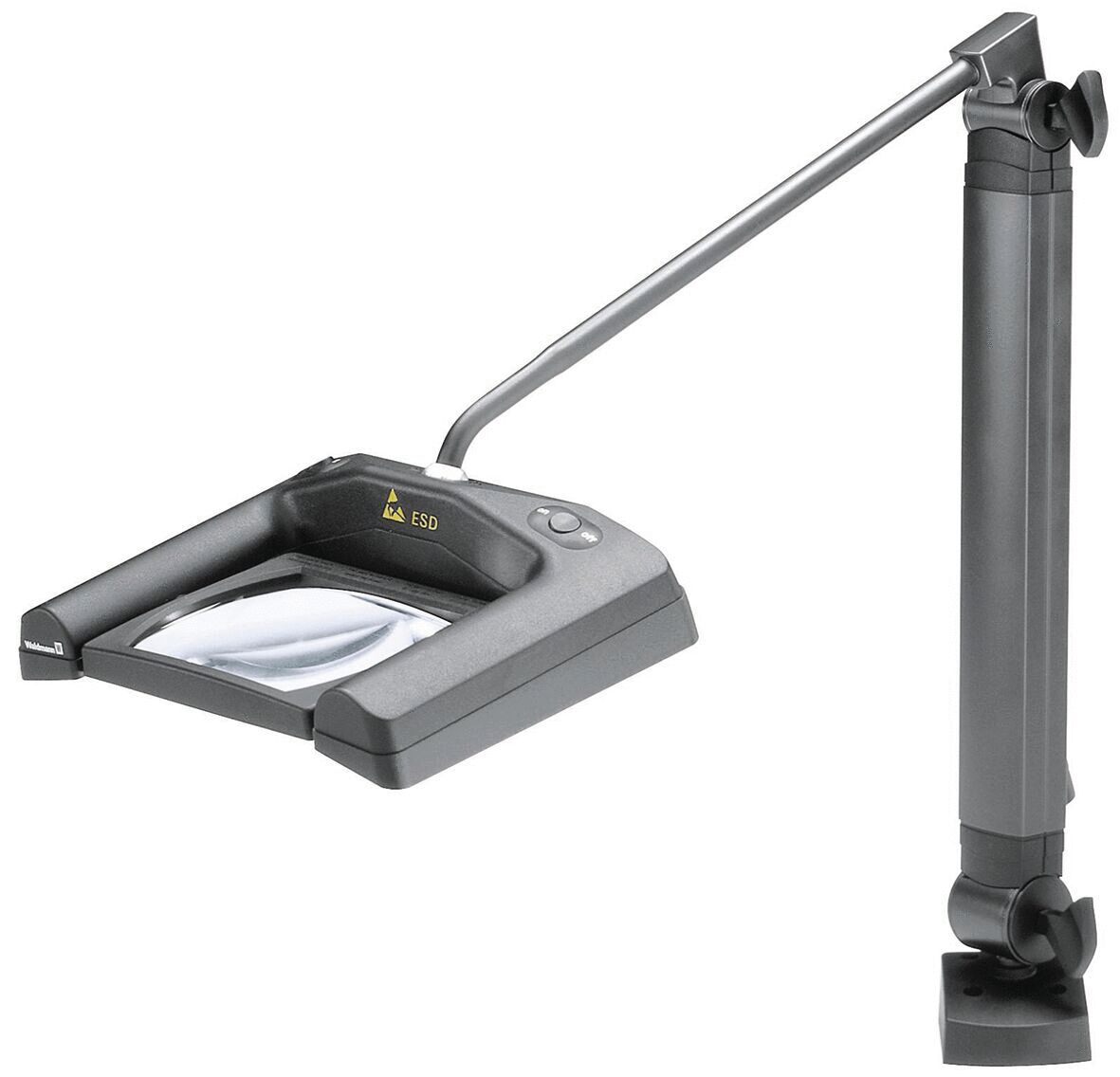

The image shows a reading magnifier with a flexible arm. It has a flat, large lens and a stable base. The lamp can be positioned over books or documents.
The image is a technical drawing of a movable arm with various joints. It shows dimensions and rotation angles for flexible use, likely for a device or a mount.
Mobile Preview: The image shows a reading magnifier with a flexible arm. It has a flat, large lens and a stable base. The lamp can be positioned over books or documents.
Mobile Preview: The image is a technical drawing of a movable arm with various joints. It shows dimensions and rotation angles for flexible use, likely for a device or a mount.
Notice

Magnifier lamp SNLQ 54/2 A ESD

Magnifier lamp SNLQ 54/2 A ESD

dpvlink:
19988
Diameter in mm:
162 x 105 mm
Color:
black
Magnification:
1.75x
Properties:
Further product information

available available
893,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Magnifier lamp SNLQ 54/2 A ESD

The Waldmann SNLQ 54/2 A magnifier lamp combines advanced LED technology with high functionality for precise inspection tasks. With a power consumption of about 12 W and a light color of neutral white (approx. 3800 K), this model provides excellent color recognition with a color rendering index of over 80. Additionally, the lamp offers the ability to recognize the finest structures and defects through its segment control, while the large viewing field ensures distortion-free vision.
The robust construction includes a lamp stand made of painted steel tubing and a lamp housing made of black plastic. The pivotable glass lens measures 175 x 105 mm and offers 3 diopters for magnification. The independent adjustment mechanism of the lamp head and magnifier increases the flexibility and application possibilities of the magnifier lamp. Weighing about 4.5 kg and with a protection class of IP 20, the lamp is both stable and safe for use in technical environments.
Additionally, the SNLQ 54/2 A is available in an ESD-safe version, making it ideal for use in electrostatically sensitive areas. Mounting options include a base, a table clamp, and a wall bracket, allowing for flexible installation.
Diameter in mm
Diameter in mm
162 x 105 mm
Color
Color
black
Magnification
Magnification
1.75x
Voltage
Voltage
220 - 240 V
Illuminant
Illuminant
LED
Luminous color
Luminous color
neutral white
Power [W]
Power [W]
12 W
Diopters
Diopters
3
Lens
Lens
glass lens
ESD
ESD
yes
Weight [g]
Weight
4500 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a black C-clamp. It has a square top surface, a vertical bar, and a bottom surface with a screw for tightening.
Table clamp TK 1/65-ESD, 0-65 mm
Table clamp TK 1/65-ESD, clamping width 0-65 mm
Color: black
(for all Waldmann magnifier lamps)
dpvlink
3059

61,75 EUR

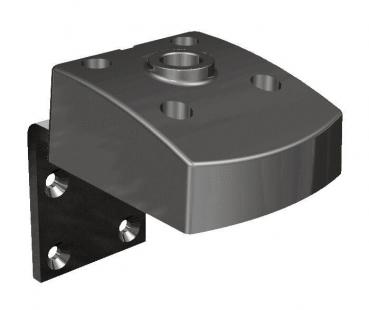

The image shows a gray bracket with a curved top and several holes. It has a black mounting surface with additional holes for attachment.
Wall bracket for TANEO, TEVISIO and SNLQ
Wall bracket for TANEO, TEVISIO and SNLQ
Color: black
dpvlink
3059

33,65 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 550
Complete Catalog 2023 - 2024

Product Family

Magnifier lamp SNLQ 54/2 A

Article image
Article description
Diameter in mm
Color
Magnification
Price
Compare
703.122 - Magnifier lamp SNLQ 54/2 A
703.122
Magnifier lamp SNLQ 54/2 A
162 x 105 mm
light grey
1.75x
598,00 EUR
703.122.ESD - Magnifier lamp SNLQ 54/2 A ESD
703.122.ESD
Magnifier lamp SNLQ 54/2 A ESD
162 x 105 mm
black
1.75x
893,00 EUR
