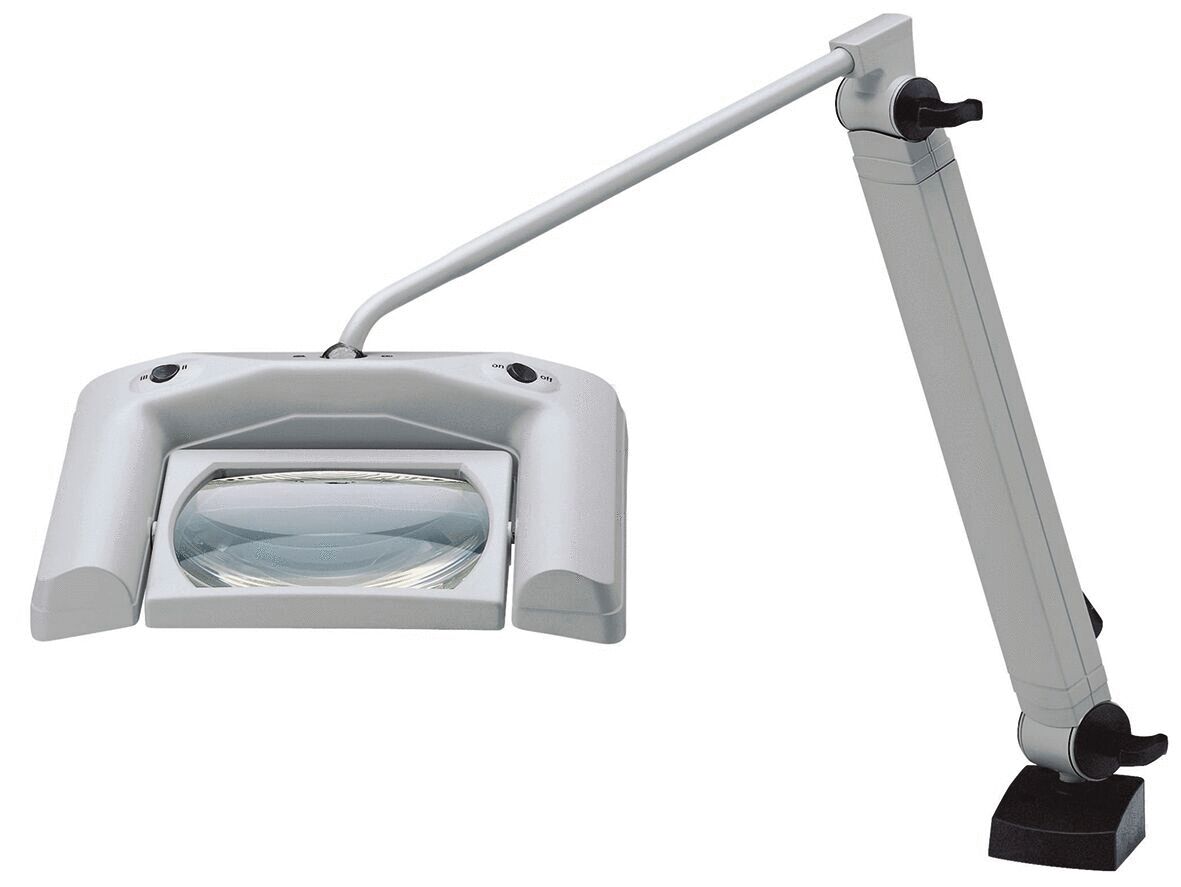

The image shows a desk magnifier with a flexible arm. The magnifier features a large, clear lens in the center and is mounted on a stable base, ideal for close-up work.

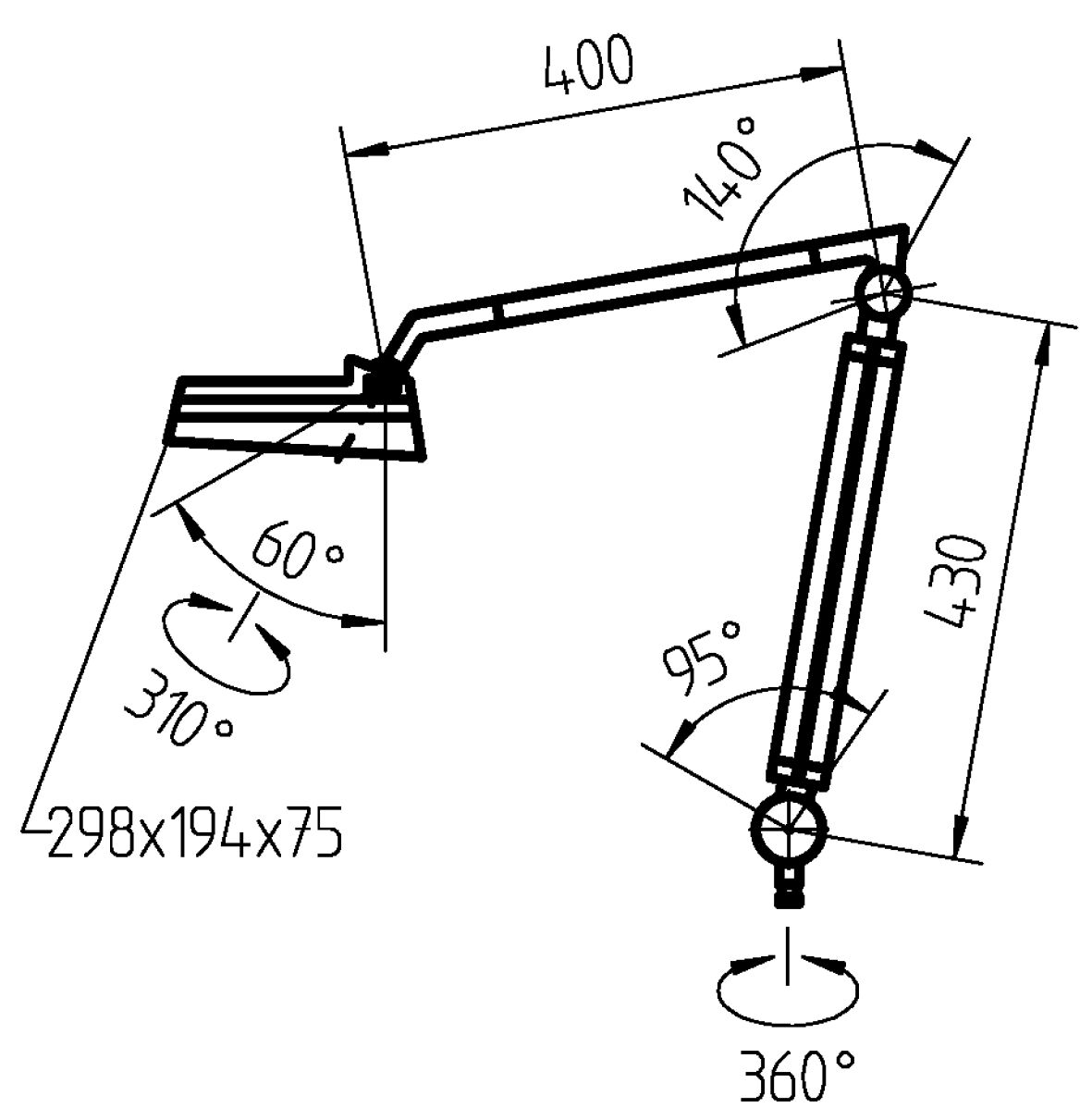

The image displays a technical drawing of a boom with various joints. Dimensions and angles are provided, illustrating the range of motion and positioning.
Preview: The image shows a desk magnifier with a flexible arm. The magnifier features a large, clear lens in the center and is mounted on a stable base, ideal for close-up work.
Preview: The image displays a technical drawing of a boom with various joints. Dimensions and angles are provided, illustrating the range of motion and positioning.
Magnifier lamp SNLQ 54/2 A
(Product No.: 703.122)
The image shows a desk magnifier with a flexible arm. The magnifier features a large, clear lens in the center and is mounted on a stable base, ideal for close-up work.
The image displays a technical drawing of a boom with various joints. Dimensions and angles are provided, illustrating the range of motion and positioning.
Mobile Preview: The image shows a desk magnifier with a flexible arm. The magnifier features a large, clear lens in the center and is mounted on a stable base, ideal for close-up work.
Mobile Preview: The image displays a technical drawing of a boom with various joints. Dimensions and angles are provided, illustrating the range of motion and positioning.
Notice

Magnifier lamp SNLQ 54/2 A

Magnifier lamp SNLQ 54/2 A

dpvlink:
19988
Diameter in mm:
162 x 105 mm
Color:
light grey
Magnification:
1.75x
Further product information

Delivery time! Delivery time!
598,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Magnifier lamp SNLQ 54/2 A

The Waldmann SNLQ 54/2 A magnifying lamp combines innovative lighting technology with functional precision and offers a flexible solution for detailed inspection and assembly tasks. This lamp is characterized by maintenance-free LED technology that enables strong, wide-area, and uniform illumination. With a neutral white light color of approximately 4000 K and a color rendering of Ra ≥ 80, the device ensures very good color recognition.
The SNLQ 54/2 A allows for precise detection of the finest structures and defects through its segmentation circuit, while the large field of view guarantees distortion-free viewing. The lens of the magnifying lamp is pivotable, measures 175 x 105 mm, offers 3 diopters, and is absolutely scratch-resistant. Independently adjusting the lamp head and magnifier increases user-friendliness.
The robust lamp housing is made of plastic and the lamp stand is made of painted steel tubing, both in light gray. The magnifying lamp is equipped with an electronic transformer, has a power consumption of about 12 W, and is operated via a switch. It is also available in an ESD version, making it suitable for sensitive work environments. With a weight of about 4.4 kg and a power cord length of 3.00 m, the SNLQ 54/2 A offers various mounting options such as a base, table clamp, and wall bracket.
The protection type IP 20 and protection class I provide additional safety when using this high-quality magnifying lamp.
Diameter in mm
Diameter in mm
162 x 105 mm
Color
Color
light grey
Magnification
Magnification
1.75x
Voltage
Voltage
220 - 240 V
Illuminant
Illuminant
LED
Power [W]
Power [W]
12 W
Diopters
Diopters
3
Lens
Lens
standard lens
Weight [g]
Weight
4400 g
Show accessories
Accessories

Accessories

The image shows a black C-clamp. It has a square top surface, a vertical bar, and a bottom surface with a screw for tightening.
Table clamp TK 1 / 65, 0-65 mm
Table clamp TK 1 / 65, clmaping width 0-65 mm
(for all Waldmann magnifier lamps)
dpvlink
3059

25,55 EUR
The image shows a gray bracket with a curved top and several holes. It has a black mounting surface with additional holes for attachment.
Wall bracket for TANEO, TEVISIO and SNLQ
Wall bracket for TANEO, TEVISIO and SNLQ
Color: black
dpvlink
3059

33,65 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 550
Complete Catalog 2023 - 2024

Product Family

Magnifier lamp SNLQ 54/2 A

Article image
Article description
Diameter in mm
Color
Magnification
Price
Compare
703.122 - Magnifier lamp SNLQ 54/2 A
703.122
Magnifier lamp SNLQ 54/2 A
162 x 105 mm
light grey
1.75x
598,00 EUR
703.122.ESD - Magnifier lamp SNLQ 54/2 A ESD
703.122.ESD
Magnifier lamp SNLQ 54/2 A ESD
162 x 105 mm
black
1.75x
893,00 EUR
