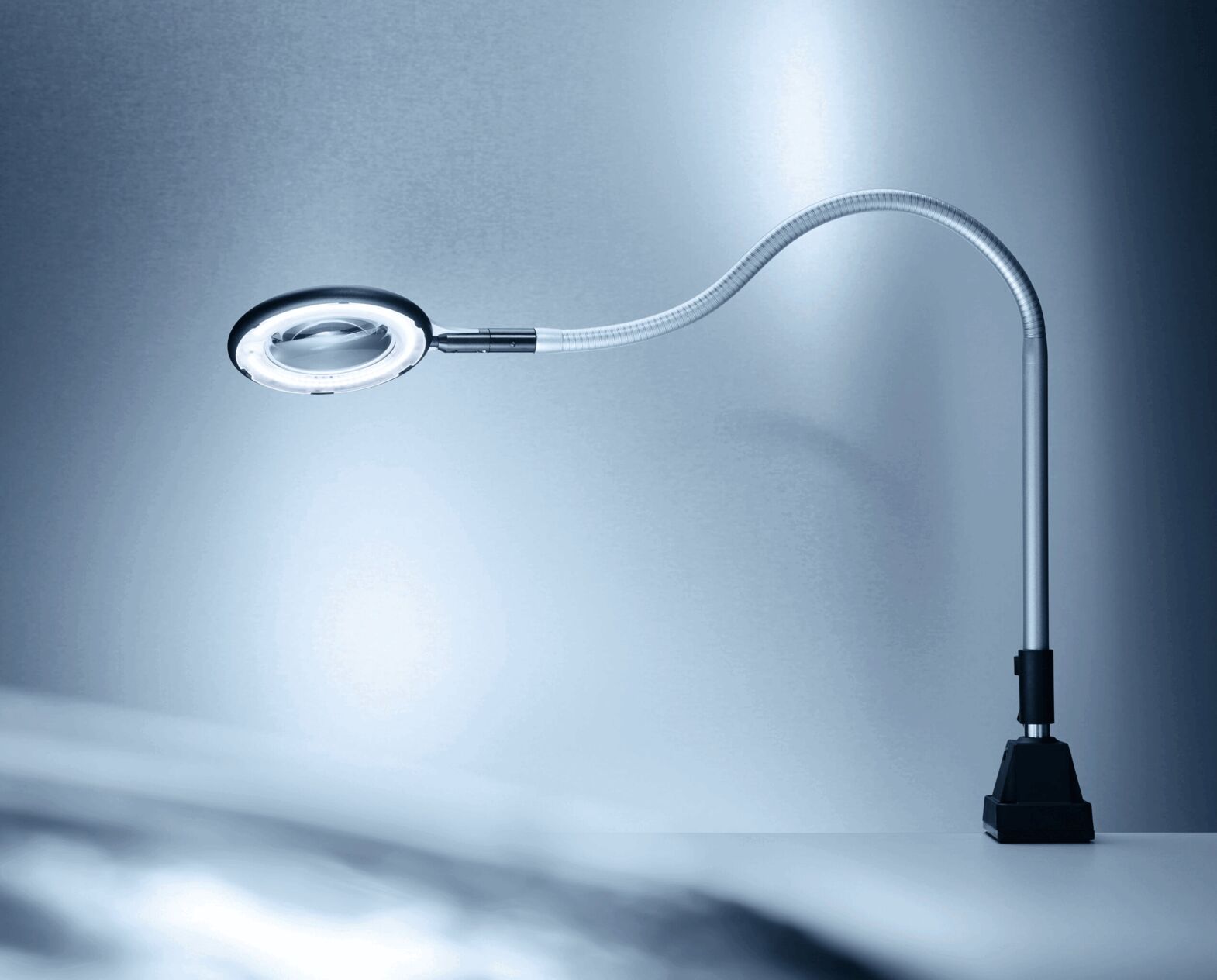

The image shows a flexible magnifying glass with a round, magnifying lens. The long, bendable neck allows the magnifying glass to be positioned in various ways. There is a stable mount at the bottom.

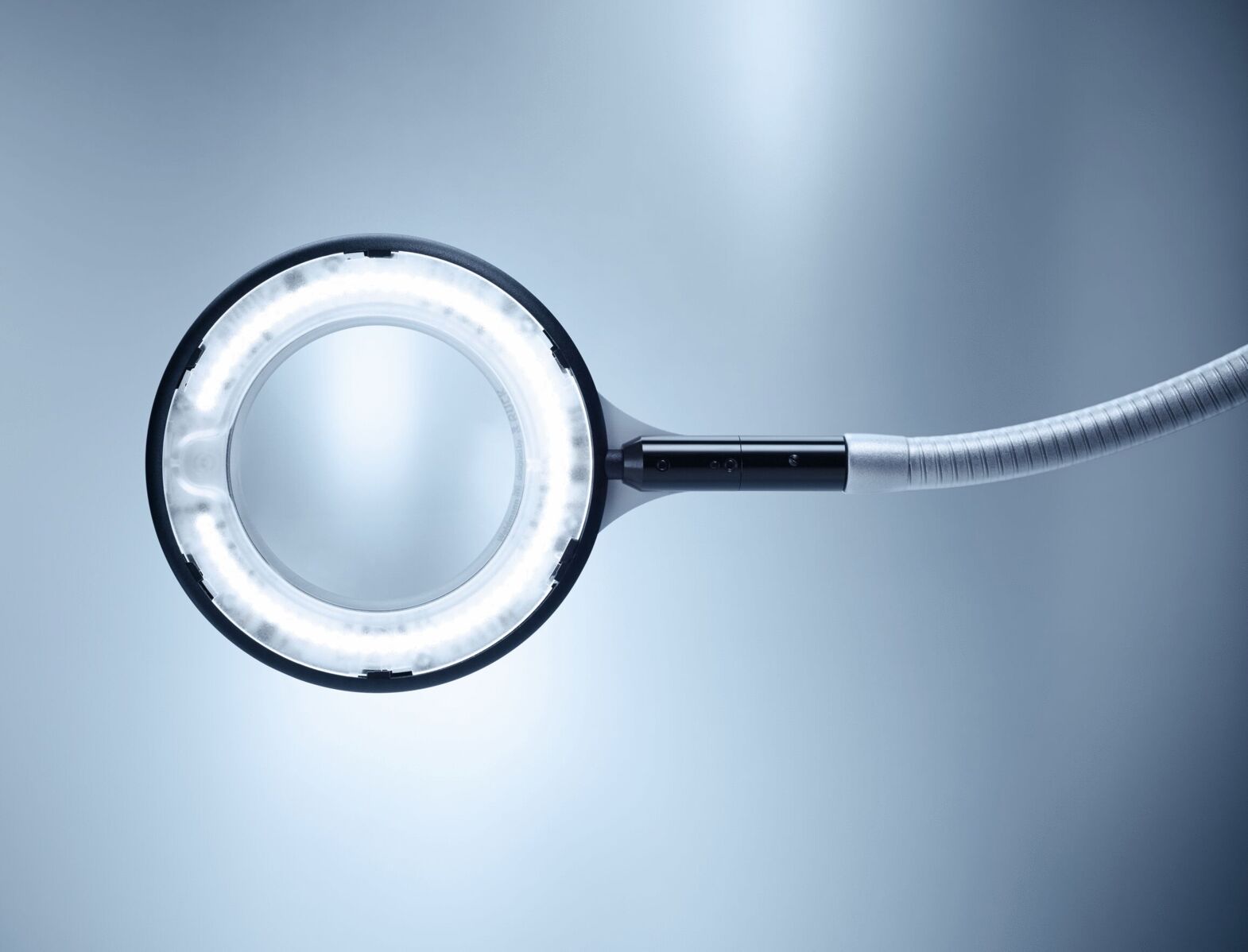

The image displays a flexible magnifying glass with a round lens at the end of a curved arm. The arm is mounted on a sturdy, rectangular base that supports the lens. The background is bright and monochromatic.

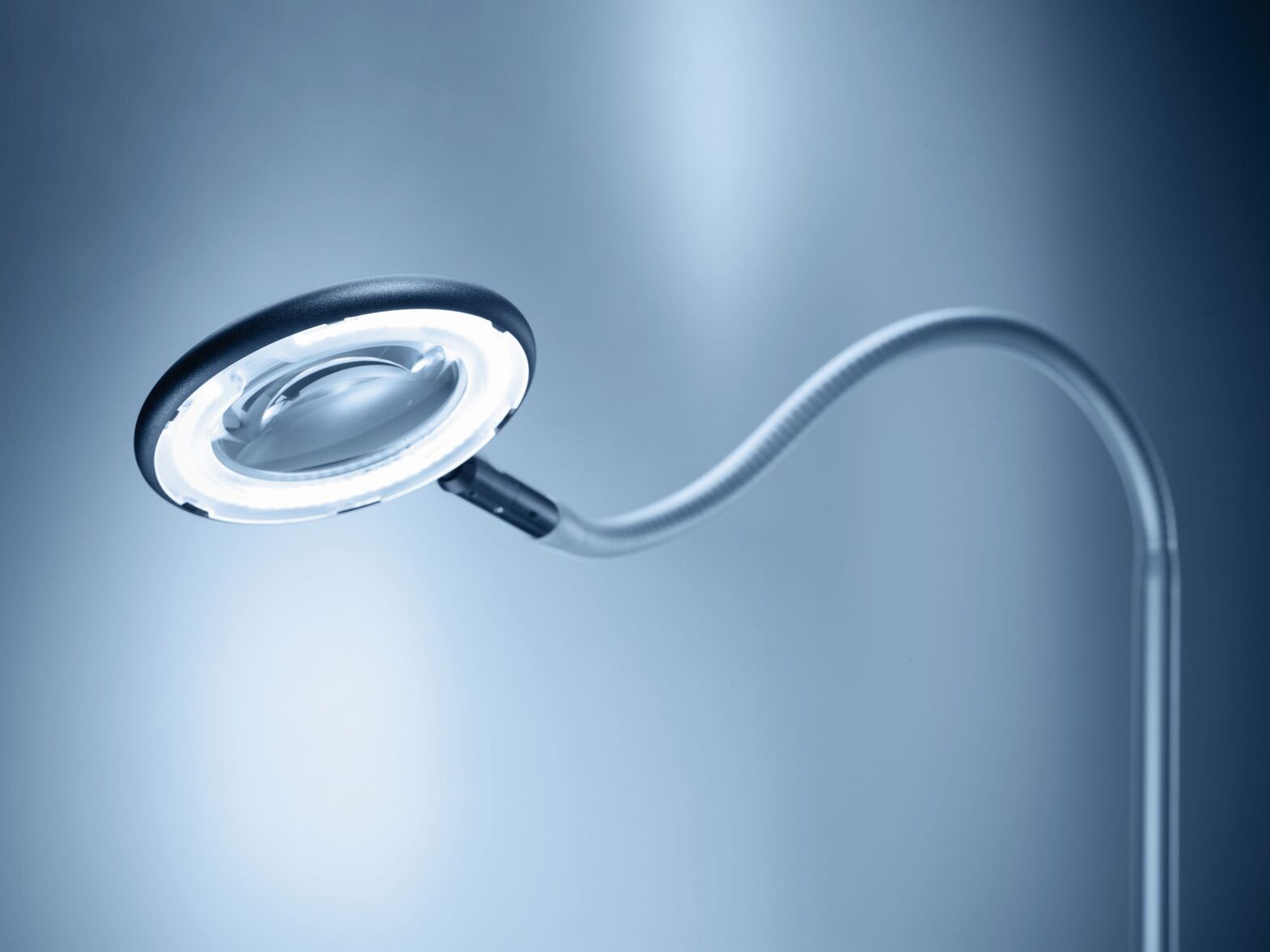

A flexible, modern reading magnifier with a round, illuminated glass lens. The arm is slim and bendable, the background appears cool and bright.

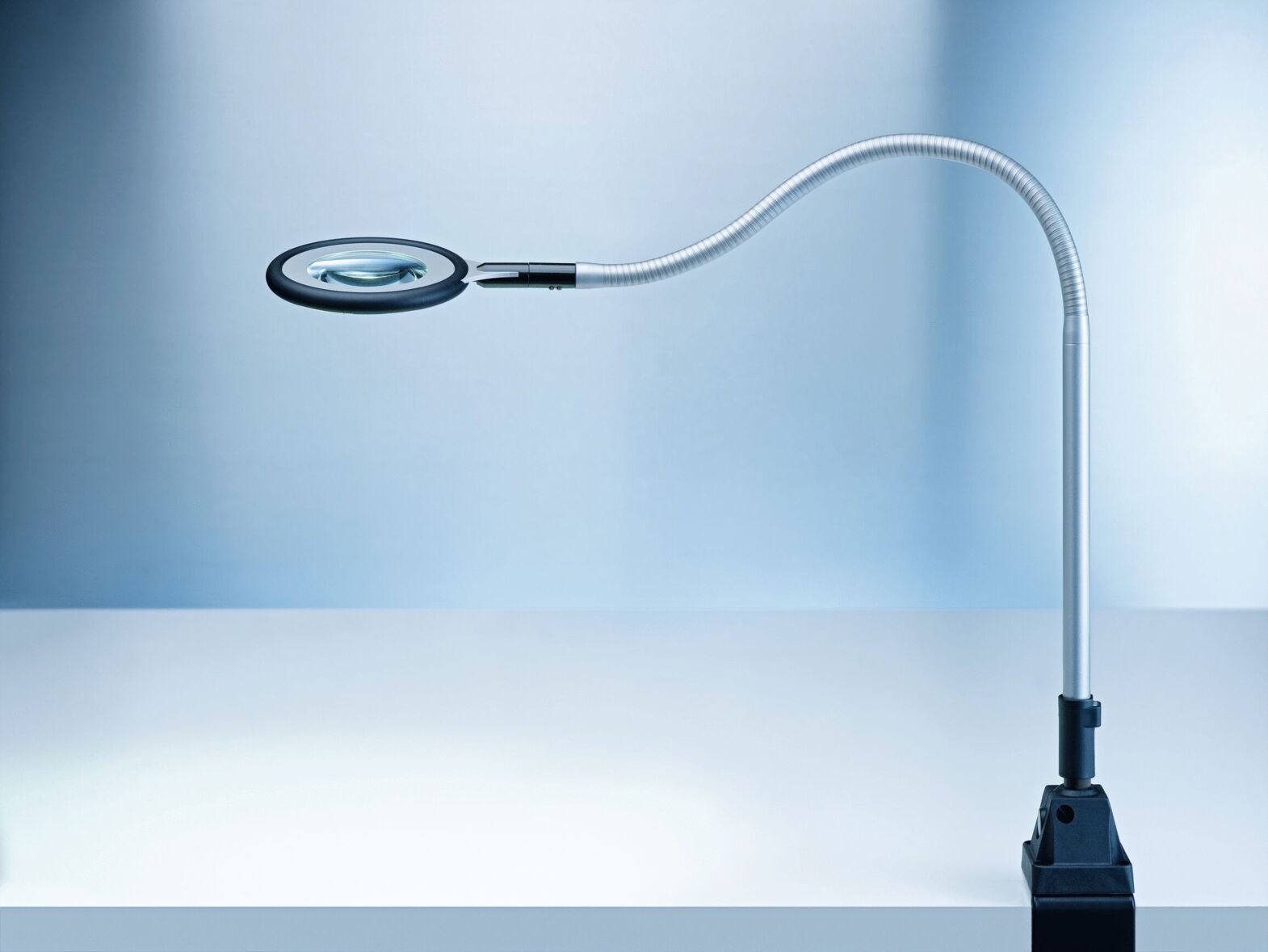

The image shows a flexible desk lamp with a round, magnifying light. The neck of the lamp is bendable and it stands on a stable, black base. The background is in soft shades of gray.

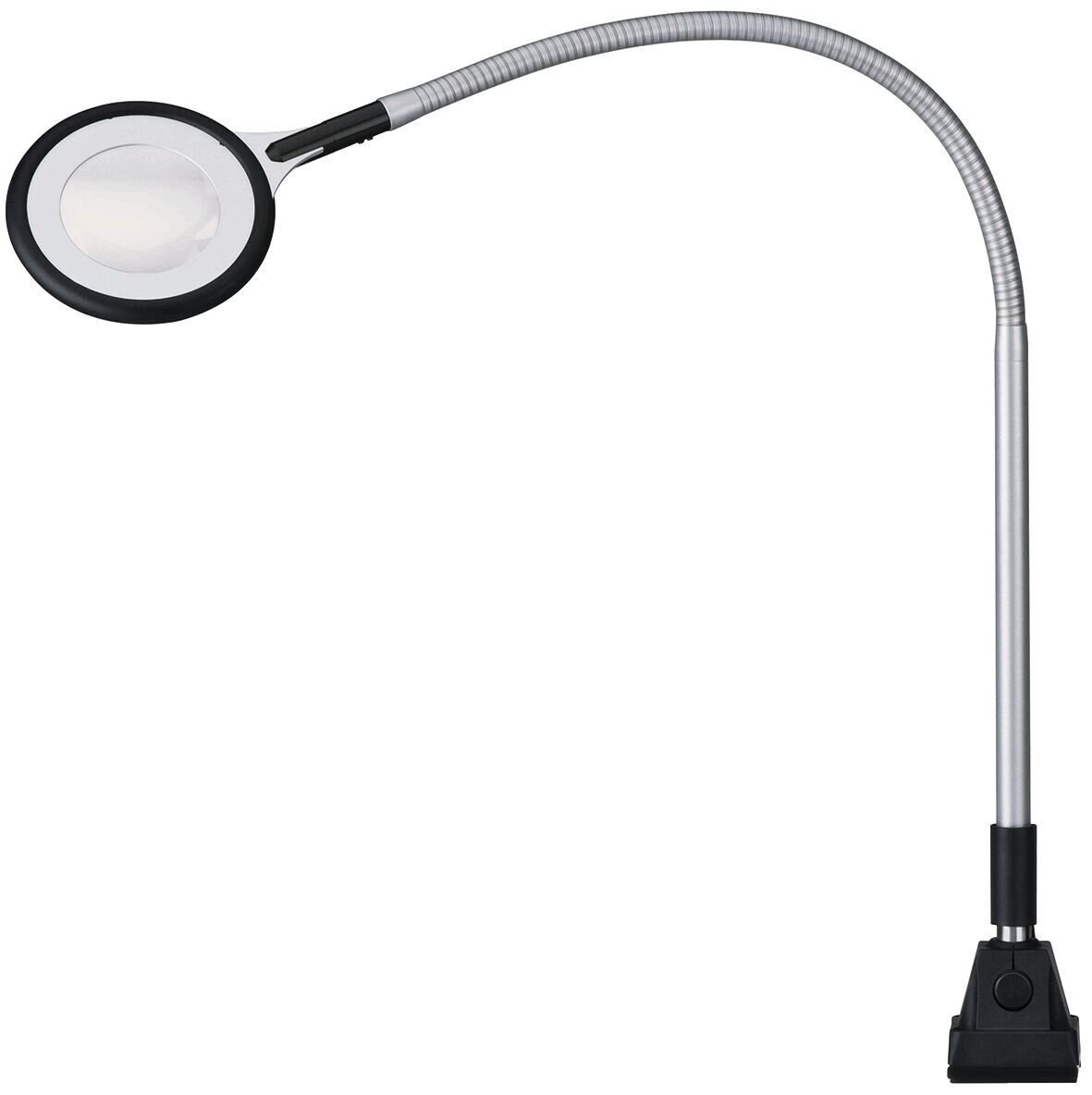

The image shows a large magnifying glass with a round, illuminated frame. It has a long, flexible neck and is positioned in soft light. The background is bright and monochromatic.
The image displays a technical drawing of a faucet. It has a curved shape with precise measurements, such as length and diameter, listed in millimeters.
Preview: The image shows a flexible magnifying glass with a round, magnifying lens. The long, bendable neck allows the magnifying glass to be positioned in various ways. There is a stable mount at the bottom.
Preview: The image displays a flexible magnifying glass with a round lens at the end of a curved arm. The arm is mounted on a sturdy, rectangular base that supports the lens. The background is bright and monochromatic.
Preview: A flexible, modern reading magnifier with a round, illuminated glass lens. The arm is slim and bendable, the background appears cool and bright.
Preview: The image shows a flexible desk lamp with a round, magnifying light. The neck of the lamp is bendable and it stands on a stable, black base. The background is in soft shades of gray.
Preview: The image shows a large magnifying glass with a round, illuminated frame. It has a long, flexible neck and is positioned in soft light. The background is bright and monochromatic.
Preview: The image displays a technical drawing of a faucet. It has a curved shape with precise measurements, such as length and diameter, listed in millimeters.
Ring LED magnifier lamp RLLQ 63
(Product No.: 703.150)
The image shows a flexible magnifying glass with a round, magnifying lens. The long, bendable neck allows the magnifying glass to be positioned in various ways. There is a stable mount at the bottom.
The image displays a flexible magnifying glass with a round lens at the end of a curved arm. The arm is mounted on a sturdy, rectangular base that supports the lens. The background is bright and monochromatic.
A flexible, modern reading magnifier with a round, illuminated glass lens. The arm is slim and bendable, the background appears cool and bright.
The image shows a flexible desk lamp with a round, magnifying light. The neck of the lamp is bendable and it stands on a stable, black base. The background is in soft shades of gray.
The image shows a large magnifying glass with a round, illuminated frame. It has a long, flexible neck and is positioned in soft light. The background is bright and monochromatic.
The image displays a technical drawing of a faucet. It has a curved shape with precise measurements, such as length and diameter, listed in millimeters.
Mobile Preview: The image shows a flexible magnifying glass with a round, magnifying lens. The long, bendable neck allows the magnifying glass to be positioned in various ways. There is a stable mount at the bottom.
Mobile Preview: The image displays a flexible magnifying glass with a round lens at the end of a curved arm. The arm is mounted on a sturdy, rectangular base that supports the lens. The background is bright and monochromatic.
Mobile Preview: A flexible, modern reading magnifier with a round, illuminated glass lens. The arm is slim and bendable, the background appears cool and bright.
Mobile Preview: The image shows a flexible desk lamp with a round, magnifying light. The neck of the lamp is bendable and it stands on a stable, black base. The background is in soft shades of gray.
Mobile Preview: The image shows a large magnifying glass with a round, illuminated frame. It has a long, flexible neck and is positioned in soft light. The background is bright and monochromatic.
Mobile Preview: The image displays a technical drawing of a faucet. It has a curved shape with precise measurements, such as length and diameter, listed in millimeters.
Notice

Ring LED magnifier lamp RLLQ 63

Ring LED magnifier lamp RLLQ 63

dpvlink:
13693
Diopters:
6
Color temperature:
4,000
Note:
!!! Table clamp not included in the scope of delivery !!!
Further product information

Delivery time! Delivery time!
403,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Ring LED magnifier lamp RLLQ 63

The Ring LED Magnifying Lamp RLLQ 63 from Waldmann is specifically designed for precision work in industrial environments, where detailed visibility of miniature parts is essential. Equipped with a hard-coated plastic lens with a diameter of 72 mm and 6 diopters, this lamp provides distortion-free magnification. The 63 integrated LEDs deliver a luminous flux of 420 lm and a light efficiency of 70 lm/W in neutral white light color (approx. 4000 K), ensuring excellent color rendering of Ra >= 90.
The lamp features seamless dimmability, controlled via a sensor switch on the lamp head. The robust lamp structure made of steel tubing and metal hose, along with the housing made of anodized aluminum and plastic in black, ensures high durability and minimizes space requirements at the workplace. The connection is made via a 2.30 m long power cord with various plug options for global compatibility. The lamp is also classified with IP 20 and weighs about 1.5 kg.
Accessories such as a base, magnetic base, table clamp, and wall bracket expand the mounting options and make the RLLQ 63 a versatile solution for demanding visual tasks.
Diopters
Diopters
6
Color temperature
Color temperature
4,000
Color
Color
black
Voltage
Voltage
100 - 240 V
Diameter in mm
Diameter in mm
72 mm
Illuminant
Illuminant
LED
Luminous color
Luminous color
neutral white
Luminous flux
Luminous flux
420
Power [W]
Power [W]
6 W
Magnification
Magnification
2.5x
!!! Table clamp not included in the scope of delivery !!!
Show accessories
Accessories

Accessories

The image shows a black C-clamp. It has a square top surface, a vertical bar, and a bottom surface with a screw for tightening.
Table clamp TK 1 / 65, 0-65 mm
Table clamp TK 1 / 65, clmaping width 0-65 mm
(for all Waldmann magnifier lamps)
dpvlink
3059

25,55 EUR

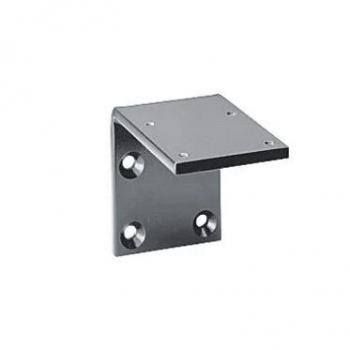

The image shows a silver metal bracket in an L-shape. The horizontal surface is on top and has four drill holes for mounting. It appears sturdy and functional.
Wall mounting bracket
Wall mounting backet for base 60 x 60 mm
Color: black
(for FLG 118, SNL 319, 136 ST, STE 136)
dpvlink
3059

27,20 EUR
The image shows a rectangular, flat object in dark gray, similar to a small box or cover, with a recess on one side. The surface is smooth.
Table base, black
Table base for ring LED magnifier lamp RLLQ 6
Color: black
dpvlink
3059

107,85 EUR
