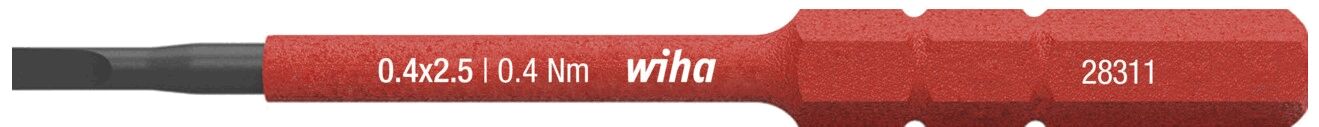

Slotted exchangeable blade 2831 VDE 2.5
**Slot-Change Blade 2831 VDE 2.5**
To reach deep-set screws, the blade diameter of conventional electrician's screwdrivers is often too large. However, removing the insulation is not allowed and compromises safety. With the Wiha slimTECHNOLOGY, specially developed for electrical applications, the protective insulation has been integrated into the blade to allow for slimmer blades. Thus, the slimBits can effortlessly reach deep-set screw and spring elements.
The insulated slimBits are subjected to individual testing according to the international standard IEC 60900 and enable safe work on live parts up to 1,000 V AC. The 6 mm slimBits are only to be used with the slimTorque bit holder in combination with the Torque-Vario-VDE handle.
- Increases your safety - Wiha slimBits ensure good and protected access to deep-set screws.
- Saves space - Space saving through an extensive interchangeable bit system.
- Provides you full protection - Each tool individually tested at 10,000 V AC and approved for 1,000 V AC.
Details
- Screwdriver type Screwdriver type
- Slotted
- Tip Tip
- 2.5
- Shank-Ø Shank-Ø
- 6.0 mm
- max. Nm max. Nm
- 0.4 Nm
- Length [mm] Length [mm]
- 75 mm
- Tip width Tip width
- 2.5 mm
- ESD ESD
- no
- Thickness Thickness
- 0.4 mm
- Weight Weight
- 8 g
Show accessories
Slotted
The slotted head, also known as the flat slotted head, is one of the oldest and simplest screw head shapes. It has a single, straight slot on the top of the screw head, which is operated with a flat screwdriver (slotted screwdriver).
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Screwdriver type | Tip | Shank-Ø | max. Nm | Price | Compare |
|---|---|---|---|---|---|---|---|
|

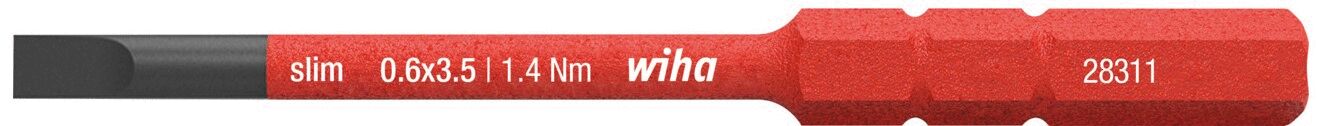

2831VDE.35 Slotted exchangeable blade 2831 VDE 3.5 | Slotted | 3.5 | 6.0 mm | 2.5 Nm | 7,45 EUR | |
|
2831VDE.40 Slotted exchangeable blade 2831 VDE 4.0 | Slotted | 4 | 6.0 mm | 2.5 Nm | 7,45 EUR | |
|
2831VDE.25 Slotted exchangeable blade 2831 VDE 2.5 | Slotted | 2.5 | 6.0 mm | 0.4 Nm | 7,45 EUR | |
|
2831VDE.30 Slotted exchangeable blade 2831 VDE 3.0 | Slotted | 3 | 6.0 mm | 0.6 Nm | 7,45 EUR | |
|
2831VDE.55 Slotted exchangeable blade 2831 VDE 5.5 | Slotted | 5.5 | 6.0 mm | 5.5 Nm | 7,45 EUR | |
|
2831VDE.65 Slotted exchangeable blade 2831 VDE 6.5 | Hexagonal | 6.5 | 6.0 mm | 5.5 Nm | 7,45 EUR | |
| Show Compare List (0) | |||||||
