Torque handle TV 3 VDE 2872

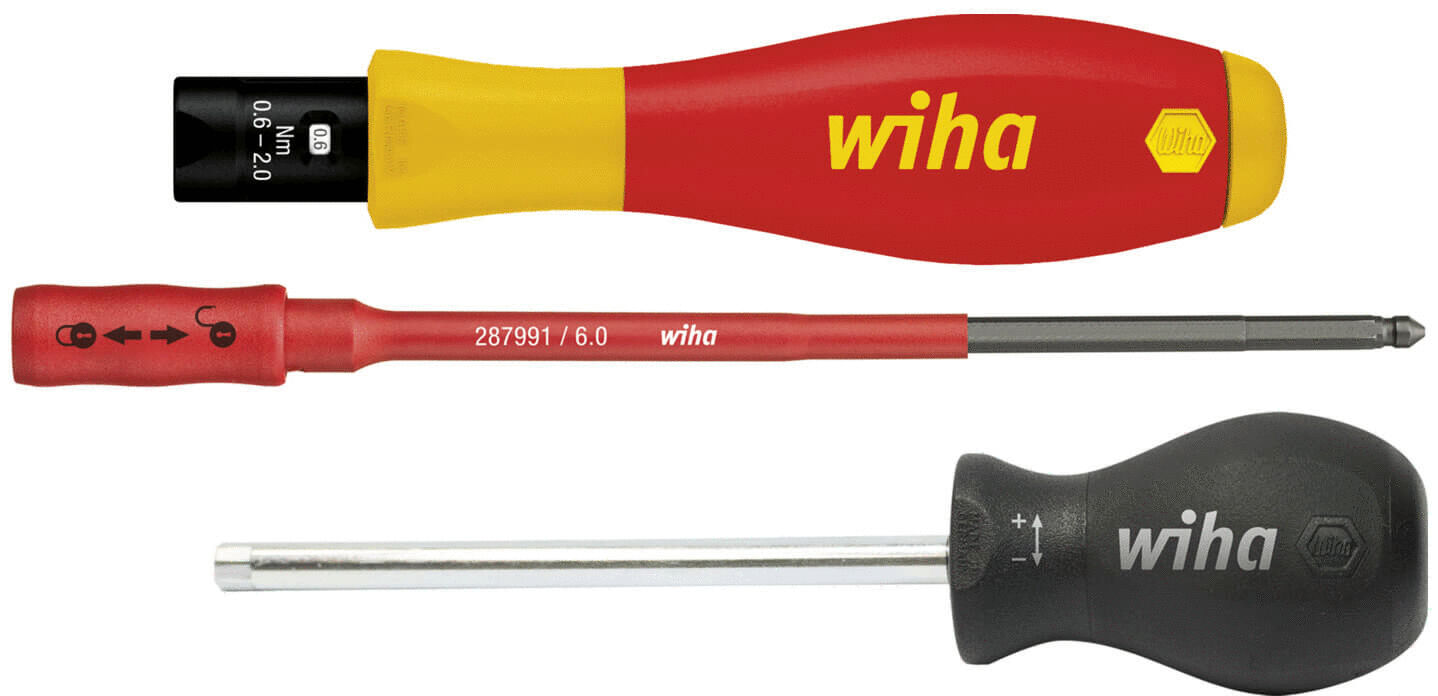

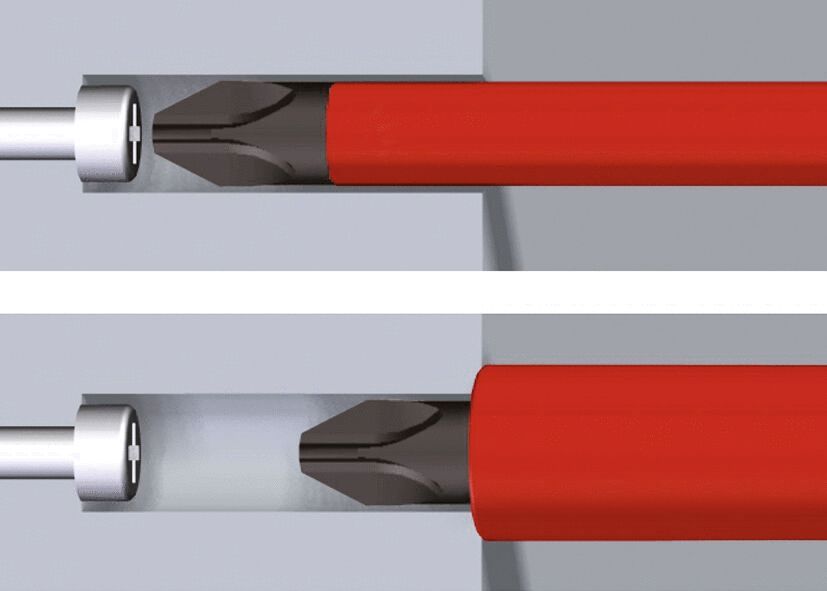

The fully certified TorqueVario®-S VDE Torque System offers controlled screw tightening and safety for electrical applications. The tool set includes an ergonomically shaped torque screwdriver handle with an integrated numerical scale, a bit holder, and the adjustment tool. All components are conveniently and clearly arranged in a high-quality, durable case. The VDE torque screwdriver covers a wide range of applications with its adjustable torque range. A clearly audible and tactile signal when the torque is triggered ensures a process-safe torque mechanism that protects against material damage and rework. With a release accuracy of +/- 6%, the torque tool meets the requirements of DIN EN ISO 6789. The insulated ClicFix bit holder provides a secure hold of the slimBits through a mechanical blade locking mechanism. Both the torque screwdriver and the slimBits undergo individual testing according to the international standard IEC 60900, allowing safe work on live parts up to 1,000 V AC.
The package includes a torque setter and an adapter which allows the use of SlimBits (6mm).
Note: No bits are included in the package.
- Meets your demands - Adjustable torque covers a wide range of applications.
- Increases your efficiency - The right torque protects you from material damage and rework.
- Protects your health - With patented SoftFinish® handle design for ergonomic work recommended by doctors and therapists of the AGR!
- Lowers your costs - The right torque protects you from warranty claims.
- Provides full protection - Each tool has been individually tested at 10,000 V AC and approved for 1,000 V AC.
The package includes a torque setter and an adapter which allows the use of SlimBits (6mm).
Note: No bits are included in the package.
Details
- Screwdriver type Screwdriver type
- bit holder
- Torque range Torque range
- 0.5 - 2.0 Nm
- Socket Ø Socket Ø
- 3.8/ 6.0 mm
- Handle length Handle length
- 142 mm
- ESD ESD
- no
- Accuracy Accuracy
- 6 %
- Handle diameter Handle diameter
- 131 mm
- Weight Weight
- 256 g
Show accessories
External hexagon
The external hexagon head is one of the most common head shapes for screws and bolts. It has a hexagonal shape and is designed so that it can be turned with a wrench, socket wrench or ring wrench.
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Screwdriver type | Torque range | Socket Ø | Price | Compare |
|---|---|---|---|---|---|---|
|
2872.TV4 Torque handle TV 4 VDE 2872 | bit holder | 0.8 - 5.0 Nm | 3.8/ 6.0 mm | 154,05 EUR | |
|
|
2872.TV3 Torque handle TV 3 VDE 2872 | bit holder | 0.5 - 2.0 Nm | 3.8/ 6.0 mm | 148,25 EUR | |
|
|
2872.TV5 Torque handle TV 5 VDE 2872 | bit holder | 2.0 - 7.0 Nm | 3.8/ 6.0 mm | 164,65 EUR | |
