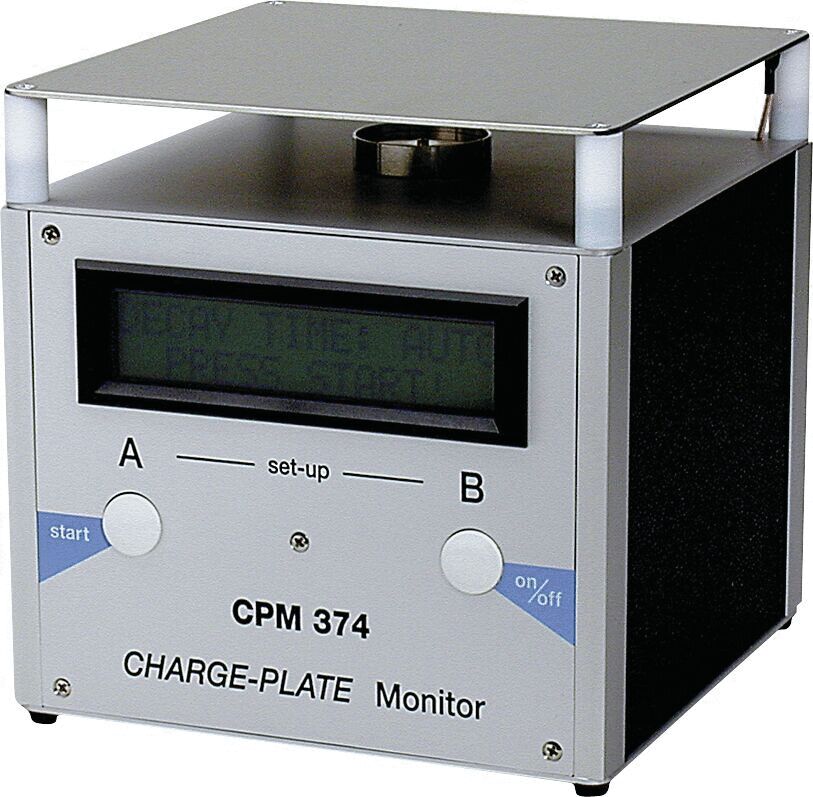

The image shows a compact, rectangular device with a digital display on the front. It has two large buttons labeled "A" and "B", as well as additional buttons for adjusting and starting. There is a flat platform on top.

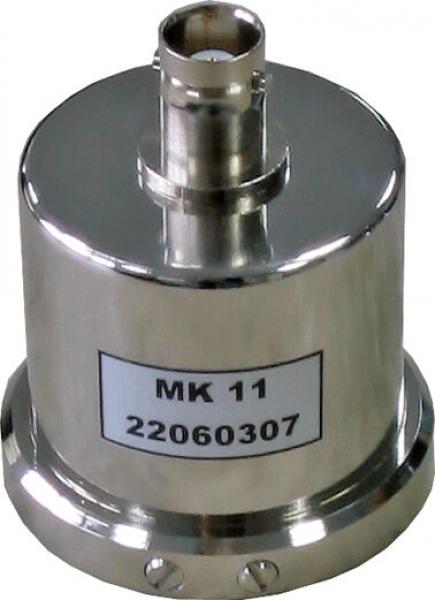

The image shows a metallic, cylindrical component with a round base and a connection on top. It has a smooth surface and bears a label with the inscription "MK 11" and a number.
Preview: The image shows a compact, rectangular device with a digital display on the front. It has two large buttons labeled "A" and "B", as well as additional buttons for adjusting and starting. There is a flat platform on top.
Preview: The image shows a metallic, cylindrical component with a round base and a connection on top. It has a smooth surface and bears a label with the inscription "MK 11" and a number.
CPM 374 / Charged Plate monitor incl. measuring head MK11
(Product No.: 7100.CPM374-MK11)
The image shows a compact, rectangular device with a digital display on the front. It has two large buttons labeled "A" and "B", as well as additional buttons for adjusting and starting. There is a flat platform on top.
The image shows a metallic, cylindrical component with a round base and a connection on top. It has a smooth surface and bears a label with the inscription "MK 11" and a number.
Mobile Preview: The image shows a compact, rectangular device with a digital display on the front. It has two large buttons labeled "A" and "B", as well as additional buttons for adjusting and starting. There is a flat platform on top.
Mobile Preview: The image shows a metallic, cylindrical component with a round base and a connection on top. It has a smooth surface and bears a label with the inscription "MK 11" and a number.
Notice / Inquire

CPM 374 / Charged Plate monitor incl. measuring head MK11

CPM 374 / Charged Plate monitor incl. measuring head MK11

dpvlink:
4763
Further product information

at short notice at short notice
2.701,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

CPM 374 / Charged Plate monitor incl. measuring head MK11

The Charged Plate Monitor CPM 374 with measurement head MK11 is a high-precision instrument for measuring electrostatic voltage potentials and discharge times, based on the field mill induction principle. With an input impedance of 10^15Ω and an integrated high-voltage unit that is high-resistance isolated and touch-proof, this device offers reliable performance according to the standards EN 61340-5-1 and EOS/ESD S.3.1.
The compact design and battery operation allow for mobile use, while the mains connection also allows for stationary operation. The CPM 374 is operated via two buttons, supported by a menu-driven interface displayed on a two-line, alphanumeric LCD display measuring 100mm x 24mm. The measurement data, including positive and negative discharge times as well as offset voltage, are stored in the internal, non-volatile EEPROM memory and can be read via an RS 232 interface.
The device measures 152 x 152 x 152 mm, weighs approximately 1.5 kg, and operates at a temperature range of 0 - 40 °C and a humidity range of 10 - 60%. The internal battery pack (7.2V / 1300mAh) is continuously monitored and can be externally powered with a 12V DC / 750mA power supply.
Included in the delivery are a plug-in power supply, a grounding cable, a conductive carrying case, software, as well as a factory calibration certificate and an operating manual in German and English.
Recommended calibration interval
Recommended calibration interval
12 months bzw. according to test equipment list
Height
Height
152 mm
Length
Length
152 mm
Width
Width
152 mm
Humidity
Humidity
10 - 60 %
Operating temperature
Operating temperature
0 - 40 °C
Weight
Weight
990 g
Show accessories
Accessories

Accessories

The image displays a calibration certificate in German with details about the manufacturer and the device. Next to it, there is a device with a display, surrounded by a green logo.
Calibration for Charged Plate Monitor
Calibration Charged Plate Monitor
incl. certificate
dpvlink
26315

Price on request
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

CPM 374 / Charged Plate Monitor

The Charged Plate Monitor CPM 374 measures the electrostatic voltage potential via an integrated plate electrode. The device uses a timer function to determine the discharge time between two defined voltage values. It combines a high-voltage unit with an electric field meter based on the field-mill-influence principle, which enables particularly precise measurements of voltage potentials and discharge times thanks to its extremely high input impedance of 10¹⁵ Ω - ideal for testing air ionization systems.

The CPM 374 meets the requirements of the EN 61340-5-1 and EOS/ESD S.3.1 standards, is touch-proof thanks to its high-impedance isolation and is therefore ideally suited for industrial use. Thanks to its compact design and battery operation, the device is suitable for both mobile and stationary use via a mains connection.

It is operated intuitively via two buttons and a menu-driven system. A two-line LCD display clearly shows all relevant measurement parameters. The measured discharge times (positive and negative) and the offset voltage are stored in the internal, non-volatile EEPROM and can be read out later via the RS232 interface.

The CPM 374 is available as a standard version without a measuring head or as a version including a high-voltage measuring head.

Scope of delivery:
Power supply unit, grounding wire, conductive carrying case, software, factory calibration certificate and user manual (German/English).

Technical data:

Dimensions:

152 x 152 x 152 mm

PC interface:

serial interface for controlling the functions and for measured value output

Power supply:

internal with battery block 7.2V / 1300mAh (permanently monitored)
external with power supply unit 12V DC / 750mA

Display:

alphanumeric display
2 lines x 16 characters (100mm x 24mm)

Charging time:

max. 14 hours

Power consumption

approx. 150mA with battery operation / approx. 600mA with PSU operation


Article image
Article description
Recommended calibration interval
Voltage
Height
Length
Width
Humidity
Operating temperature
Weight
Price
Compare
7100.CPM374 - CPM 374 / Charged Plate Monitor
7100.CPM374
CPM 374 / Charged Plate Monitor
12 months bzw. according to test equipment list
9 - 12 V
152 mm
152 mm
152 mm
10 - 60 %
0 - 40 °C
990 g
2.532,00 EUR
7100.CPM374-MK11 - CPM 374 / Charged Plate monitor incl. measuring head MK11
7100.CPM374-MK11
CPM 374 / Charged Plate monitor incl. measuring head MK11
12 months bzw. according to test equipment list

152 mm
152 mm
152 mm
10 - 60 %
0 - 40 °C
990 g
2.701,00 EUR
