EM EYE ESD Event Meter
(Product No.: 770715)

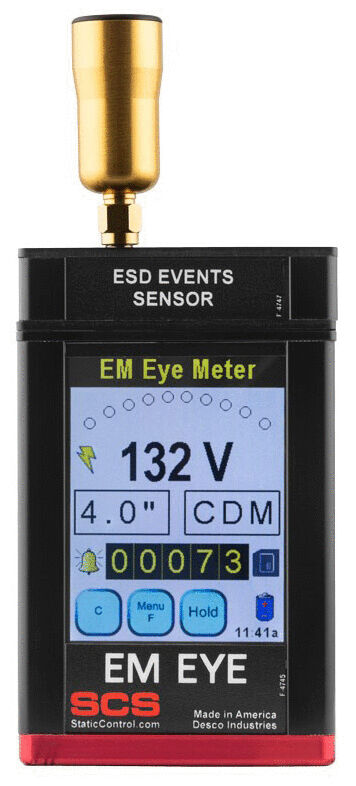

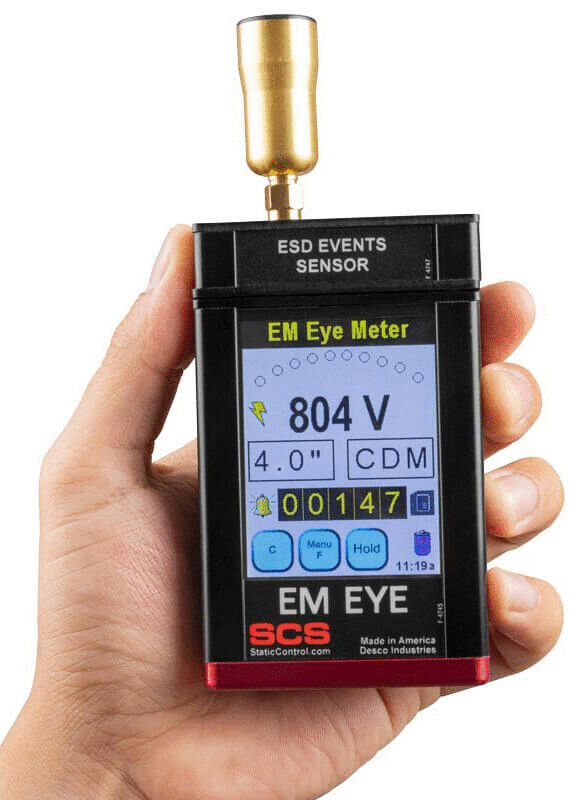

The image shows a digital measuring device that measures static electricity. It has a black body, a display with blue and black numbers, and a golden antenna on top.

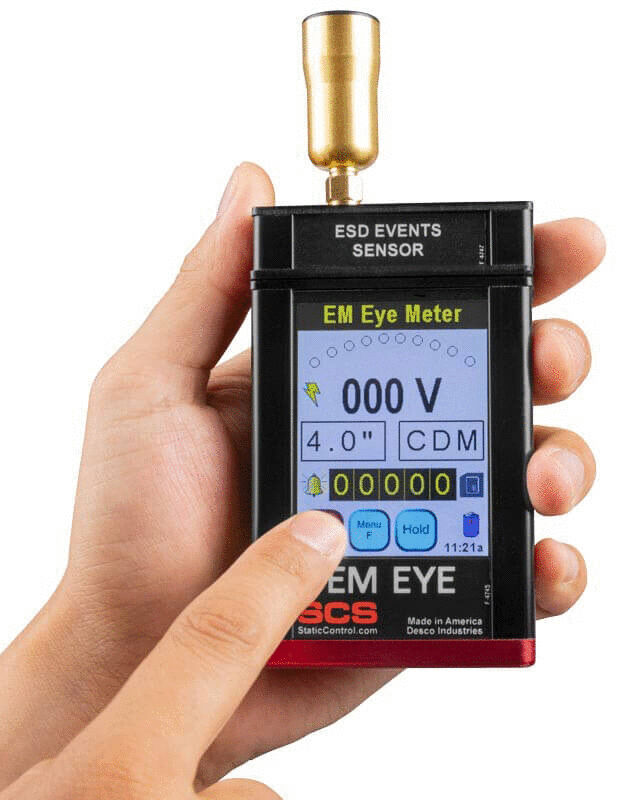

The image displays a handheld device for measuring electromagnetic fields. It features a display with values, buttons, and an antenna on top. The colors are red, black, and blue.

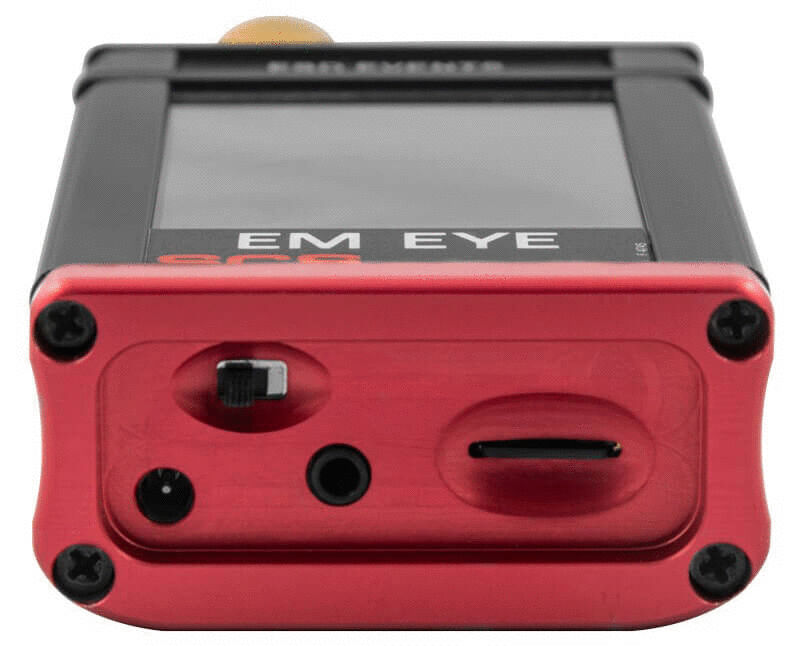

The image shows a handheld device for measuring electrostatic discharges. It features a screen with digits and buttons, an antenna on top, and is held with one hand.

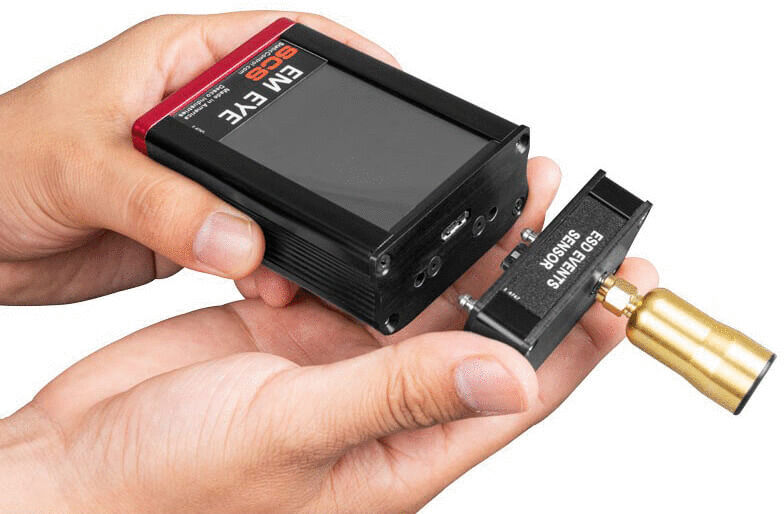

The image shows two hands holding a compact electronic device with a screen. Next to it is a smaller, attached antenna attachment.

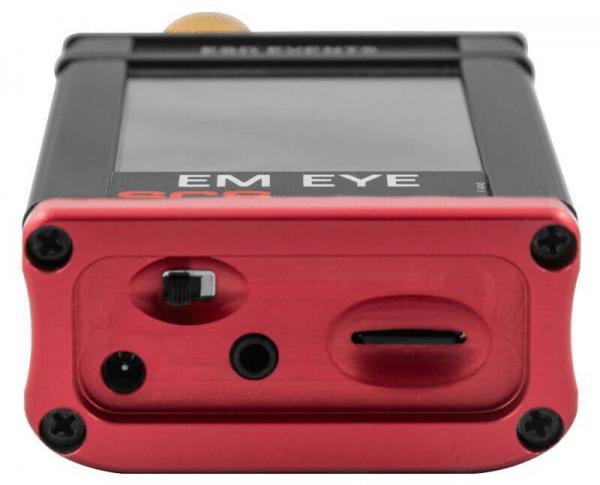

The image shows a small, rectangular device with a smooth surface. It has black and red colors, a top and a bottom side with several ports and switches. A display is visible.

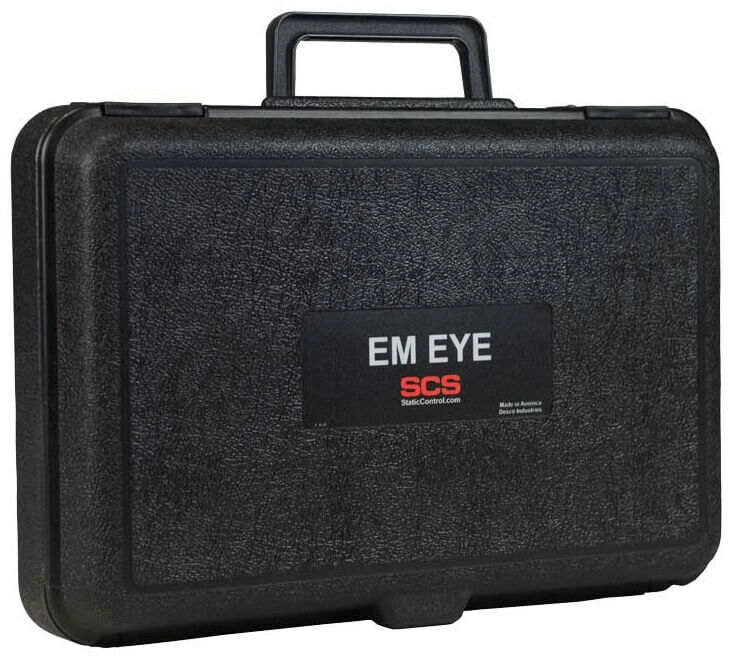

The image shows a black, sturdy suitcase with a textured surface. It has an ergonomic handle and a viewing window with the text "EM EYE" and "SCS".
Mobile Preview: The image shows a digital measuring device that measures static electricity. It has a black body, a display with blue and black numbers, and a golden antenna on top.
Mobile Preview: The image displays a handheld device for measuring electromagnetic fields. It features a display with values, buttons, and an antenna on top. The colors are red, black, and blue.
Mobile Preview: The image shows a handheld device for measuring electrostatic discharges. It features a screen with digits and buttons, an antenna on top, and is held with one hand.
Mobile Preview: The image shows two hands holding a compact electronic device with a screen. Next to it is a smaller, attached antenna attachment.
Mobile Preview: The image shows a small, rectangular device with a smooth surface. It has black and red colors, a top and a bottom side with several ports and switches. A display is visible.
Mobile Preview: The image shows a black, sturdy suitcase with a textured surface. It has an ergonomic handle and a viewing window with the text "EM EYE" and "SCS".
Notice / Inquire

EM EYE ESD Event Meter

EM EYE ESD Event Meter

dpvlink:
15219
Further product information

Delivery time! Delivery time!
5.433,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

EM EYE ESD Event Meter

The EM Eye ESD Event Meter is an advanced, portable measuring device specifically designed for monitoring and analyzing electromagnetic fields (EMF), electrostatic fields, and radio frequencies (RF). This versatile tool is ideal for use in areas such as electronics manufacturing, maintenance, research, and IT to minimize ESD risks and ensure compliance with safety standards.
With its modular design and various sensors, including an ESD sensor module, the device can detect and measure a wide range of ESD events, including peak voltage and average values. Usability is further enhanced by a touchscreen with a resolution of 240x320 pixels, as well as the capability for speaker and headphone use.
The device offers flexible data recording options, which can be stored on a standard microSD card and displayed directly on the device. With a frequency bandwidth from 1 MHz to 2.5 GHz and the ability to capture data event-based or in adjustable intervals, this meter is an indispensable tool for technical professionals. Power is supplied either by a lithium-ion battery or mains operation, complemented by an automatic shutdown feature to save energy. The compact design with dimensions of 65 x 32 x 105 mm makes it easily transportable and manageable.
Additional information about this product and its modules is available upon request.
Recommended calibration interval
Recommended calibration interval
12 months bzw. according to test equipment list
Voltage
Voltage
100 - 240 V
Height
Height
32 mm
Length
Length
105 mm
Width
Width
65 mm
Operating temperature
Operating temperature
10 - 40 °C
Show accessories
Accessories

Accessories

The image displays an electromagnetic field sensor. It has a black base labeled "ELECTROMAGNETIC FIELD SENSOR" and a golden, round antenna on top.
EMI Sensor for EM EYE METER
EMI sensor (for 3M CTM048 EM EYE METER)

Serial no. .......................................
dpvlink
15219

1.016,00 EUR
Show product
The image shows an ESD event sensor. It has a black body with the label "ESD EVENTS SENSOR" and a golden, domed cap on top. Two connectors are visible on the lower part.
ESD sensor for EM-EYE-METER
ESD sensor (for 3M CTM048 EM EYE METER)

Serial no. .......................................
dpvlink
15219

1.207,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

EM EYE Meter

An EM Eye Meter is a portable measuring device used to monitor and analyze electromagnetic fields (EMF), electrostatic fields and radio frequencies (RF). It helps to minimize ESD risks, ensure compliance with safety standards and identify sources of interference in electronic devices. The device is versatile and can be used in electronics manufacturing, maintenance, research and IT to ensure a safe and interference-free working environment. With additional optional attachments (sensors), the EYE-Meter becomes a portable detector for the detection of ESD events (discharges) and electromagnetic fields.

  • Detection, measurement and counting of ESD events that cause faults and damage components power slide switch
  • Calculation of the event size for the Charged Device Model (CDM), the Human Body Model (HBM) and the Machine Model (MM)
  • Power slide switch to save power from the rechargeable lithium-ion battery during storage (item no. 770715)
  • Storage of all measurements on microSD card for downloading to PC for further processing or archiving
  • Intuitive operation thanks to touchscreen display

EFM module field strength sensor

For the use as EM field strength meter, power density meter or EIRP meter. The EM EYE Meter detects and measures high-frequency electric fields by a miniaturized directional antenna. For measuring and recording of single and average values.

- further information about the EMF module on request -

Sensor types

ESD sensor module

The EM EYE Meter is able to detect ESD events according to the discharge models CMD, MM, HBM, or Raw Input.

Measurement of

  • maximum voltage
  • average values
  • threshold values setting
  • voltage of each ESD event
  • Event counter
  • Raw input mode to record and evaluate the measured voltages for later analysis

Properties

  • Modular construction
  • Touch screen with modern user interface TFT 240x320px
  • Speaker and headphone output
  • Selection of remote and local antennas
  • Time display, hold function
  • Data recording event-related or in selectable intervals
  • Data logging by using a standard microSD card
  • Data table display also on the monitor of the instrument
  • Frequency range 1 MHz to 2.5 GHz
  • Lithium ion rechargeable battery with charger or power supply operation

Specifications

  • Dimensions W 65 x H 32 x L 105 mm
  • Data acquisition interval:
    Peak values: 1 – 360 s
    average values: 0.1 – 360 s
  • Operation temperature: 10-40 C
  • head set plug: 3.5 mm
  • Antenna/cable connection:
    reversible SMA

- further information available on request -


Article image
Article description
Recommended calibration interval
Voltage
Height
Length
Width
Operating temperature
Price
Compare
3M-CTM048-21 - EM EYE METER with ESD sensor
3M-CTM048-21
EM EYE METER with ESD sensor
12 months bzw. according to test equipment list
100 - 24 V
32 mm
105 mm
65 mm
10 - 40 °C
5.037,00 EUR
770715 - EM EYE ESD Event Meter
770715
EM EYE ESD Event Meter
12 months bzw. according to test equipment list
100 - 240 V
32 mm
105 mm
65 mm
10 - 40 °C
5.433,00 EUR
3M-CTC21 - ESD sensor for EM-EYE-METER
3M-CTC21
ESD sensor for EM-EYE-METER






1.207,00 EUR
3M-CTC28 - EMI Sensor for EM EYE METER
3M-CTC28
EMI Sensor for EM EYE METER






1.016,00 EUR
Show Compare List (0)
