EFM 022 Electric field meter
EFM 022 Electric field meter

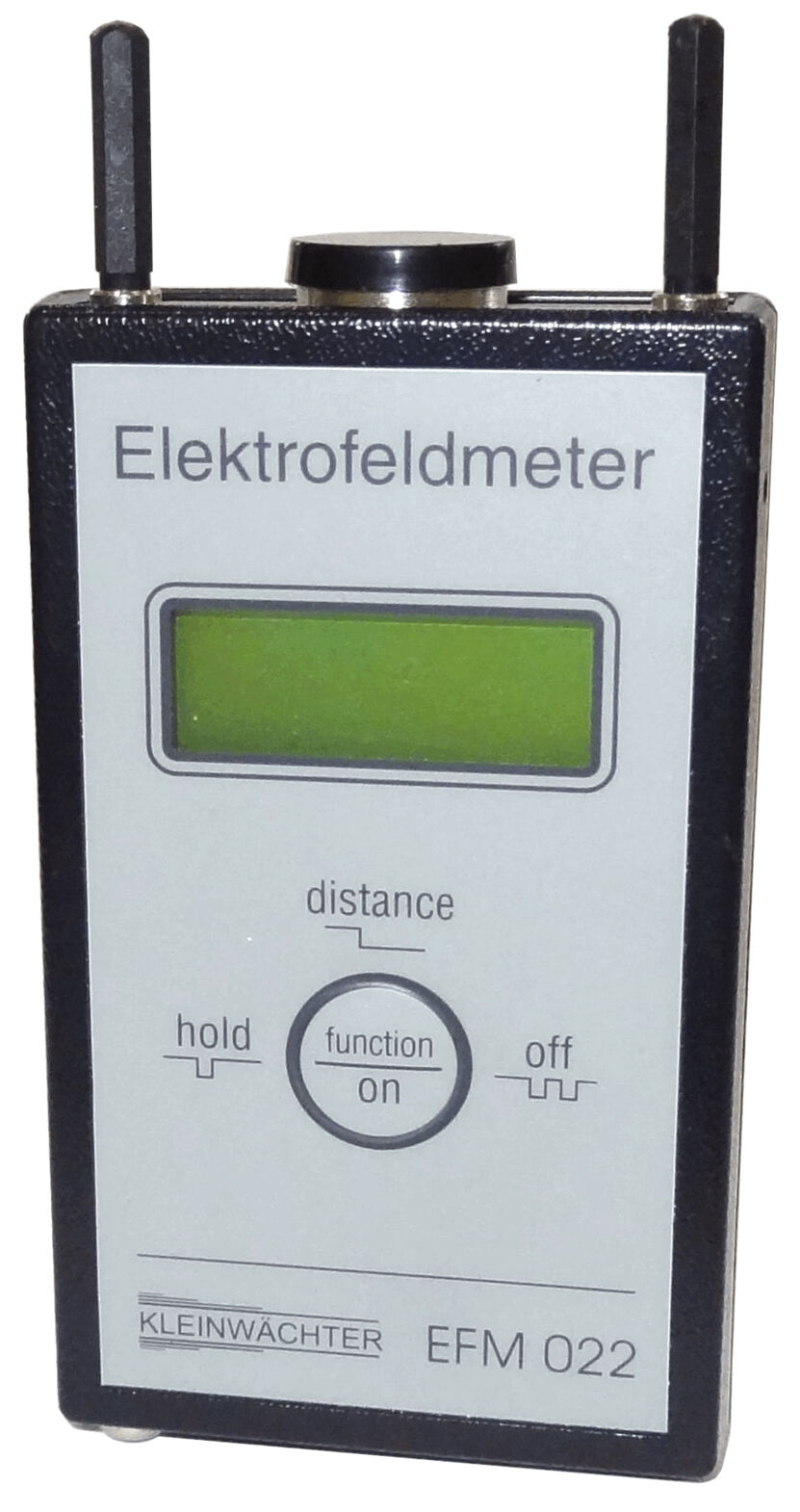

The EFM 022 Electrofield Meter is a compact and mobile instrument for precise measurement of electric fields and electrostatic charges. It utilizes the influence principle (field mill principle) to capture the field strength, which is automatically converted from the measured field strength (V/m) to the voltage potential (V) over the set measuring distance. The device offers a measuring range from 0 to ± 200kV and features a clear 2-line LCD display. It operates using a 9V block battery.The dimensions of the field meter are 70 mm in width, 26 mm in height, and 122 mm in length, with a weight of only 130 g. The recommended calibration interval is 12 months or as per the testing equipment list.

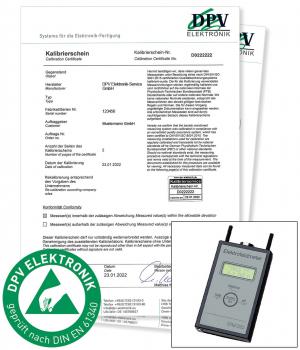

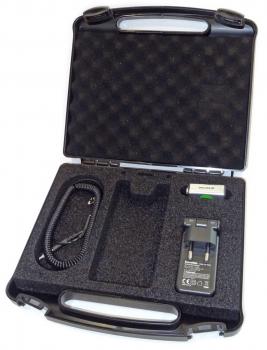

Included in the delivery are a storage pouch, a grounding cable, a 9V block battery, a factory calibration certificate, and an instruction manual in German and English. An optional accessory set is available, which includes a conductive readiness case, a 9V NiMH block battery with plug charger, a grounding spiral cable, and a tapping clamp.
Details
- Measuring range Measuring range
- 0 - 200 kV
- Recommended calibration interval Recommended calibration interval
- 12 months bzw. according to test equipment list
- Height [mm] Height
- 26
- Length [mm] Length
- 122
- Width [mm] Width
- 70
- Weight Weight
- 130 g
Show accessories
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
EFM 022 Electric field meter
Article image
Article description
Measuring range
Recommended calibration interval
Height [mm]
Length [mm]
Width [mm]
Weight
Price
Compare
0 - 200 kV
12 months bzw. according to test equipment list
26
122
70
130 g
