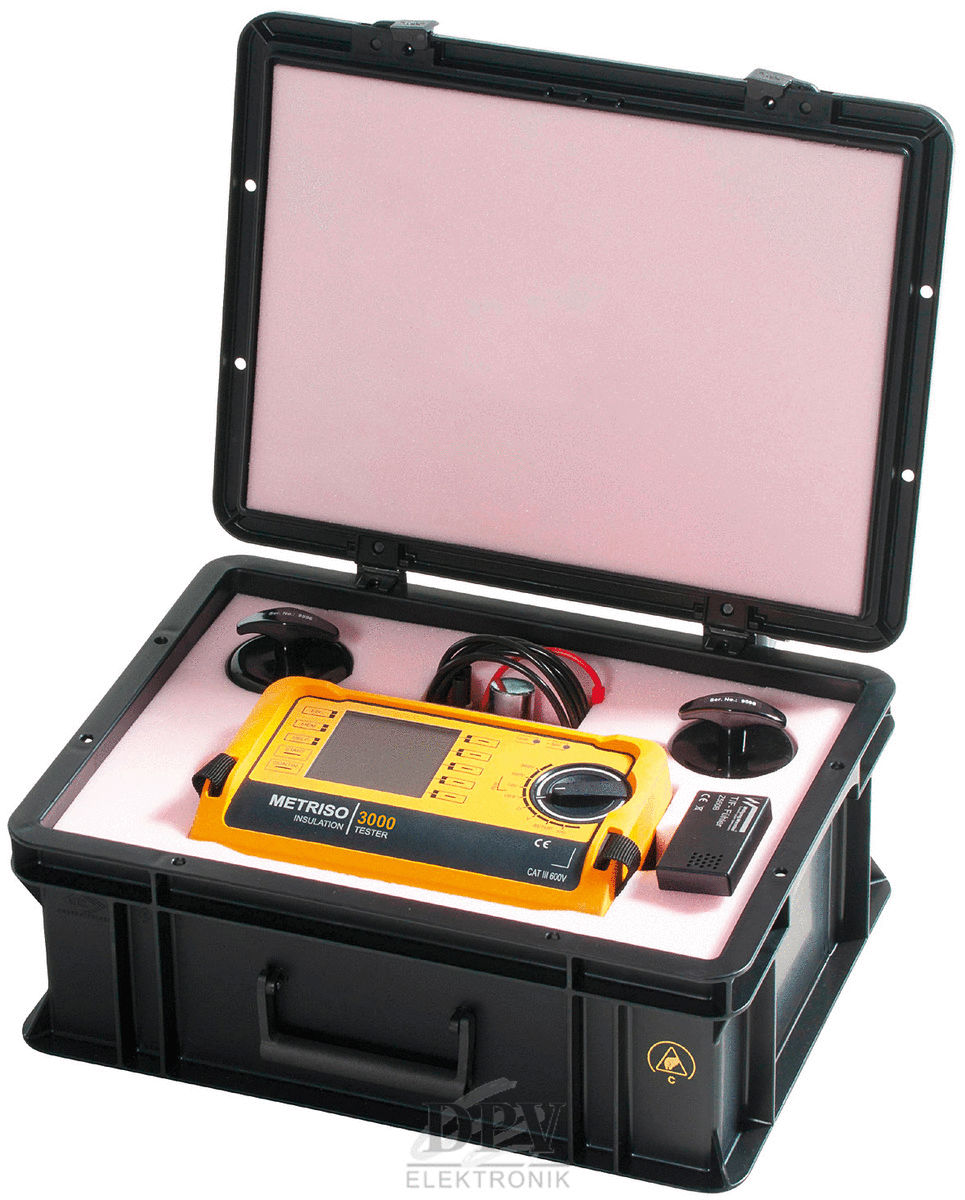

The image shows a black hard-shell suitcase that is open. Inside, there is a yellow measuring device with a screen, surrounded by cables and two round controls.
METRISO® 3000 - measurement kit complete
(Product No.: 7100.3000.MK)
The image shows a black hard-shell suitcase that is open. Inside, there is a yellow measuring device with a screen, surrounded by cables and two round controls.
Notice / Inquire

METRISO® 3000 - measurement kit complete

METRISO® 3000 - measurement kit complete

dpvlink:
16556
Further product information

Delivery time! Delivery time!
2.266,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

METRISO® 3000 - measurement kit complete

The METRISO® 3000 test kit is a comprehensive system for testing ESD protective measures, ideal for measuring point-to-point resistances, grounding resistances, and the system resistance of human/shoe/floor systems. This kit includes a digital megohmmeter, attachable temperature and humidity sensors, a USB interface, PC software for Windows®, two test electrodes, a hand electrode, measuring cables, an instruction manual in German and English, a factory calibration certificate, and a conductive carrying case with dissipative pink foam compliant with DIN EN 61340-4-1.
The device offers a measuring voltage of 10 V, 100 V, up to 500 V DC and covers a resistance range from 1 kΩ to 1 TΩ in the high resistance range and from 1 Ω to 9.99 kΩ in the low resistance range. It is suitable for both battery and rechargeable battery operation and features a USB interface as well as interfaces for temperature/humidity sensors and barcode scanners. The dimensions are 225 x 130 x 140 mm and the total weight of the kit is 9 kg.
In addition to the hardware features, the METRISO® 3000 includes an integrated data storage for up to 50,000 measurements and a logging software "ETC" for creating test reports. The device supports automatic capture of measurement points using a barcode scanner and enables menu-driven measurement with automatic setting of limit values. The display language can be selected (DE, EN, FR, ES). Operating temperatures range from -10 to 70 °C with a humidity of 10 to 90 %.
Recommended calibration interval
Recommended calibration interval
24 months bzw. according to test equipment list
Humidity
Humidity
10 - 90 %
Operating temperature
Operating temperature
-10 - 70 °C
Weight
Weight
9 kg
Show accessories
Accessories

Accessories

The image shows a black hand scanner with blue accents. It has a long cable connection that leads to a rectangular plug. Ideal for scanning barcodes.
Barcode scanner for 2D and 1D codes for Metriso...
Barcode scanner for Metriso 3000 / 1D-2D
dpvlink
19753

364,45 EUR
Show product
The image shows a black power adapter with two socket pins on one side and a cable leading to a round plug. The cable is coiled and moves sideways.
NEW
NEW
Wide-range charger for rechargeable battery...
Wide-range charger for battery pack Metriso 3000
EU, US, UK
Input: 100 - 240 VAC / output: 16.5 VDC
(operation only with rechargeable battery)
dpvlink
19753

116,90 EUR
Show product
The image shows a rechargeable battery holder made of black plastic with three green cells. The cells are printed with information, and there are connectors on the top.
NEW
NEW
Rechargeable battery pack for Metriso 3000...
Rechargeable battery pack for Metriso 3000
2600mAh
dpvlink
19753

103,60 EUR
Show product

Spares

The image shows an orange measuring device with a digital display and a large rotary knob. It has buttons and a carrying strap on the side. It is used for performing insulation measurements.
METRISO® 3000 measuring device single
Metriso 3000 meter with measuring lines
Menu language German/English
(without accessories)

Scope of delivery:
high resistance meter Metriso 3000, measuringl lines, user manual, calibration certificate

serial number:
dpvlink
16556

1.736,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 158
Workwear | Professional footwear 2024
Page: 204
Complete Catalog 2023 - 2024

Product Family

METRISO® 3000 measurement device

METRISO 3000 is a professional measuring device for testing ESD protection measures. It measures very high resistances and is particularly suitable for point-to-point measurements and for measuring the leakage resistance to earth. The device is available as an individual device or as a measuring kit in a conductive carrying case with electrodes and other accessories.

  • Suitable for measuring point-to-point resistances and leakage resistances as well as the system resistance of people/shoes/floor system
  • Integrated data memory for storing 50,000 measured values
  • USB interface for reading out the data on a PC
  • "ETC" logging software for creating and archiving a complete test report
  • Menu-guided measurement with selection of the ESD control element and automatic specification of limit values
  • Automatic recording of measuring points before the measurement by using a barcode scanner
  • Selectable display language (DE, EN, FR, ES)

Technical data:

Measuring voltage:

10 V, 100 V, 500 V DC

Resistance range:

1 kΩ to 1 TΩ (high resistance range)

1 Ω to 9.99 kΩ (low resistance range)

Operating mode:

Battery or rechargeable battery operation

Dimensions (BxHxD):

225 x 130 x 140 mm

Weight:

1.4 kg (single device)

9 kg (complete kit)

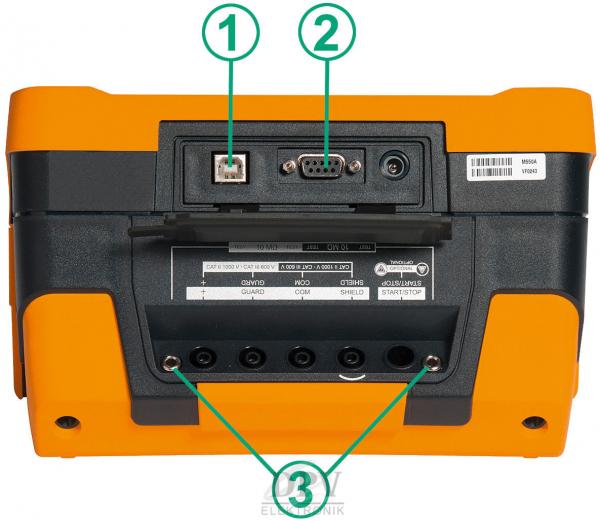

  1. USB port
  2. interface for temperature/humidity sensor and barcode scanner
  3. 2 sockets for testing the reference resistance 10 MΩ

Article image
Article description
Recommended calibration interval
Humidity
Operating temperature
Weight
Price
Compare
7100.3000.MK - METRISO® 3000 - measurement kit complete
7100.3000.MK
METRISO® 3000 - measurement kit complete
24 months bzw. according to test equipment list
10 - 90 %
-10 - 70 °C
9 kg
2.266,00 EUR
7100.3000.G - METRISO® 3000 measuring device single
7100.3000.G
METRISO® 3000 measuring device single
24 months bzw. according to test equipment list
10 - 90 %
-10 - 70 °C
1.4 kg
1.736,00 EUR
Show Compare List (0)

This product is compatible with (for example):

The image shows a cable reel with blue cord. The reel is round, has a central axis, and several holes in the rim. At one end of the cord, there is a connector plug.
Cable reel 50 m (for METRISO® 2000, 3000...
Cable drum 50 m with unwinder for ground
measurement
dpvlink
19753

127,80 EUR
Show product

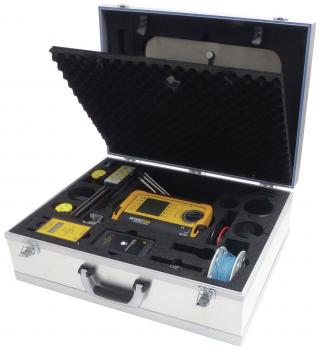

The image shows an opened metal case lined with foam inside. It contains a yellow device, as well as several tools and cables, neatly arranged.
