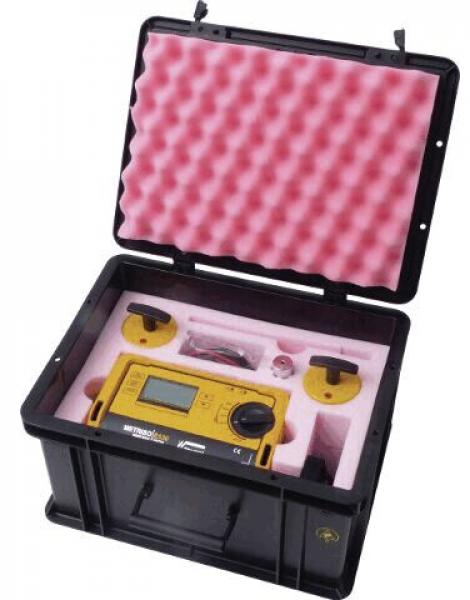

The image shows an open black suitcase with a yellow device and various accessories, surrounded by pink foam. The suitcase is sturdy and equipped for safe transport.
Metriso B530 Basic test kit, complete with measuring electrodes type 870
(Product No.: 7100.B530.MK)
The image shows an open black suitcase with a yellow device and various accessories, surrounded by pink foam. The suitcase is sturdy and equipped for safe transport.
Notice / Inquire

Metriso B530 Basic test kit, complete with measuring electrodes type 870

Metriso B530 Basic test kit, complete with measuring electrodes type 870

dpvlink:
19507
Further product information

available available
1.239,35 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Metriso B530 Basic test kit, complete with measuring electrodes type 870

The Metriso B530 Basic measurement kit is a comprehensive set specifically designed for measuring point-to-point resistances and grounding resistances. This kit is ideal for checking system resistances, footwear, or ground systems. It includes a digital high-resistance meter Metriso B530 Basic, two measuring electrodes model 870, a hand electrode model 45, measuring leads, and an instruction manual in German, English, and French. A factory calibration certificate and a conductive carrying case complete the package.
The technical specifications include a measuring voltage in the ohm range from 1 mA to 1.3 mA and in the high-resistance range DC voltages of 10 V, 100 V to 500 V. The measuring range extends from 0 to 10 kOhm in the low-resistance range and from 1 kOhm to 1.2 TOhm in the high-resistance range. The kit has a width of 225 mm, a height of 130 mm, and a length of 140 mm, with a total weight of 9 kg. It is battery-operated and recommends a calibration interval of 24 months or according to the inspection equipment list.
This measurement kit is a reliable solution for technical professionals who need to perform precise resistance measurements in various environments.
Recommended calibration interval
Recommended calibration interval
24 months bzw. according to test equipment list
Height
Height
130 mm
Length
Length
140 mm
Width
Width
225 mm
Weight
Weight
9 kg
Show accessories
Accessories

Accessories

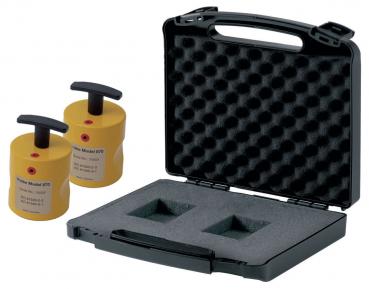

The image shows a black suitcase with foam inserts and two yellow weights next to it. The suitcase has a handle and is designed for the safe transport of the weights.
Preview: Measuring electrodes 870-SET
Preview: The image displays a yellow, cylindrical device with a handle on top. On the front, there are two round dots in red and black, as well as a label with the model number and specifications.
Measuring electrodes 870-SET
Measuring eletrode 870 set consisting of:
2 measuring electrode model 870 and conductive
case
( DIN IEC 61340-5-1 , 61340-4-1 and 61340-2-3)
dpvlink
4699

227,00 EUR
Show product

Spares

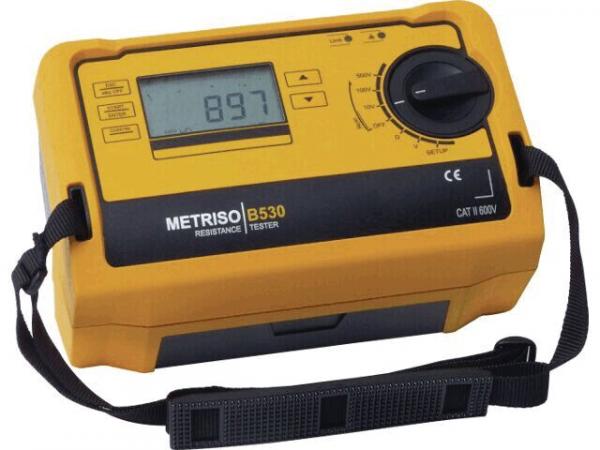

The image displays a compact, rectangular measuring device in bright yellow with a digital display and a large rotary knob. There are several buttons and a carrying strap on the side.
Metriso B530 Basic meter single
Metriso B530 basic meter with cables
consisting of:
-digital high resistance meter Metriso B530 +
connecting cables
-Calibration certificate
(without accessories)

Serial No.:
dpvlink
19507

890,00 EUR
Show product
The image shows a round, yellow device with a black handle on top. It has two holes and a label that provides information about the model. It appears sturdy and handy.
Measuring electrode type 870
Measuring electrode model 870
Diameter: 63.5 mm / 2.27 kg,
(DIN IEC 61340-5-1 , 61340-4-1 and 61340-2-3)
dpvlink
4699

111,75 EUR
Show product

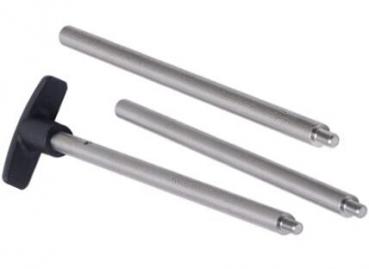

The image shows three metallic rods of different lengths. Two are cylindrical and have a smooth surface at one end. A third piece is a T-shaped handle that holds the rods.
Extension three-part (for electrode 870)
Extension bar 3 pieces (for electrode 870)
for the measurement of ground systems with
insulated handle
dpvlink
4699

31,75 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 206
Complete Catalog 2023 - 2024

Product Family

Metriso® B530 Basic test kit

The METRISO® B530 Basic is a precise digital measuring device for determining point-to-point resistances and leakage resistances in ESD-protected areas. It is particularly suitable for testing system resistances, shoes and grounding systems. The Metriso B530 is available as a stand-alone device and as a measuring kit with an 870 or 850 electrode.

  • Suitable for measuring point-to-point resistances and bleeder resistances as well as the human/shoe/ground system resistance
  • Measured value display digital or analog, as bar graph or pointer
  • Low-ohm measuring range for checking grounding measures
  • Measuring kit:
    • Visual signaling of the voltage measurement range with LED (red and green)
    • External voltage detection with red LED
    • Electrodes 850 or 870 and hand electrode 45

Technical data:

Measuring voltage:

10 V, 100 V, 500 V DC

Resistance range:

1 kΩ to 199GΩ (high-impedance range)

1 Ω to 10 kΩ (low-impedance range)

Electrodes (measuring kit):

2x model 850 or 2x 870

1x hand electrode model 45

Operating mode:

battery operation

Dimensions (WxHxD):

225 x 130 x 140 mm

Weight:

1.4 kg (single device)

9 kg (complete kit)


Article image
Article description
Recommended calibration interval
Height
Length
Width
Weight
Price
Compare
7100.B530.G - Metriso B530 Basic meter single
7100.B530.G
Metriso B530 Basic meter single
24 months bzw. according to test equipment list
130 mm
140 mm
225 mm

890,00 EUR
7100.B530.MK - Metriso B530 Basic test kit, complete with measuring electrodes type 870
7100.B530.MK
Metriso B530 Basic test kit, complete with measuring electrodes type 870
24 months bzw. according to test equipment list
130 mm
140 mm
225 mm
9 kg
1.239,35 EUR
7100.B530.MK.850 - Metriso B530 Basic test kit, complete with measurement electrodes type 850
7100.B530.MK.850
Metriso B530 Basic test kit, complete with measurement electrodes type 850
24 months bzw. according to test equipment list
130 mm
140 mm
225 mm
9 kg
1.318,10 EUR
