Measuring electrodes 870-SET
(Product No.: 7220.870.SET)

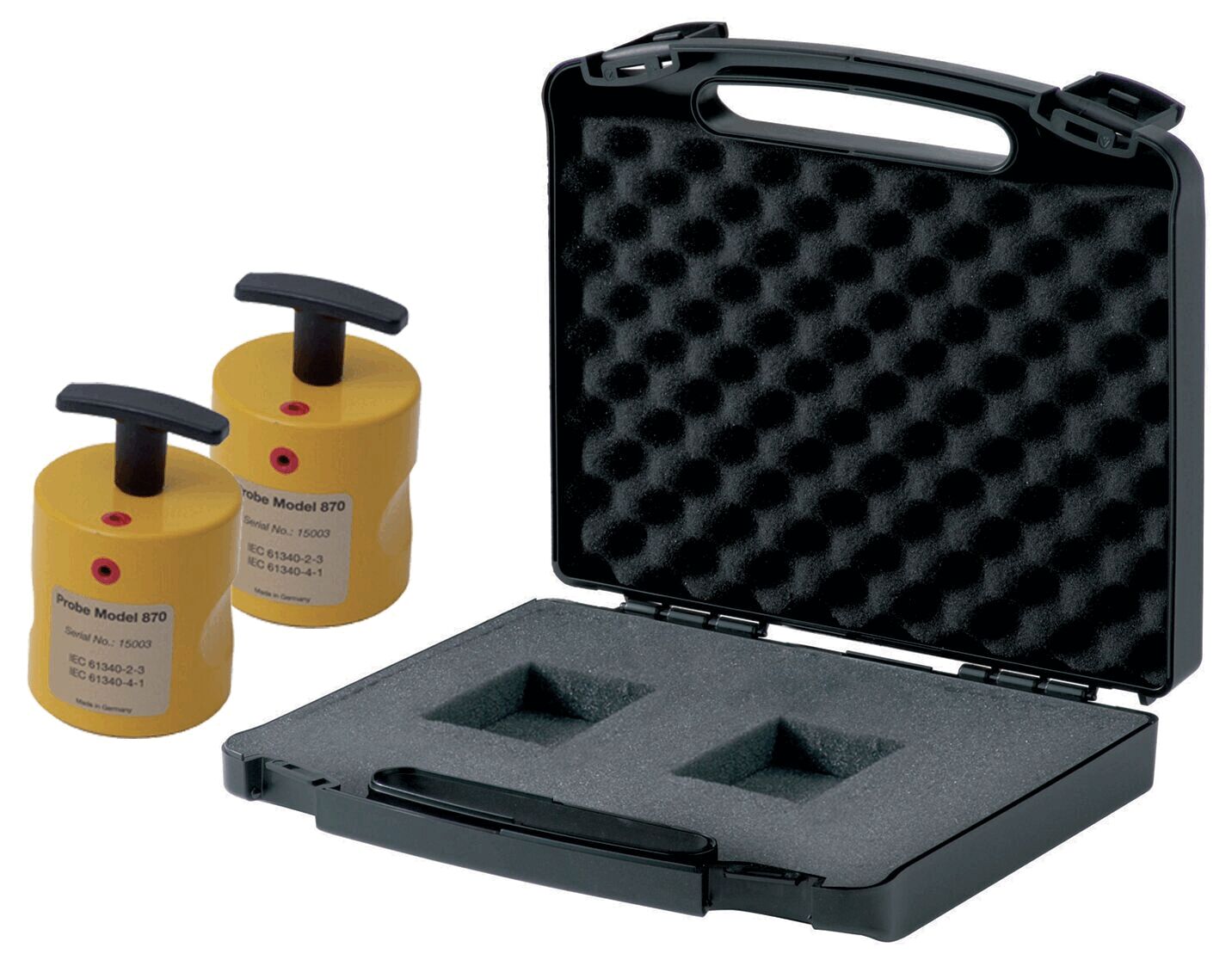

The image shows a black suitcase with foam inserts and two yellow weights next to it. The suitcase has a handle and is designed for the safe transport of the weights.

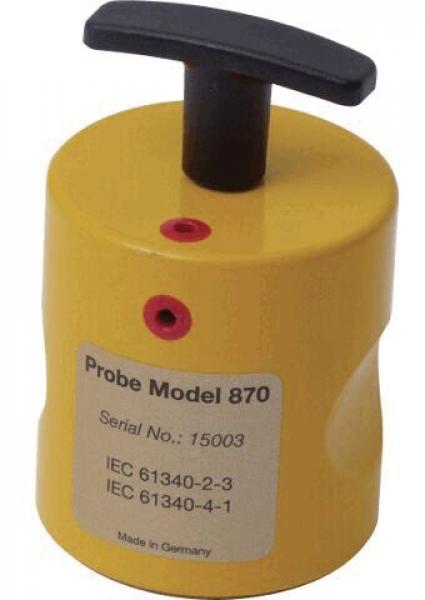

The image displays a yellow, cylindrical device with a handle on top. On the front, there are two round dots in red and black, as well as a label with the model number and specifications.
Mobile Preview: The image shows a black suitcase with foam inserts and two yellow weights next to it. The suitcase has a handle and is designed for the safe transport of the weights.
Mobile Preview: The image displays a yellow, cylindrical device with a handle on top. On the front, there are two round dots in red and black, as well as a label with the model number and specifications.
Notice / Inquire

Measuring electrodes 870-SET

Measuring electrodes 870-SET

dpvlink:
4699
Further product information

Delivery time! Delivery time!
227,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Measuring electrodes 870-SET

The electrode set 870-SET is specifically designed for measuring leakage and surface resistance according to the DIN EN 61340-2-3 ESD standard. This set includes two model 870 electrodes, a conductive carrying case, and grid foam that ensures the safe and protected transport of the electrodes. The precise manufacturing of the electrodes allows for reliable performance of measurements in the ESD protection area, making it an essential tool for technical professionals working with electrostatically sensitive components. The conductive case not only facilitates easy handling but also ensures compliance with ESD safety standards during the transport and storage of the electrodes.
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 159
Workwear | Professional footwear 2024
Page: 209
Complete Catalog 2023 - 2024

Product Family

Measuring electrodes

Measuring electrodes for the measurement of the bleeder and surface resistances according to DIN IEC 61340-4-1, DIN EN 61340-2-3


Article image
Article description
Recommended calibration interval
Height
Ø
Weight
Price
Compare
7220.850 - Measuring electrode ETS type 850
7220.850
Measuring electrode ETS type 850
4 years
120 mm
63.5 mm
2.27 kg
151,30 EUR
7220.870 - Measuring electrode type 870
7220.870
Measuring electrode type 870
4 years
110 mm
63.5 mm
2.27 kg
111,75 EUR
7220.870.SET - Measuring electrodes 870-SET
7220.870.SET
Measuring electrodes 870-SET




227,00 EUR
7220.870.V.SET - Extension three-part (for electrode 870)
7220.870.V.SET
Extension three-part (for electrode 870)




31,75 EUR
