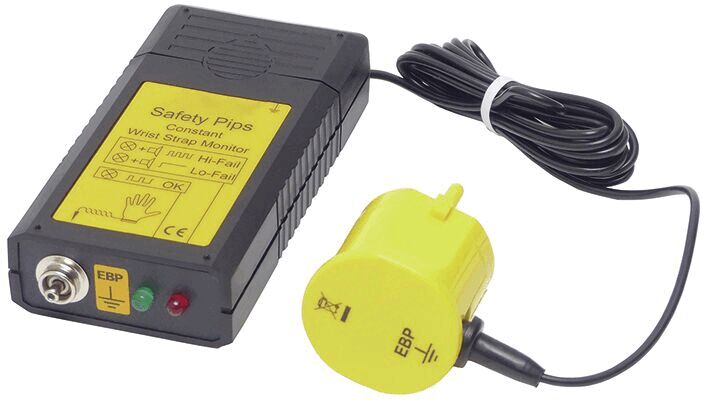

Tester Safety Pips with warning signal incl. grounding plug
Tester Safety Pips with warning signal incl. grounding plug

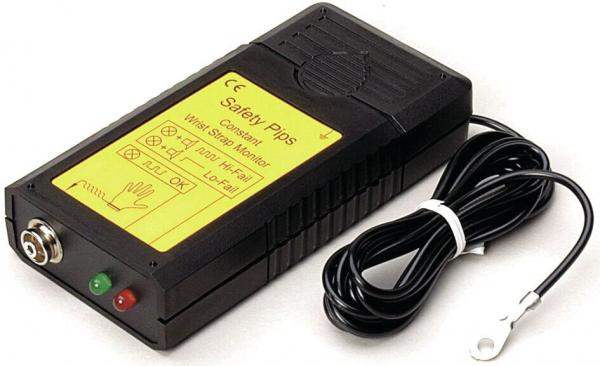

The Safety Pips tester, equipped with both optical and acoustic warning signals and a grounding module for Schuko sockets, is an essential tool for the continuous monitoring of articulated band systems. It signals any interruption in grounding and is designed for standard coiled cables with DK 10 mm or BA 4 mm connectors. The capacitive measurement of impedance in the range from 1 MOhm to (100 pF + 2 MOhm) enables precise monitoring, with the acceptable range between HI-Fail > 5 MOhm and LO-Fail < 400 kOhm.The technical specifications include an operating voltage of 230 V and a test voltage from 0.01 to 4.00 V. The device operates with a 9 V block battery according to IEC/DIN 6F22, which offers a lifespan of over one year with 8 hours per day of positive reporting. The handy device measures 125 x 60 x 26 mm, weighs about 140 g (including battery), and is made of black, conductive ABS material. It can be used in a temperature range from 10°C to 40°C and a relative humidity of 20% to 80%.
A calibration interval of 24 months or as per the testing equipment list is recommended to always ensure precise results.
Details
- Recommended calibration interval Recommended calibration interval
- 24 months bzw. according to test equipment list
- Test voltage Test voltage
- 0.01 - 4.00 V
- Voltage Voltage
- 230 V
- Height Height
- 26 mm
- Length Length
- 125 mm
- Width Width
- 60 mm
- Humidity Humidity
- 20 - 80 %
Show accessories
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Safety Pips
Technical data (Safety Pips standard and with grounding plug)
Threshold wriststrap test | Display | |
OK | 1 MOhm - 2 MOhm + 100 pF (+/- 10%) | green |
HI Fail | < 5 MOhm | red (flashing) |
LO Fail | < 400 kOhm | red (permanently) |
Prüfstrom bei 1 MOhm | DC < 0.1 µA; AC < 1.0 µA |
Technical data (Safety Pips with signal contact)
Threshold wriststrap test | Display | Signal contact | |
OK | 1 MOhm - 2 MOhm + 100 pF (+/- 10%) | green | closed |
HI Fail | < 5 MOhm | red (flashing) | open |
LO Fail | < 400 kOhm | red (permanently) | open |
Test current at 1 MOhm | DC < 0.1 µA; AC < 1.0 µA | ||
Time delay | Switch on: 1 second | Switch off: 5 seconds | |
Contact load | max. 60 V, 0.2 A | ||
Article image
Article description
Recommended calibration interval
Test voltage
Voltage
Height
Length
Width
Humidity
Price
Compare
24 months bzw. according to test equipment list
0.01 - 4.00 V
9 V
26 mm
125 mm
60 mm
20 - 80 %
24 months bzw. according to test equipment list
0.01 - 4.00 V
230 V
26 mm
125 mm
60 mm
20 - 80 %
24 months bzw. according to test equipment list
0.01 - 4.00 V
230 V
26 mm
125 mm
60 mm
20 - 80 %
