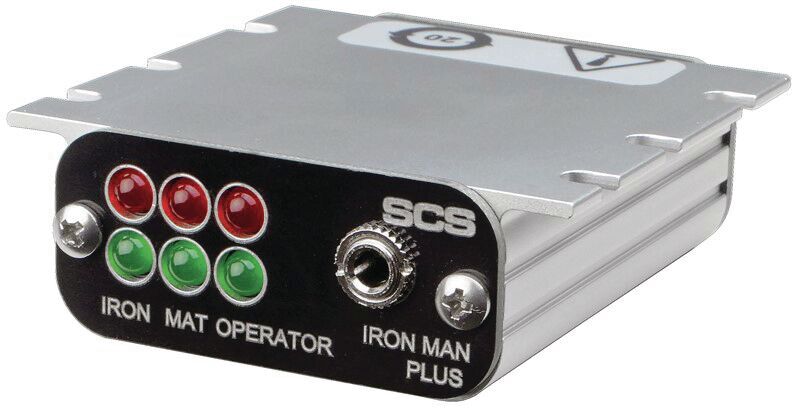

The image displays a rectangular electronic control panel with a metal and black surface. It features several green and red lights, a connector, and labels.
Workstation monitor Iron Man Plus CTC331
(Product No.: 3M-CTC331)
The image displays a rectangular electronic control panel with a metal and black surface. It features several green and red lights, a connector, and labels.
Notice / Inquire

Workstation monitor Iron Man Plus CTC331

Workstation monitor Iron Man Plus CTC331

dpvlink:
14092
Properties:
Further product information

available available
299,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Workstation monitor Iron Man Plus CTC331

The workplace monitor Iron Man Plus CTC331, manufactured by SCS, is specifically designed for use in ESD-protected environments. This device plays a crucial role in protecting electronic components from damages caused by electrostatic discharges and overloads, which can occur during work with metallic tools or through ungrounded employees.
The Iron Man Plus continuously monitors the voltage between the earth and the circuit board as well as the resistance between the earth and the work surface. It also ensures that the dual-wire wrist strap or grounding cable is functioning correctly. If an overvoltage exceeds the preset limits, the device triggers an optical and acoustic alarm. The sensitivity of the monitor can be adjusted between ≥±5V and ≥±15V, and the warning signal can be turned on or off as needed.
The monitoring functions include not only wrist straps and table or floor mats but also the general ground control of the work surface. For reliable operation, an annual calibration interval is recommended. The Iron Man Plus is powered by an AC adapter, making it an indispensable tool in any electronics manufacturing.
Recommended calibration interval
Recommended calibration interval
12 months bzw. according to test equipment list
Voltage
Voltage
100 - 240 V
Height
Height
22 mm
Length
Length
66 mm
Width
Width
61 mm
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

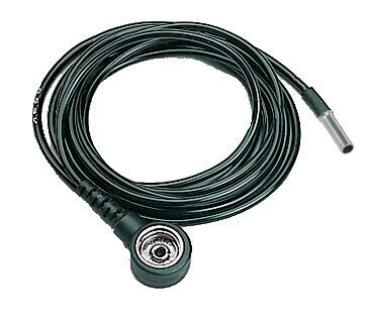

The image displays a black, flexible cable with a round, flat connector on one side and a thin, straight plug on the other side.
Connecting cable Iron Man Plus / Table mat...
Connecting cable (smooth cable 1.5 m)
10 mm snap/ wire end ferrule "without resistance"
Color: black
dpvlink
30292

5,25 EUR
Show product

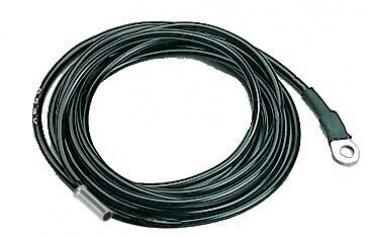

The image shows a long, black cable that is coiled in a spiral. At one end, there is a ring-shaped connector that serves as the connection point.
Connecting cable Iron Man Plus / Grounding...
Connecting cable (smooth cable 1.5 m)
10 mm eye / wire end ferrule "without resistance"
dpvlink
30292

3,90 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 201
Complete Catalog 2023 - 2024

Product Family

Workstation monitor Iron Man Plus

Article image
Article description
Recommended calibration interval
Voltage
Height
Length
Width
Price
Compare
3M-CTC331 - Workstation monitor Iron Man Plus CTC331
3M-CTC331
Workstation monitor Iron Man Plus CTC331
12 months bzw. according to test equipment list
100 - 240 V
22 mm
66 mm
61 mm
299,00 EUR
