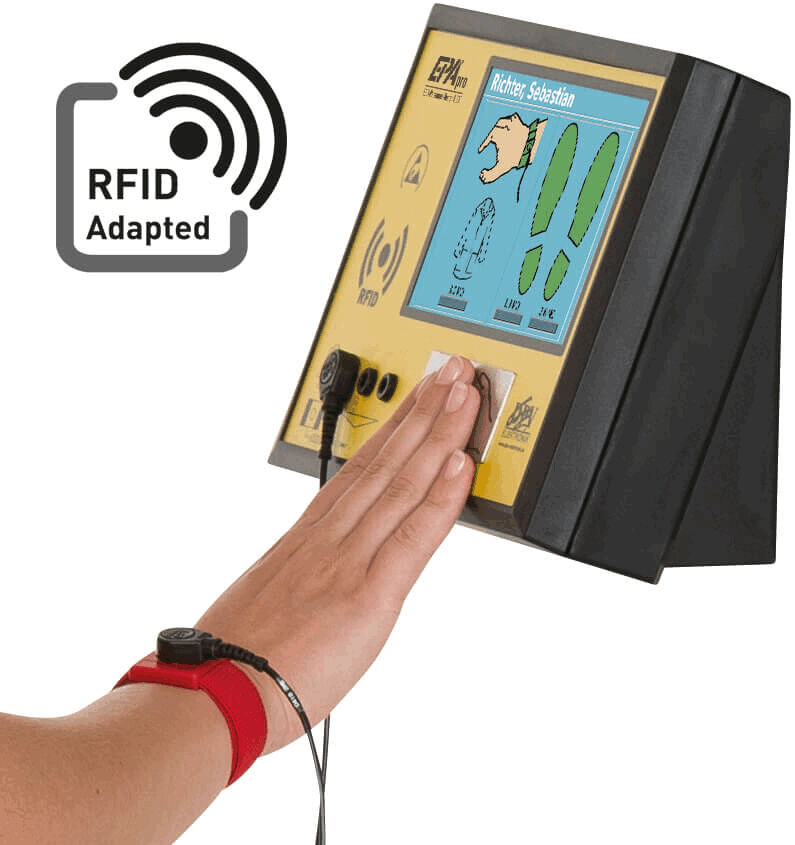

The image shows a control device with a screen displaying information. Below it is a hand pointing to the screen. A red bracelet is on the wrist.

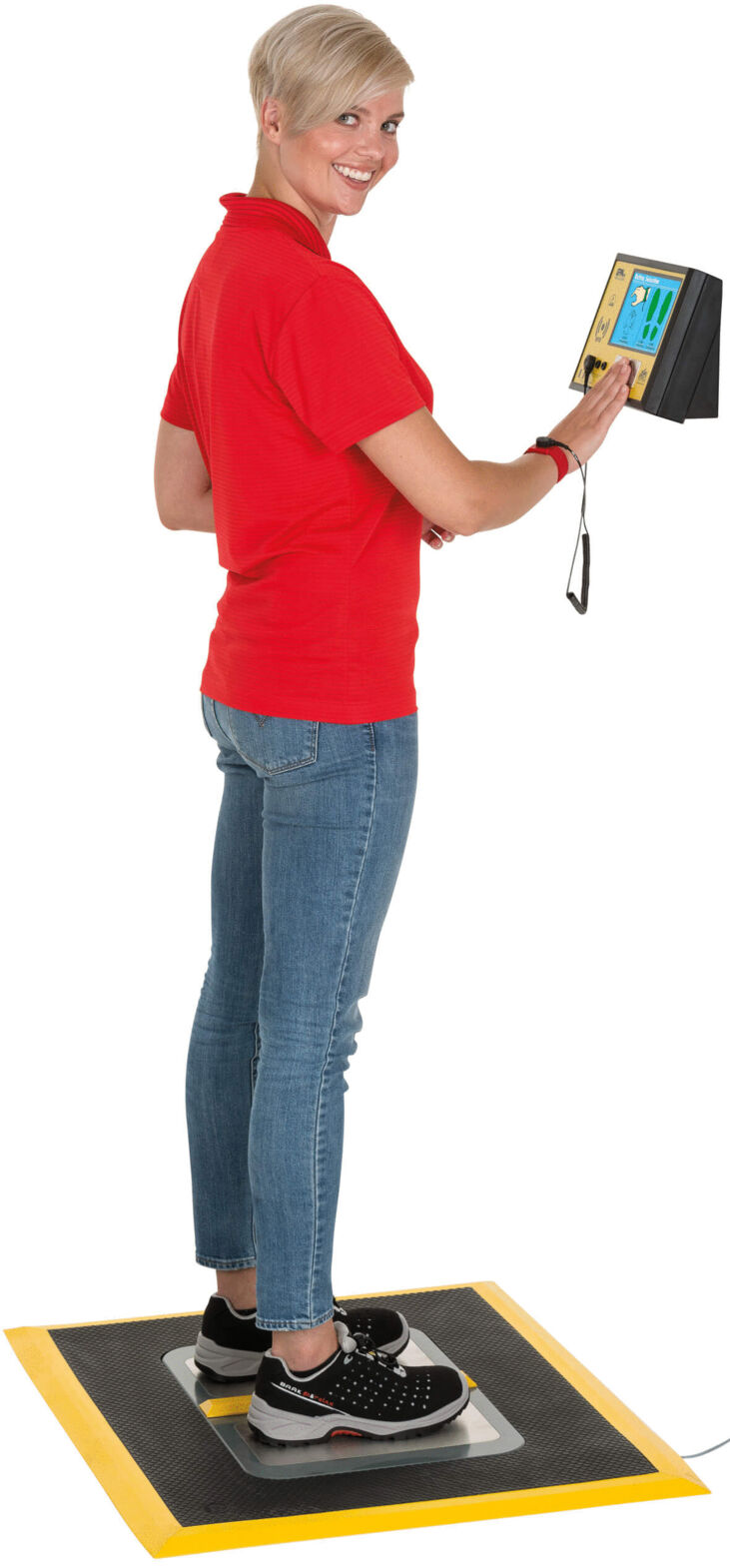

A person with short, blonde hair is wearing a red shirt and jeans. They are standing on a platform and holding a digital device in their hand. The background is neutral.
Preview: The image shows a control device with a screen displaying information. Below it is a hand pointing to the screen. A red bracelet is on the wrist.
Preview: A person with short, blonde hair is wearing a red shirt and jeans. They are standing on a platform and holding a digital device in their hand. The background is neutral.
EPApro® Personnel Tester 1000 wall-mounted device
(Product No.: EPApro.1000.2W)
The image shows a control device with a screen displaying information. Below it is a hand pointing to the screen. A red bracelet is on the wrist.
A person with short, blonde hair is wearing a red shirt and jeans. They are standing on a platform and holding a digital device in their hand. The background is neutral.
Mobile Preview: The image shows a control device with a screen displaying information. Below it is a hand pointing to the screen. A red bracelet is on the wrist.
Mobile Preview: A person with short, blonde hair is wearing a red shirt and jeans. They are standing on a platform and holding a digital device in their hand. The background is neutral.

EPApro® Personnel Tester 1000 wall-mounted device

EPApro® Personnel Tester 1000 wall-mounted device

dpvlink:
21010
Manufacturer:
Width :
180 mm
Height :
100 mm
Length :
265 mm
Voltage:
100 - 230 V
Test voltage:
30 - 100 V
EPApro® – Vernetzbares ESD Personenerdungs-Kontrollsystem
Further product information

available available
TOP

Compare Compare
Notice / Inquire
Product Info

EPApro® Personnel Tester 1000 wall-mounted device

The EPApro® ESD-Personnel-Tester 1000 wall unit, developed by DPV and marketed under the brand EPApro, is a state-of-the-art solution for verifying personnel grounding in ESD-protected work areas. This device complies with the standards DIN EN ISO 61340-5-1 and ANSI ESD S20.20 and is GDPR compliant. The compact wall unit, measuring 265 mm x 180 mm x 100 mm and weighing 1 kg, offers a quick test time of less than 2 seconds. It features a 7-inch HD touch color display for intuitive operation and an integrated multi-RFID reader that is compatible with all common standards. The measurement results can be displayed directly on the device or retrieved over the network. For increased security, a Privacy Mode allows the display of measurements without personal data. The test voltage of the device is adjustable between 30 and 100 V, and it supports a power consumption of 6 W with a power supply of 100 - 230 V/AC. The operating temperature ranges from 10 to 40 °C with a relative humidity of up to 75%. For easy integration into existing systems, the device offers LAN connections and optional WLAN functionality via a USB adapter. Additionally, the EPApro® ESD-Personnel-Tester 1000 can be networked with the optionally available EPApro® Control Server Software to enable centralized management and archiving of measurement data. The recommended calibration interval is 24 months. Included in the delivery are a shoe electrode, a power supply, an instruction manual, and a factory calibration certificate.
Width
Width
180 mm
Height
Height
100 mm
Length
Length
265 mm
Voltage
Voltage
100 - 230 V
Test voltage
Test voltage
30 - 100 V
Power
Power
6 W
Recommended calibration interval
Recommended calibration interval
24 months bzw. according to test equipment list
Humidity
Humidity
75 %
Operating temperature
Operating temperature
10 - 40 °C
Storage temperature
Storage temperature
10 - 60 °C
Weight
Weight
1.0 kg
EPApro® – Vernetzbares ESD Personenerdungs-Kontrollsystem
Show accessories
Accessories

Accessories

The image shows a yellow calibration device with a black casing. In the center, there is a large dial with various numerical markings (1M to 200M) and two arrows at the top for calibration and measurement.
Preview: EPApro® calibration unit 1000
Preview: The image shows a black, rectangular device with a yellow front. In the center, there is a rotary knob with scales for various values and labels
Preview: The image shows a black connection unit with three color outputs: a black, a yellow, and a blue one. There is a rotatable knob on top.
EPApro® calibration unit 1000
Calibration unit for EPApro
with 1 connection cable set
incl. calibration certificate
dpvlink
21905

Price on request
Show product
The image shows five thin, rectangular cards lying next to each other. In the bottom left, there is an RFID (radio waves) symbol depicted, showing wavy lines.
ID card High Frequency for EPApro®
ID-card high frequency (VPE = 5 pcs)
dpvlink
21905

Price on request
Show product
The image shows five thin, rectangular cards lying next to each other. In the bottom left, there is an RFID (radio waves) symbol depicted, showing wavy lines.
ID card Low Frequency for EPApro®
ID-card low frequency (VPE = 5 pcs)
dpvlink
21905

Price on request
Show product
The image shows a long, yellow, trapezoidal plastic block. Next to it are three small, silver screws. The block could be part of an assembly system.
Preview: Divider for footwear electrode EPApro®
Preview: The image shows a rectangular mat with two smooth, light surfaces and a central yellow line. At one end, there is a cable that leads to the power source.
Divider for footwear electrode EPApro®
Striking yellow divider for footwear electrode
(Installation centered on the footwear electrode)


++ prevents manipulation of the ESD shoe measurement by crossing

Scope of delivery:
- 1 divider
- 3 screws M4x16mm
dpvlink
21905

Price on request
Show product
The image displays a small USB-WLAN adapter. It is primarily silver with a black base. On the front, there are two narrow openings and the model name TP-LINK.
EPApro® WLAN Adapter
Wi-Fi adapter, USB, 150 Mbit/s for EPApro
dpvlink
21905

31,50 EUR
Show product
The image shows a rectangular mat with a yellow border. In the center, there are two rectangular black areas that have a textured surface.
Test mat for EPApro®
Test mat for footwear electrode EPApro
dimensions: 830x680x13 mm , with yellow edge
dpvlink
21905

171,40 EUR
Show product
The image displays a digital scale with a vertical, yellow stand. A display is mounted at the top. The weighing area is rectangular, featuring two flat, gray surfaces.
Pedestal set for EPApro®
Pedestal set for EPApro consisting of:
pedestal, attachable holder for EPApro,
Floor mat with yellow sloped edge

Set consisting of:
EPApro.1001.ZGP.Term -pedestal
EPApro.1001.ZH - holder for EPApro
EPApro.1001.ZSM.Term - floor mat
dpvlink
21905

398,00 EUR
Show product
The image shows a rectangular, black device with a blue front. On the blue surface are two small green buttons and a red light. A USB cable leads away from the device.
NEW
NEW
PC-RFID Reader, USB for EPApro®
PC-RFID reader, USB, black
1.8m connection cable
dpvlink
21905

306,85 EUR
Show product
The image shows a black USB cable with a rectangular connector on one end. The other end has a flat USB plug. The cable is heavily coiled and has a textured surface on the connector part.
External temperature/humidity sensor for...
External T/F-sensor for EPApro
(1.5 °C, 4.5% rH)
dpvlink
21905

117,85 EUR
Show product

Spares

The image shows a rectangular, flat object with rounded corners. It has two equally sized, clear indentations or windows in the center, surrounded by a gray border.
Footwear electrode for EPApro®
Footwear electrode for EPApro
dpvlink
21905

359,10 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 154
Workwear | Professional footwear 2024
Page: 193
Complete Catalog 2023 - 2024
EPApro® – Networked ESD personnel grounding control system

Product Family

EPApro® Personnel Tester 1000

The EPApro® 1000 is a compact measuring device to verify the personnel grounding and fulfills the requirements of DIN EN ISO 61340-5-1, ANSI ESD S20.20 and GDPR (general data protection regulation). Programmable switch outputs allow using it as access control. A privacy mode offers the possibility to log and display the measurement without names. The measurements are logged and stored in the EPApro® 1000 device conforming to standards and the GDPR. It is possible to retrieve measured data via network or maintain them locally on the device by means of the stand-alone function.

The EPApro® devices are available as table-top unit or as wall-mounted devices with standard RFID reader or with modified RFID reader for reading HID Prox format.




EPApro® 1000 at a glance

  • Simultaneous measurement of shoes and wriststraps with short test time < 2 seconds
  • Comfortable guest function e.g. for changing visitors
  • Measurement of single shoe or in series as well as hands-free mode
  • Adjustable measuring voltage with individual voltage reduction for sensitive persons
  • Configurable thresholds
  • Suitable for personnel access control systems
  • Person identification with integrated Multi RFID reader
  • Compliant with all usual standards, existent ID cards can still be used
  • Documentation of the measured values
  • Access release / barrier controllable via configurable switch outputs
  • Intuitive user interface with clear display of the results
  • Privacy mode: display mode without showing personal data
  • Password-protected access for administrators and managers
  • Standard-compliant testing in compliance with DIN EN 61340-5-1 and ANSI ESD S20.20
  • Data logging in compliance with GDPR
  • Menu-driven calibration mode for simple calibration on site (returning the device for calibration is not necessary)
  • Connectable via LAN or optionally WLAN adapter
  • Languages German and English (GB)
  • Made in Germany
Recommandation: Interconnection with EPApro® Control Server

The EPApro® 1000 device can be connected as a single device (Stand Alone) or via the company network with the optionally available EPApro® Control Server software, even across locations. The EPApro® Control Server offers the advantage of being able to manage the EPApro® 1000 devices centrally and to store all data in a central database.

Additional features when using the EPApro® Control Server:

  • Central remote configuration of the der EPApro® 1000 devices across locations
  • Simple import of the employee master data
  • Import functions for employee data incl. access authorizations
  • Large export functions e.g. for reports
  • Safe and central archiving of all measured data
  • Simple update function
  • and many more ...

Description

  1. 7" HD color touch screen display for an intuitive operation on the console
  2. Integrated Multi-RFID reader compliant to all usual standars
  3. Connections
    • 1 x snap connection 10 mm
    • 2 x banana jack (other connections possible with adapter)
  4. Contact plate
  5. Outputs, connections and captures
    • 2 x USB ports for external HID readers for e.g. keypad, magnetic card reader, barcode scanner or WLAN via USB antenna
    • Network, LAN and Ethernet connection for connecting customer system, database server, computer, WLAN via USB antenna
    • Configurable potential-free switch outputs fpr signal lights, turnstiles / door release
    • Integrated T/RH sensor for temperature and humidity measurement
    • Input for calibration
    • Connection for footwear electrode


Technical data:

 Voltage / power 6 W (9 V/DC) (power supply unit 100-230V/AC)
 Operating conditions + 10 to 40° C / up to 75% relative humidity
 Test time< 2 seconds
 Device:
 dimensions / weight		 265 x 180 x 100 mm / 1 kg
 Footwear electrode:
 dimensions / weight		 500 x 350 x 8 mm / 2.6 kg

 Test voltageSelectable: 100V / 50V / 30V/DC (tolerance ±5%)
 Test of  Measuring range
 Upper thresholds		 Measuring range
 Lower thresholds
 Wriststrap 1 MΩ - 200 MΩ none / 100 KΩ / 750 KΩ
 Footwear worn against metal plate
 (value per shoe)		 1 MΩ - 200 MΩ none / 100 KΩ / 750 KΩ
 Footwear measurement
 "in series" (hands-free)		 1 MΩ - 200 MΩ none / 100 KΩ / 750 KΩ


Scope of delivery:

  • EPApro® Personnel Tester 1000
  • Footwear electrode
  • Power supply unit
  • Operating manual
  • Factory's calibration certificate
