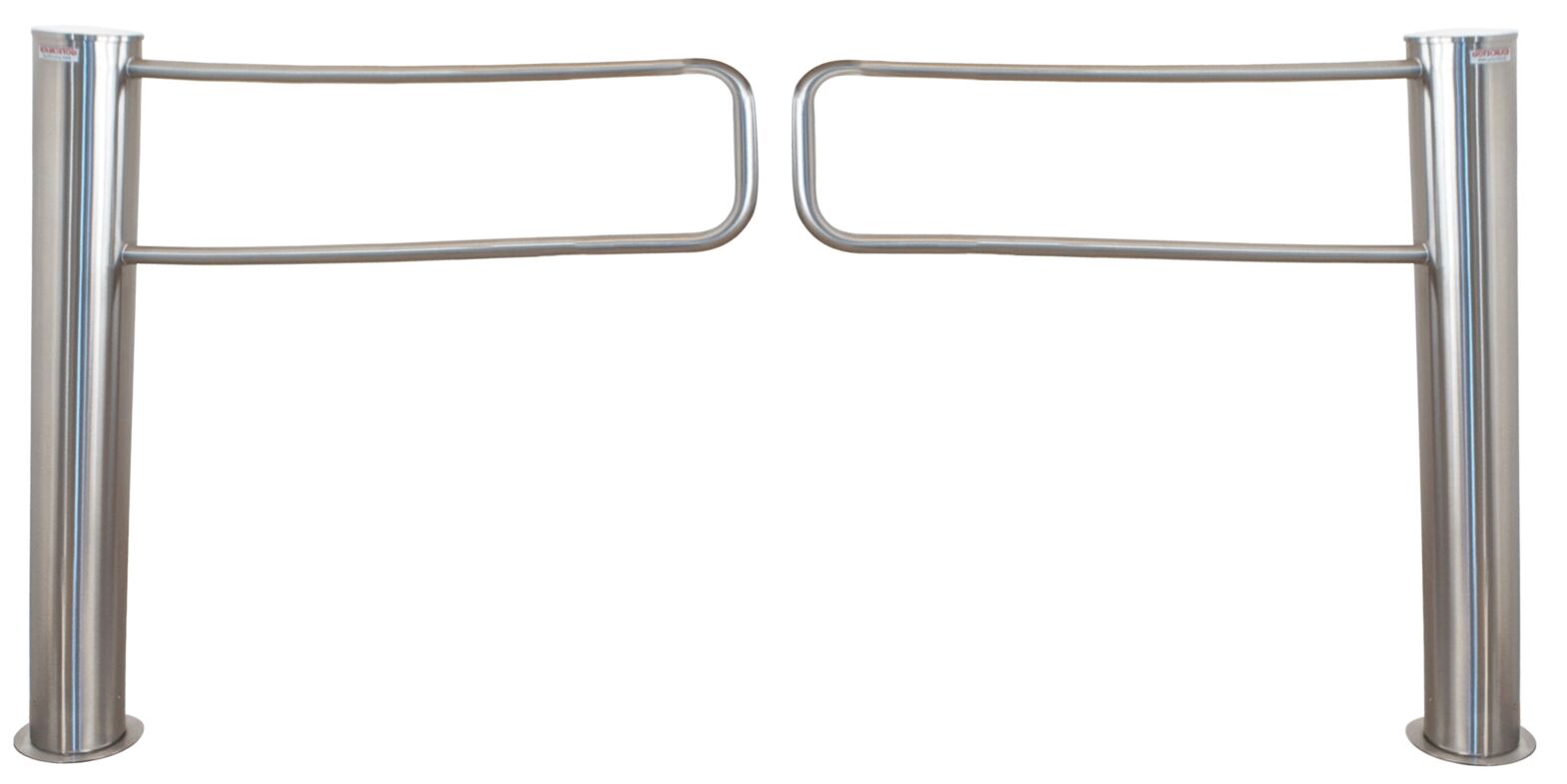

The image shows two vertical metal pillars with rounded surfaces that form a stylized barrier. The top rod is horizontal and slightly curved.
Double swing gate IKARUS HOLM
(Product No.: 6IKH.1.AEC.2)

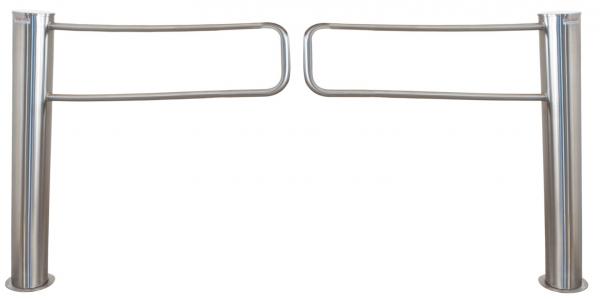

The image shows two vertical metal pillars with rounded surfaces that form a stylized barrier. The top rod is horizontal and slightly curved.

Double swing gate IKARUS HOLM

Double swing gate IKARUS HOLM

dpvlink:
20082
Further product information

Delivery time! Delivery time!

Compare Compare
Notice
Product Info

Double swing gate IKARUS HOLM

The double-swing door "IKARUS HOLM 1000" from Gotschlich combines functionality with an appealing design and is specifically designed for use in areas where high throughput and accessibility are required. With a passage width of approximately 1,900 mm and two swing arms of 900 x 300 mm (WxH), it also offers optimal passage possibilities when used with luggage, wheelchairs, or bulky goods.
The motor-driven swing door features a vertical drive and a planetary gear in the column, which allows for smooth and noise-free operation. The locking element consists of a tube arch with a 30 mm diameter and a brushed matte V2A surface, which ensures the highest durability and maintenance freedom. The door is suitable for single or bi-directional operation and comes with LOGITURN control and a power supply for external installation.
Safety is guaranteed by a panic-proof feature with overload clutch and a factory-set holding torque of max. 400 Nm. The opening angle is individually adjustable for both directions, while the locking element reverses the closing movement upon new registration of a valid card.
Manufactured in Europe, this swing door promises fast and easy installation thanks to its pre-assembled delivery.
Voltage
Voltage
24 V
Height
Height
300 mm
passage width
passage width
1780 mm
Width
Width
1800 mm
Material
Material
steel
ESD
ESD
no
Operating temperature
Operating temperature
-10 - 50 °C
Storage temperature
Storage temperature
-40 - 50 °C
Weight
Weight
35 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 157
Workwear | Professional footwear 2024
Page: 199
Complete Catalog 2023 - 2024

Product Family

Barrier system IKARUS HOLM 1000

The waist-high, motorized Ikarus Holm pivot door impresses with its simple and transparent appearance, which blends seamlessly into any architecture. It is ideal for passageways that are also used for luggage, wheelchairs or bulky items and offers flexible application options.

  • Waist-high motorized swing door with smooth, noiseless operation
  • Suitable for single or bidirectional operation and double entrances
  • Maintenance-free mechanics for a long service life
  • High passenger throughput with optimum passenger guidance
  • Architecture-friendly transparency - fits into any environment
  • Ready-assembled delivery for quick and easy installation

Article image
Article description
Voltage
Height
passage width
Width
Material
ESD
Version
Operating temperature
Storage temperature
Weight
Price
Compare
6IKH.1.AEC - Single swing gate IKARUS HOLM
6IKH.1.AEC
Single swing gate IKARUS HOLM
24 V
1000 mm
980 mm
1134 mm
steel
no
standalone system, combination
-10 - 50 °C
-40 - 50 °C
35 kg
-
6IKH.1.AEC.2 - Double swing gate IKARUS HOLM
6IKH.1.AEC.2
Double swing gate IKARUS HOLM
24 V
300 mm
1780 mm
1800 mm
steel
no

-10 - 50 °C
-40 - 50 °C
35 kg
-
