WT 5000 walking test kit

Name: WT 5000 walking test kit
SKU: 7100.WT5000.B
Price: 2006.00 EUR
Availability: InStock

ArticleNo: 7100.WT5000.B

WT 5000 walking test kit

dpvlink:

4695

Properties:

Further product information

Availability: available

available

2.006,00 EUR

excl. 19% tax

1 PCE

Compare

Notice

Product Info

WT 5000 walking test kit

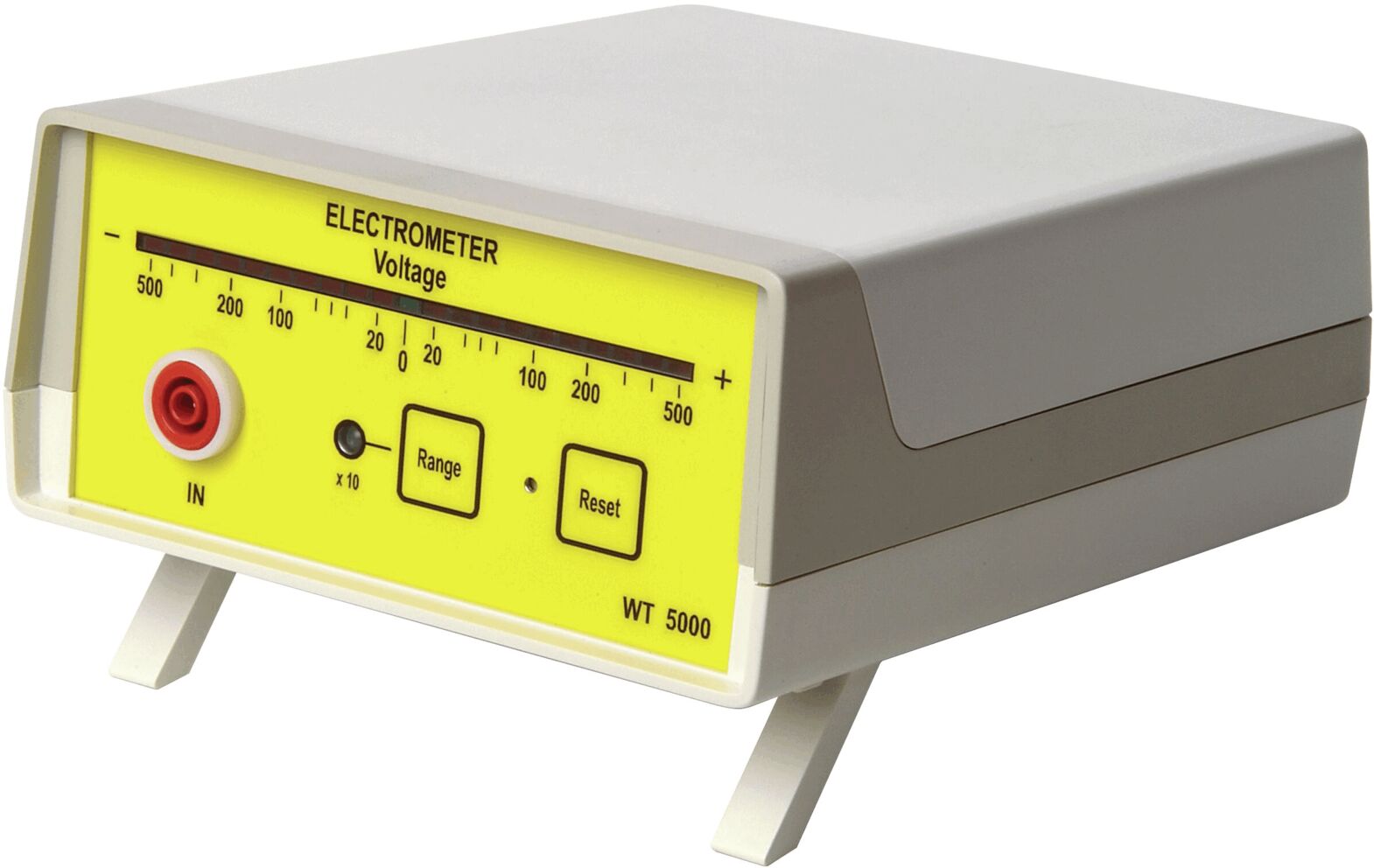

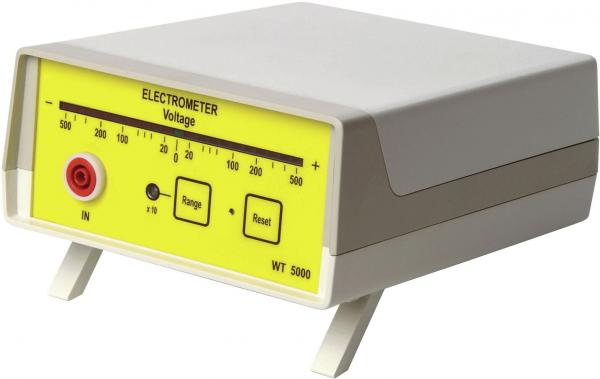

The WT 5000 Walking Test Kit is specifically designed for measuring and graphically displaying personal charges. Results can be transmitted and visualized in real time via an A/D converter that features a USB interface (USB 2.0/USB 1.1 from 08.2008) to a computer. The kit includes an electrometer with a measurement range of ± 5,000 volts and a measurement accuracy of 5% of the reading. The display is provided through a logarithmic LED display, which can switch between ± 500 V and ± 5000 V and has a Peak Hold function.
The device operates on battery power, with the charger included in the package. The A/D converter offers a resolution of 12 bits with a maximum sampling frequency of 15 kHz. The power supply of the converter is provided via the USB interface.
The package includes the electrometer, the A/D converter, the Digilloscope measurement software on CD-ROM, batteries, a plug-in power supply, a hand electrode, measurement cables and connectors, a conductive carrying case, an instruction manual, and a factory calibration certificate. It is recommended to calibrate the device every 12 months or according to the testing equipment list.
