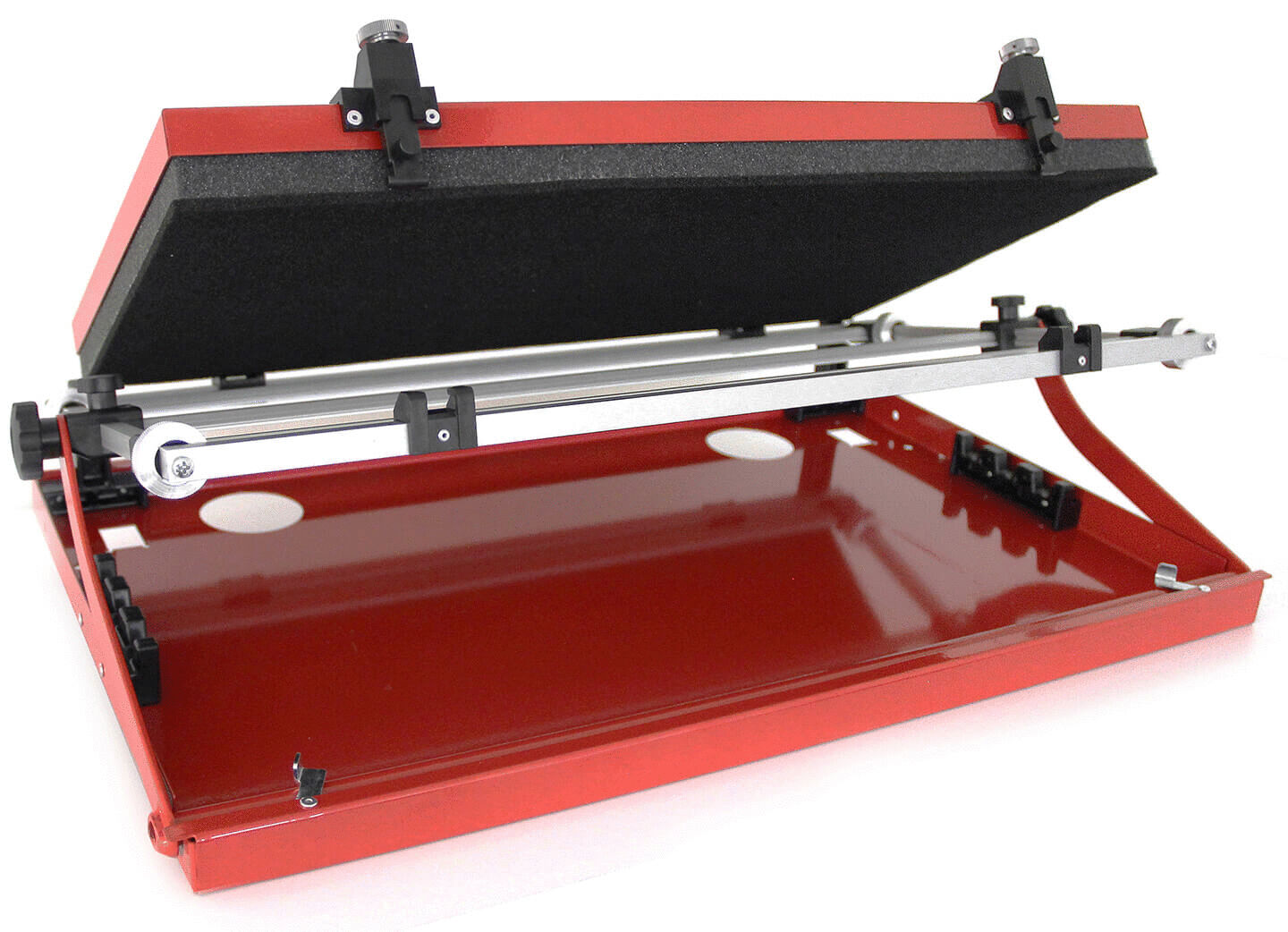

The image displays a red heat press. The upper part is foldable, featuring a black surface. On the underside, rollers and a conspicuous rail are visible.
PCSA 2 ESD assembly frame
(Product No.: 690.102.ESD)
The image displays a red heat press. The upper part is foldable, featuring a black surface. On the underside, rollers and a conspicuous rail are visible.
Notice / Inquire

PCSA 2 ESD assembly frame

dpvlink:
3036
Properties:
Further product information

Delivery time! Delivery time!
321,85 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

PCSA 2 ESD assembly frame

The PCSA 2 ESD assembly frame is specifically designed for efficient mass production of printed circuits. It offers easy handling during the placement and soldering of circuit boards, which are inserted into the frame between two adjustable guide rails and securely fixed using braking knurled nuts.
The maximum size of the circuit boards can be 500 x 220 mm. A removable center bar maximizes the usable work surface, while the pressure plate, which can be adjusted in distance from the frame, securely presses the components during placement through an ESD-protected foam insert.
After placement, tilting and rotating the holder facilitates the return of the circuit boards to the working position. Even during soldering and cutting of the components, the frame provides a secure hold due to its stable construction. The frame meets the ESD standard DIN EN 61340-5-1, thus ensuring reliable protection against electrostatic discharges.
The mobility of the frame allows for easy transport to various workstations, making it an indispensable tool in production.
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

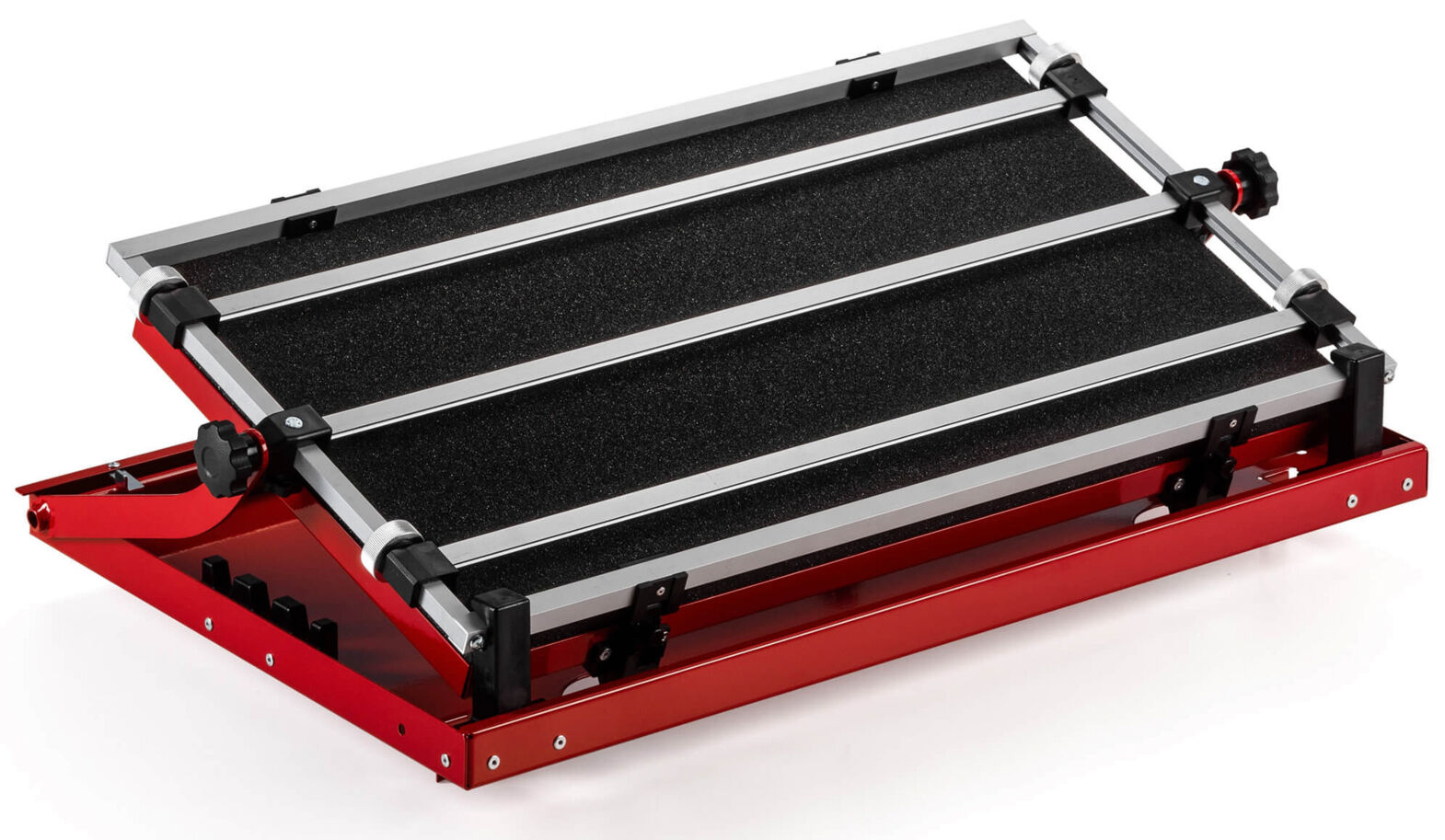

The image shows a flat, rectangular table with metallic elements and narrow grooves. It is foldable, making it portable and space-saving.
Additional rail for PCSA 1, complete
Additional rail BS-PCSA-1 ( for PCSA-1)
incl. 2 x BS lateral retaining screw
locking device
dpvlink
3047

22,40 EUR
Show product
The image shows a flat, rectangular table with metallic elements and narrow grooves. It is foldable, making it portable and space-saving.
Additional rail for PCSA 2, complete
Additional rail BS-PCSA-2 ( for PCSA-2)
incl. 2 x BS lateral retaining screw
locking device
dpvlink
3047

29,00 EUR
Show product
The image shows a flat, rectangular table with metallic elements and narrow grooves. It is foldable, making it portable and space-saving.
Additional rail for PCSA 4, complete
Additional rail for PCSA 4
incl. 2 x BS lateral retaining screw
locking device
dpvlink
3047

29,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 531
Complete Catalog 2023 - 2024

Product Family

PCSA assembly frames

The assembly frames facilitate the equipping and soldering of PCBs, especially for series production.

The PCB are placed and held between the guide rails by locking knurled nuts. The central rail is removable allowing an optimal use of the working surface.

After the assembly the components are pressed by the cover plate with ESD foam insert. The distance of the pressure plate to the frame is adjustable, the lid is closed by springs. The PCBs are moved back into the working position by the raising and turning of the holder.

During the soldering and cutting, the components are held safely. The holding frame can be simply removed and transported to the next workstation.

The assembly frames are equipped with 1 central bar and 2 adjustable guide rails

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
ESD
Price
Compare
690.104.ESD - PCSA 4 ESD assembly frame
690.104.ESD
PCSA 4 ESD assembly frame
353,50 EUR
690.101.ESD - PCSA 1 ESD assembly frame
690.101.ESD
PCSA 1 ESD assembly frame
289,65 EUR
690.102.ESD - PCSA 2 ESD assembly frame
690.102.ESD
PCSA 2 ESD assembly frame
321,85 EUR
