Spannfix 4.0 vise
(Product No.: 9-290)
The image shows a gray device with two arms that are connected by a type of joint. There is a solid handle at the bottom and a clamp for attachment.
The image shows an articulated mount with multiple joints. It has a sturdy handle at the bottom, used for clamping onto surfaces. Flexible in use.
The image displays a section of a mechanical device, likely a precise mount. The surface is smooth and metallic, with sharp edges and textured areas.
The image shows a metallic device with smooth, edged surfaces. There are screws, a level indicator, and a small cylinder. The surface is partly matte, partly glossy.
The image shows a black bracket with a ball socket on top and a rotary lever on the side. The surface is smooth and the edges are rounded.
Mobile Preview: The image shows a gray device with two arms that are connected by a type of joint. There is a solid handle at the bottom and a clamp for attachment.
Mobile Preview: The image shows an articulated mount with multiple joints. It has a sturdy handle at the bottom, used for clamping onto surfaces. Flexible in use.
Mobile Preview: The image displays a section of a mechanical device, likely a precise mount. The surface is smooth and metallic, with sharp edges and textured areas.
Mobile Preview: The image shows a metallic device with smooth, edged surfaces. There are screws, a level indicator, and a small cylinder. The surface is partly matte, partly glossy.
Mobile Preview: The image shows a black bracket with a ball socket on top and a rotary lever on the side. The surface is smooth and the edges are rounded.
Notice / Inquire

Spannfix 4.0 vise

Spannfix 4.0 vise

dpvlink:
24118
Further product information

at short notice at short notice
349,95 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Spannfix 4.0 vise

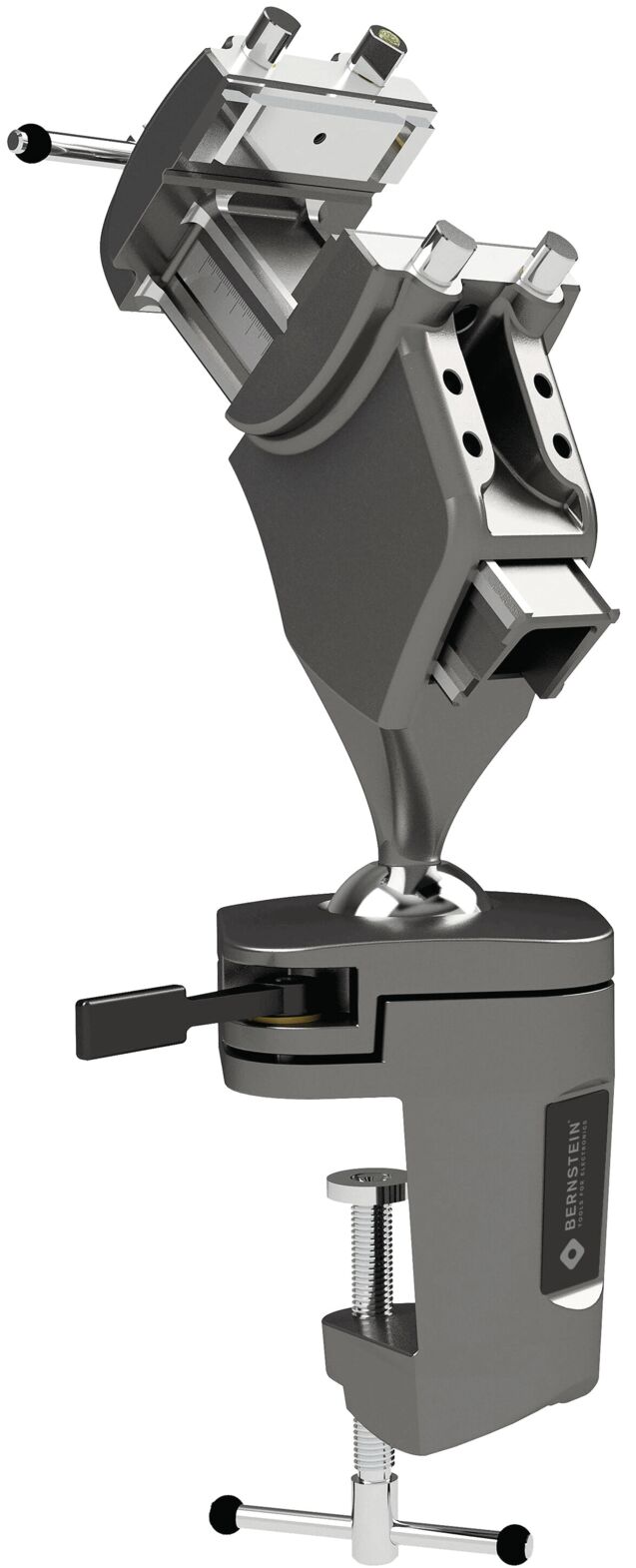

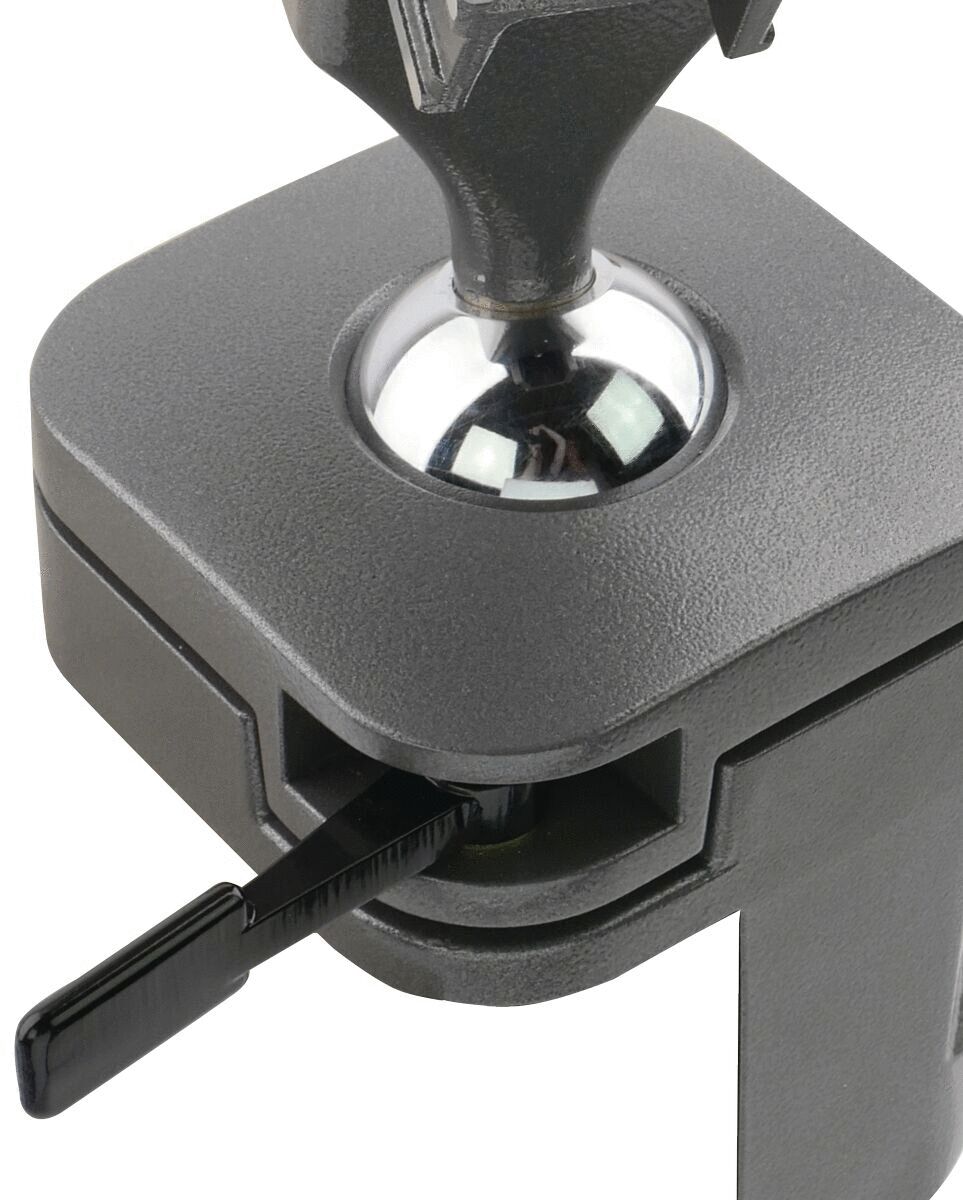

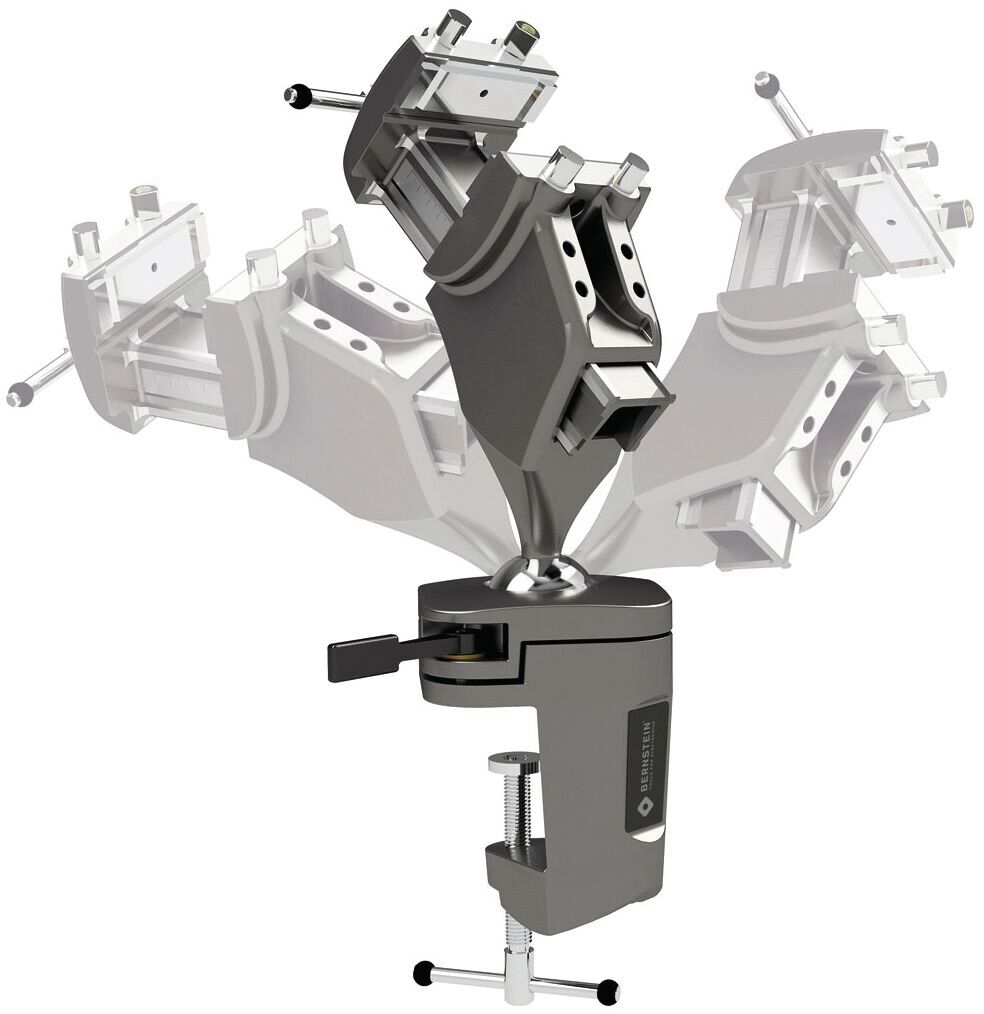

The Spannfix 4.0 vise by Bernstein offers outstanding flexibility and precision for professional applications. This model features a head that can rotate 360° and, thanks to a ball joint, can also tilt up to 90°. The four rotating clamping horns allow for adaptable securing of various objects, regardless of their shape and size.

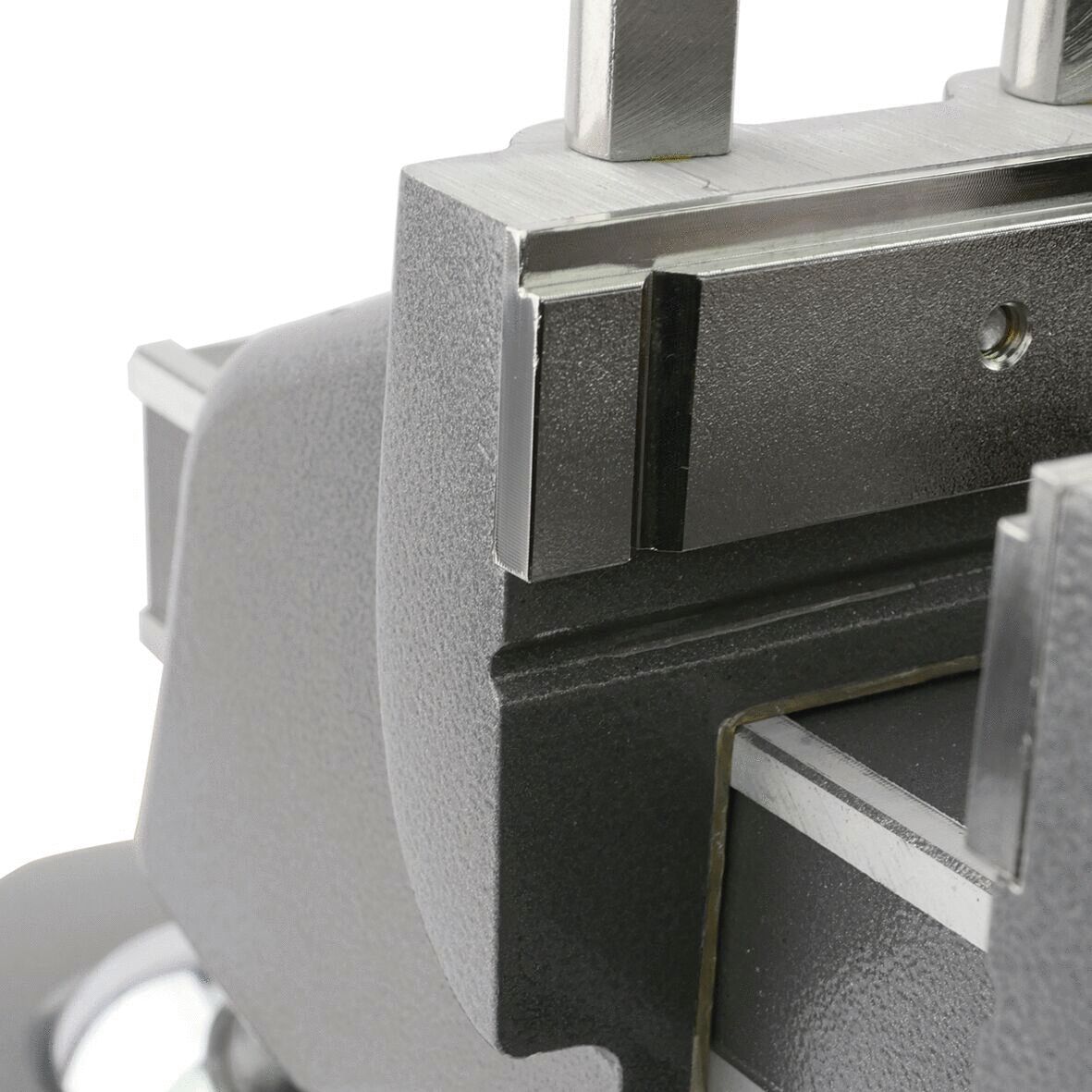

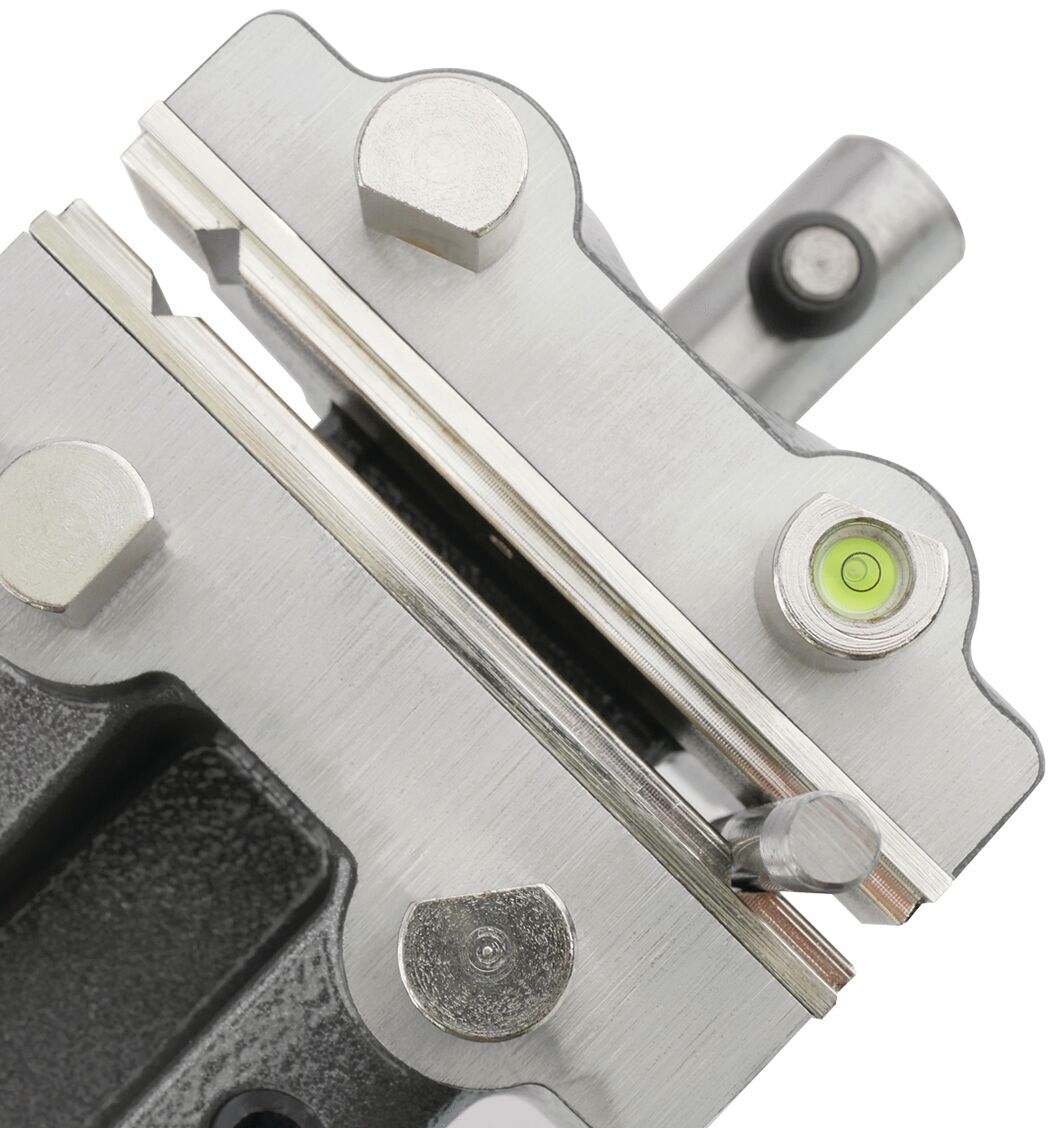

The profiled steel jaws of the Spannfix 4.0 are designed as reversible jaws and can be flipped and replaced as needed, with one side being smooth and the other featuring a stepped edge along with two vertical grooves. An integrated ruler facilitates the reading of clamping depths directly on the device.
The sturdy construction allows for a maximum clamping pressure of 12,000 N and a clamping range and depth of 100 mm and 50 mm, respectively. The weight of the vise is 5.5 kg, and it is finished in a neutral gray. Mounting on table edges up to 80 mm thick is simple and secure thanks to an included table clamp, ensuring optimal use of the 330 mm working radius.
Jaw width
Jaw width
100 mm
Clamping depth
Clamping depth
50 mm
Clamping pressure
Clamping pressure
1224 kilopond
Opening of jaws
Opening of jaws
100 mm
Weight
Weight
5500 g
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 531
Complete Catalog 2023 - 2024

Product Family

Ball-joint vise SPANNFIX 4.0 with table clamp

Article image
Article description
Jaw width
Clamping depth
Clamping pressure
Opening of jaws
Weight
Price
Compare
9-290 - Spannfix 4.0 vise
9-290
Spannfix 4.0 vise
100 mm
50 mm
1224 kilopond
100 mm
5500 g
349,95 EUR
