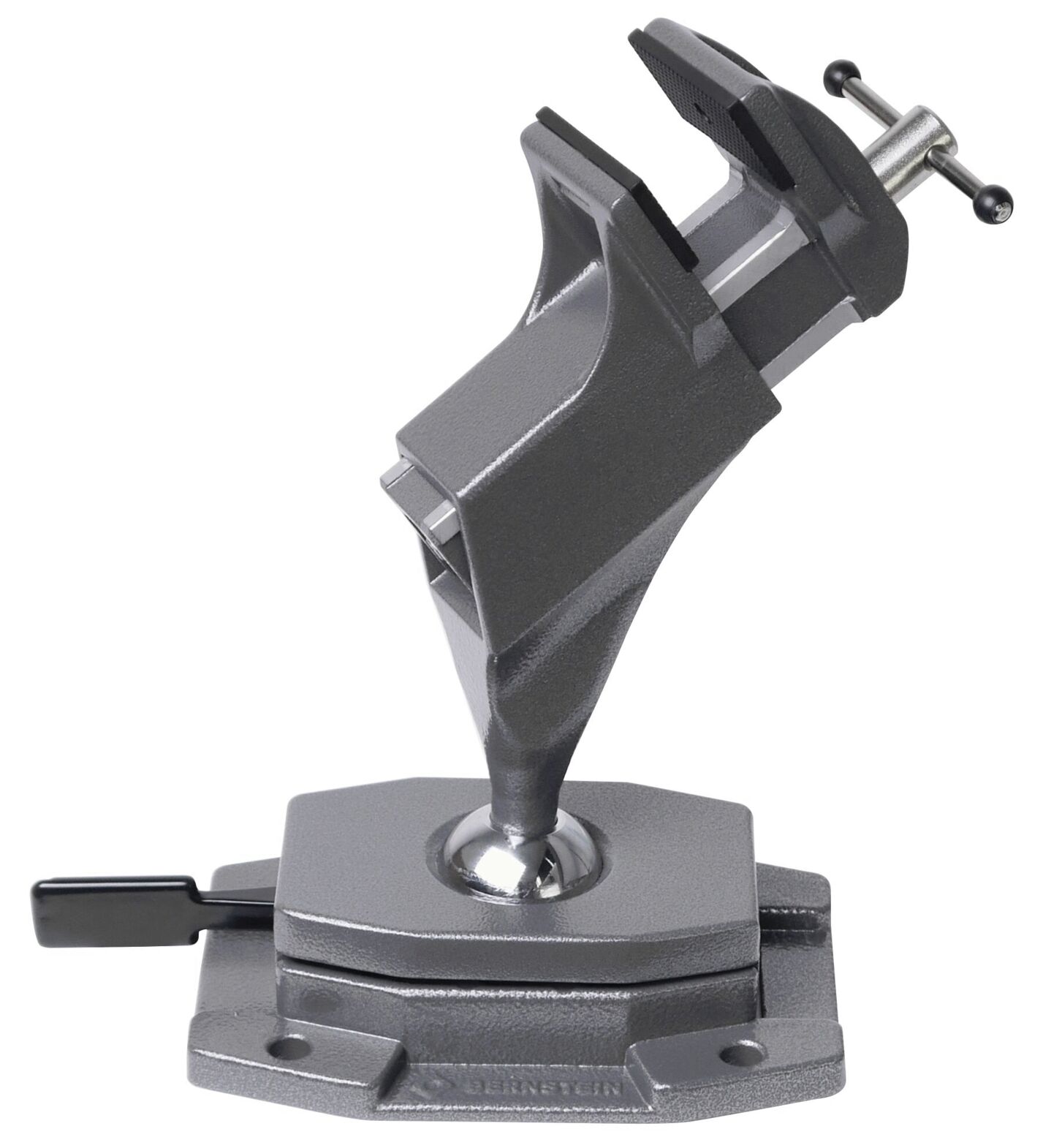

The image shows a gray vise. It has a clamp to hold workpieces, and a rotatable base. The surface is smooth and stable, ideal for workshop use.
Spannfix BERNSTEIN small vise with bolt-on baseplate
(Product No.: 9-215)
The image shows a gray vise. It has a clamp to hold workpieces, and a rotatable base. The surface is smooth and stable, ideal for workshop use.
Notice / Inquire

Spannfix BERNSTEIN small vise with bolt-on baseplate

Spannfix BERNSTEIN small vise with bolt-on baseplate

dpvlink:
6945
Properties:
Further product information

at short notice at short notice
-5%
RRP 157,70 EUR
Only 149,82 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Spannfix BERNSTEIN small vise with bolt-on baseplate

The Spannfix BERNSTEIN small vice with mounting bracket is characterized by its precise functionality and robust construction. This model is specifically designed for use on workbenches and can be securely mounted using a base plate measuring 150 x 105 mm. The assembly is done through four through holes with a diameter of 9 mm.
The design allows for stepless adjustment, making the vice head rotatable by 360° and tiltable by +/- 45°. This guarantees flexible handling of the workpiece in almost any position. The clamping is done without locking, but offers a strong hold through the innovative ball clamping technology.
The jaws of the vice are 50 mm wide and made of replaceable plastic, which allows for gentle processing of the material. The maximum clamping width is 70 mm with a clamping depth of 38 mm and a clamping pressure of 150 kiloponds. Despite its robust construction, the vice weighs only 1.3 kg and is available in a non-conductive, gray finish.
Manufactured by Bernstein, this product guarantees durability and reliability for professional applications.
Color
Color
grey
Base plate
Base plate
150 x 106 mm
Jaw width
Jaw width
50 mm
Jaws
Jaws
plastic, exchangeable
ESD
ESD
no
Clamping depth
Clamping depth
38 mm
Clamping pressure
Clamping pressure
150 kilopond
Opening of jaws
Opening of jaws
70 mm
Weight
Weight
1310 g
Common

The BERNSTEIN ball joint vise has a steplessly adjustable joint head that can be rotated 360° and tilted +/- 45. The upper part of the vise can thus be tilted in any direction and allows for working in front of or above the table. With a simple lever movement, the ESD vise head is released in the conical socket, individually aligned and clamped again. In the EPA the ESD vise is connected to the grounding point with a 10 mm snap via the base.


Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 528
Complete Catalog 2023 - 2024

Product Family

Spannfix BERNSTEIN small vise with bolt-on baseplate

The Spannfix BERNSTEIN small vice with screw-on bracket ensures firm and stable fastening on workbenches and other surfaces. With its steplessly variable adjustability, it is the ideal solution for precise work.

Mounting: fixed screw-on mechanism on workbenches and other surfaces

Fastening: four through holes (ø 9 mm) for stable fixing

Functionality: steplessly adjustable


Article image
Article description
Color
Base plate
Jaw width
Surface resistance Rs
Jaws
ESD
Clamping depth
Clamping pressure
Opening of jaws
Weight
Price
Compare
-5%
9-215.ESD - Spannfix BERNSTEIN ESD small vise with bolt-on baseplate
9-215.ESD
Spannfix BERNSTEIN ESD small vise with bolt-on baseplate
black
150 x 106 mm
50 mm
107 - 108 Ω
plastic, exchangeable
yes
38 mm
150 kilopond
70 mm
1310 g
RRP 178,20 EUR
Only 169,29 EUR
-5%
9-215 - Spannfix BERNSTEIN small vise with bolt-on baseplate
9-215
Spannfix BERNSTEIN small vise with bolt-on baseplate
grey
150 x 106 mm
50 mm

plastic, exchangeable
no
38 mm
150 kilopond
70 mm
1310 g
RRP 157,70 EUR
Only 149,82 EUR
