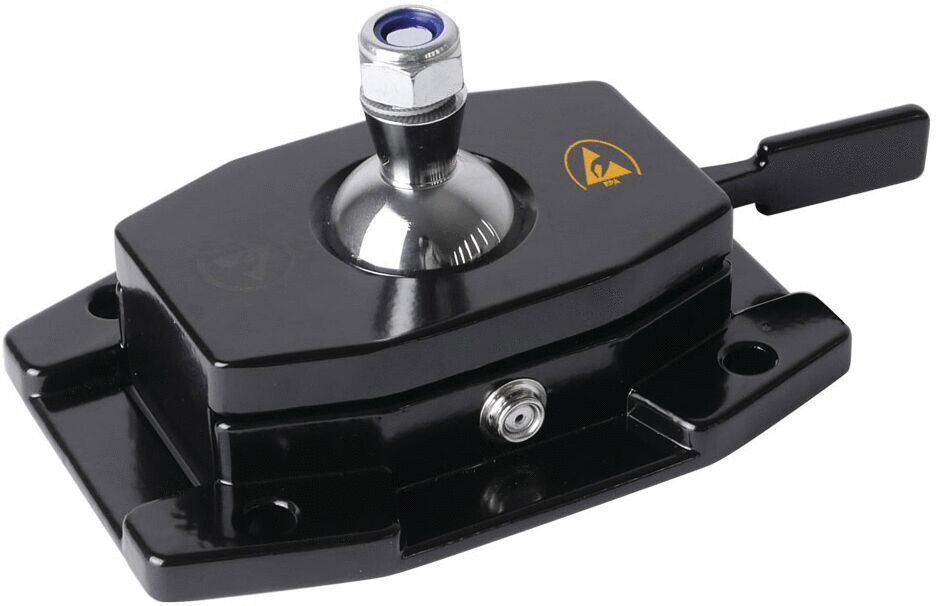

The image shows a black holder with a round metal head in the center and a lever on the side. The head has a blue dot and is mounted on a sturdy base.
Spannfix BERNSTEIN ESD Vario base with bolt-on baseplate
(Product No.: 9-261.ESD)
The image shows a black holder with a round metal head in the center and a lever on the side. The head has a blue dot and is mounted on a sturdy base.
Notice / Inquire

Spannfix BERNSTEIN ESD Vario base with bolt-on baseplate

Spannfix BERNSTEIN ESD Vario base with bolt-on baseplate

dpvlink:
6966
Properties:
Further product information

at short notice at short notice
112,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Spannfix BERNSTEIN ESD Vario base with bolt-on baseplate

The SPANNFIX BERNSTEIN ESD Vario Foot with Screw-on Bracket from Bernstein is a high-quality mounting element, specifically designed for electrostatically sensitive environments. This product is characterized by its ESD safety and is available in black. The screw-on bracket, combined with an M 12 x 1.5 threaded stud, allows for a stable and secure attachment on various surfaces.
The base plate measures 150 x 105 mm and the total weight of the product is 0.8 kg, ensuring a robust and durable construction. The flexibility in assembly with other SPANNFIX Vario individual components offers a wide range of applications in technical and industrial settings. Ideal for professionals in technical procurement who value precision and reliability.
Color
Color
black
Base plate
Base plate
150 x 106 mm
Surface resistance Rs
Surface resistance Rs
107 - 108 Ω
ESD
ESD
yes
Weight
Weight
800 g
Common

The SPANNFIX Vario individual elements can be combined arbitrarily.



Application example 1
Application example 2
9-251.ESD
9-251.ESD
9-253.ESD
9-252.ESD
9-255.ESD


Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 529
Complete Catalog 2023 - 2024

Product Family

Spannfix BERNSTEIN ESD Vario base with bolt-on baseplate

The Spannfix BERNSTEIN ESD Vario base with screw-on bracket enables stable and secure fastening by screwing on with threaded studs M 12 x 1.5. With a base plate of 150 x 106 mm and a weight of just 0.8 kg, it is ideal for ESD-sensitive applications.

Mounting: With screw-on bracket and M 12 x 1.5 threaded spigot for secure screwing on

Base plate: 150 x 106 mm

Weight: 0.8 kg


Article image
Article description
Color
Base plate
Surface resistance Rs
ESD
Weight
Price
Compare
9-261.ESD - Spannfix BERNSTEIN ESD Vario base with bolt-on baseplate
9-261.ESD
Spannfix BERNSTEIN ESD Vario base with bolt-on baseplate
black
150 x 106 mm
107 - 108 Ω
yes
800 g
112,00 EUR
9-261 - Spannfix BERNSTEIN ESD Vario base with bolt-on baseplate
9-261
Spannfix BERNSTEIN ESD Vario base with bolt-on baseplate
grey
150 x 106 mm

no
800 g
107,05 EUR
