Eyepiece x10 with graticule scale 10 mm/0.1 mm

Name: Eyepiece x10 with graticule scale 10 mm/0.1 mm
SKU: S-018
Price: 231.00 EUR
Availability: InStock

ArticleNo: S-018

Eyepiece x10 with graticule scale 10 mm/0.1 mm

dpvlink:

11075

Further product information

Availability: at short notice

at short notice

231,00 EUR

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

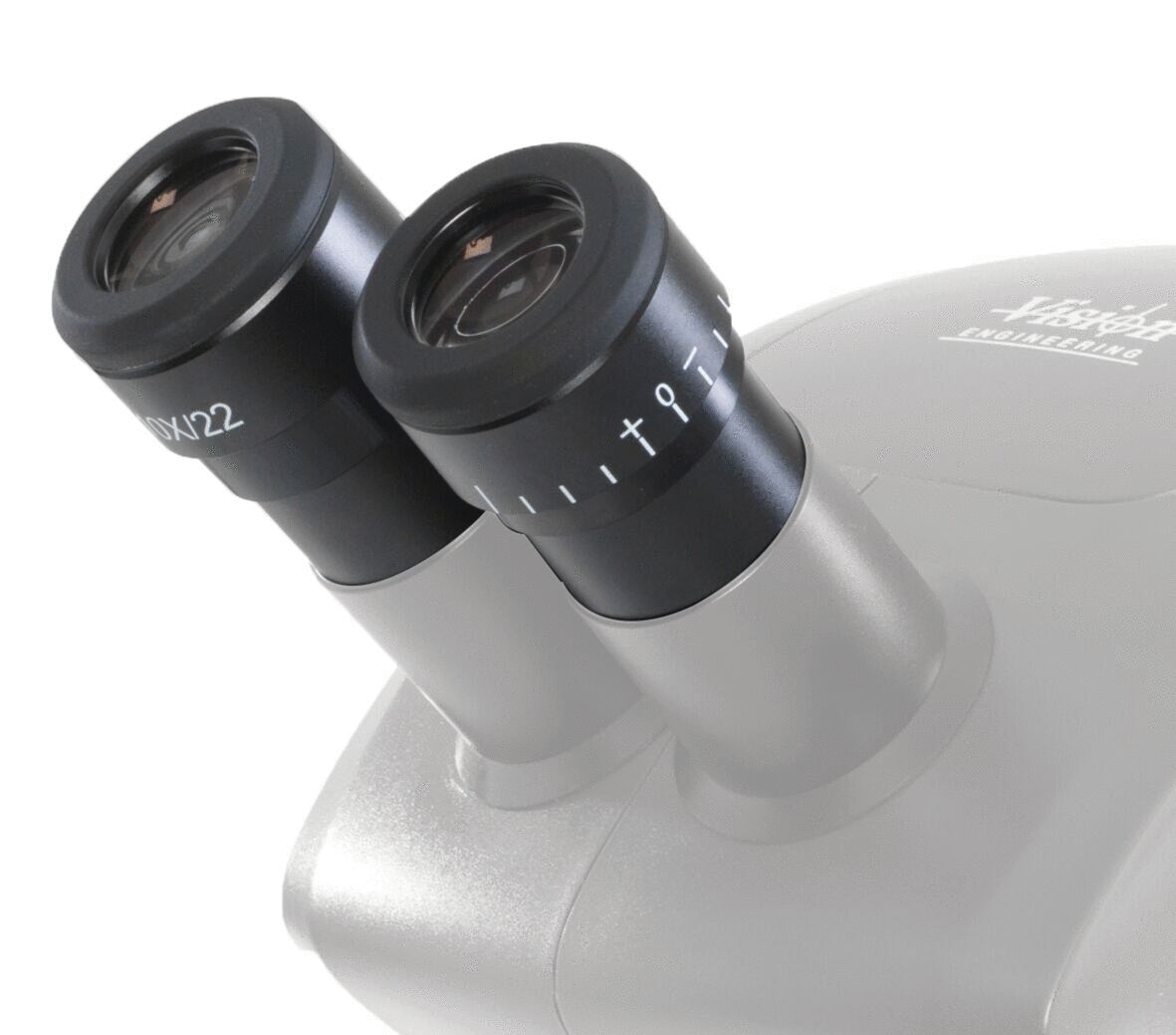

Eyepiece x10 with graticule scale 10 mm/0.1 mm

The x10 eyepiece with reticle scale 10mm/0.1mm from Vision provides precise scaling for detailed measurements and analyses. It is ideal for technical applications in research, quality assurance, and education. This high-quality accessory for the SX45 microscope allows for exact focusing and scaling with a magnification range from x4 to x200, supported by a 6.3:1 zoom factor.
The robust construction ensures a long lifespan, and the 22 mm eyepieces offer a large field of view with diopter adjustment. An extra-long working distance of 220 mm and an LED lighting with a lifespan of 6,000 hours facilitate handling with various specimens.
The microscope can be equipped with various stand options such as a universal joint arm or a column stand to provide flexibility in application. Optional accessories include a sliding stage and an LED ring light to enhance lighting options. The trinocular microscope body also supports the attachment of cameras for image documentation and archiving.

Details

Common

The binocular SX45 is a high-quality stereo zoom microscope with optical Greenough principle for diverse applications in laboratory, research & routine, quality assurance in the industry, education and training, etc.

High-quality stereo zoom microscope with optical Greenough principle for a wide range of applications impresses by a solid, durable design and its easy operation. The image remains in the exact level of sharpness throughout entire zoom range.

High-quality components
Zoom factor 6.3:1
Magnification x4 - x200 (x20 eyepieces)
22 mm eyepieces (field number / field of view) with diopter setting
Extra long working distance of 220 mm
LED lighting (6,000 hours LLD)
Adjustable incident and transmitted light
Optional sliding table
Optional LED ring light
Also available with pillar stand or articulated arm
Trinocular microscope body for camera connection
Excellent price-performance ratio
110V - 240V

Optical data

Eyepieces	Lenses	Zoom range	Working distance
x10 / 22 F.N.	x0.5	x4 - x25	220.6 mm
x10 / 22 F.N.	x1.0	x8 - x50	115.0 mm
x10 / 22 F.N.	x2.0	x16 - x100	57.5 mm
x20 / 13 F.N.	x0.5	x8 - x50	220.6 mm
x20 / 13 F.N.	x1.0	x16 - x100	115.0 mm
x20 / 13 F.N.	x2.0	x32 - x200	57.5 mm

Table stand, compact and versatile

Highly flexible mechanism for optimized ergonomics and increased efficiency and productivity.
Adjustable LED incident light and LED transmitted light.

Articulated arm,
for an increased reach

Designed for applications requiring more freedom of movement and at the same time constant stability.
Higher flexibility during the inspection of large parts, also suitable for several workstations. Easy mounting with table clamp.

Pillar stand, ideal for large space requirement

Adjustable and swiveling unit for a direct mounting on the working surface of the user or with base plate.
Flexible and easy to use.

Accessories

Image documentation & archiving
Trinocular microscope body for camera and video connection. Modular multimedia solutions for recording, measuring, and storing images.
