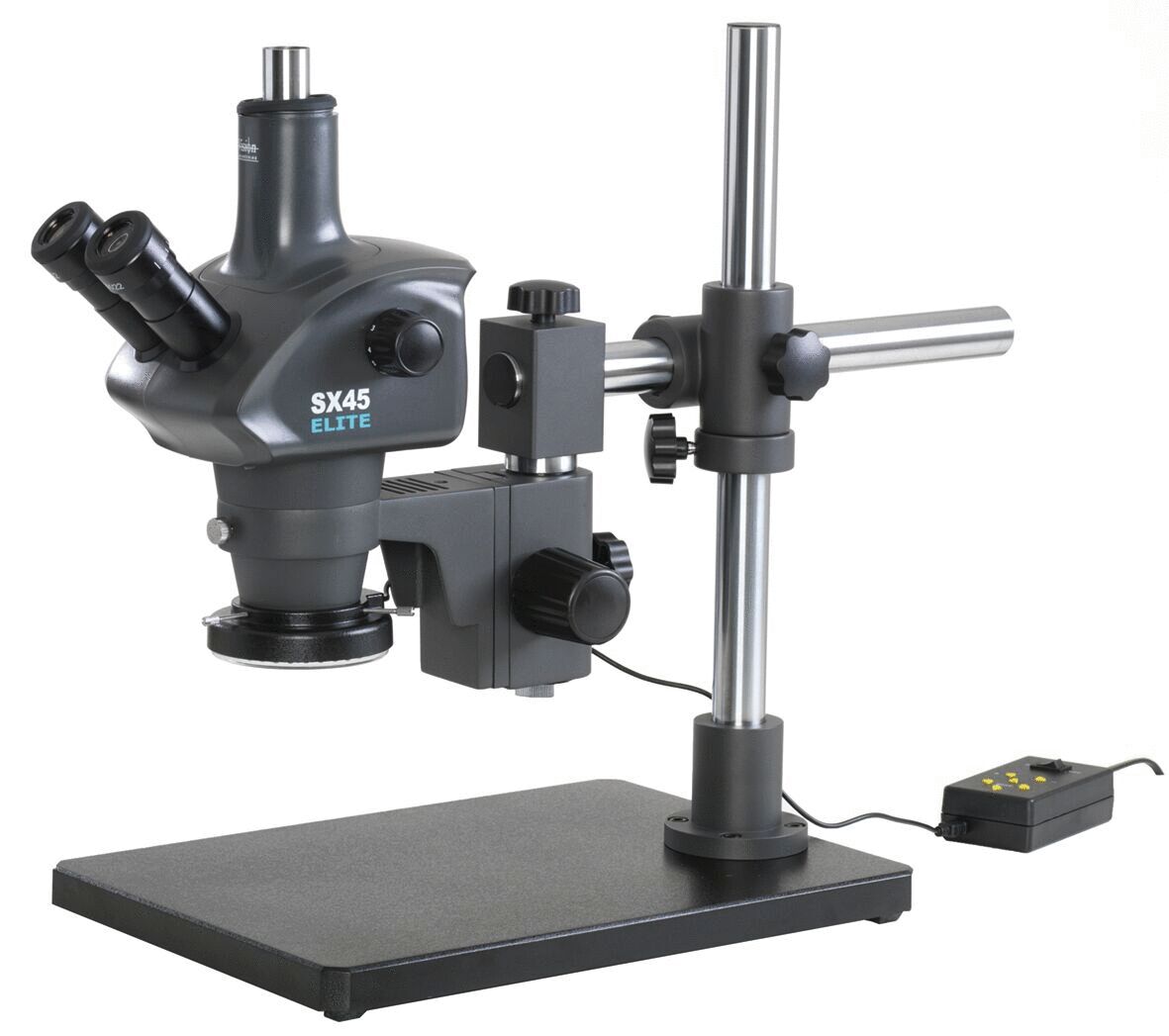

The image shows a microscope on a stable, rectangular base. It has two eyepieces and a flexible arm for adjusting the height. To the left, there is a control unit.
SX45 Elite stereo zoom microscope eyepiece trinocular device with pillar stand
(Product No.: SX45BS-TR)
The image shows a microscope on a stable, rectangular base. It has two eyepieces and a flexible arm for adjusting the height. To the left, there is a control unit.
Notice / Inquire

SX45 Elite stereo zoom microscope eyepiece trinocular device with pillar stand

dpvlink:
14213
Further product information

at short notice at short notice
2.855,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

SX45 Elite stereo zoom microscope eyepiece trinocular device with pillar stand

The SX45 Elite Stereo Zoom Eyepiece Microscope from Vision is a high-quality trinocular device, characterized by its robust construction and easy handling. Equipped with an optical Greenough principle, it offers a zoom factor of 6.3:1 and a magnification from x4 to x200. The 22 mm eyepieces feature diopter adjustment, allowing for precise customization.
The working distance is 220 mm, ideal for diverse applications in laboratories, research, and industry. The LED lighting ensures a reliable and adjustable illumination with a lifespan of 6,000 hours, from both above and below.
The microscope comes with a column stand that allows flexible positioning and is also suitable for large samples. Optional accessories such as a sliding table and an LED ring light enhance functionality. The trinocular head also supports documentation and archiving, making the device particularly valuable for image capture and detailed analyses.
Thanks to its excellent value for money and versatile applications, the SX45 Elite represents an ideal solution for demanding visual inspections.
Show accessories
Accessories

Accessories

The image shows a binocular microscope with two large, round eyepieces. The surface is light gray with the "Vision Engineering" logo at the top. It has a compact shape.
x10 eyepieces (pair)
x10 eyepieces (pair)
dpvlink
11075

260,00 EUR
Show product
The image displays a black lens with a diameter of about 7 cm. On the front, it is labeled "X0.5". The lens is mounted on a round casing.
Ancillary lens x0.5
Ancillary lens x0.5
dpvlink
11075

226,00 EUR
Show product
The image shows a black camera lens with a round lens and an inscription "X2.0" at the bottom. The lens has multiple layers that appear clear and shiny.
Ancillary lens x2.0
Ancillary lens x2.0
dpvlink
11075

226,00 EUR
Show product
The image shows a binocular microscope with two large, round eyepieces. The surface is light gray with the "Vision Engineering" logo at the top. It has a compact shape.
Eyepiece pair x20/13
Eyepiece pair x20 / 13
dpvlink
11075

281,00 EUR
Show product
The image shows a microscope with two eyepieces on a stable stand. It has a large, round base and a switch for control. The construction is metallic and robust.
Replacement for incident light on S-003
Replacement LED for incident light on stand S-003
dpvlink
11075

85,00 EUR
Show product
The image shows a microscope with two eyepieces on a stable stand. It has a large, round base and a switch for control. The construction is metallic and robust.
Replacement LEDs for incident light on S-003...
Replacement LED for transmitted light stand S-003
dpvlink
11075

45,00 EUR
Show product
The image shows a microscope with two round eyepieces. The mounts are silver-colored and feature a scale. The design is compact and modern, ideal for scientific applications.
Preview: Rubber grommets for eyepieces (pair)
Preview: The image shows a microscope with two round eyepieces. The surface is smooth and oval. At the top, it reads
Rubber grommets for eyepieces (pair)
Rubber grommets for eyepieces (pair)
dpvlink
11075

10,00 EUR
Show product
The image shows a microscope attachment with two round eyepieces. The eyepieces are black with numbers and a possible magnification factor. The body is silver-colored.
Eyepiece x10 with graticule scale 10 mm/0.1...
Eyepiece x10 with graticule scale 10 mm / 0.1 mm
dpvlink
11075

231,00 EUR
Show product
The image shows a microscope with a stable, black base. It has a telescope-like lens, a lateral eyepiece, and a vertical mount that supports the work area. A cable terminates in a control unit.
Preview: Camera adapter C-mount x0.5
Preview: The image shows a cylindrical, black object with two lateral screws. It has a flat surface at the ends. It could be a part of a technical device.
Camera adapter C-mount x0.5
Camera adapter C mount x0.5
dpvlink
11075

283,00 EUR
Show product
The image shows the eyepieces of a microscope. They are silver with black, rubberized edges. A scale indicates the magnification. The rest of the microscope is blurry in the background.
Rubber eyecups for eyepieces (pair)
Eyecups for eyepieces (pair)
dpvlink
11075

14,00 EUR
Show product
The image shows a microscope with a stable metal base. It has two eyepieces and a stage for the object. Next to the microscope is a control panel with buttons.
SX LED ring light with power supply unit
SX LED ring light with power supply
dimmable 0-100%, 4-segment control
dpvlink
11075

386,00 EUR
Show product
The image displays a microscope in black and gray. The upper part features a round lens and an eyepiece, while the base is flat and stable. A cable connects the microscope to a power source.
SX45 Elite Stereo zoom microscope body
SX45 Elite Stereo zoom microscope body
dpvlink
11075

1.077,00 EUR
Show product
The image shows a microscope. It has a black body with two eyepieces and is mounted on a stable base. The structure is modern and functional, with controls for adjustment.
SX45 Elite Trinocular stereo zoom microscope...
SX45 Elite Trinocular stereo zoom microscope body
dpvlink
11075

1.502,00 EUR
Show product
The image shows a gray magnifying device on a stable base. It has a short arm with a lens and controls for adjustment. A switch is located on the bottom.
Stand with LED display incident/transmitted...
Table stand with LED incident/transmitted light
dpvlink
11075

Price on request
Show product
The image shows a microscopic stand with a stable, rectangular base. A vertical, metallic rod supports a swiveling arm with a lens on the left side.
Pillar stand
Column stand
(VE Cam, Makrolite 4K, SX25/45)
dpvlink
11075

729,00 EUR
Show product
The image shows a black mount with multiple arms that can support a device. It is attached to a sturdy base and allows for flexible positioning.
Articulated arm with adapter
Articulated arm stand with adapter
(VE Cam, SX25/45)
dpvlink
11075

1.016,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 554
Complete Catalog 2023 - 2024

Product Family

SX45 with pillar stand

The SX45 is a high-quality stereo zoom microscope with Greenough optical principle for a wide range of applications in the laboratory, research & routine, quality assurance in industry, teaching and training, etc.

High-quality stereo zoom microscope with Greenough optical principle for a wide range of applications, impresses with its solid, durable construction and very easy operation. Image remains in the exact focal plane over the entire zoom range.


Dimensions:

Column stand:

  • Ideal for large spaces
  • Adjustable and swivel-mounted unit for direct attachment to the operator's work surface or with base plate.
  • Flexible and user-friendly.

Properties:

  • High quality components
  • Zoom factor 6.3:1
  • Magnification x4 - x200 (x20 eyepieces)
  • 22 mm eyepieces (field number / field of view) with diopter adjustment
  • Extra long working distance of 220 mm
  • LED illumination (6,000 hours LLD)
  • Adjustable incident and transmitted light
  • Optional sliding stage
  • Optional LED ring light
  • Also available as a column stand or universal articulated arm version
  • Trinocular microscope body for camera connection
  • Excellent price-performance ratio
  • 110V - 240V

Optical data:

Eyepiece

Lens

Magnification range

Working distance

x10/22 F.N.

x0.5

x4 - x25

220.6 mm

x10/22 F.N.

x1.0

x8 - x50

115.0 mm

x10/22 F.N.

x2.0

x16 - x100

57,5 mm

x20/13 F.N.

x0.5

x8 - x50

220.6 mm

x20/13 F.N.

x1.0

x16 - x100

115.0 mm

x20/13 F.N.

x2.0

x32 - x200

57.5 mm


Article image
Article description
Price
Compare
SX45BS - SX45 Elite stereo zoom microscope eyepiece with pillar stand
SX45BS
SX45 Elite stereo zoom microscope eyepiece with pillar stand
2.430,00 EUR
SX45BS-DO8.0 - SX45 Elite stereo zoom trinocular microscope with column stand
SX45BS-DO8.0
SX45 Elite stereo zoom trinocular microscope with column stand
5.594,00 EUR
SX45BS-TR - SX45 Elite stereo zoom microscope eyepiece trinocular device with pillar stand
SX45BS-TR
SX45 Elite stereo zoom microscope eyepiece trinocular device with pillar stand
2.855,00 EUR
