x10 eyepieces (pair)

Name: x10 eyepieces (pair)
SKU: S-004
Price: 260.00 EUR
Availability: InStock

ArticleNo: S-004

x10 eyepieces (pair)

dpvlink:

11075

Further product information

Availability: at short notice

at short notice

260,00 EUR

excl. 19% tax

1 PCE

Compare

Notice / Inquire

Product Info

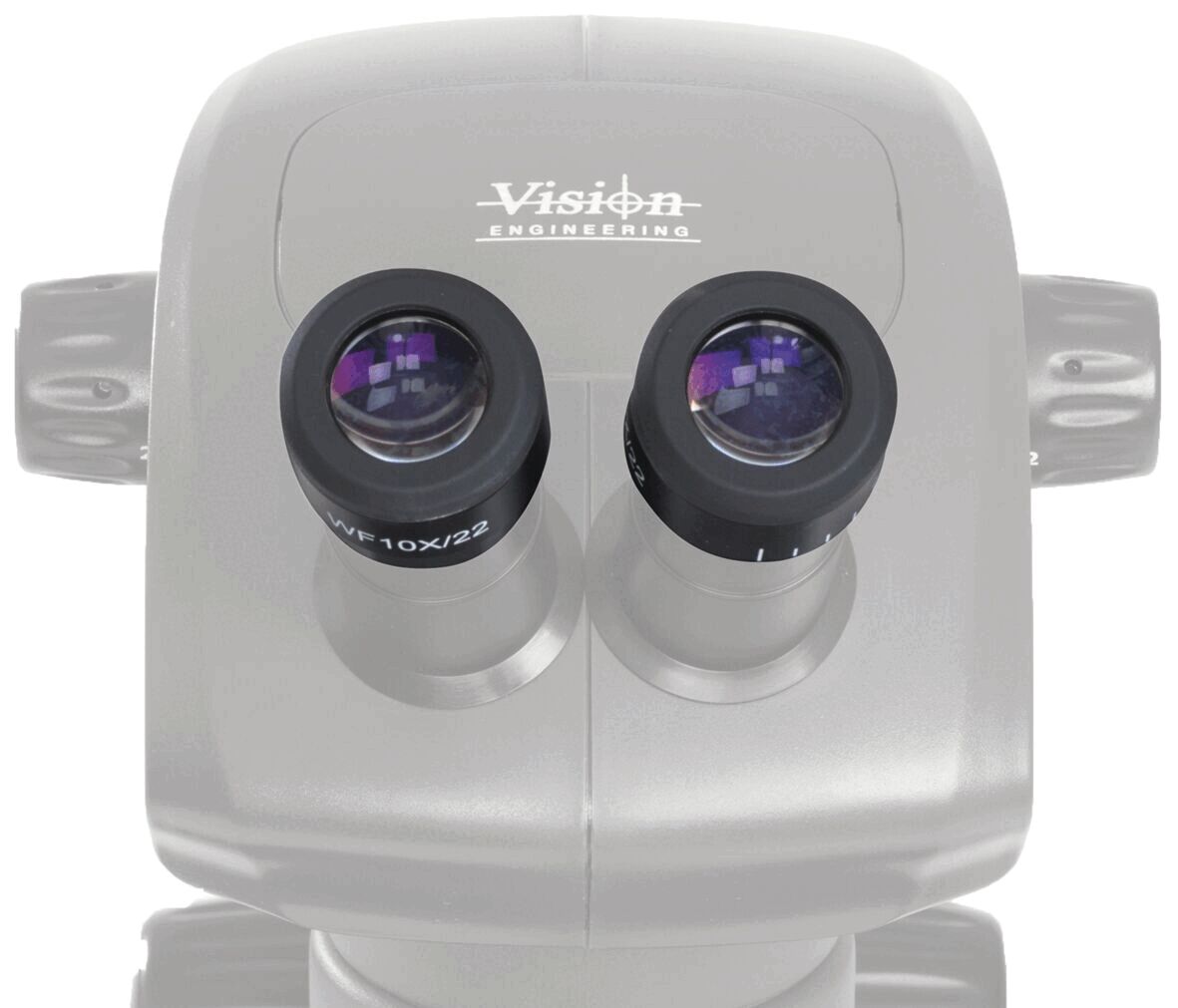

x10 eyepieces (pair)

The x10 eyepieces (pair) from Vision are an essential part of the SX45, a stereo zoom microscope based on the Greenough optical principle. This microscope is excellent for a variety of applications in areas such as laboratories, research, industrial quality assurance, as well as educational and training institutions. The eyepieces provide magnification from x4 to x200 with a zoom factor of 6.3:1 and enable clear viewing with a working distance of 220 mm.
The 22 mm eyepieces feature a diopter adjustment and are part of a system that impresses with its durability and ease of use. The microscope can be used with various stands such as the universal joint arm or the column stand, and offers options for LED lighting as well as accessories for image documentation and archiving.
The robust construction and flexible adaptability make the x10 eyepieces and the SX45 microscope an ideal solution for professional applications requiring high precision.

Details

Common

The binocular SX45 is a high-quality stereo zoom microscope with optical Greenough principle for diverse applications in laboratory, research & routine, quality assurance in the industry, education and training, etc.

High-quality stereo zoom microscope with optical Greenough principle for a wide range of applications impresses by a solid, durable design and its easy operation. The image remains in the exact level of sharpness throughout entire zoom range.

High-quality components
Zoom factor 6.3:1
Magnification x4 - x200 (x20 eyepieces)
22 mm eyepieces (field number / field of view) with diopter setting
Extra long working distance of 220 mm
LED lighting (6,000 hours LLD)
Adjustable incident and transmitted light
Optional sliding table
Optional LED ring light
Also available with pillar stand or articulated arm
Trinocular microscope body for camera connection
Excellent price-performance ratio
110V - 240V

Optical data

Eyepieces	Lenses	Zoom range	Working distance
x10 / 22 F.N.	x0.5	x4 - x25	220.6 mm
x10 / 22 F.N.	x1.0	x8 - x50	115.0 mm
x10 / 22 F.N.	x2.0	x16 - x100	57.5 mm
x20 / 13 F.N.	x0.5	x8 - x50	220.6 mm
x20 / 13 F.N.	x1.0	x16 - x100	115.0 mm
x20 / 13 F.N.	x2.0	x32 - x200	57.5 mm

Table stand, compact and versatile

Highly flexible mechanism for optimized ergonomics and increased efficiency and productivity.
Adjustable LED incident light and LED transmitted light.

Articulated arm,
for an increased reach

Designed for applications requiring more freedom of movement and at the same time constant stability.
Higher flexibility during the inspection of large parts, also suitable for several workstations. Easy mounting with table clamp.

Pillar stand, ideal for large space requirement

Adjustable and swiveling unit for a direct mounting on the working surface of the user or with base plate.
Flexible and easy to use.

Accessories

Image documentation & archiving
Trinocular microscope body for camera and video connection. Modular multimedia solutions for recording, measuring, and storing images.
