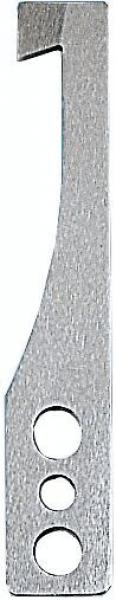

The image shows a metallic tool with a long, narrow shape. It has a notched edge and three round holes in a row. The surface is textured and silver.
Blade L 1.5 standard
(Product No.: 8932122)
The image shows a metallic tool with a long, narrow shape. It has a notched edge and three round holes in a row. The surface is textured and silver.
Notice / Inquire

Blade L 1.5 standard

Blade L 1.5 standard

dpvlink:
5554
Further product information

available available
45,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Blade L 1.5 standard

The "Messer L 1.5 standard" by CAB, specifically designed for use in the Hektor 2 separator, is distinguished by its precise manufacturing from high-quality special steel. This model is ideally suited for small web distances and prevents jamming in the circuit board by always being manufactured 0.15 mm narrower than the milling slot. The standard width of the knife is 1.35 mm, although intermediate sizes can also be made according to individual customer specifications.
The L-knife allows for the punching out of webs without the need to rotate the circuit board, ensuring efficient and time-saving processing. Available in five standard widths, this knife offers a flexible solution for various application needs.
Show accessories
Accessories

Accessories

The image displays a device called "cab Hektograf 2" on a rectangular metal plate. It features a black block on top as well as several connections and hoses on the side.
Off-cut remover Hektor 2
Off-cut remover Hektor 2 pneumatic,
with foot switch, pressure regulator

-without blade-
!Blade not included in the scope of delivery !!!

Serial number:
dpvlink
5547

980,00 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 511
Complete Catalog 2023 - 2024

Product Family

Blades for Hektor 2

The blades for the Hektor 2Ā off-cut removerĀ are made of special steel. Each version is available in 5 standard widths.
To prevent the blade from jamming in the PCB, it should be at least 0.15 mm narrower than the milling slot. Intermediate sizes are manufactured according to customer specifications.
The L-blade is used for small off-cut spacings.
The T-blade is used to cut out off-cuts on the right and left edges. There is no need to turn the PCB.

A = Milling groove widthE = Component clearance solder side
B = recommended blade thicknessF = Milling groove length
C = Blade lengthG = Off-cut width
D = Cutting length
DescriptionArt.Nr.ABCDEFG
Blade T 1.58932137ā‰„1.51.3517.24.7>19.0>19.03.0
Blade T 2.08932138ā‰„2.01.8517.25.2>19.0>19.03.0
Blade T 2.48932191ā‰„2.42.2518.05.7>19.0>19.03.0
Blade T 2.58932139ā‰„2.52.3518.05.7>19.0>19.03.0
Blade T 3.08932144ā‰„3.02.8518.05.7>19.0>19.02.5
Blade L 1.58932122ā‰„1.51.3512.04.7>15.0>13.03.0
Blade L 2.08932123ā‰„2.01.8512.05.2>15.0>13.03.0
Blade L 2.48932141ā‰„2.42.2512.05.7>15.0>13.03.0
Blade L 2.58932124ā‰„2.52.3512.05.7>15.0>13.03.0
Blade L 3.08932125ā‰„3.02.8512.05.7>15.0>13.02.5

T-blade

It is used to punch out off-cuts on the right and left edges.

There is no need to turn the circuit board

L-blade

It is used with small off-cut distances

Die

Included in the scope of delivery


Article image
Article description
Price
Compare
8932123 - Blade L 2.0 standard
8932123
Blade L 2.0 standard
45,00 EUR
8932138 - Blade T 2.0 standard
8932138
Blade T 2.0 standard
57,00 EUR
8932122 - Blade L 1.5 standard
8932122
Blade L 1.5 standard
45,00 EUR
8932137 - Blade T 1.5 standard
8932137
Blade T 1.5 standard
57,00 EUR
8932141 - Blade L 2.4 standard
8932141
Blade L 2.4 standard
45,00 EUR
8932171 - Matrix for Hektor 2 (precision casting)
8932171
Matrix for Hektor 2 (precision casting)
89,00 EUR
8932191 - Blade T 2.4 standard
8932191
Blade T 2.4 standard
57,00 EUR
8932144 - Blade T 3.0, standard
8932144
Blade T 3.0, standard
57,00 EUR
89321XX - Blade width, according to customer's specifications
89321XX
Blade width, according to customer's specifications
-
8932125 - Blade L 3.0 standard
8932125
Blade L 3.0 standard
45,00 EUR
8932124 - Blade L 2.5 standard
8932124
Blade L 2.5 standard
45,00 EUR
8932139 - Blade T 2.5 standard
8932139
Blade T 2.5 standard
57,00 EUR
