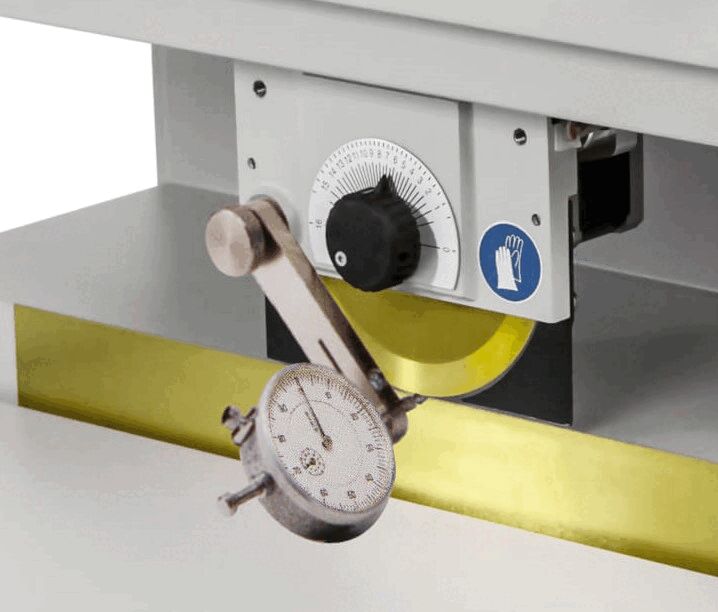

The image shows a machine with a round, yellow cutter and a measuring device. On the side, there is a black button and a safety symbol for hands.
Measuring device
(Product No.: 8970208)
The image shows a machine with a round, yellow cutter and a measuring device. On the side, there is a black button and a safety symbol for hands.
Notice / Inquire

Measuring device

dpvlink:
6250
suitable PCB separator MAESTRO:
3E, 4M, 4S
Further product information

at short notice at short notice
288,35 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Measuring device

The measuring device from CAB is specifically designed for use with the MAESTRO depaneling centers models 3E, 4M, and 4S. This accessory serves the precise adjustment and regular control of the parallelism of the roll and linear knives, ensuring stress-free separation and maximizing the lifespan of the knives. The assembly of the measuring device is done directly on the carriage of the depanelers, allowing precise guidance over the entire length of separation. This product is essential for users who rely on high precision and reliability in processing.
suitable PCB separator MAESTRO
suitable PCB separator MAESTRO
3E, 4M, 4S
