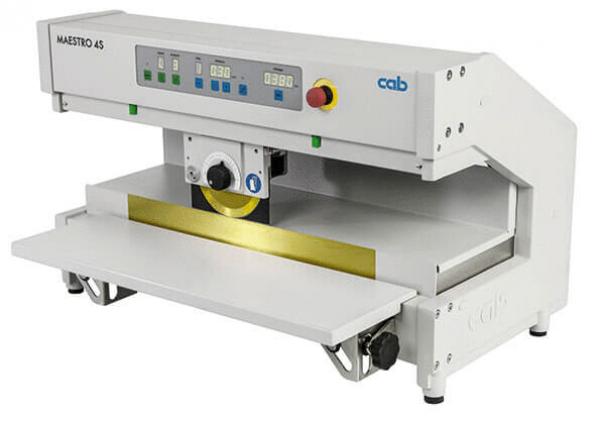

PCB separator MAESTRO 4S / 450 for FR4 PCBs
Stressless cutting of pre-scored PCBs
MAESTRO 4S meets your expectations of versatility for the following requirements:
MAESTRO 4S meets your expectations of versatility for the following requirements:

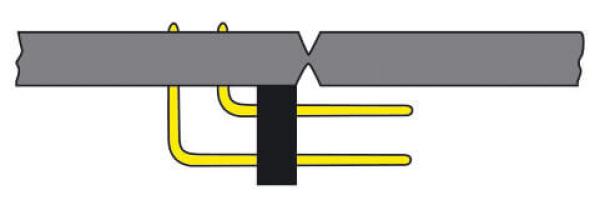

- Directly to the pre-scored groove there are sensitive equipped componentsÂ
- You cut PCBs with a width of up to 3.2 mm
- Aluminium PCBs have to be cut
The PCB separator MAESTRO 4S moves across the pre-scored groove in up to five operation steps. During this precedure the distance of the blades is reduced in programmable steps between 0.6 mm and 0.05 mm. Up to eight programs can be stored in the control panel.

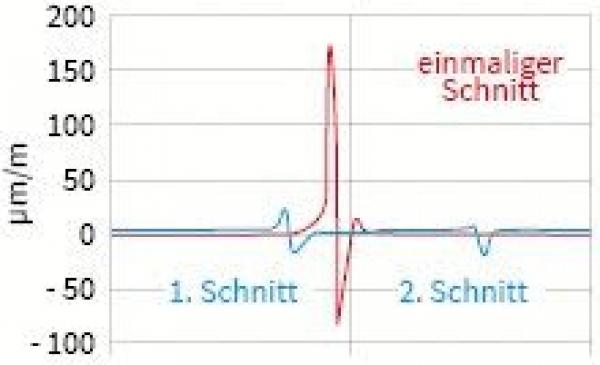

Moving across the pre-scored groove for several times minimizesminimiert tensile and pressure and thus the danger that sensitive components located near the pre-scored groove are damaged. Thick PCBs of FR4 or aluminium are cut without rest by this procedure.
Increasing the factory-set blade distance by 0.1 mm already reduces the tensile and pressure strength by 50 %. Increasing the mm, the stress is minimized by more than 10 times
Technical data:
| Separation principle |  component side: circular blade  solder side: linear blade |
| Â Separation process | Â optimized, motorized |
| Â Separation speed | Â 300, 500 mm/s, switchable |
| Â Materials | Â FR4, aluminium |

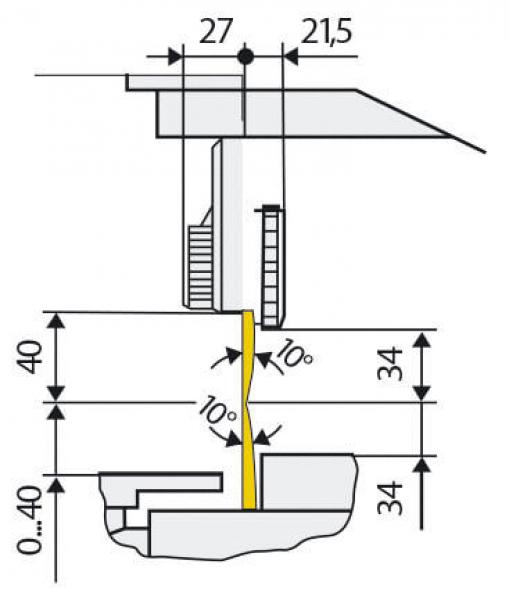

|  Height of component |  component /  solder side up to 34 mm |
| Â Separation length | Â up to 450 mm (model 4S / 450) Â up to 600 mm (model 4S / 600) |
| Â Depth of support table | Â 200 mm |
| Â Voltage | Â 100 - 240 VAC, 50/60 Hz |
| Â Emission sound pressure level | Â LpA < 70 dB (A) |
|  Temperature / operation |  + 10 - 35°C / 10 - 85 % |
|  Humidity storage |      0 - 60°C / 20 - 80 % |
|  not condensing transport Transport |  – 25 - 60°C / 20 - 80 % |
|  Width x height x depth |  702 x 434 x 425 mm (model 4S / 450)  852 x 434 x 425 mm (model 4S / 600) |
| Â Weight | Â 38 kg (model 4S / 450) Â 46 kg (model 4S / 600) |
| Â Approvals | Â CE, FCC Class A |
         Â
Programming
| Â Start | Â Go to start position |
| Â Programs | Â 9 |
| Â Separating steps | Â 1 - 5 |
| Â Blade distance | Â 0.9 - 0.05 mm |
| Â Key button | Â Unlock program selection |
| Â Display cutting performance | Â up to 99 km |
| Â DEL | Â Reset the steps |
| Â Power switch | Â ON/OFF |
| Â Foot switch | Â START separation process |
| Â Safety swith | Â Emergency stop |
Details
- Cutting length Cutting length
- 450 mm
- PCB thickness PCB thickness
- 0.8 - 3.2 mm
- Width [mm] Width [mm]
- 702 mm
- Height [mm] Height [mm]
- 434 mm
- Depth [mm] Depth [mm]
- 425 mm
- Max. component height component side Max. component height component side
- 34 mm
- Max. component height solder side Max. component height solder side
- 34 mm
- Separation speed (per second) Separation speed (per second)
- 300 - 500 mm
- Voltage Voltage
- 100 - 240 V

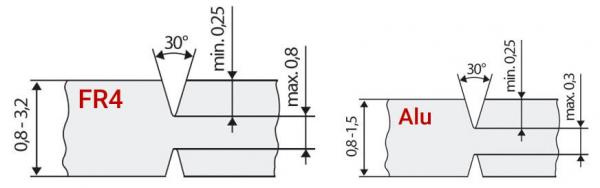

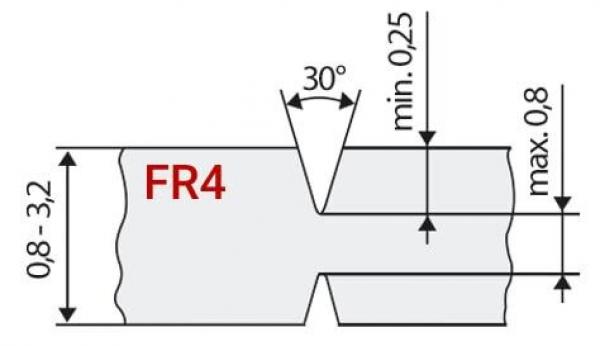

- Depth of scoring Depth of scoring
- 0.25 mm
- Max. remaining thickness Max. remaining thickness
- 1.2 mm
- Version Version
- motorized
- Humidity Humidity
- 10 - 85 %
- Operating temperature Operating temperature
- 10 - 35 °C
- Storage temperature Storage temperature
- 0 - 60 °C
- Transport temperature Transport temperature
- -25 - 60 °C
- Weight Weight
- 38 kg
