PCB separator MAESTRO 4S / 450 for aluminum PCBs
The MAESTRO 4S / 450 depanelizer from CAB is specifically designed for stress-free separation of pre-scored aluminum circuit boards. This device is characterized by its ability to efficiently process circuit boards up to a thickness of 3.2 mm and a separation length of 450 mm. The sensitive components near the score line remain undamaged due to the optimized separation process, which reduces the blade distance programmably between 0.6 mm and 0.05 mm.The separation speed can be switched between 300 and 500 mm/s, with the device using both a rotary blade on the assembly side and a linear blade on the solder side. The depanelizer is equipped with a motor drive and supports up to nine storable programs that can be set via a control panel. With a component height of up to 34 mm on both the assembly and solder sides and a maximum remaining thickness of 1.2 mm, the device offers great flexibility in processing various types of circuit boards.
In addition to the depanelizer, the package includes a power cable, a foot switch, an Allen wrench, a support table including a mounting kit, a measuring device, and an operating manual in both German and English. With dimensions of 702 mm in width, 434 mm in height, and 425 mm in depth, and weighing 38 kg, the MAESTRO 4S / 450 is compact and robustly designed for industrial use.
Details
- Cutting length Cutting length
- 450 mm
- PCB thickness PCB thickness
- 0.8 - 1.5 mm
- Width Width
- 702 mm
- Height Height
- 434 mm
- Depth Depth
- 425 mm
- Max. component height component side Max. component height component side
- 34 mm
- Max. component height solder side Max. component height solder side
- 34 mm
- Separation speed Separation speed
- 300 - 500 mm/s
- Voltage Voltage
- 100 - 240 V
- Depth of scoring Depth of scoring
- 0.25 mm
- Max. remaining thickness Max. remaining thickness
- 1.2 mm
- Version Version
- motorized
- Humidity Humidity
- 10 - 85 %
- Operating temperature Operating temperature
- 10 - 35 °C
- Storage temperature Storage temperature
- 0 - 60 °C
- Transport temperature Transport temperature
- -25 - 60 °C
- Weight Weight
- 38 kg
Accessories
Spares
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
MAESTRO 4S
If the scoring groove is traversed once, sensitive components located close to the scoring groove can be damaged by tensile and compressive stresses. Passing over the scribe groove twice with motorized adjustment of the blade distance minimizes the stresses considerably. The quality of the assembled PCBs is significantly improved.

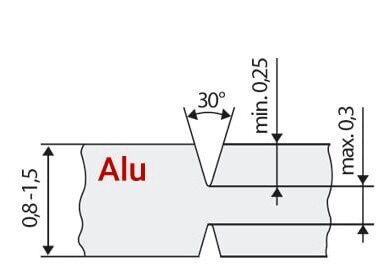

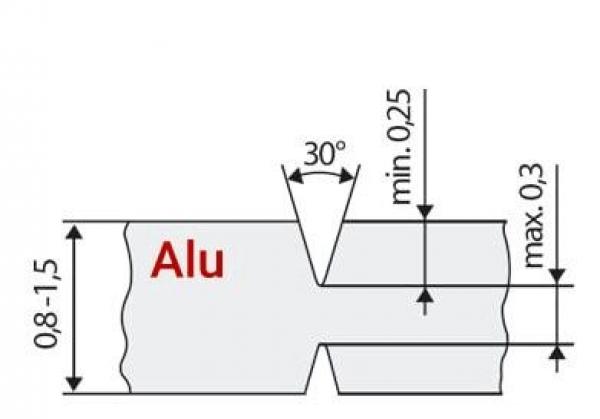

PCB | FR4 | Aluminum |
PCB thickness | 0.8 - 3.2 mm | 0.-1.5 mm |
Typical remaining thickness: | 1/3 of the PCB thickness, max. 0.8 mm | 1/3 of the PCB thickness, max 0.3 mm |
Scoring depth: | min. 0.25 mm | min 0.25 mm |
Extension of the external dimensions after the separation: : | 0.1 - 0.2 mm | 0.1-0.2 mm |
The pre-scored groove can be interrupted by cut-outs.
Component height:
See drawing for dimensions
Measuring device
For stress-free cutting and a long service life, the circular and linear blades must be guided precisely over the entire cutting length. The measuring device is mounted on the carriage to set and regularly check the parallelism.
Programming
| Â Start | Â Go to start position |
| Â Programs | Â 9 |
| Â Separating steps | Â 1 - 5 |
| Â Blade distance | Â 0.9 - 0.05 mm |
| Â Key button | Â Unlock program selection |
| Â Display cutting performance | Â up to 99 km |
| Â DEL | Â Reset the steps |
| Â Power switch | Â ON/OFF |
| Â Foot switch | Â START separation process |
| Â Safety swith | Â Emergency stop |
Maestro 4S / 450 | Maestro 4S / 600 | ||
300, 500 mm/s, switchable | |||
FR4, aluminum | |||
Component height | |||
up to 450 mm | up to 600 mm | ||
200 mm | |||
Voltage | 100 - 240 VAC, 50/60 Hz | ||
LpA < 70 dB (A) | |||
+ 10 - 35°C / 10 - 85 % | |||
0 - 60°C / 20 - 80 % | |||
– 25 - 60°C / 20 - 80 % | |||
702 x 434 x 425 mm | 852 x 434 x 425 mm | ||
Weight | 38 kg | 46 kg | |
CE, FCC Class A | |||
