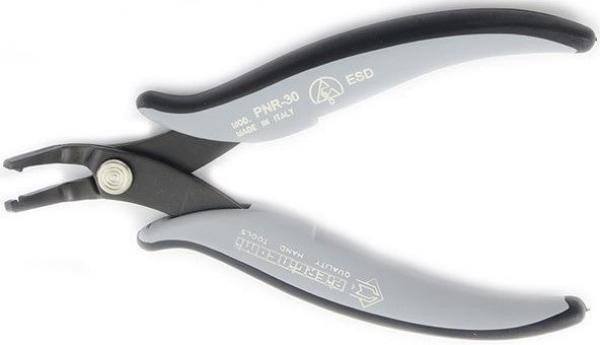

The image shows a pair of pliers with gray handles and a black metal tip. The pliers have a narrow opening and look sturdy and ergonomic. Ideal for precise work.

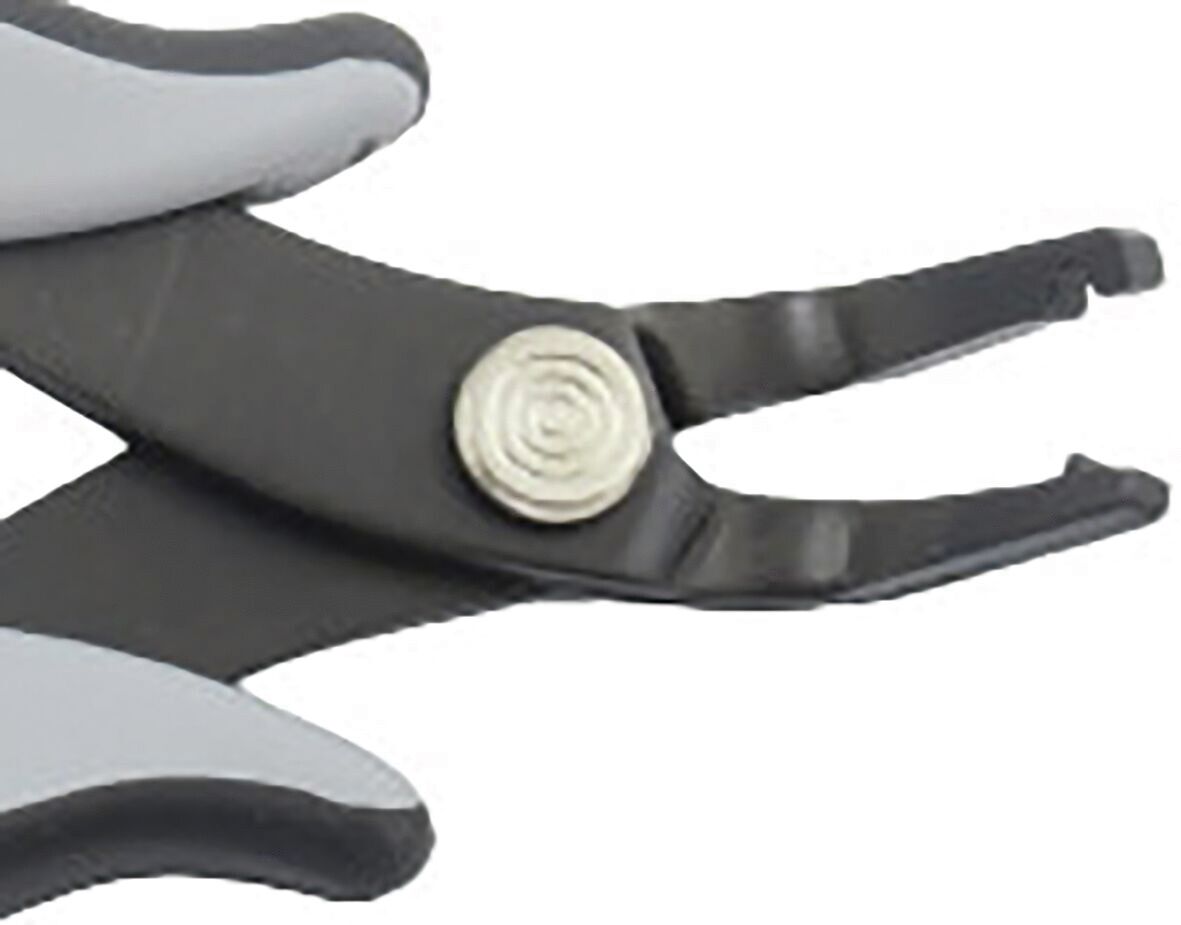

The image shows a gray pliers with two curved jaws. It has a round handle and a silver screw closure in the middle. The pliers are compact and handy.

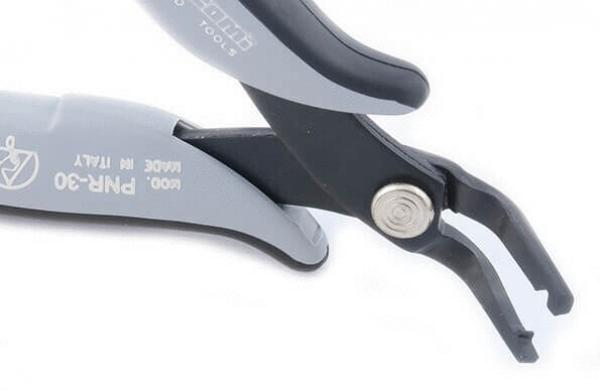

The image shows a large pair of pliers with ergonomic handles. The pliers have two serrated gripping surfaces and a silver screw head in the middle that connects the two halves.

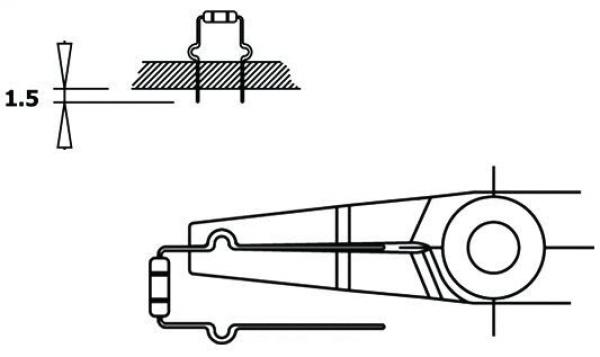

The image displays technical drawings of a component. The top shows a side view with a dimension of 1.5. Below is a detailed top view with additional lines and shape elements.
Preview: The image shows a pair of pliers with gray handles and a black metal tip. The pliers have a narrow opening and look sturdy and ergonomic. Ideal for precise work.
Preview: The image shows a gray pliers with two curved jaws. It has a round handle and a silver screw closure in the middle. The pliers are compact and handy.
Preview: The image shows a large pair of pliers with ergonomic handles. The pliers have two serrated gripping surfaces and a silver screw head in the middle that connects the two halves.
Preview: The image displays technical drawings of a component. The top shows a side view with a dimension of 1.5. Below is a detailed top view with additional lines and shape elements.
Bending pliers PNR-30.D
(Product No.: PNR-30.D)
The image shows a pair of pliers with gray handles and a black metal tip. The pliers have a narrow opening and look sturdy and ergonomic. Ideal for precise work.
The image shows a gray pliers with two curved jaws. It has a round handle and a silver screw closure in the middle. The pliers are compact and handy.
The image shows a large pair of pliers with ergonomic handles. The pliers have two serrated gripping surfaces and a silver screw head in the middle that connects the two halves.
The image displays technical drawings of a component. The top shows a side view with a dimension of 1.5. Below is a detailed top view with additional lines and shape elements.
Mobile Preview: The image shows a pair of pliers with gray handles and a black metal tip. The pliers have a narrow opening and look sturdy and ergonomic. Ideal for precise work.
Mobile Preview: The image shows a gray pliers with two curved jaws. It has a round handle and a silver screw closure in the middle. The pliers are compact and handy.
Mobile Preview: The image shows a large pair of pliers with ergonomic handles. The pliers have two serrated gripping surfaces and a silver screw head in the middle that connects the two halves.
Mobile Preview: The image displays technical drawings of a component. The top shows a side view with a dimension of 1.5. Below is a detailed top view with additional lines and shape elements.
Notice / Inquire

Bending pliers PNR-30.D

Bending pliers PNR-30.D

dpvlink:
2309
Max Ø soft:
0.81 mm
Length [mm]:
145 mm
Properties:
Further product information

available available
12,80 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Bending pliers PNR-30.D

The bending pliers PNR-30.D from Piergiacomi have been specifically developed for the deformation of wires in a "C" shape and are ideally suited for precise work in electronics manufacturing. These pliers have a length of 145 mm and can process copper wires up to a diameter of 0.81 mm (20 AWG). The ESD version complies with the standard DIN EN 61340-5-1, making it safe for use in ESD-protected areas.
The material of the pliers is made of robust steel, and they have a beveled head shape that allows for precise manipulation. The bending angle of 45° supports effective and accurate bending operations. The grooved bending pliers are also dissipative, providing additional protection against electrostatic discharges. Ideal for technical professionals in the electronics industry who need a reliable and precise tool solution.
Max Ø soft
Max Ø soft
0.81 mm
Length [mm]
Length
145 mm
Material
Material
steel
ESD
ESD
yes
Head shape
Head shape
oblique
Type of pliers
Type of pliers
Bending pliers
Degree of bending
Degree of bending
45 °
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 461
Complete Catalog 2023 - 2024

Product Family

Bending pliers PNR-30.D

Article image
Article description
Max Ø soft
Length [mm]
Price
Compare
PNR-30.D - Bending pliers PNR-30.D
PNR-30.D
Bending pliers PNR-30.D
0.81 mm
145 mm
12,80 EUR
Show Compare List (0)
